Description

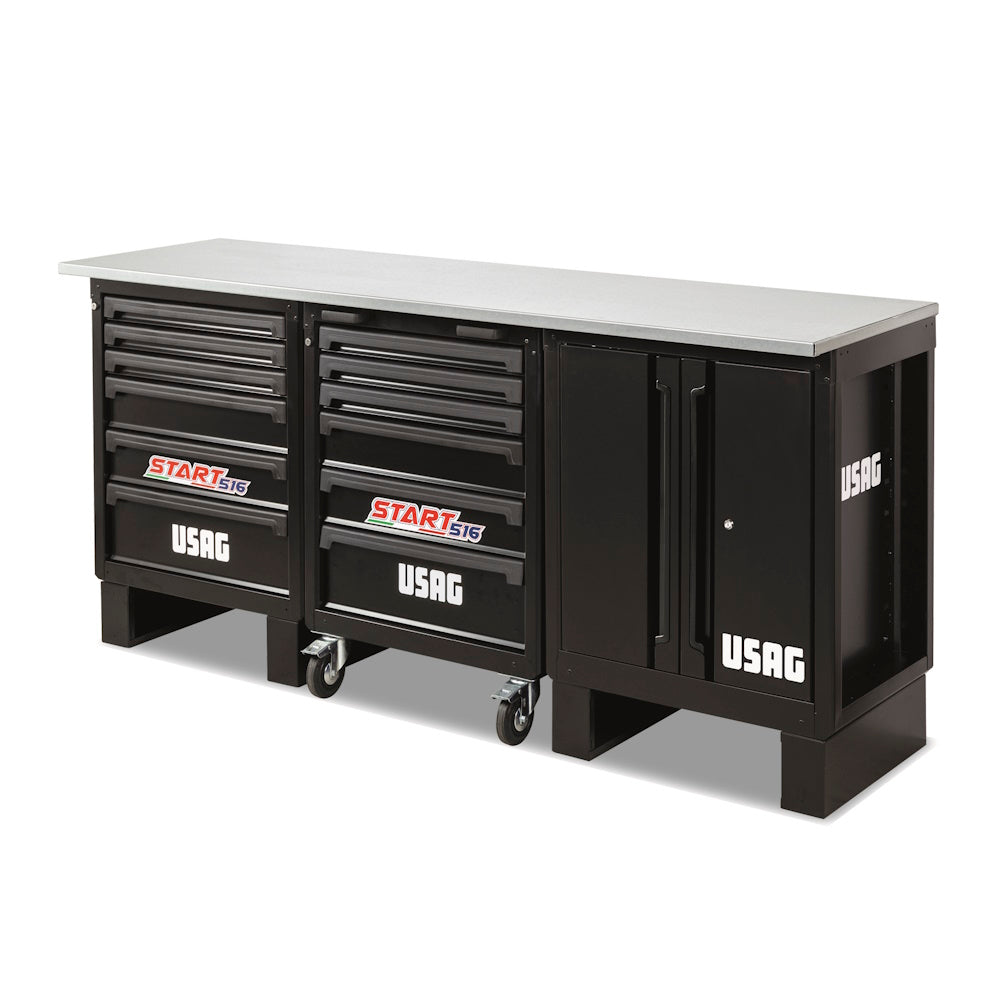

USAG U05160289 516 SA/BCA Steel workbench with trolley
• Bottle holder.
• Fixed cabinet with 6 drawers.
• Fixed cabinet with 2 doors.
• START trolley - 6 drawers (empty).
• Raised stand for furniture.
Bottle holder
• Side accessory for START 516 and RACING 519 trolleys.
• Also suitable for the basic modules of the START 516 furniture line.
• Internal oil-resistant plastic tray.
• In RAL 9005 painted steel.

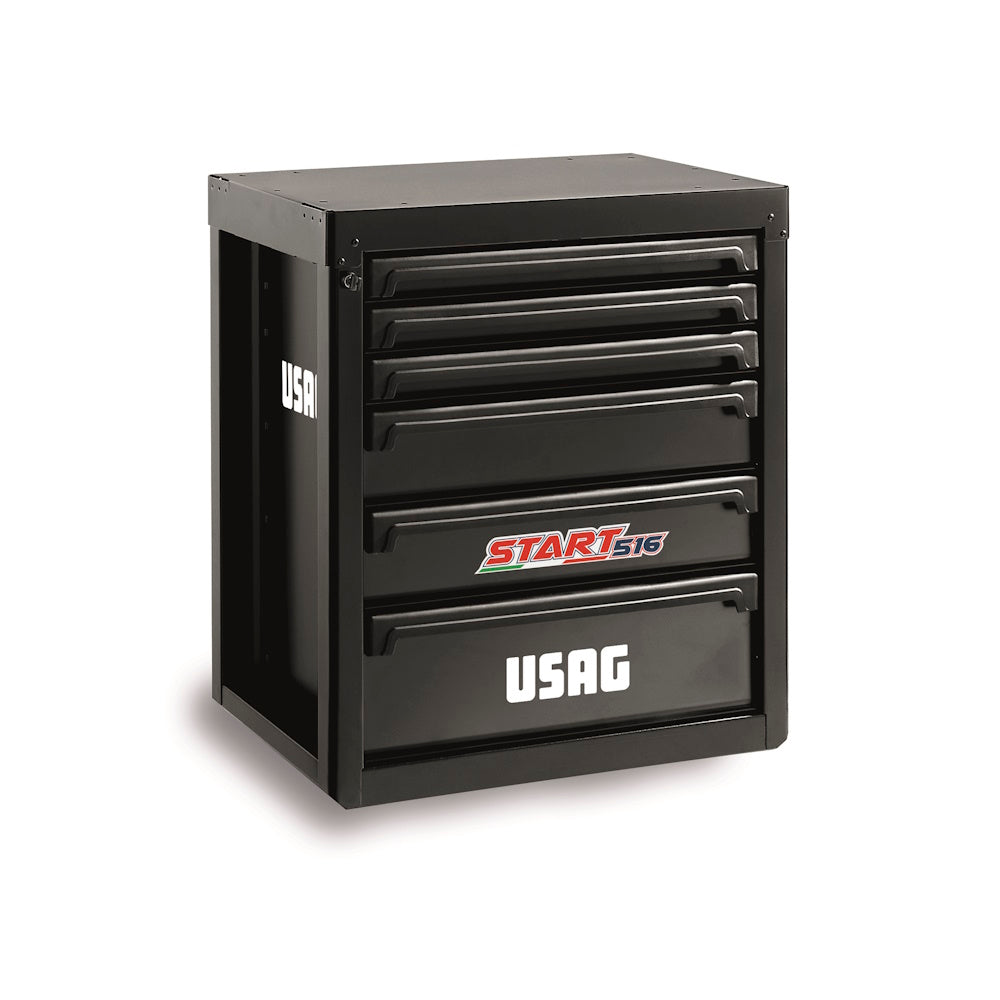

Fixed cabinet with 6 drawers
• Fully extractable drawers mounted on telescopic ball-bearing slides.
• Possibility of inserting 3 tool holder modules for each drawer.
• Drawer handles in high-resistance ABS.
• Possibility of mounting the 516 AC series side accessories (from 516 AC1 to 516 AC8).
• Internal oil-resistant rubber mats.
• Centralized safety lock.
• Supplied with bottle holder system that can be positioned on the right or left, spare part code SER.SBN1.
• Structure and drawers in sheet steel with epoxy paint, black RAL 9005.
• Drawers can be used with 519 SB dividers.
• Maximum static load: 1,000 kg.
• Possibility of using the 516 SA/11T riser obtaining a total height of 1006 mm (including worktop).
• Possibility of mounting 516 SA/15 feet to perfectly adjust the heights.
• Maximum drawer capacity: 20 kg for 60 mm high drawers, 25 kg for 130 mm high drawers and 30 kg for 200 mm high drawers.
• 3 drawers 570x420x60 mm.
• 2 drawers 570x420x130 mm.
• 1 drawer 570x420x200 mm.

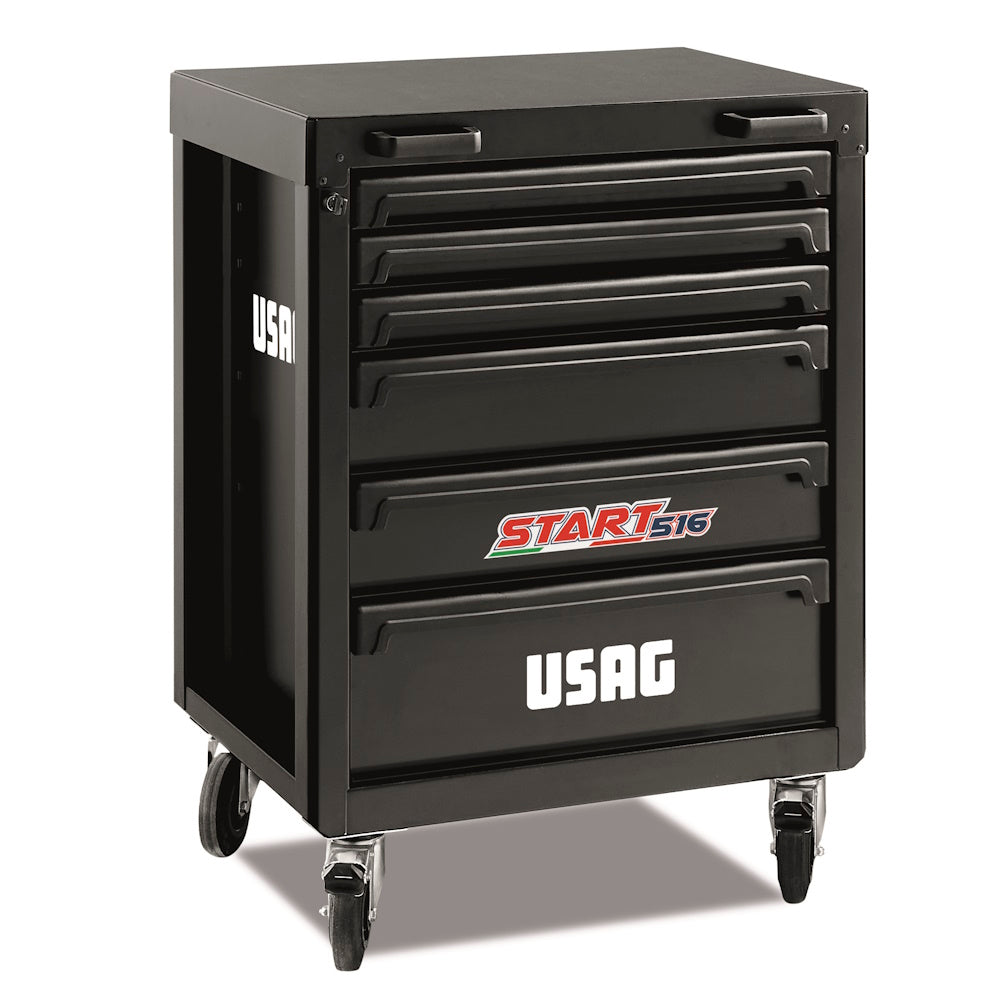

START trolley - 6 drawers (empty)
• Ideal for use in combination with the 516 furniture line.
• Worktop in high-resistance ABS.
• Double front carrying handle for greater maneuverability.
• Fully extendable drawers mounted on telescopic ball-bearing slides.
• Possibility of inserting 3 tool holder modules for each drawer.
• Drawer opening handles in high-resistance ABS.
• Internal oil-resistant rubber mats.
• Centralized safety lock.
• Oil-resistant rubber wheels (Ø 125 mm): four swivel (two with brake).
• Structure and drawers in sheet steel with epoxy paint, black RAL 9005.
• Maximum static load: 800 kg.
• Maximum drawer capacity: 40 kg.
• 3 drawers 570x420x60 mm.
• 2 drawers 570x420x130 mm.
• 1 drawer 570x420x200 mm.

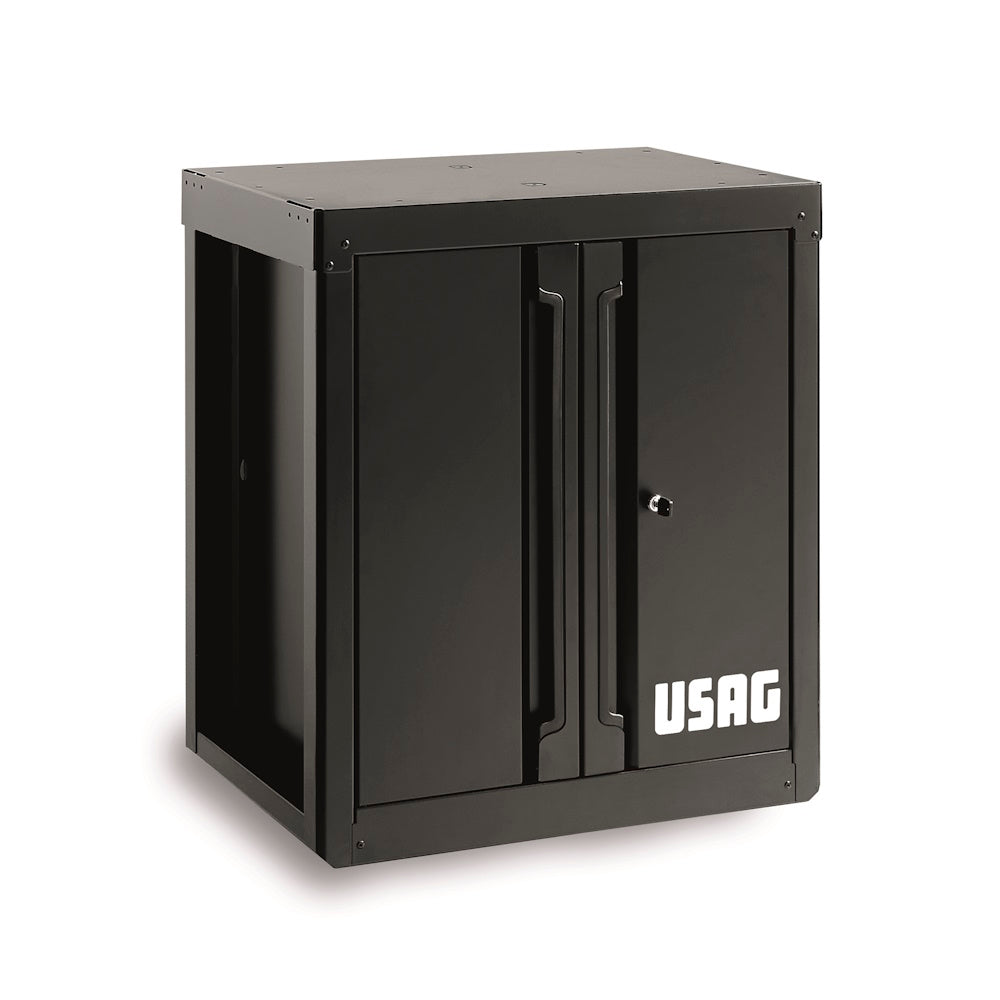

Fixed cabinet with 2 doors
• 1 internal shelf adjustable in height, resistant to a load of 50 kg with 70 mm steps.
• Centralized safety lock.
• Structure in sheet steel with epoxy paint, black RAL 9005.
• Possibility of mounting side accessories such as waste bin 519 RA1, 519 RA5 bottle holder, 519 RA2 document holder, 519 RA4 toilet roll holder.
• Possibility of using the 516 SA11T riser to obtain a total height of 1006 mm (including worktop).
• Possibility of fitting 516 SA/15 feet to perfectly adjust the heights.

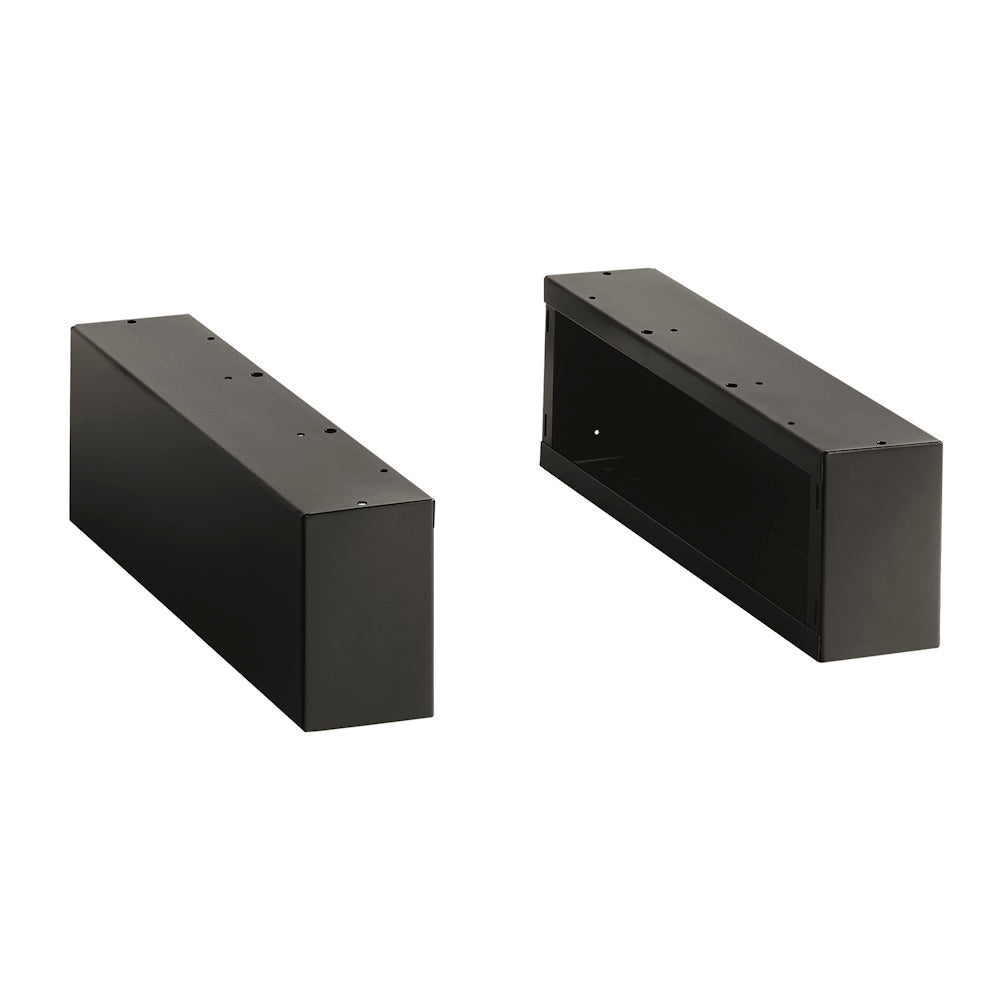

Furniture riser
• Can be used with fixed furniture 516 SA/1T, 516 SA1T/7, 516SA/2T, 516 SA17T and cabinets 516 SA/3T, 516 SA3T/2.
• Possibility of mounting 516 SA/15 feet to perfectly adjust the heights.
• Structure in sheet steel with epoxy paint, black RAL 9005.
