Description

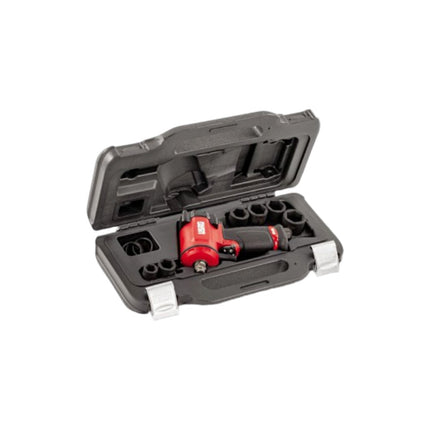

USAG 942 PC3/C7 – Impact Wrench + Impact Sockets (7 pcs)
Assortment in a modular case with USAG 942 PC3 extra-compact 1/2" pneumatic impact wrench and a set of impact sockets. Ideal for quick tightening/loosening of nuts and bolts in tight spaces. Compact structure (body length ≈ 11 cm), JUMBO impact mechanism, and air exhaust channeled into the handle with silencer for comfortable professional use.
- Compact plastic container, integrated ergonomic handle, double metal clip; empty case code: U09420015Q.
- Extra-compact and balanced tool to reduce fatigue and improve access to tight spaces. narrow.

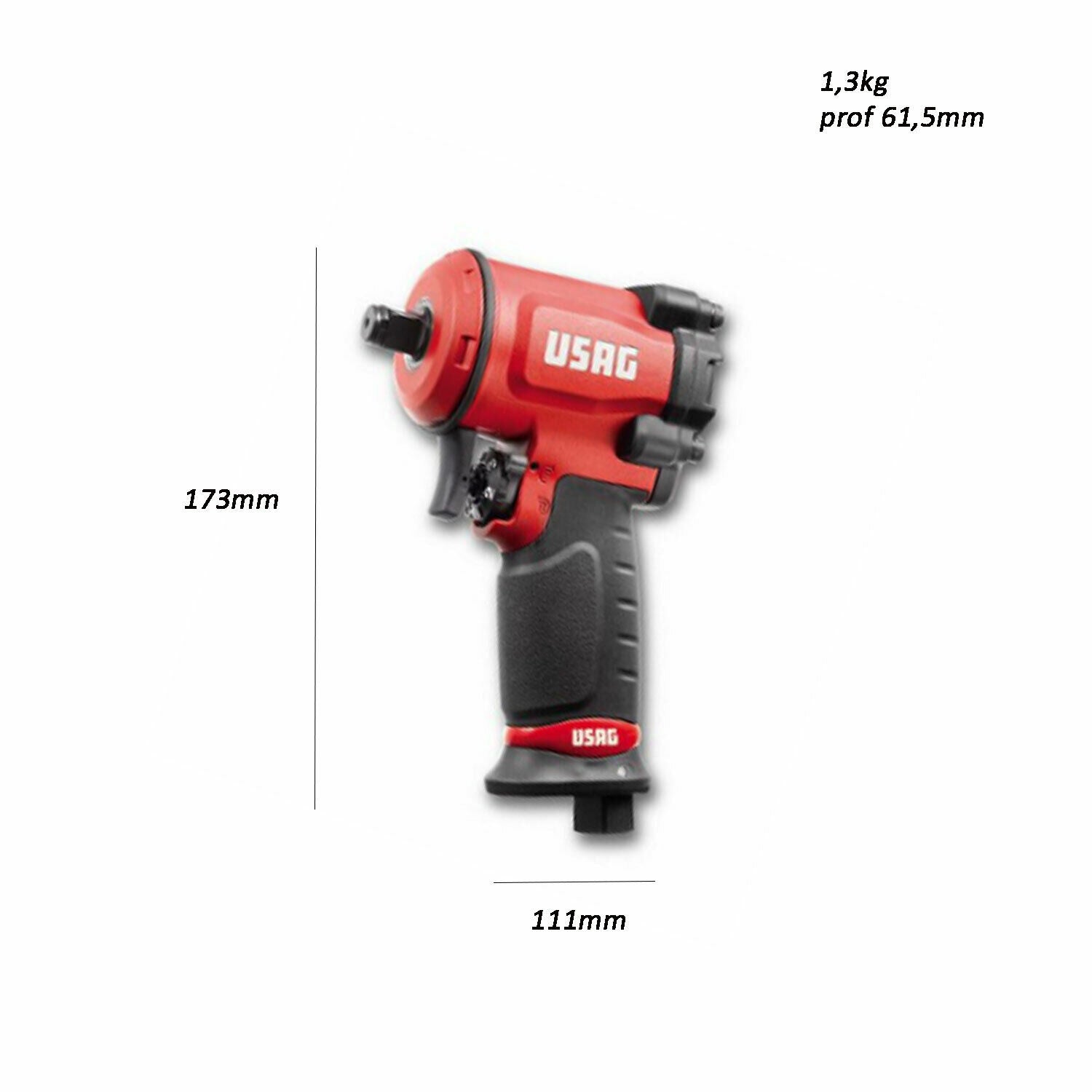

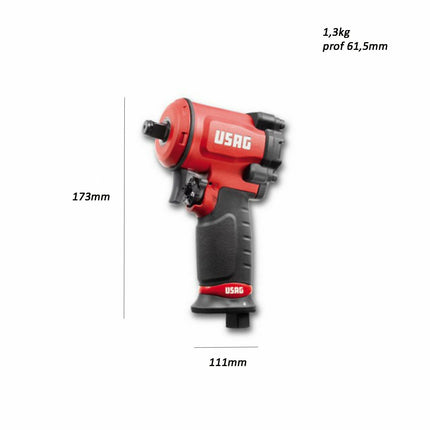

Technical Specifications – 942 PC3 Impact Wrench
| Square Drive |
1/2" |
| Bolt Capacity |
M16 |
| Maximum Torque |
861 Nm |
| Working Torque |
150–220 Nm |
| Impacts per Minute |
1,650 ipm |
| No-load speed |
10,000 rpm |
| Average air consumption |
127 L/min |
| Recommended air pressure |
6.2 bar |
| Sound pressure |
91.1 dB(A) ±3 |
| Sound power |
108.1 dB(A) ±3 |
| Vibrations |
9.57 m/s² |
| Air connection |
GAS 1/4" |
| Internal air hose Ø |
10 mm |
| Construction notes |
Extra compact structure (≈11 cm), JUMBO percussion, air exhaust in the handle with silencer |
Kit composition (7 pieces)
| Item |
Pieces |
Measurements |
| 942 PC3 1/2 – Impact Wrench (Extra Compact) |
1 |
— |
| 235 1/2 M – Hex Impact Sockets |
6 |
13–17–19–21–22–24 mm |
| 235 MCA – Retaining Pin |
1 |
Ø 4 mm |
| 235 MDA – Retaining Ring security |
1 |
Ø 4 mm |
