Description

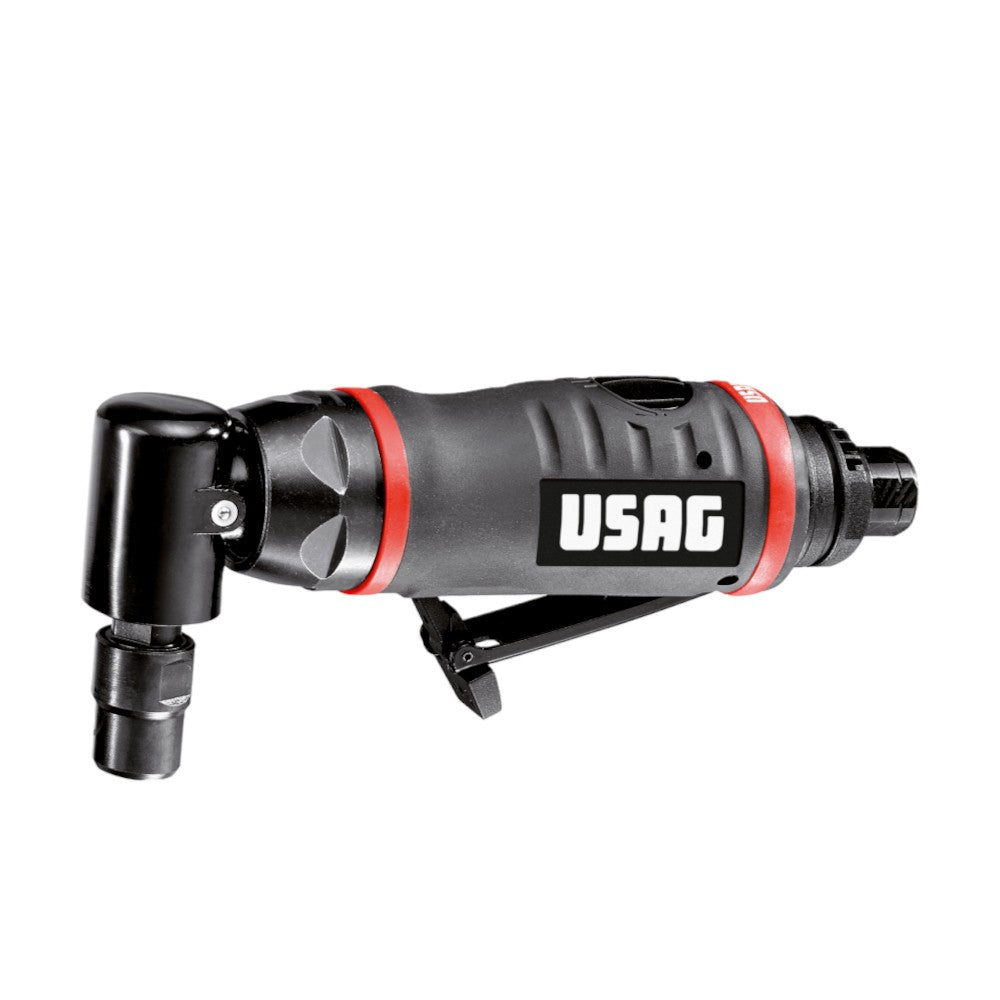

USAG 922 BP1 Pneumatic Grinder – 90°
The USAG 922 BP1 pneumatic grinder is ideal for removing weld seams, burrs, and ridges on castings, as well as for finishing work in tight spaces. The 90° angled body allows for better accessibility, and the double bearing cage ensures long life. The non-slip handle isolates from vibrations and cold; the rotation speed is adjustable, and the safety button prevents accidental activation. The air exhaust is rear-mounted and the tool is supplied with a 6 mm collet.
Technical data
USAG 922 BP1 technical data
| No-load speed |
23,000 rpm |
| Power |
0.3 HP (220 W) |
| Collet capacity |
6 mm |
| Average air consumption |
76 L/min |
| Pressure Recommended |
6.2 bar |
| Sound pressure |
85.9 dB(A) ±3 dB(A) |
| Sound power |
96.9 dB(A) ±3 dB(A) |
| Vibration level |
4.54 m/s² |
| Air inlet |
1/4″ |
| Internal diameter of air hose |
10 mm |
Codes Spare part
- Rotor blades:
U04050043.
- 6 mm caliper:
U04050037.
