Description

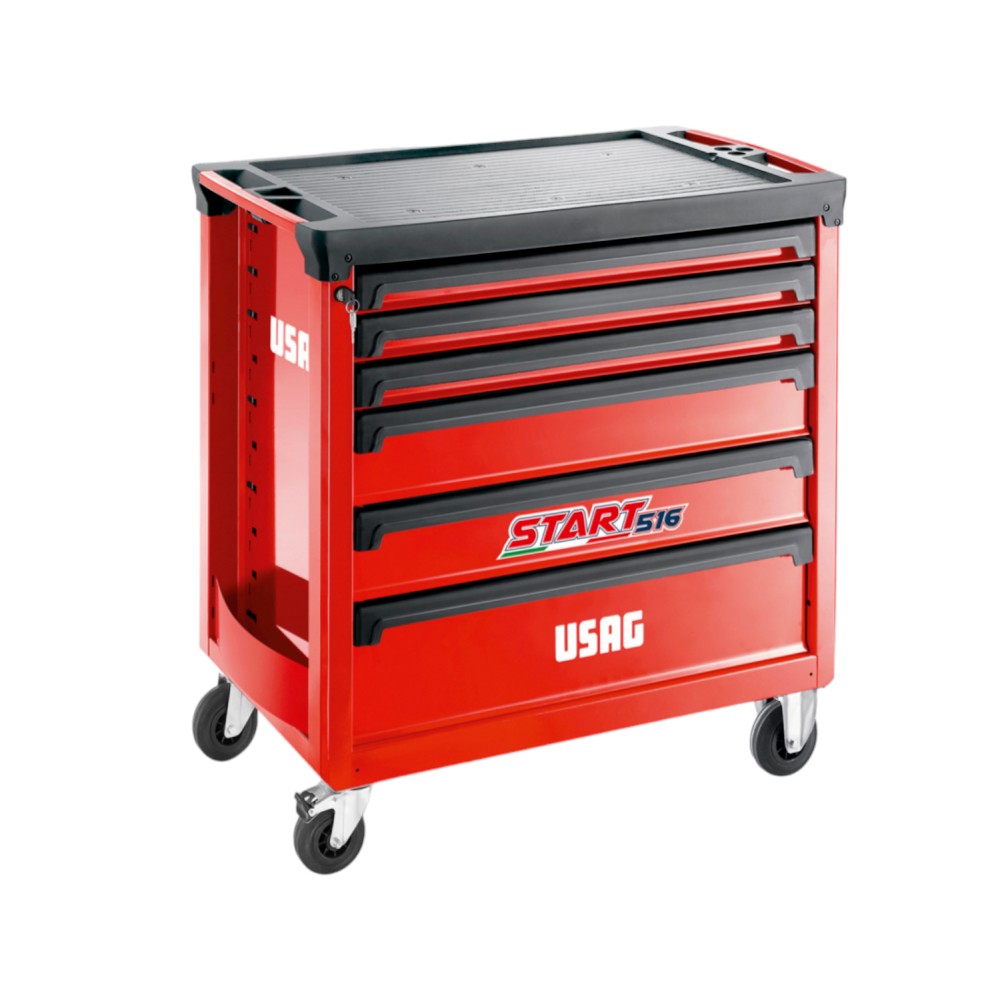

USAG 516 STXL6V Start XL Trolley – 6 Drawers (Empty)
The USAG 516 STXL6V trolley is a professional tool trolley with 6 drawers that slide on 35 mm ball bearing slides, each with a load capacity of up to 40 kg. The 460 x 560 mm ABS worktop features a 15 mm edge to prevent slipping and can accommodate tool modules. The double side handles make it easy to transport. The frame and drawers are made of epoxy-coated sheet steel; the drawers are equipped with anti-oil mats. The central locking system ensures safety. The oil-resistant rubber wheels (diameter 125 mm) include two fixed and two swivel wheels (one with brake).
Equipment and features

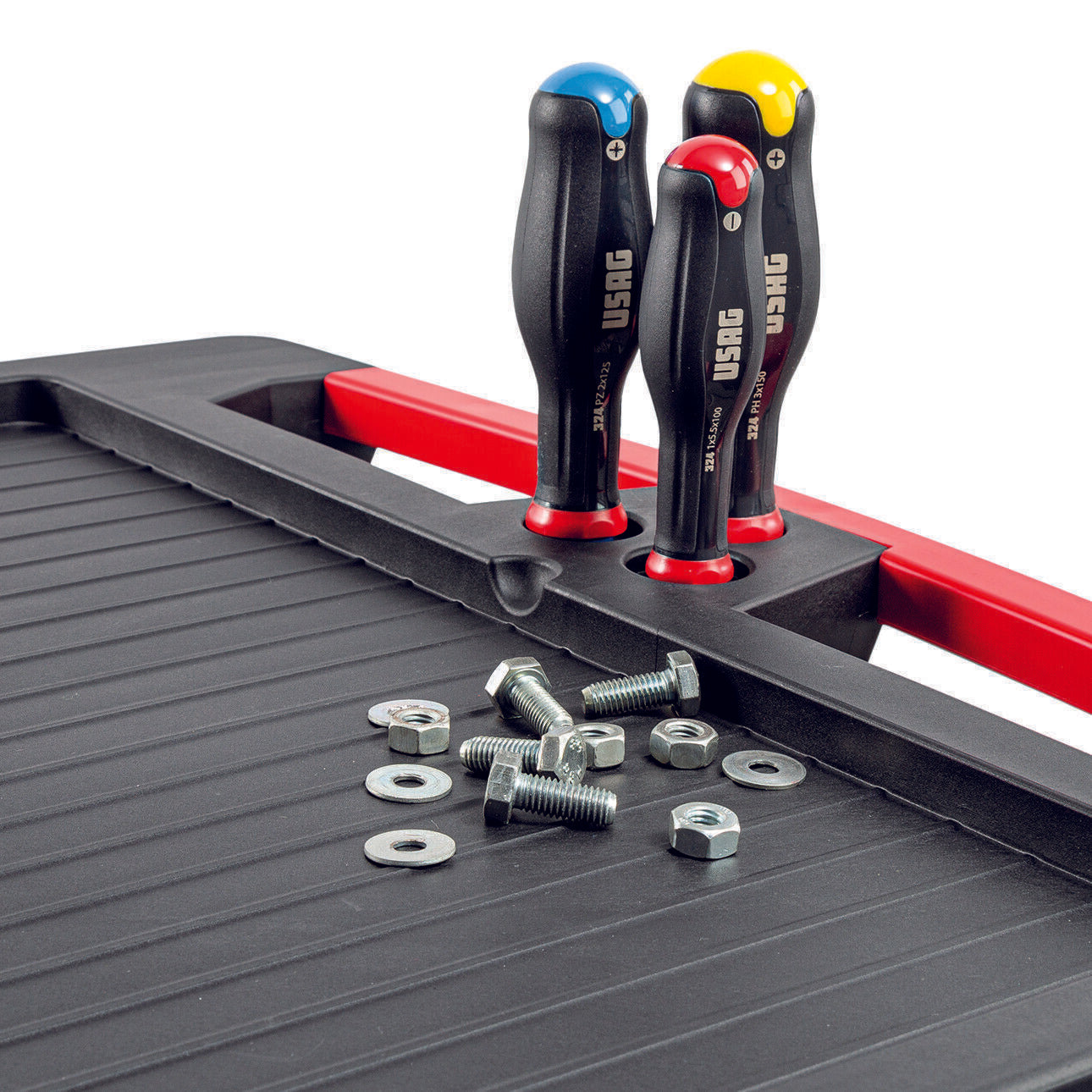

- High-resistance ABS worktop with 15 mm anti-fall edge.
- Double carrying handle for greater maneuverability.

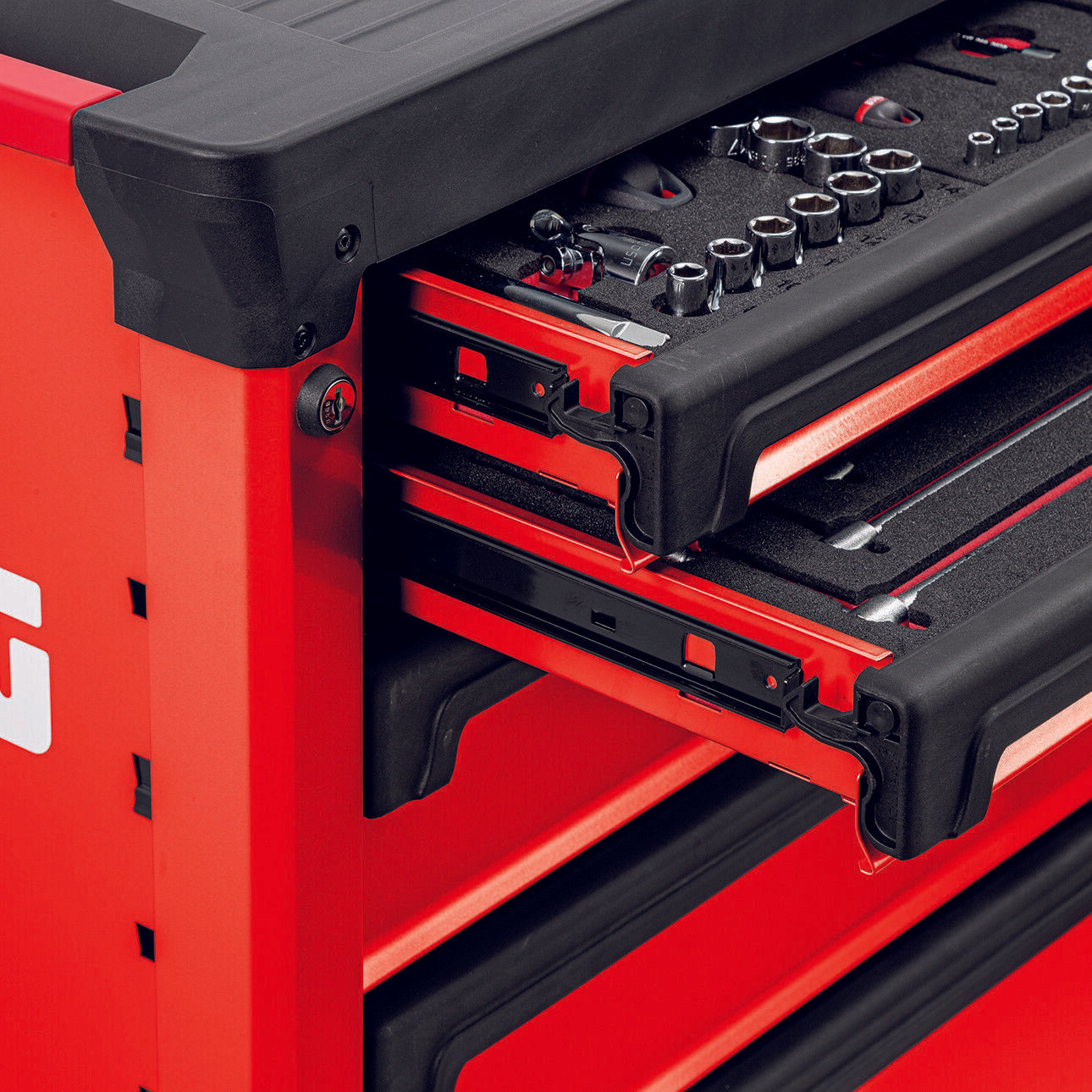

- Full-extension drawers mounted on telescopic ball-bearing slides.
- Possibility of inserting 4 tool holder modules for each drawer.
- High-resistance ABS drawer handles with tilt opening.
- Internal oil-resistant rubber mats.
- Safety lock with centralized lock.
- Bottle holder system can be positioned on the right or left.
- Oil-resistant rubber wheels Ø 125 mm: two fixed and two Swivel (one with brake).
- Structure and drawers made of sheet steel with epoxy paint, color red RAL 3020.
- Supplied with casters already assembled to the structure.
- Maximum static load: 800 kg.
- Maximum drawer capacity: 40 kg.
- Internal drawer dimensions: 3 drawers 760×420×60 mm, 2 drawers 760×420×130 mm, 1 drawer 760×420×200 mm.
Dimensions
Dimensions USAG 516 STXL6V
| Depth (P) |
515 mm |
| Height (H) |
972 mm |
| Width (L) |
969 mm |
| Weight |
68 kg |
