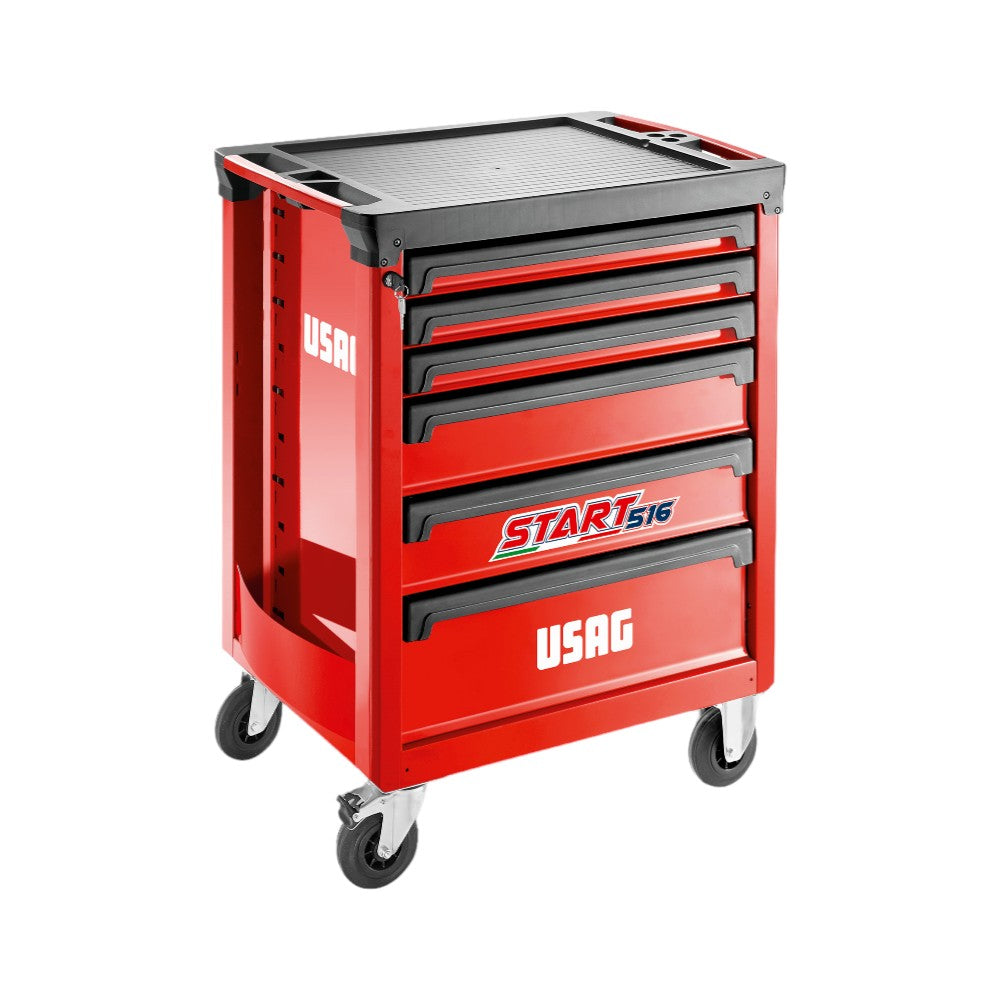

USAG 516 ST6V 6-Drawer Start Trolley (empty)

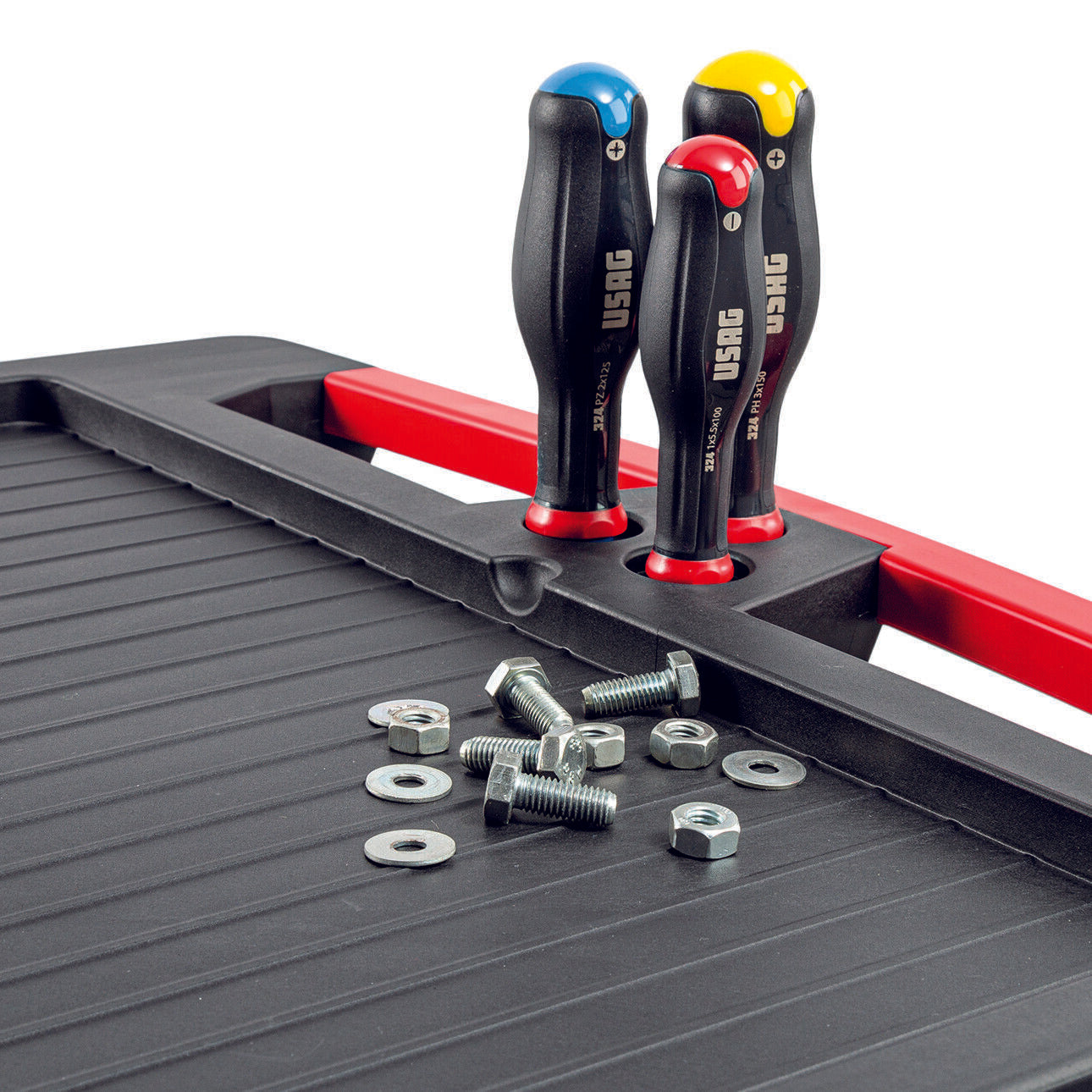

The 516 ST6V is the USAG tool trolley from the Start series, updated in 2021 with an even more functional design. The ABS worktop measures 460 x 560 mm and features a 15 mm edge to prevent it from falling. The 35 mm slides allow a load capacity of 40 kg per drawer, while the reinforced ABS handles with a tilting opening make it easier to remove. The total depth of the cart is 515 mm, providing stability and storage capacity.
Features
- High-strength ABS worktop with 15 mm anti-slip edge.
- Double carrying handle for greater maneuverability.

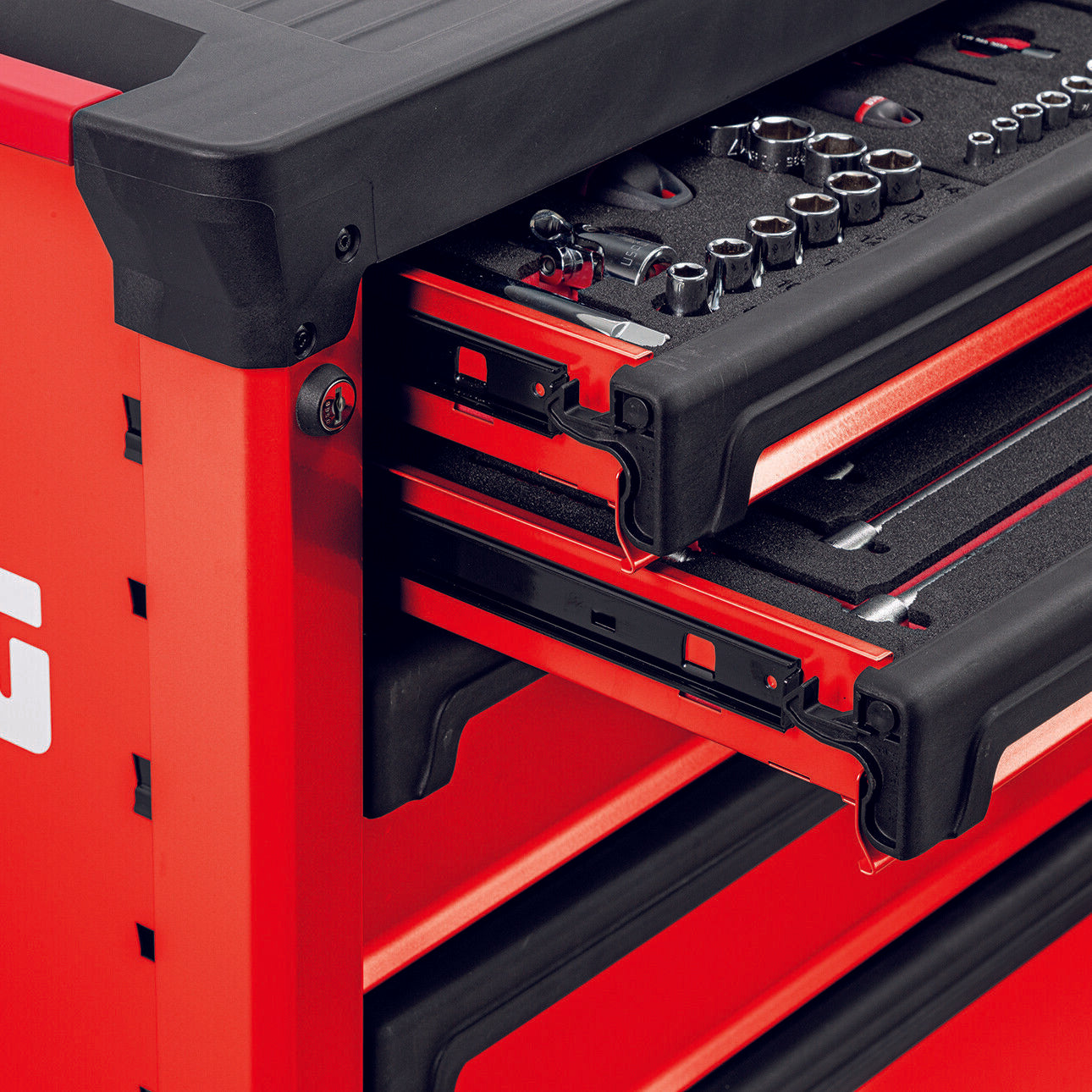

- Full-extension drawers on telescopic ball-bearing slides.
- Option to insert three tool modules per drawer.
- Reinforced ABS drawer handles with tilt opening.
- Internal oil-resistant rubber mats.
- Safety lock with centralized lock.
- Bottle holder system can be positioned on the right or left.
- Oil-resistant rubber wheels, Ø 125 mm: two fixed and two swivel (one with brake).
- Frame and drawers made of sheet steel painted red RAL 3020.
- Wheels pre-assembled to the frame.
- Maximum static load: 800 kg.
- Maximum drawer capacity: 40 kg.
- Internal drawer dimensions: 3 × 570 × 420 × 60 mm, 2 × 570 × 420 × 130 mm, 1 × 570 × 420 × 270 mm.
Dimensions
USAG 516 ST6V Dimensions
| Depth (D) |
515 mm |
| Height (H) |
972 mm |
| Width (L) |
779 mm |
| Weight |
55 kg |
