Description

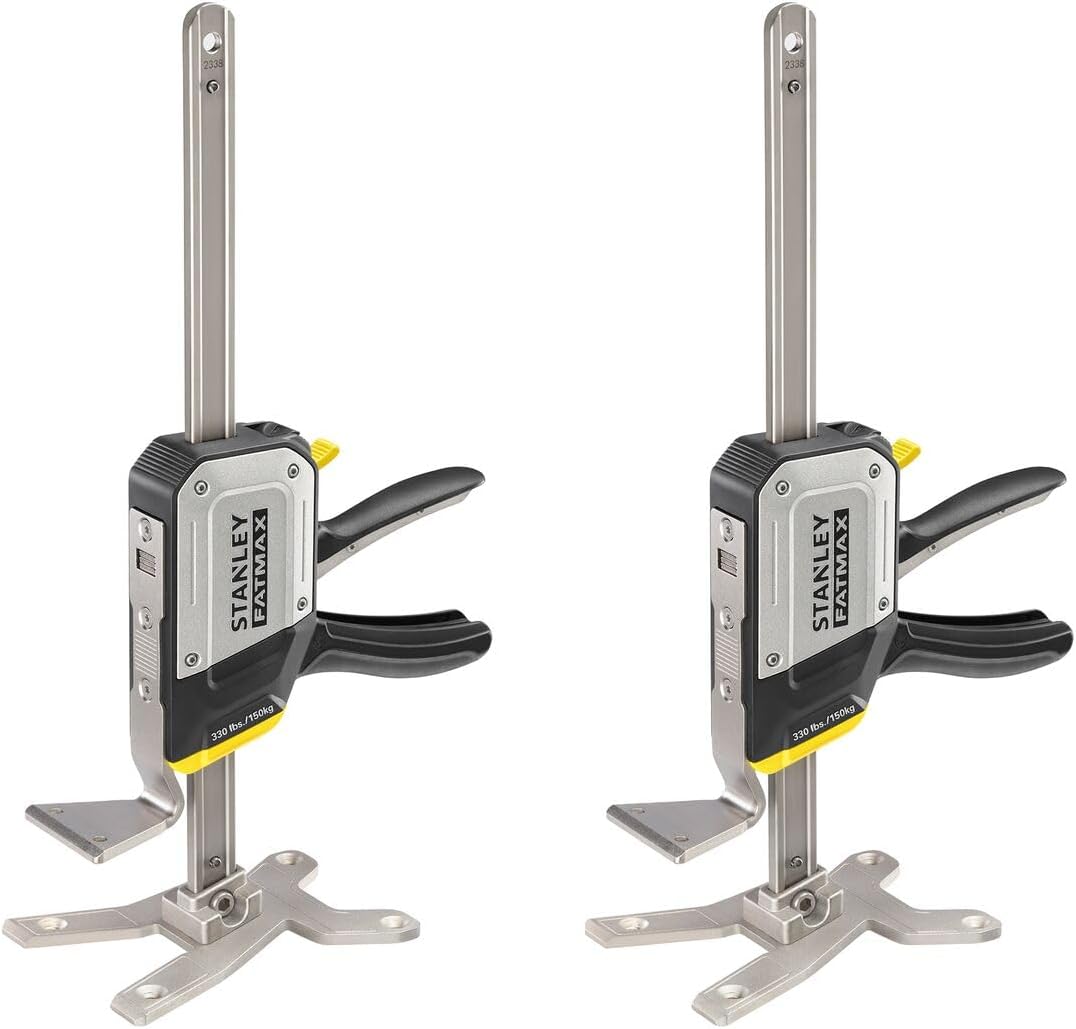

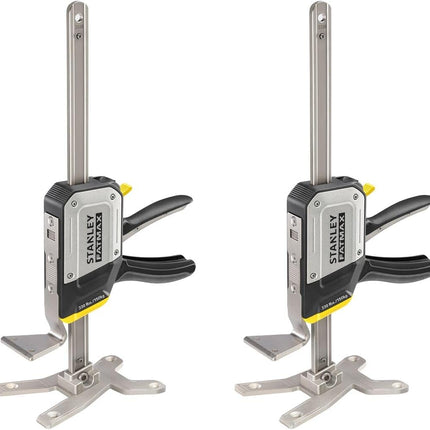

STANLEY® FMHT83552-1 TradeLift™ Multifunction Lift
An extra hand to work better - even with your foot. TradeLift™ is a device for lifting heavy objects for professional use. Ideal for windows, plasterboard panels, security and fire doors, furniture and appliances. Lifting mechanism protected by a metal housing that prevents contact with dust or debris. Beveled base to facilitate positioning under objects, extended at the rear for greater stability. Anchoring points to screw the base to the floor for additional stability. Recessed full release lever to prevent accidental release. Gradual lowering lever. Lowers the lifting plate by 2.5 mm with each actuation for precise adjustment. Metal lifting lever, with rubber coating for greater comfort and grip, can also be operated with one foot. The mechanism allows for an 8 mm lift with each actuation. Maximum load capacity 150 kg. Lifting capacity: from 7 mm to 220 mm. Gradual lowering: 2.5 mm. Base dimensions: 170 × 125 × 6 mm.
Features
• TWO-PIECE PACK FOR INDEPENDENT WORK: Ideal for carrying out applications that would require more than one person - with lifting capacity up to 150 kg and a height of 220 mm
• MULTIPLE PROFESSIONAL APPLICATIONS: Allows a wide range of lifting, levelling, installation and widening operations for windows, carpentry, joinery, plasterboard, kitchen cabinets, floors and construction in general, in a simple and safe.

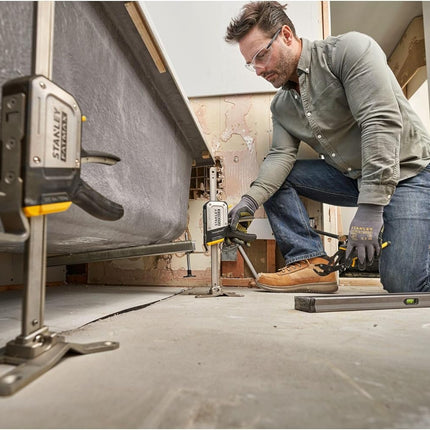

• THE LIFTING LEVER CAN ALSO BE OPERATED WITH THE FOOT: Thus allowing for simple and safe use, reducing the risk of injuries associated with lifting heavy or awkward objects such as sheets of material, doors or large household appliances.
• ALLOWS ONE PERSON TO WORK INDEPENDENTLY: Professional field.

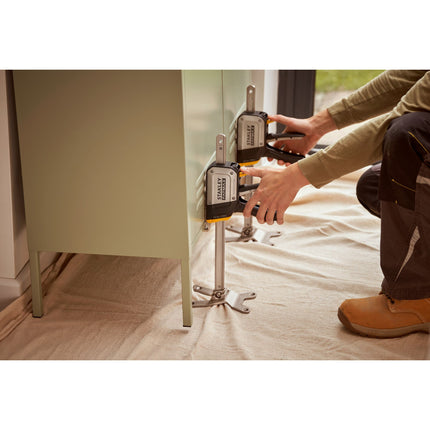

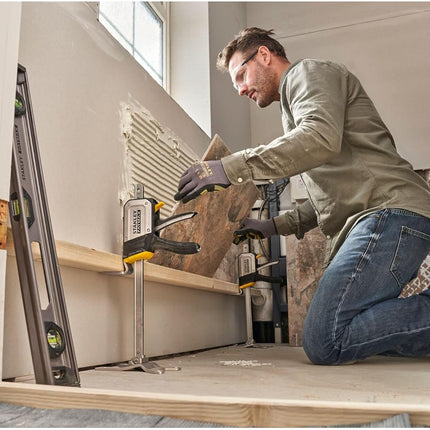

• IDEAL FOR MULTIPLE PROFESSIONAL APPLICATIONS: Installation of wall units, floors, windows, carpentry, plasterboard and construction in general.
• REINFORCED LIFTING LEVER: Allows the user to apply pressure on the handle to facilitate lifting operations.
• EVEN WITH THE FOOT: The lifting lever can also be operated with the foot, allowing the user to have their hands free to support the objects.
• RECESSED FULL RELEASE LEVER: To prevent accidental release activations.
• GRADUAL LOWERING LEVER: Lowers the lifting plate by 2.5mm with each actuation, for a precise adjustment.
• BEVELLED BASE: Facilitates positioning of the plate under objects.

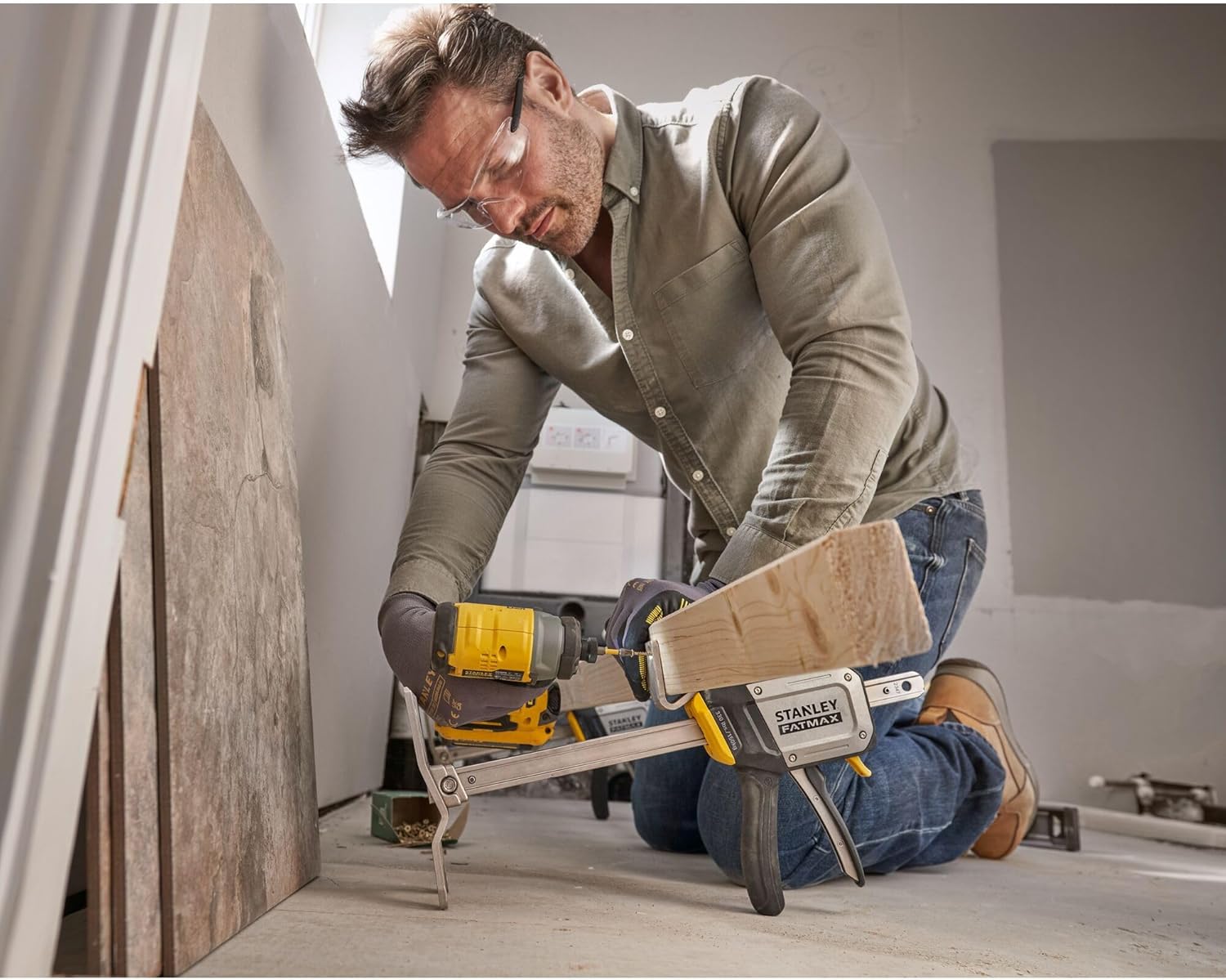

• GREAT STABILITY: 4 anchor holes to screw the base to the floor for additional stability.
• WIDE BASE: Extended at the rear for greater stability and to prevent tipping.
• PROTECTED LIFTING MECHANISM: The metal housing prevents dust from contaminating the mechanism, providing greater durability.
• ERGONOMIC LIFTING LEVER: Coated in rubber, it ensures grip, comfort and control optimal
• LIFTING CAPACITY: From 7 to 220 mm.
• BASE DIMENSIONS: 6x170x125 mm.
Technical Data
• Maximum lifting height: 220 mm
• Maximum load capacity: 150 kg
• Product width: 125 mm
• Product height: 450 mm
• Product length: 240 mm
• Product weight: 2.7 kg
• Bar thickness: 8 mm
• Number of pieces: 2
