Description

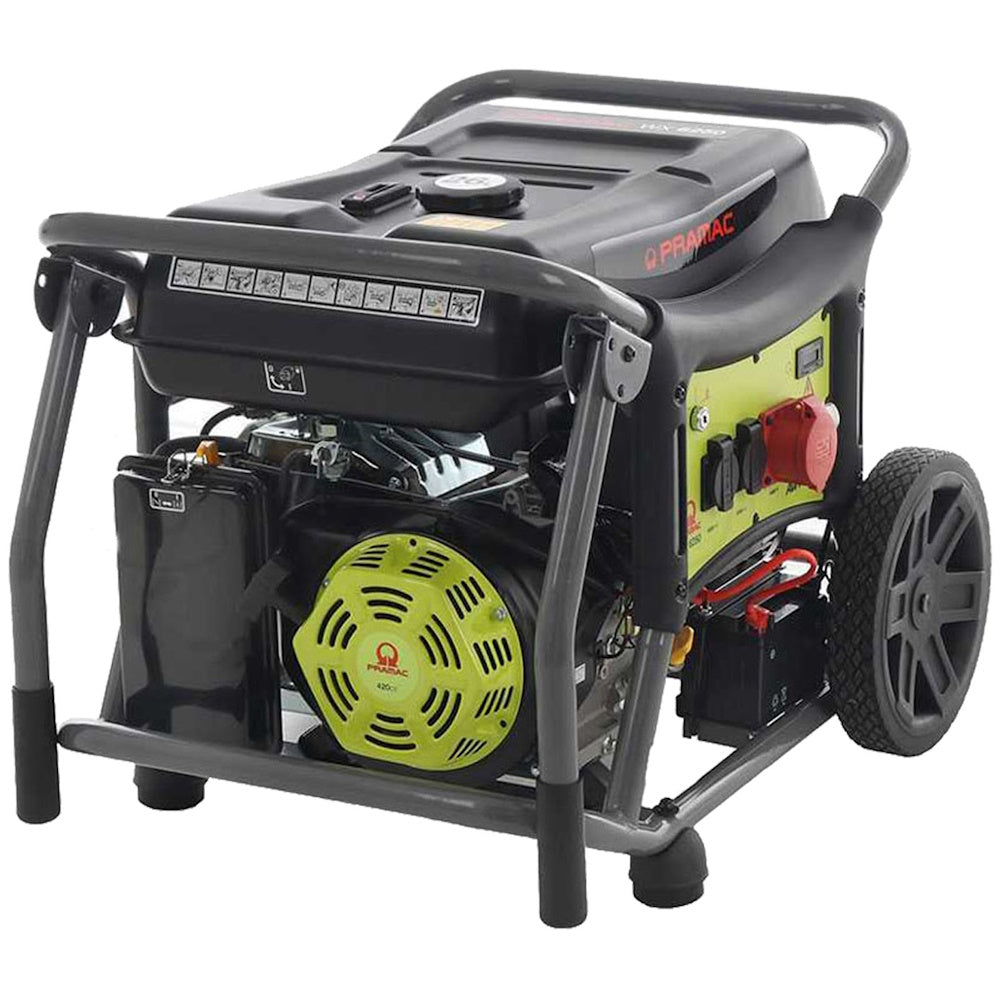

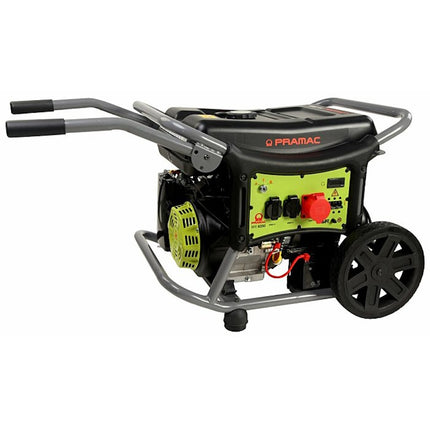

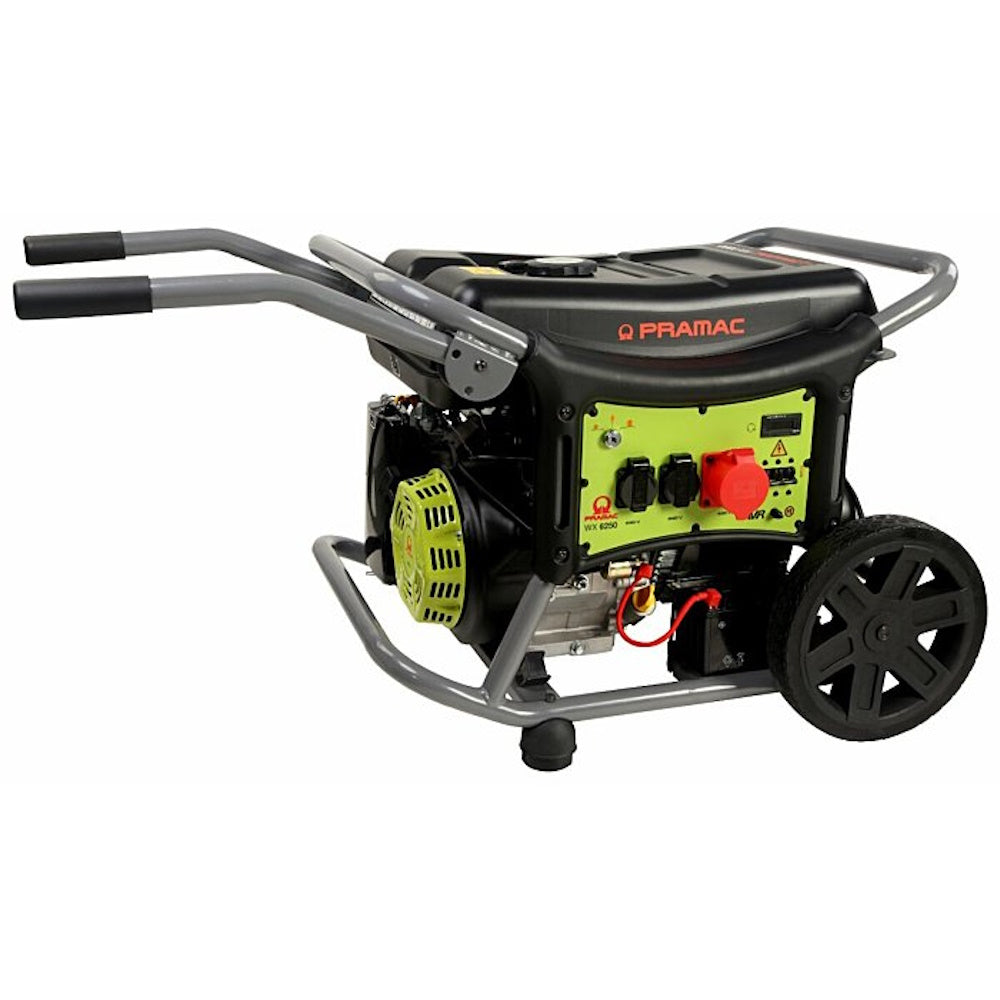

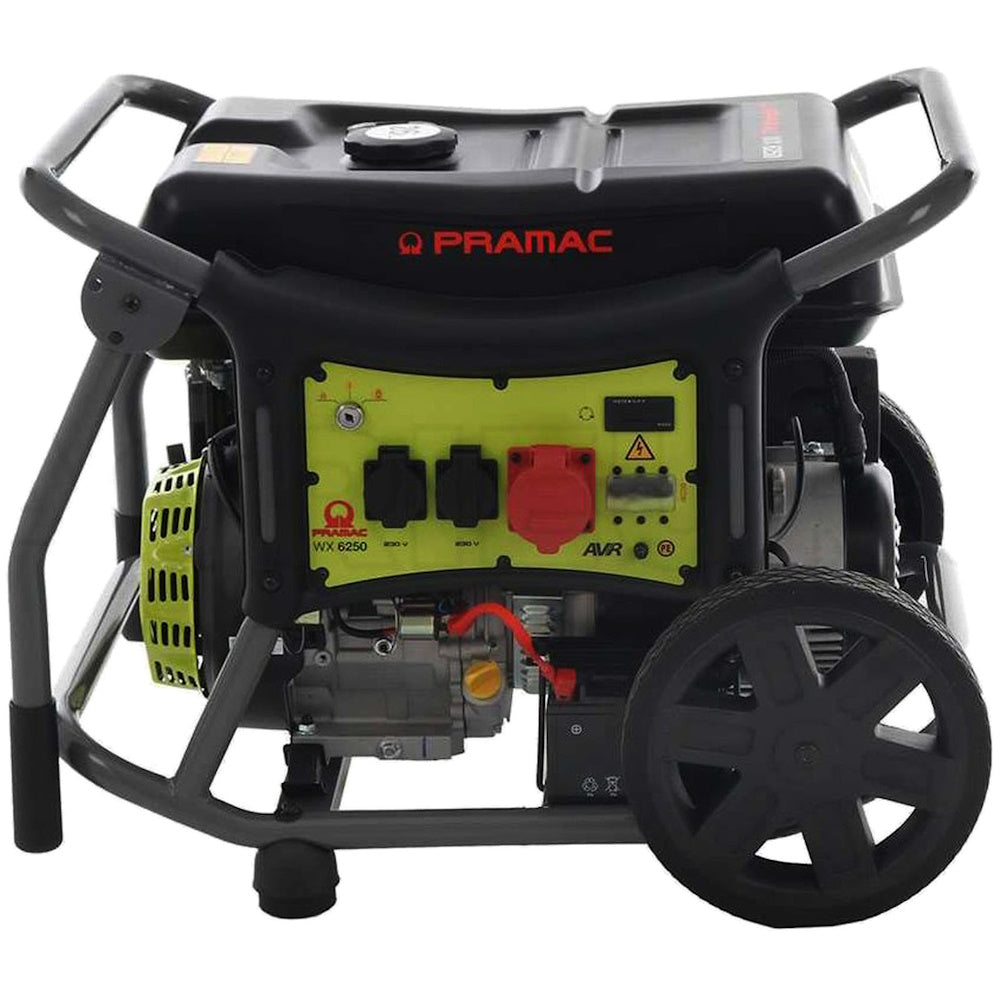

PRAMAC Portable Generator WX6250 ES 230V 6.1Kw with Electric Start
Range of Pramac portable generators: always available electricity, the ideal solution for powering both workplace and domestic equipment. A complete range of generators to choose the best solution capable of satisfying every remote power requirement. Pramac generators can be used for emergency power during a power outage.
Features
• Constant power supply for multiple applications.
• Electric Start (with battery).
• Low engine oil level protection.
• Engine oil bottle and funnel to simplify generator start-up.
• Digital multimeter (Voltmeter-Frequency meter and Hour meter).
• Fuel level indicator.
• AVR Electronic voltage regulator.
• Quick start-up instructions service.
• Complete transport kit with wheels and handles.
Technical data
• Frequency: 50Hz.
• Voltage: 230/400 V.
• Three-phase power:
- Voltage: 400 V.
- Maximum three-phase power: 6100 W.
- Rated three-phase power: 5500 W.
• Single-phase power:
- Voltage: 230 V.
- Maximum single-phase power: 2000 W.
- Single-phase rated power: 1800 W.
• Type: OHV.
• Exhaust gas emission level: Stage V.
• Engine speed: 3000 rpm.
• Fuel: Petrol.
• Starting system: Electric (+Recoil).
• Oil sump capacity: 1.1 l.
• Low oil level protection (oil guard): √.
• Voltage regulation system: AVR.
• Length: 800 mm.
• Width: 698 mm.
• Height: 620 mm.
• Weight (a dry): 90 Kg.
• Box dimensions LxWxH: 810x625x607 mm.
• Tank capacity: 26 L.
• Fuel consumption 50%: 2.17 l/h.
• Autonomy at 50% load: 12 h.
• Acoustic power (LWA): 97 dBA.
• Acoustic power at 7 m: 69 dBA.

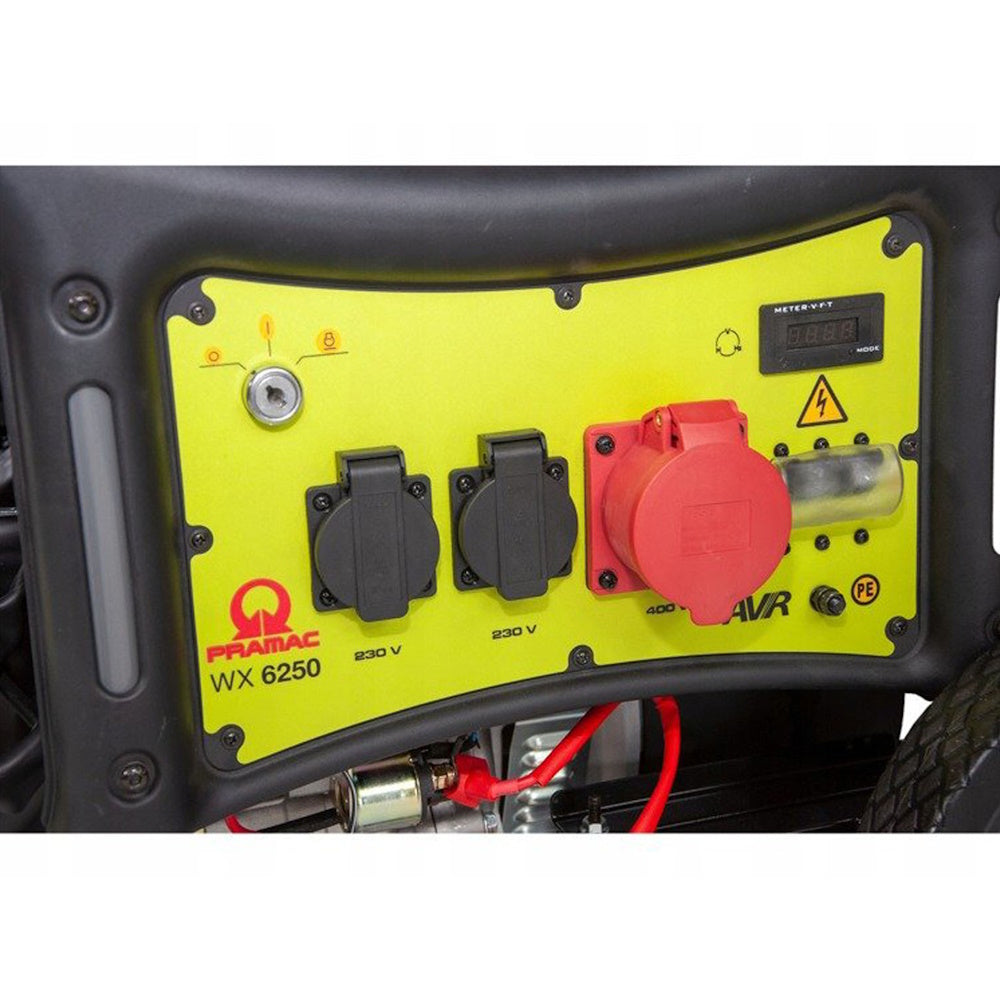

Generator Control
• CONTROLS:
- Ignition key OFF - ON - START.
• INSTRUMENTATION:
- Voltmeter, Frequency meter and Hour meter.
- Fuel level indicator.
• PROTECTIONS:
- Thermal protections.
- Oil Guard (low oil level).
• OUTPUTS:
- 2 x Schuko 230V 16A.
- 1 x CEE 400V 16A.
- 1 x Connection for ATS panel (optional not included).
