Description

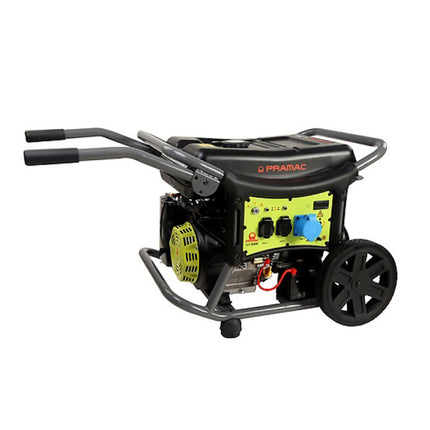

Pramac Portable Generator WX6200 ES 5.8Kw with Electric Start
Range of Pramac portable generators: always available electricity, the ideal solution for powering both workplace and domestic equipment. A complete range of generators to choose the best solution capable of satisfying every remote power requirement. Pramac generators can be used for emergency power during a power outage.
Features
• Constant power for multiple applications.
• Electric Start (+Recoil).
• Low engine oil level protection.
• Engine oil bottle and funnel to simplify generator start-up.

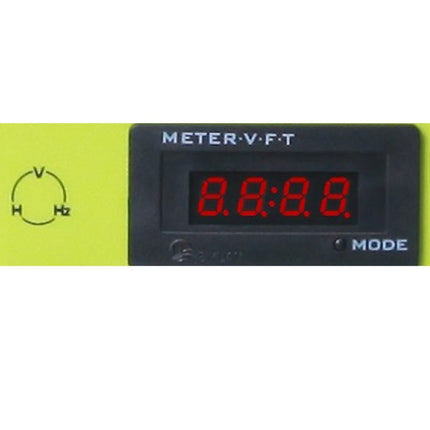

• Digital multimeter (Voltmeter-Frequency meter and Hour meter).
• Fuel level indicator.
• AVR Electronic voltage regulator.
• Quick start-up instructions service.
• Complete transport kit with wheels and handles.
Technical data
• Frequency: 50Hz.
• Voltage: 230V.
• Phases: 1.
• Maximum power: 5800 W.
• Nominal power: 5300 W.

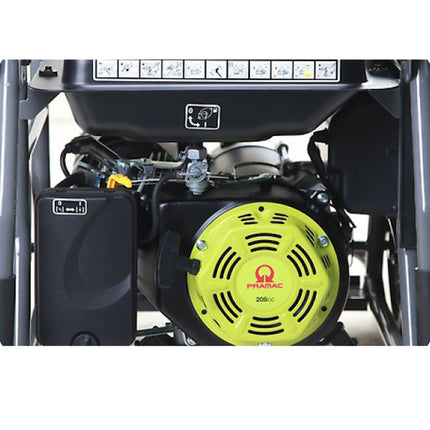

• Type: OHV.
• Exhaust gas emission level: Stage V.
• Engine speed: 3000 rpm.
• Fuel: Petrol.
• Starting system: Recoil.
• Oil sump capacity: 1.1 l.
• Low oil level protection (oil guard): √.
• Voltage regulation system: AVR.
• Length: 800 mm.
• Width: 698 mm.
• Height: 620 mm.
• Weight (dry): 89 Kg.
• Box dimensions LxWxH: 810x625x607 mm.
• Tank capacity: 26 L.
• Fuel consumption 50%: 2.17 l/h.
• Autonomy at 50% of load: 12 h.
• Acoustic power (LWA): 97 dBA.

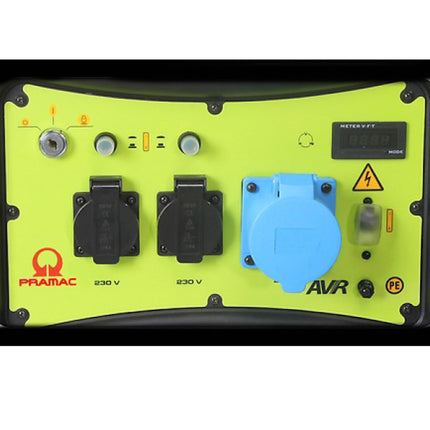

Generator Control
• CONTROLS:
- Stop/go switch OFF - ON - START.
- Connector.
- Recoil starter.
• INSTRUMENTATION:
- Voltmeter, Frequency meter and Hour meter.
- Fuel level indicator.
• PROTECTIONS:
- Thermal protections.
- Oil Guard (low lv. oil).
• OUTPUTS:
- CONNECTOR for AMF.
• SOCKETS:
- 2x SCHUKO 230V 16A IP44.
- 2P+T CEE 230V 32A IP44.
