Description

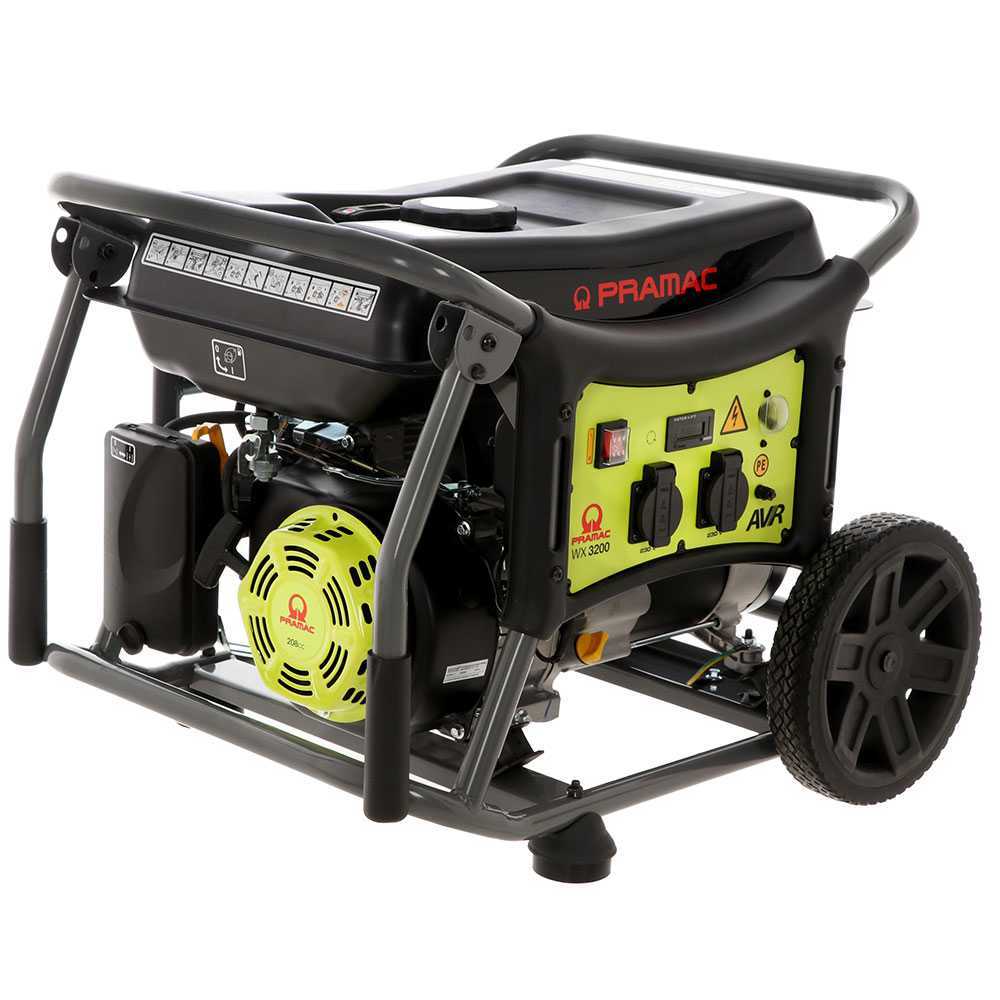

PRAMAC Portable Generator WX3200 Series 230V 2.85Kw
Range of Pramac portable generators: always available electricity, the ideal solution for powering both workplace and domestic equipment. A complete range of generators to choose the best solution to meet every remote power requirement. Pramac generators can be used for emergency power during a power outage.
Features
• Constant power for multiple applications.
• Recoil starter with reel.
• Low engine oil level protection.
• Engine oil bottle and funnel to simplify generator start-up.
• Digital multimeter (Voltmeter-Frequency meter and Hour meter).
• Fuel level indicator.
• AVR Electronic voltage regulator.
• Quick start-up instructions service.
• Complete transport kit with wheels and handles.
Technical data
• Frequency: 50Hz.
• Voltage: 230V.
• Phases: 1.
• Maximum power: 2850 W.
• Nominal power: 2450 W.
• Type: OHV.
• Exhaust gas emission level: Stage V.
• Engine speed: 3000 rpm.
• Fuel: Petrol.
• Starting system: Recoil.
• Oil sump capacity: 0.6.
• Low oil level protection (oil guard): √.
• Voltage regulation system: AVR.
• Length: 680 mm.
• Width: 602 mm.
• Height: 523 mm.
• Weight (dry): 49 Kg.
• Box dimensions LxWxH: 685x505x520 mm.
• Tank capacity: 17 L.
• Fuel consumption 50%: 1.04 l/h.
• Autonomy at 50% load: 16.3 h.
• Acoustic power (LWA): 93 dBA.
• Acoustic power at 7 m: 65 dBA.

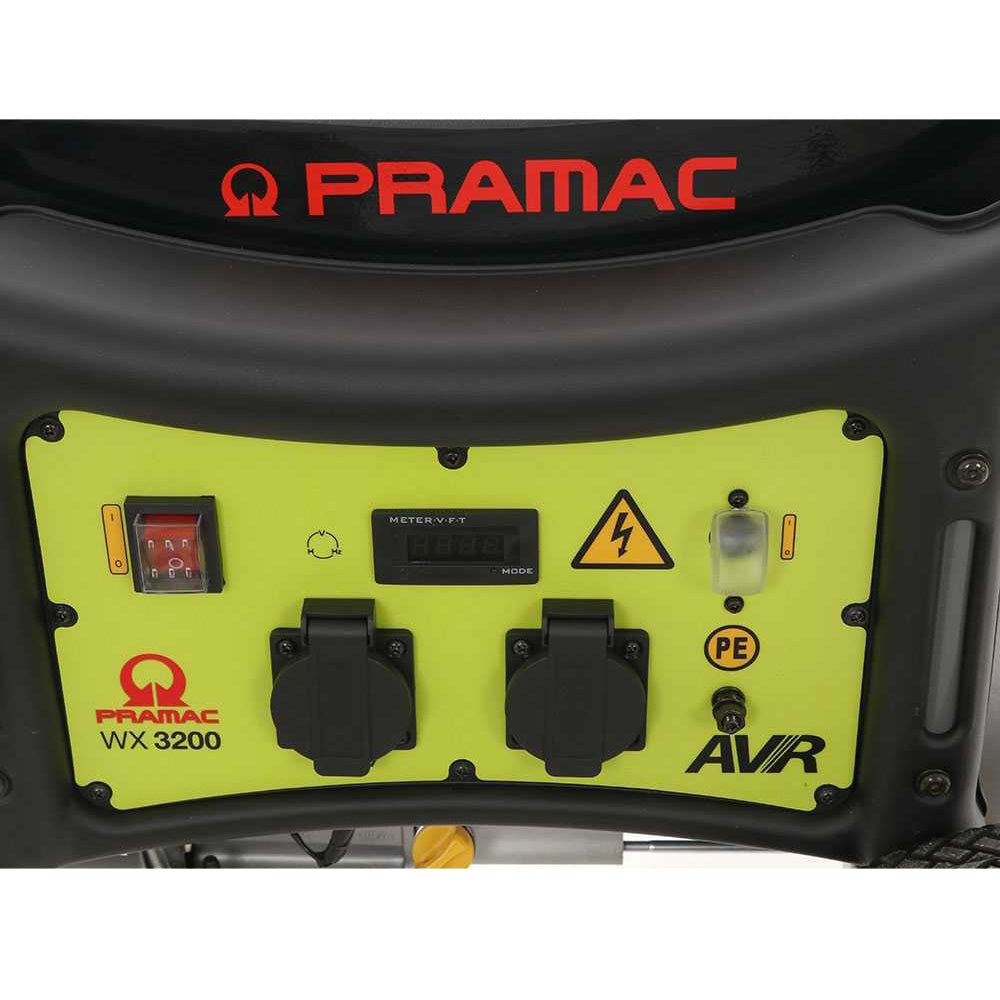

Generator Control
• CONTROLS:
- Stop/start switch OFF - ON - START.
- Choke valve.
• INSTRUMENTATION:
- Voltmeter, Frequency meter and Hour meter (display).
- Fuel level indicator.
• PROTECTIONS:
- Protections thermals.
- Oil Guard (low oil level).
