Description

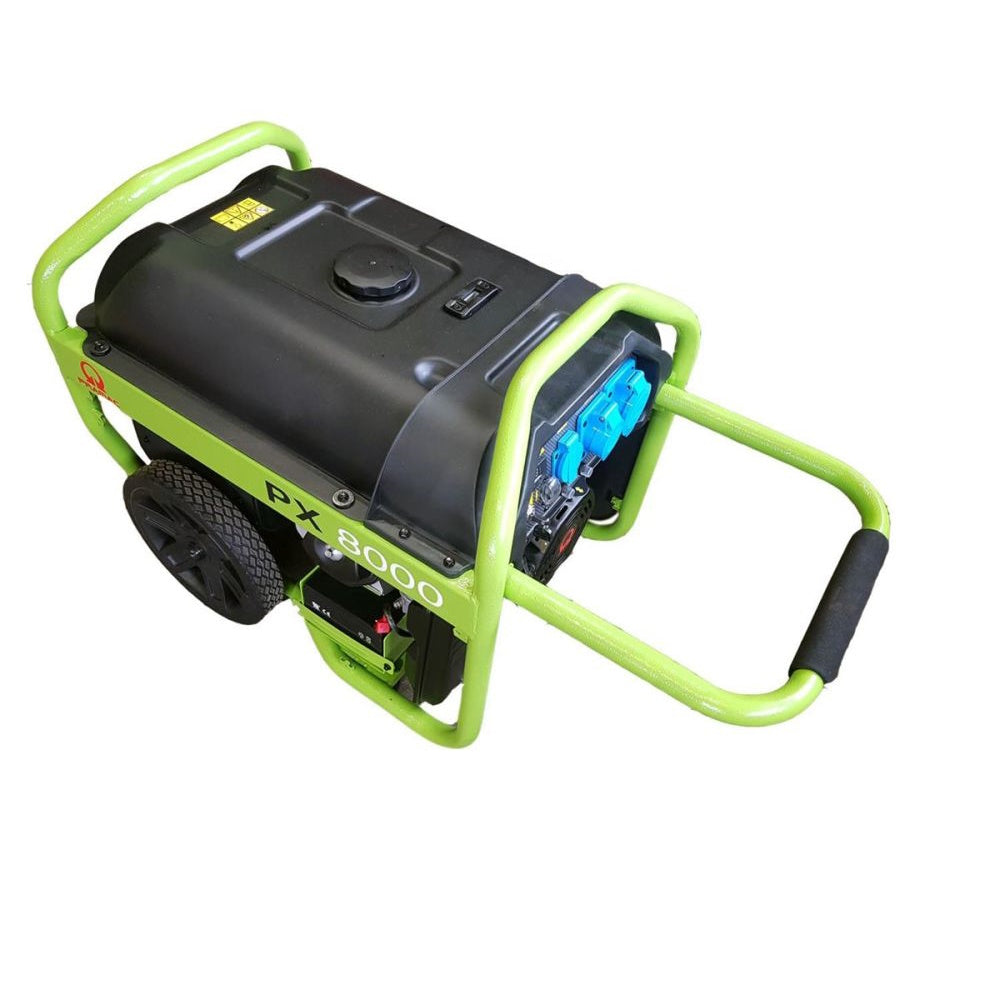

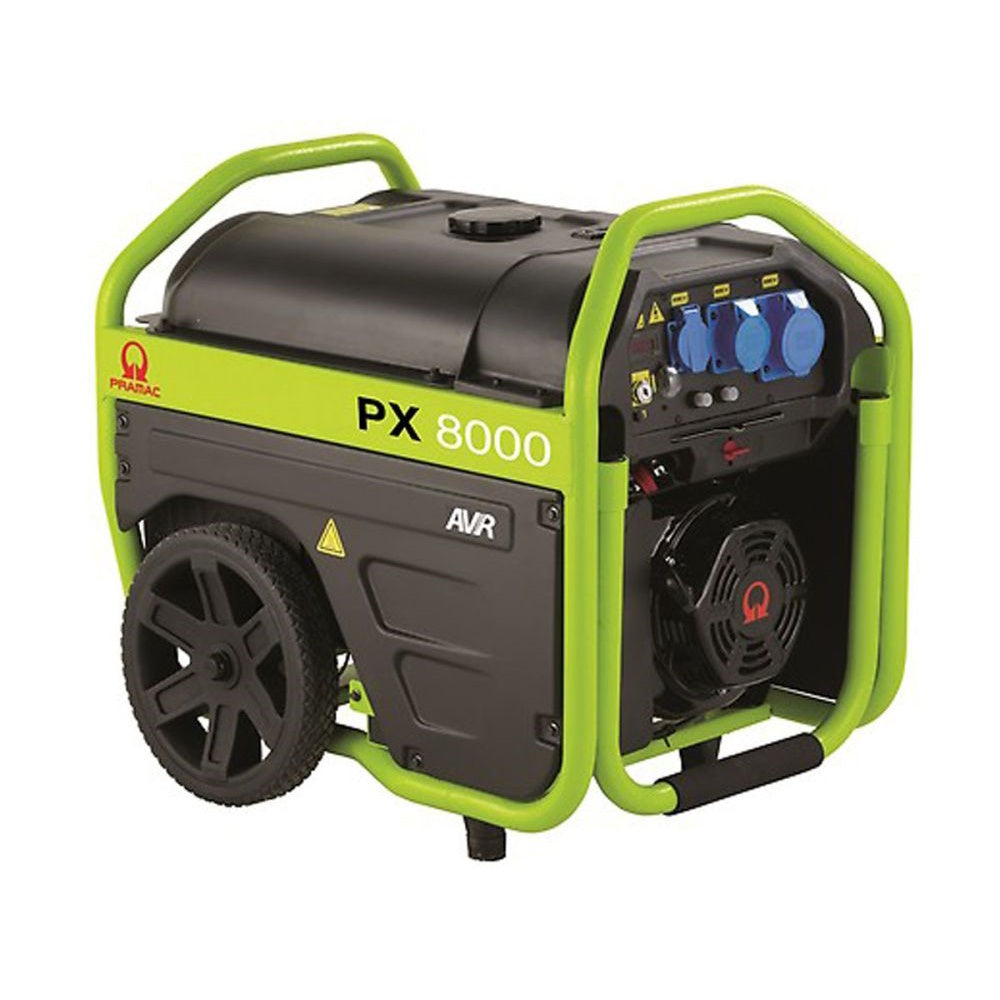

Pramac PX 8000 Single-Phase Generator with AVR 5.4KW 230V 50Hz
Pramac introduces the PX series, designed and built to offer professional performance. Ready to be moved wherever power is needed, it features a sturdy and compact frame with a handle and integrated wheels, making it easy to transport. The components of the PX generators have been designed to guarantee a durable professional generator, with soundproofed side panels to ensure the best working conditions.
Features
• Designed to guarantee a stable and continuous power supply, suitable for both domestic and semi-professional use.
• Perfect for powering work equipment, electronic devices and machinery on construction sites or in emergency situations.
• It offers ideal energy capacity to support multiple devices simultaneously without drops in performance.
• The large tank allows for long hours of operation without the need for frequent refueling.
• Equipped with safety systems such as thermal protection, oil level sensor and automatic voltage regulation (AVR) to protect connected equipment.
• Thanks to the electric start and intuitive management, use is simple even for less experienced users.
• Built with resistant materials to last over time even under intensive use.
• Compact design with handles and optional wheels for easy movement.
Technical data
• Frequency: 50Hz.
• Voltage: 230 V.
• Power factor: 0.9 cos ϕ.
• Phases: 1.
• Emergency power ESP: 6.0 kVA.
• ESP Emergency Power: 5.4 kW.
• Rated power in continuous service COP: 5.0 kVA.
• Rated power in continuous service COP: 4.5 kW.
• Cooling system: Air.
• Displacement: 420 cm³.
• Aspiration: Natural.
• Engine speed: 3000 rpm.
• Speed governor: Mechanical.
• Fuel: Petrol.
• Oil sump capacity: 1.1 L.
• Starting system: Electric.
• Class: F.
• IP protection: 23/44.
• Poles: 2.
• Voltage regulation system: Electronic.
• Standard AVR: √.
• Length: 727 mm.
• Width: 515 mm.
• Height: 670 mm.
• Weight (dry): 94 Kg.
• Tank capacity: 27 L.
• Fuel consumption at 75% load: 2 l/h.
• Fuel consumption at 100% load: 2.66 l/h.
• Autonomy at 75% load: 13.50 h.
• Autonomy at 100% load: 10.15 h.
• Acoustic power (LWA): 97 dBA.
• Acoustic power at 7 m: 69 dBA.

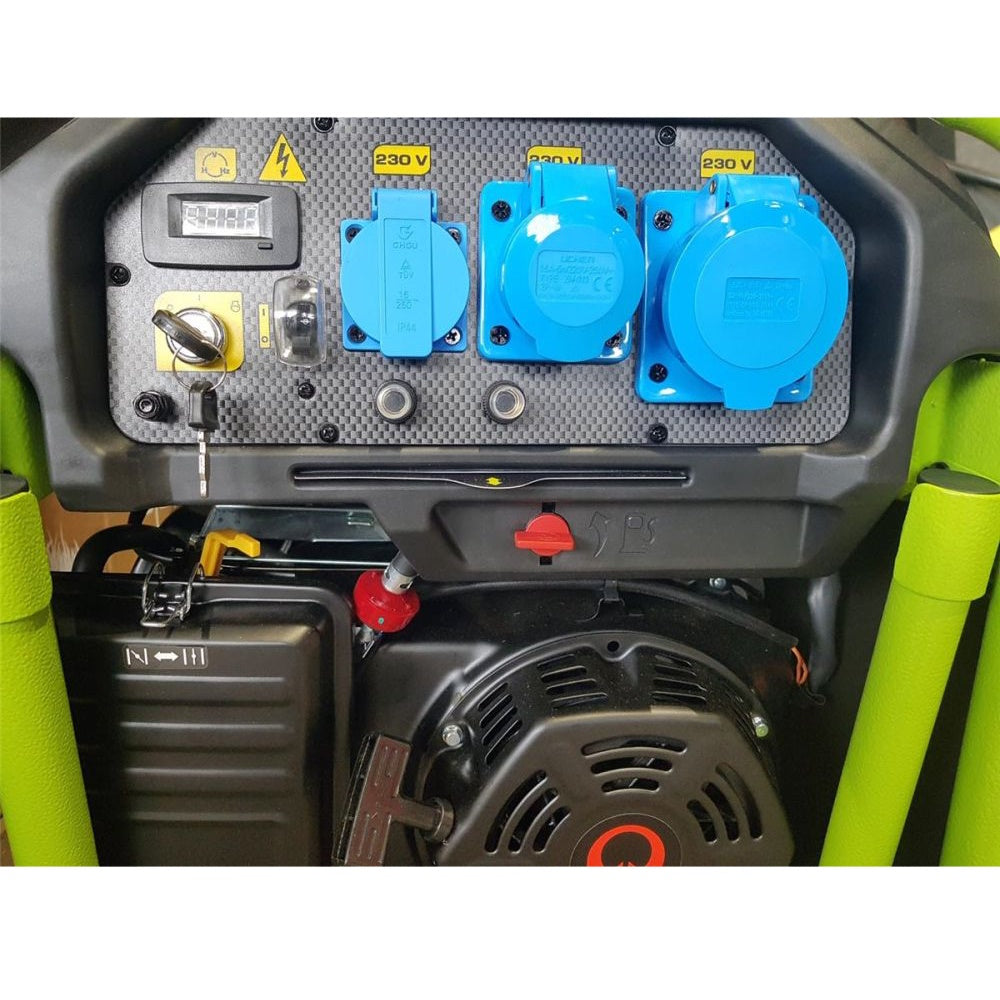

Control panel
• CONTROLS:
- Ignition key OFF - ON - START.
• INSTRUMENTATION:
- Voltmeter, Frequency meter and Hour meter.
- Fuel level indicator.
• PROTECTIONS:
- Thermal protections.
- Oil Guard (low oil level).
• SOCKETS:
- 1x SCHUKO 230V 16A IP54.
- 1x 2P+T CEE 230V 16A IP44.
- 1x 2P+T CEE 230V 32A IP44.
