Description

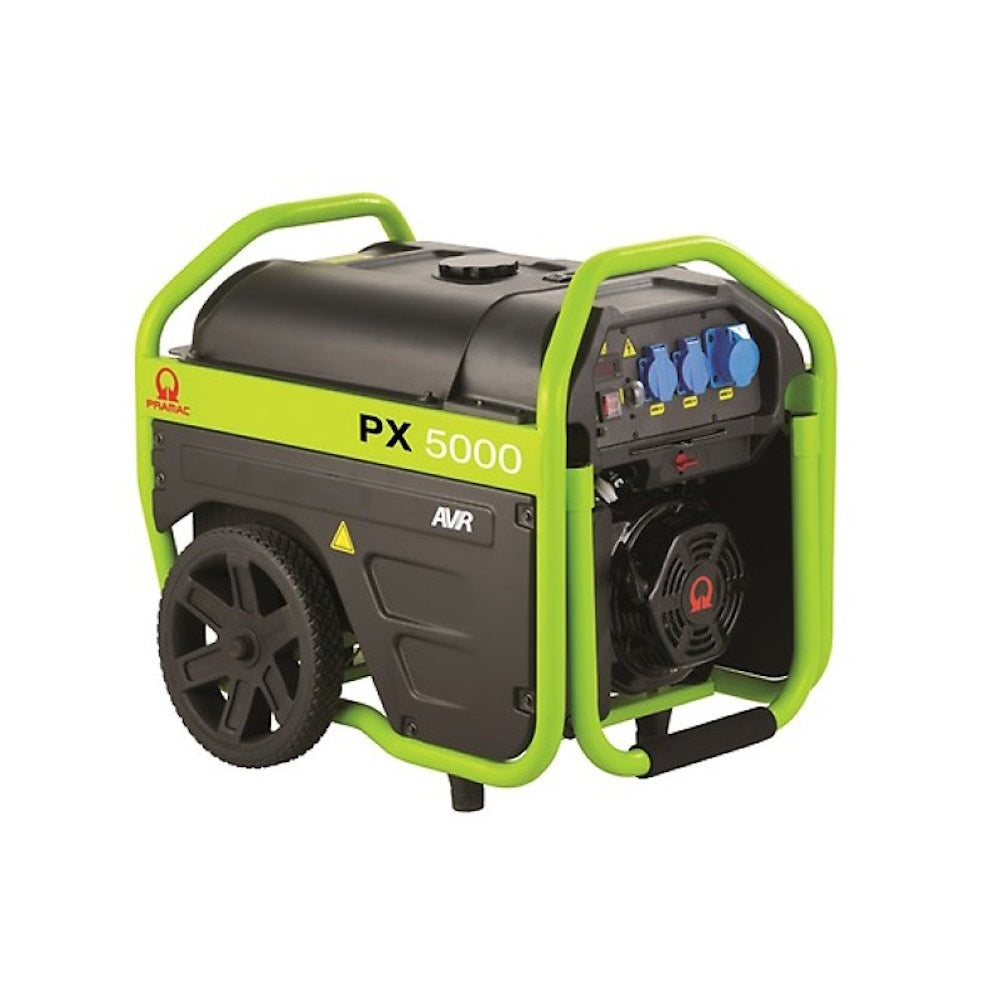

Pramac PX 5000 Single-Phase Generator with AVR 3.8 kW 230 V 50 Hz
Pramac introduces the PX series, designed and built to offer professional performance. Ready to be moved wherever power is needed, it features a sturdy and compact frame with a handle and integrated wheels, making it easy to transport. The components of the PX generators have been designed to ensure a durable professional generator, with soundproofed side panels to ensure the best working conditions.
Features
• Designed to ensure a stable and long-lasting power supply in various contexts, such as professional work and home use.
• Ideal for powering work tools, appliances and sensitive electronic devices, thanks to its ability to automatically regulate the voltage.
• Durable structure, designed to withstand the most demanding work environments and intensive use.
• With a 27-litre tank, it offers excellent operating life, reducing the need for frequent refueling.
• Integrated handles and compact design for easy movement, ideal for use on the go.
• Equipped with thermal protection, oil level sensor and protection system in case of malfunctions, ensuring safe operation.
• Optimized operation to reduce fuel consumption and emissions while offering high performance.
Technical data
• Frequency: 50Hz.
• Voltage: 230 V.
• Power factor: 0.9 cos ϕ.
• Phases: 1.
• Emergency power ESP: 4.2 kVA.
• ESP Emergency Power: 3.8 kW.
• Rated power in continuous service COP: 3.9 kVA.
• Rated power in continuous service COP: 3.5 kW.
• Cooling system: Air.
• Displacement: 389 cm³.
• Aspiration: Natural.
• Engine speed: 3000 rpm.
• Speed governor: Mechanical.
• Fuel: Petrol.
• Oil sump capacity: 1.1 L.
• Starting system: Recoil.
• Class: H.
• IP protection: 23/44.
• Poles: 2.
• Voltage regulation system: Electronic.
• Standard AVR: √.
• Length: 727 mm.
• Width: 515 mm.
• Height: 670 mm.
• Weight (dry): 79 Kg.
• Tank capacity: 27 L.
• Fuel consumption at 75% load: 1.44 l/h.
• Fuel consumption at 100% load: 1.92 l/h.
• Autonomy at 75% load: 18.75 h.
• Autonomy at 100% load: 14.06 h.
• Acoustic power (LWA): 97 dBA.
• Acoustic power at 7 m: 69 dBA.

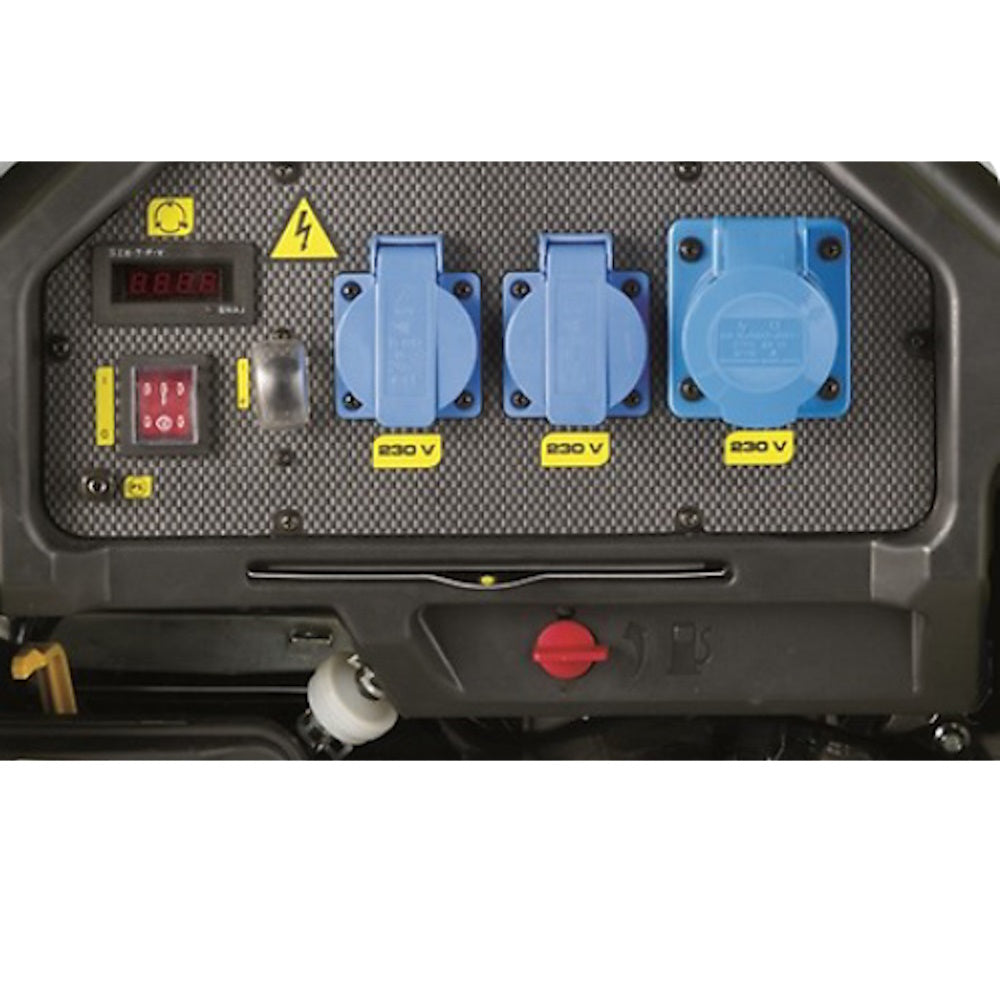

Control panel
• CONTROLS:
- I-O power button.
• INSTRUMENTATION:
- Voltmeter, Frequency meter and Hour meter.
- Fuel level indicator.
• PROTECTIONS:
- Protections thermals.
- Oil Guard (low oil level).
