Description

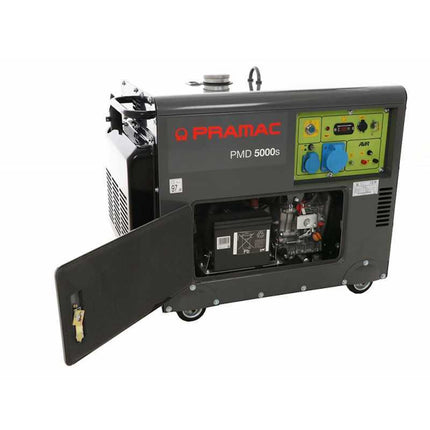

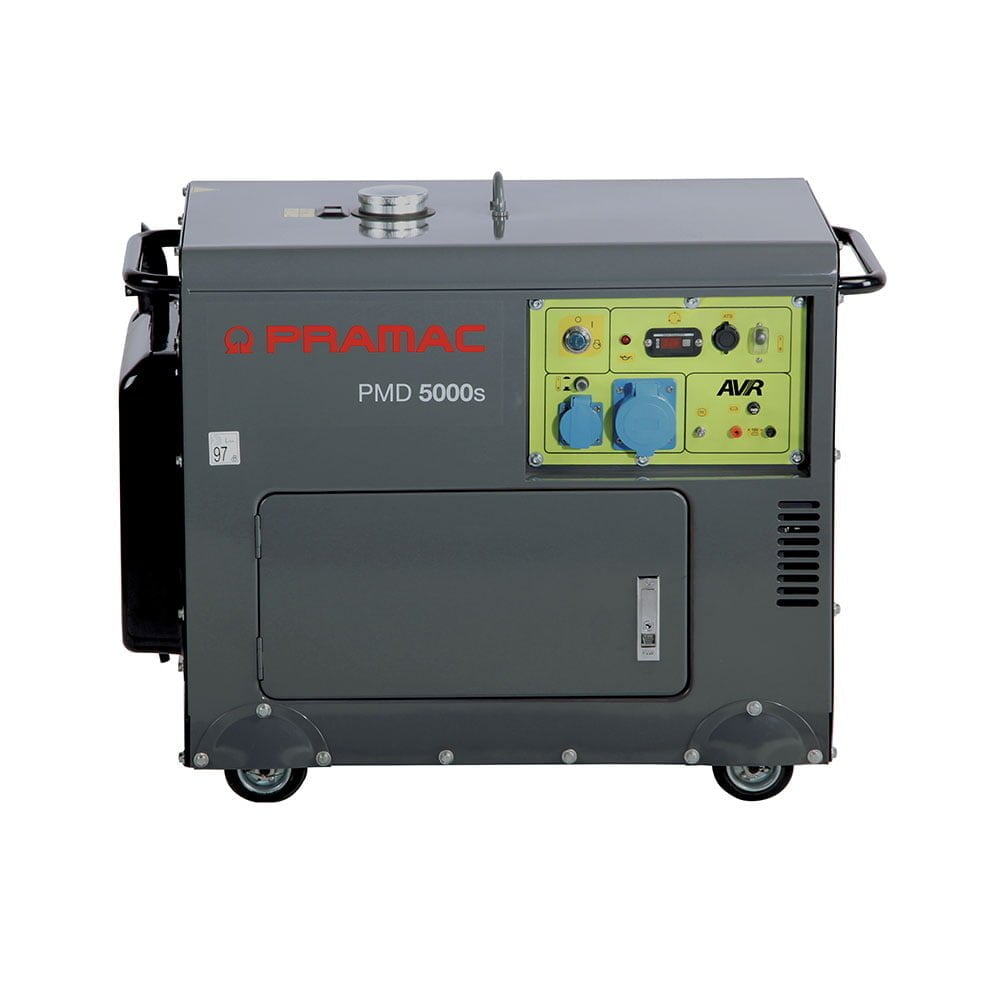

Pramac PMD 5000S Diesel Generator 5 kW Electric Start 230 Volt
The diesel engine and soundproofing ensure reliability and low operating costs with maximum comfort. The handle and wheels allow for easy handling and transport. The generous fuel tank capacity allows for long continuous operation. Built-in digital multimeter to better manage scheduled maintenance intervals and ensure optimal operating conditions. Automatic voltage regulator (AVR) ensures voltage stability. Connector for connection to the automatic emergency intervention panel to the public network (Optional Pramac ATS panel).
Features
• Constant power supply for multiple applications.
• Starting system: Electric (with built-in battery).
• Low engine oil level protection.
• Digital multimeter (V-Hz-h).
• Fuel level indicator.
• AVR Electronic voltage regulator.
• Handles and 4 integrated routines for easy handling.
• Central lifting hook.
• Prepared for Automatic Intervention Panel option (ATS Accessory).
Technical data
• Frequency: 50Hz.
• Voltage: 230 V.
• Phases: 1.
• Maximum Power: 5000 Watt.
• Nominal Power: 4500 Watt.
• Type: OHV.
• Engine speed: 3000 rpm.
• Fuel: Diesel.
• Starting system: Electric.
• Oil sump capacity: 1.65 L.
• Low oil level protection (oil guard): √.
• Voltage regulation system: AVR.
• Length: 910 mm.
• Width: 518 mm.
• Height: 682 mm.
• Weight (dry): 165 Kg.
• Box dimensions LxWxH: 950x570x765 mm.
• Tank capacity: 14.5 L.
• Fuel consumption at 50%: 1.28 l/h.
• Autonomy at 50% load: 11.3 h.
• Acoustic power (LWA): 97 dBA.
• Acoustic power at 7 m: 69 dBA.

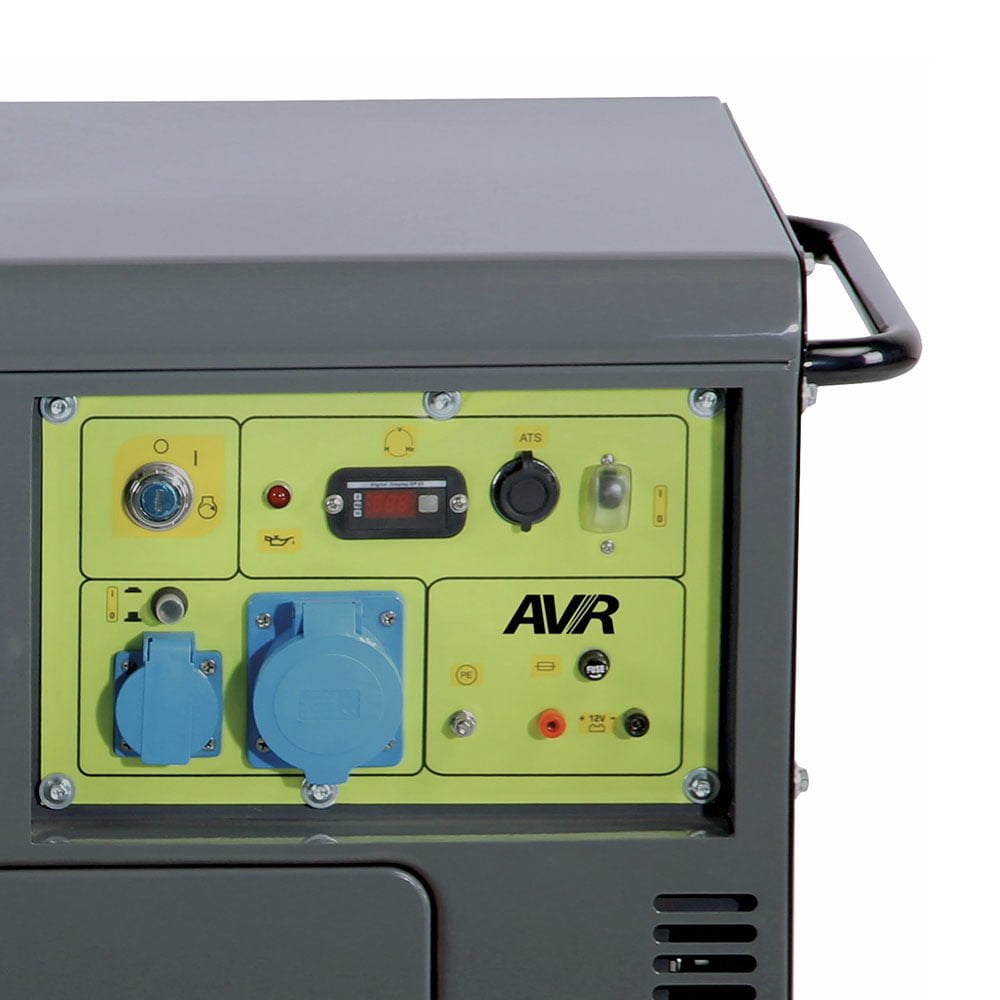

Control panel
• CONTROLS:
- Ignition key OFF - ON - START.
• INSTRUMENTATION:
- Voltmeter.
- Hour meter.
- Frequency meter.
- Fuel level indicator.
• PROTECTIONS:
- Magneto protections thermal.
- Oil Guard (low oil level).
- 9A fuses (12V DC).
• OUTPUTS:
- Battery charger 12V DC.
- Connector for Automatic Panel in mains emergency (ATS Accessory).
• SOCKETS:
- SCHUKO 230V 16A IP44.
- 2P+T CEE 230V 32A IP44.
