Description

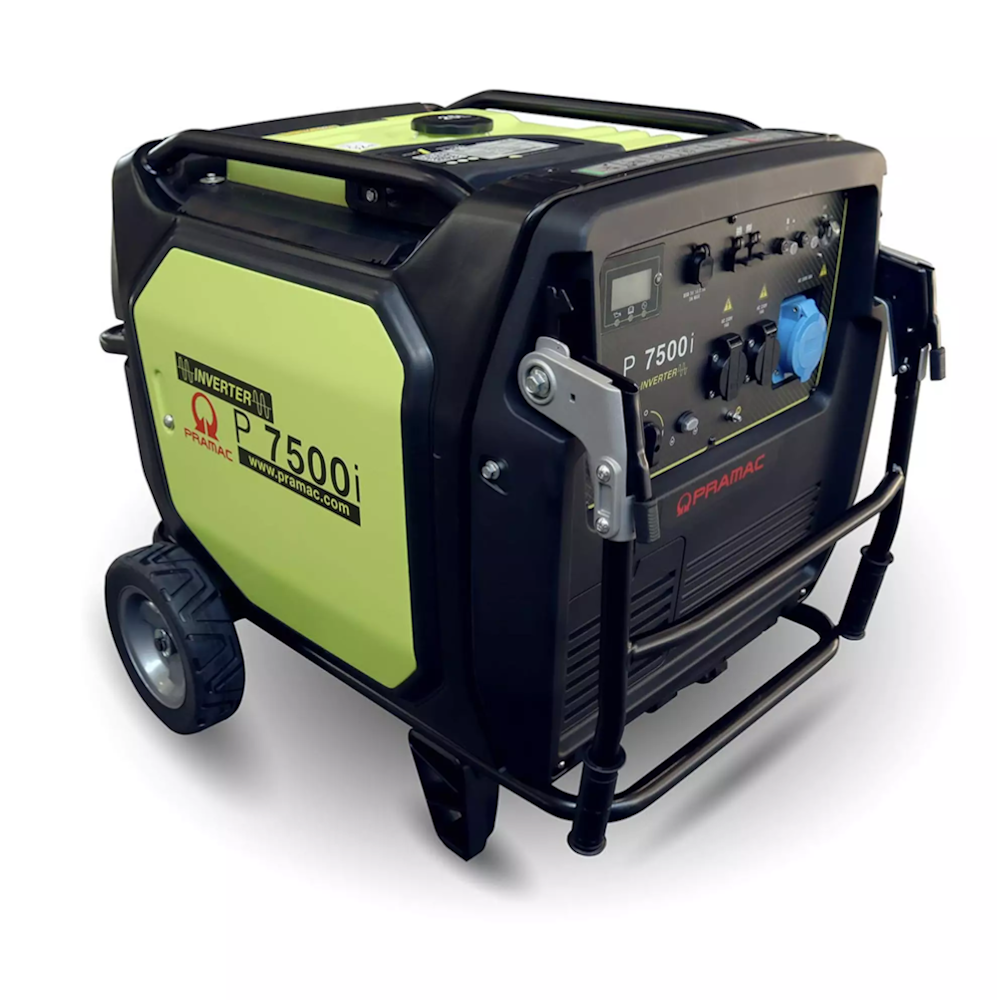

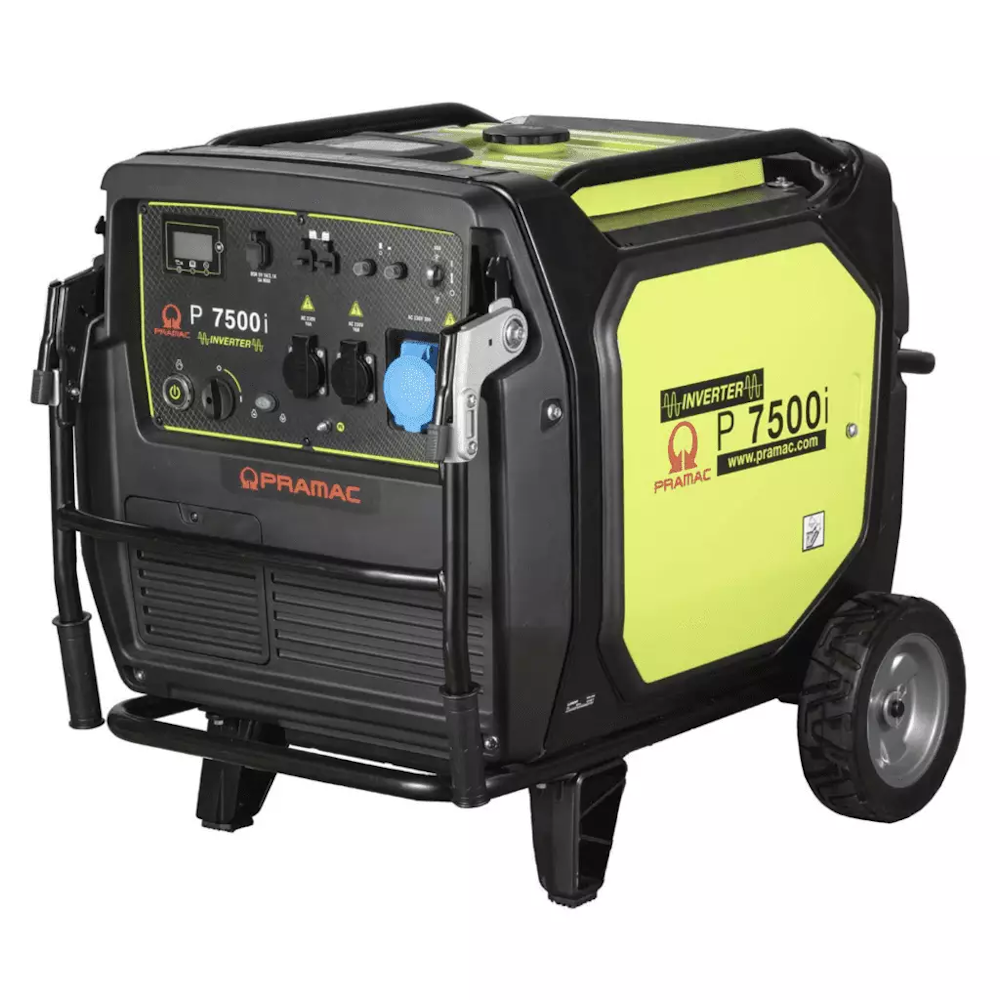

Pramac P7500i Inverter Generator 7 kW Electric Start (+Recoil) 230 V
Pramac's complete line of professional portable inverter generators is designed to withstand the intensity of jobsite applications and work and recreational activities away from home. Pramac P Inverter generators provide clean, stable power for sensitive electronics, while being fuel-efficient and low-noise, with a compact design and easy to transport.
Features
• Stable power for safe operation of sensitive electronics.
• The OHV engine provides consistent power for multiple applications.
• Low oil level shutdown automatically protects the engine from damage.
• Economy mode automatically adjusts engine speed to the optimal level to provide excellent fuel economy and noise reduction.
• USB ports charge mobile electronic devices so you can stay connected.
• Compact and solid casing.
• Easily transportable with handles.
• Ideal for applications requiring less noise.
• Oil bottle, funnel and sockets included in the cardboard box.
• Connector for parallel kit.
• PowerRush: increases the electric current above the nominal power, ideal for starting electric motors.
Technical data
• Frequency: 50Hz.
• Voltage: 230 V.
• Phases: 1.
• Maximum Power: 7000 Watt.
• Rated Power: 6500 Watt.
• Type: OHV.
• Exhaust gas emission level: Stage V.
• Engine speed: Variable rpm.
• Fuel: Petrol.
• Oil sump capacity: 1.45 L.
• Starting system: Electric (+Recoil).
• Low oil level protection (oil guard): √.
• Voltage regulation system: Inverter.
• Length: 950 mm.
• Width: 765 mm.
• Height: 773 mm.
• Weight (dry): 135 Kg.
• Box dimensions LxWxH: 1010x660x742 mm.
• Tank capacity: 25 L.
• Autonomy at 75% load: 11 h.
• Acoustic power (LWA): 92 dBA.
• Acoustic power at 7 m: 64 dBA.

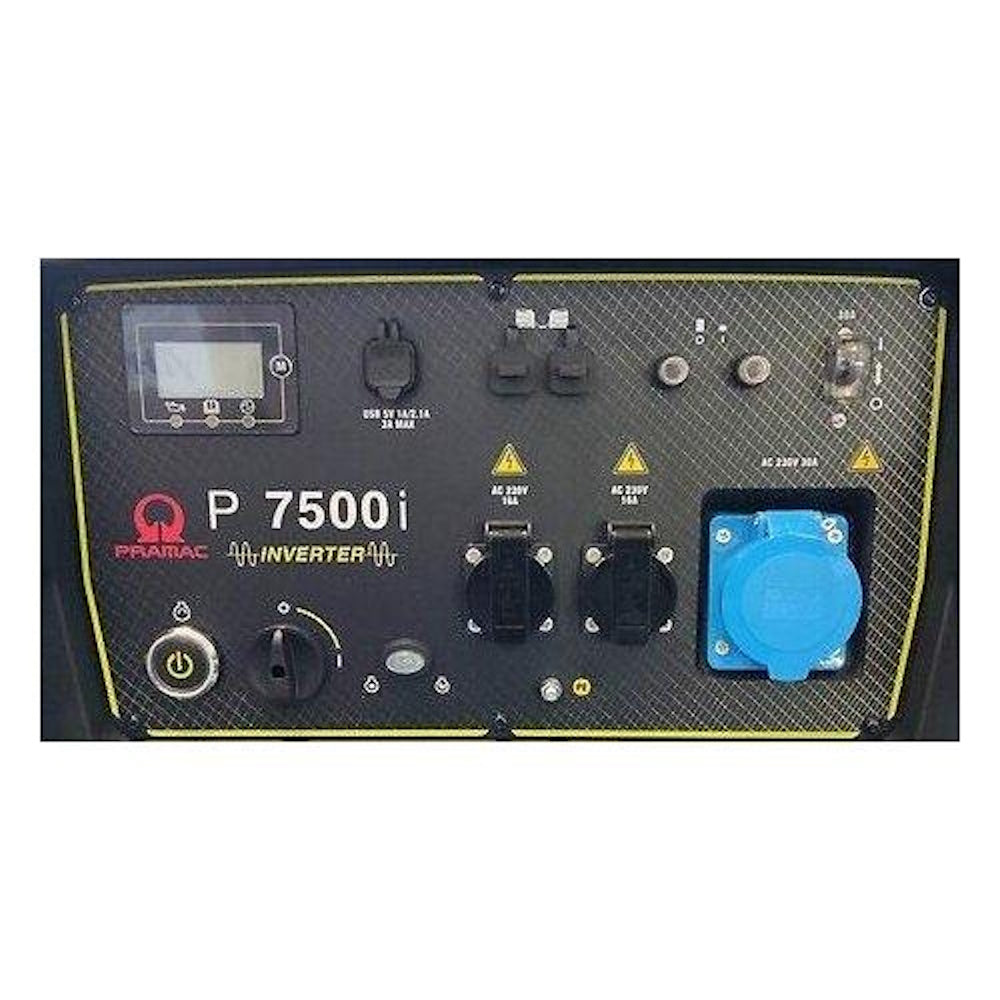

Control panel
• CONTROLS/INSTRUMENTATION:
- Selector switch: O/I | Start button.
- Economy mode automatically adjusts the engine speed to the optimal level for fuel economy and noise reduction.
- Energy output (green light).
- Overload and oil alarm (red light).
- Voltmeter, Frequency meter and Hour meter.
- Economizer.
- Parallel connection socket.
- Fuel level gauge.
- Connection 2-WIRE START: The two-wire start system is a simple and efficient way to power a generator without the need for additional components. It can start and stop the generator by manually closing and opening the relay or by the inverter detecting the lack of primary energy source. This system can be integrated with photovoltaic installations to automatically start the generator when the energy is insufficient.
• PROTECTIONS:
- Short circuit.
- Overload.
- Overvoltage.
- Overheating.
- Excessive speed.
- Oil protection.
- Control panel protection IP 44.
• PRODUCTION:
- n°2 USB DC 5V 2A.
• SOCKETS:
- 2 SCHUKO 230V 16A IP44.
- 1 2P+T CEE 230V 32A IP44.
