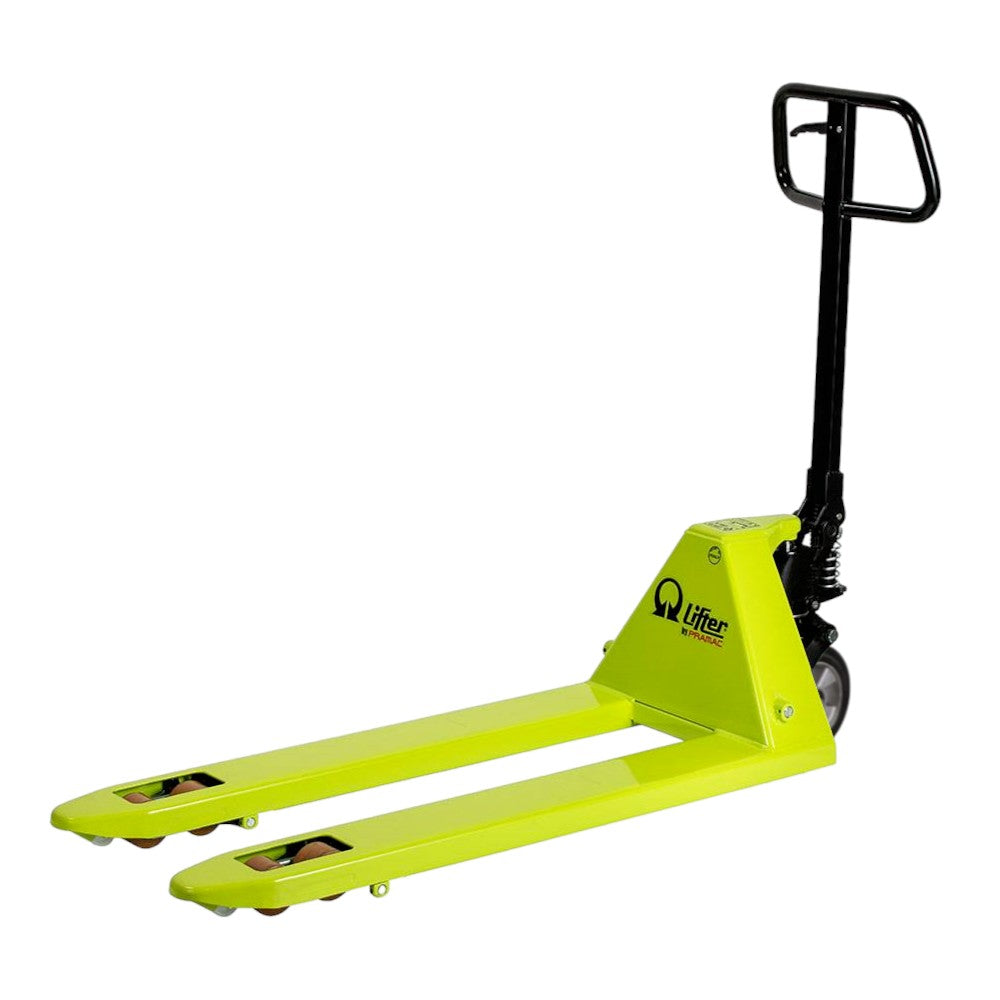

Pramac Lifter GS EVO 25S4 RA 1150 × 525 mm Hand Pallet Truck
The GS EVO pallet truck is designed for intensive use, with ease of use and superior ergonomics. It offers numerous configurations and is ideal for customers who need a customized tool. The cast iron monoblock pump protects components from accidental damage; chrome-plated piston and oil seals prevent rust and leaks. A maximum pressure valve protects the machine from overloads and an ON/OFF release valve are included. Aluminum steering wheels with rubber (Ø 200 × 50 mm), polyurethane rollers, and additional rollers facilitate pallet ingress/egress. The 3D tiller with side grips ensures correct posture and reduces strain.
Specifications
| Item |
Value |
| Propulsion type |
Manual |
| Drive system |
Pedestrian-assisted |
| Load capacity (Q) |
2500 kg |
| Weight |
63 kg |
| Lift height |
115 mm |
| Overall length |
1550 mm |
| Overall width |
525 mm |
| Fork dimensions (width) |
150 mm |
| Fork length |
1150 mm |
| Fork width |
525 mm |
| Aisle width for pallets 800 x 1200 (longitudinal) |
2048 mm |
| Turning radius |
1367 mm |
