Description

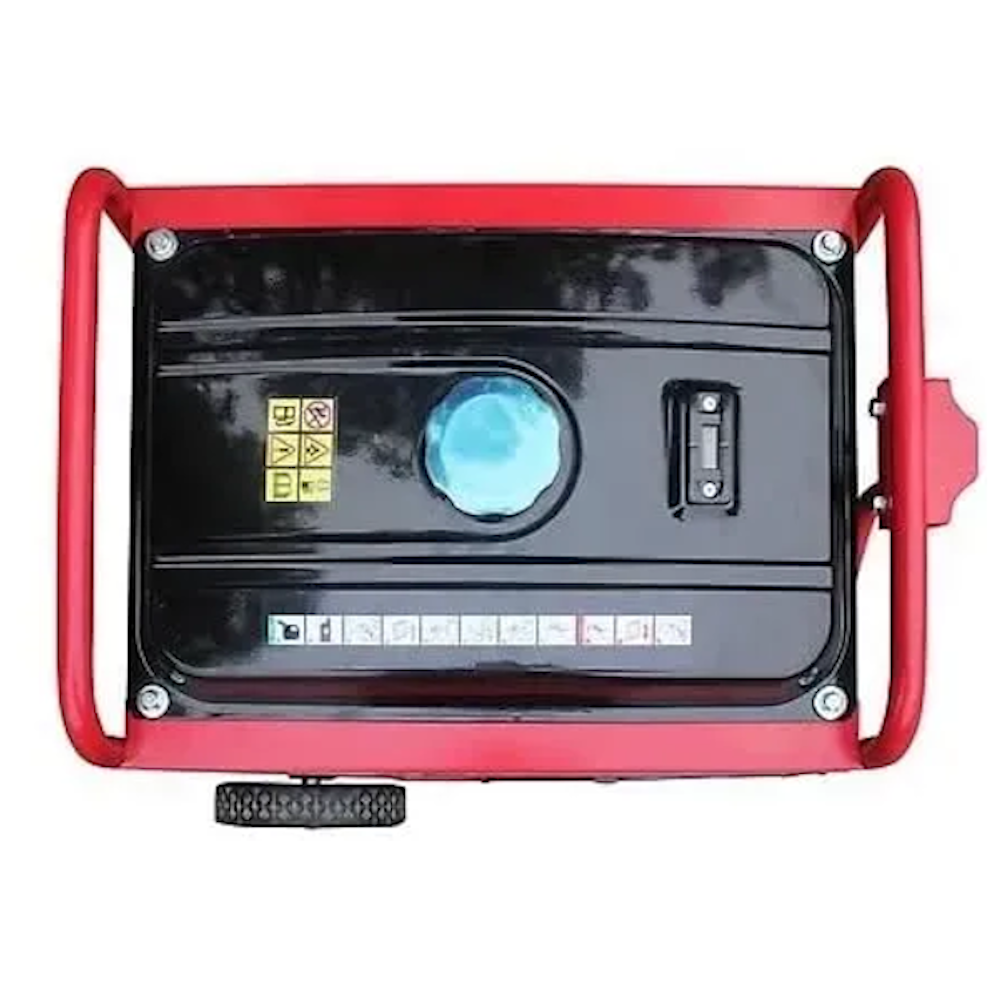

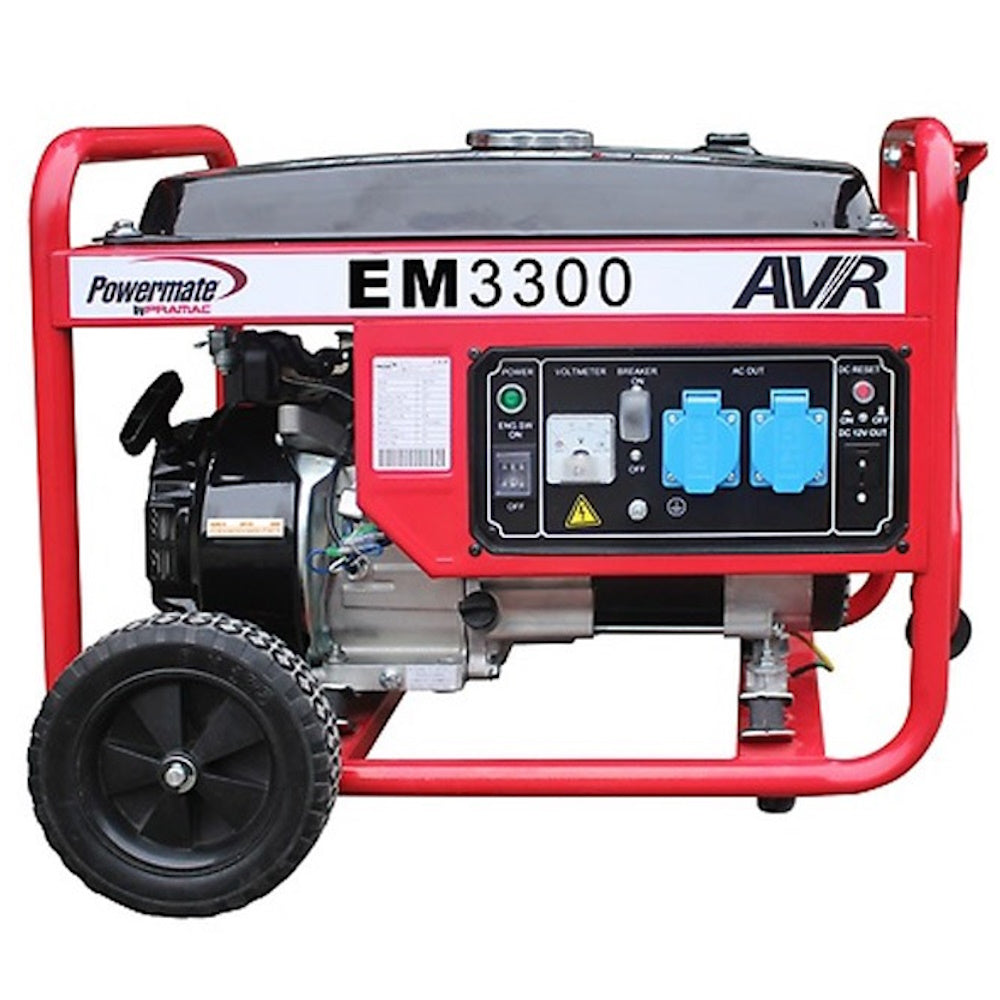

Pramac EM3300 3 kW OHV petrol generator with AVR Stage V equipped with wheels
Pramac EM3300 is a small, robust petrol generator, easily transportable thanks to its practical tubular structure and wheels. It has also been designed for applications in the workplace (workshops, small industries): ideal for connecting welders or power tools. Ideal for emergency power. Features an AVR current regulator, which reduces the risk of damage to sensitive equipment.
Features
• The Powermate OHV engine provides consistent power for multiple applications.
• Fuel: gasoline.
• Starting systems: recoil.
• Automatic low oil shutoff automatically protects the engine from damage.
• The fuel gauge allows the user to monitor fuel levels.
• Automatic voltage regulator (AVR).
• Integrated wheel kit for easy transportation.
Technical data
• Frequency: 50 Hz.
• Voltage: 230 V.
• Phases: 1.
• Maximum power: 3000 Watt.
• Rated power: 2600 Watt.
Motor
• Type: OHV.
• Rated operating speed: 3000 rpm.
• Oil capacity: 0.6 l.
• Low oil level shutdown: √.
Alternator
• Voltage regulation system: AVR.
Dimensions
• Length: 644 mm.
• Width: 545 mm.
• Height: 514 mm.
• Weight: 48 kg.
• Carton dimensions LxWxH: 620x452x475 mm.
Autonomy
• Fuel tank capacity: 15.
• Fuel consumption 50%: 1.7 l/h.
• Run time 50%: 9 h.

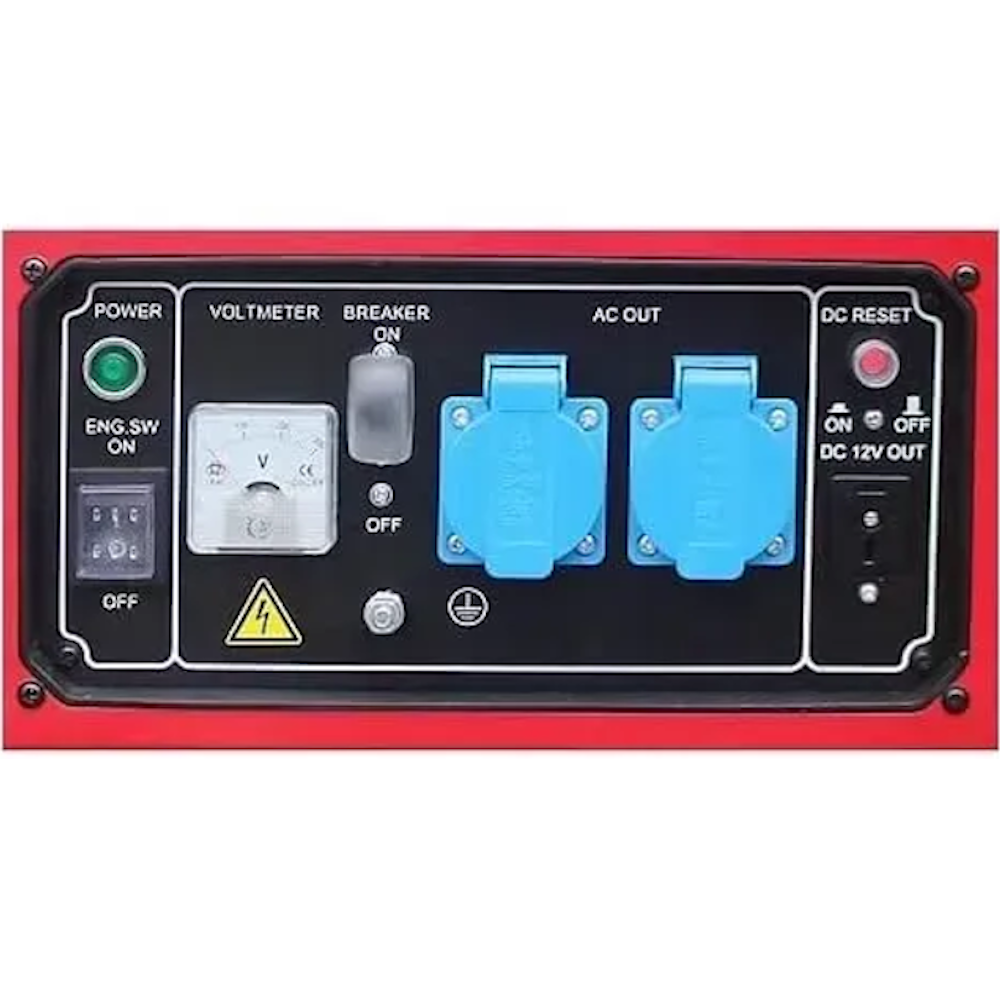

Control panel control
Mounted on the generator and complete with: instrumentation, control, generator protection and sockets.
Controls
• OFF-ON start selector switch.
• Recoil starter.
Instrumentation
• Voltmeter.
• Fuel level.
Protection
• Thermal switch.
• Oil level protection.
Sockets
• 2 SCHUKO 230V 16A IP44.
