Description

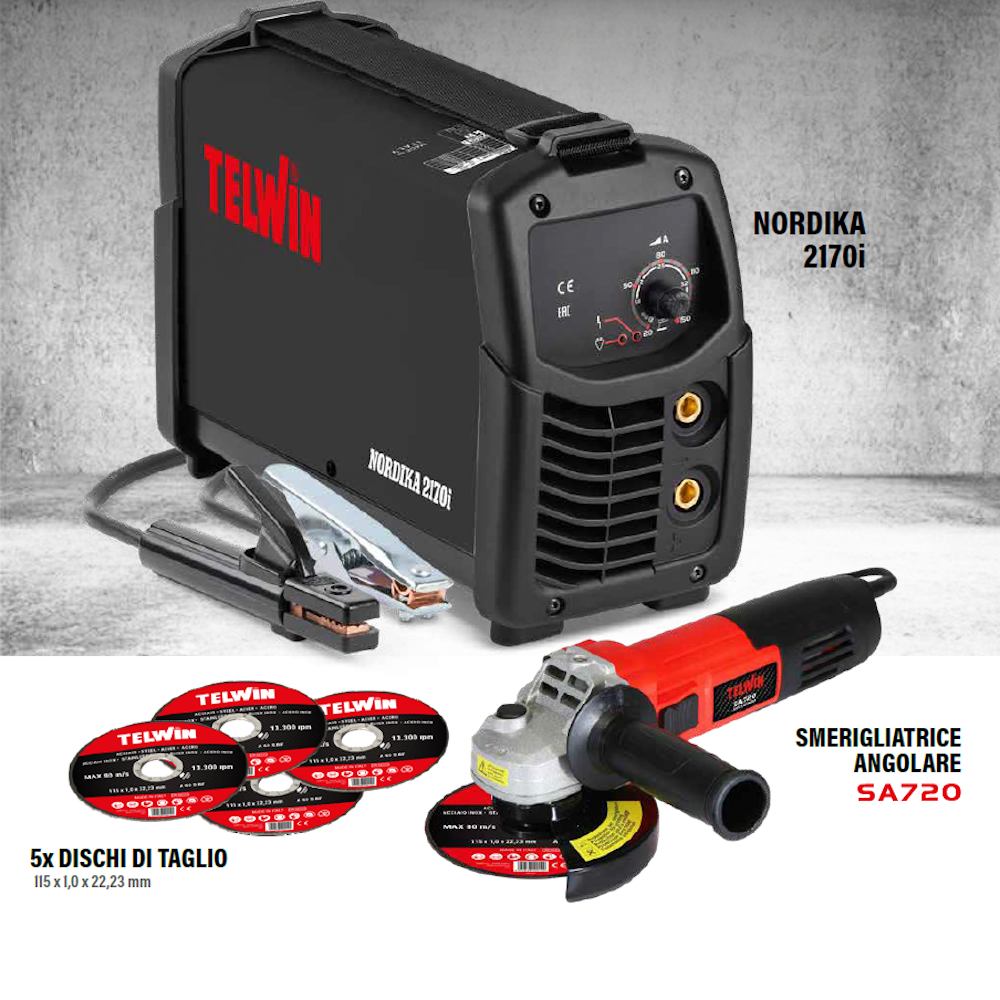

Nordika 2170i Welding Machine + SA720 Angle Grinder + 5 Cutting Discs
• The Telwin Nordika 2170i is an inverter electrode (MMA) and direct current (DC) TIG welding machine, designed to offer high performance in a compact and lightweight format. With an adjustable welding current of up to 150A, it is ideal for use with rutile, basic, stainless steel and cast iron electrodes up to 4 mm in diameter. Inverter technology guarantees reduced energy consumption and greater efficiency compared to traditional welding machines.
• The Telwin SA720 angle grinder is powered by a 720W electric motor with progressive start. It operates at a no-load speed of 11,000 rpm and can be used with 115 mm diameter discs (M14 connection). The front handle can be adjusted to three positions, ensuring optimal working comfort. The disc guard is adjustable. The switch to prevent accidental start-up and the disc lock button guarantee maximum safety of use.
Included
• Nordika 2170i.
• SA720 angle grinder.
• Five 115 x 1.0 x 22.23 mm cutting discs.
• Earth clamp complete with cable.
• Electrode holder complete with cable.
SA720 Features
• Performing: progressive start; 0-11,000 rpm. Mounts discs Ø 115mm (M14 connection).
• Comfortable: front handle can be fixed in 3 positions.
• Safe: disc lock button and switch to prevent accidental switching on.
SA720 Technical Data
• Weight: 1.6 kg.
• Power supply: 230V ~ 50Hz.
• Power: 720 W.
• No-load speed: 11,000 rpm.
• Disc diameter: 115 mm.
• Power supply: Electric.
Features 2170i
• Inverter technology: guarantees greater efficiency, arc stability and lower consumption compared to traditional welding machines.
• MMA and TIG DC compatibility: can be used for both electrode welding (MMA) and direct current TIG welding (DC).
• Advanced functions: equipped with Hot Start (to facilitate electrode striking), Arc Force (to improve arc stability) and Anti-Stick (to prevent the electrode from sticking).
• Electronic protection: against overvoltage, undervoltage and overcurrents, ensuring safety during use.
• Portability and compactness: lightweight and compact design, easy to carry.
• Use with motor generator: can also work with generators (within a variation of ±15% of the supply voltage).
Technical data 2170i
• Single-phase mains voltage: 230 V
• Mains frequency: 50/60 Hz
• Welding current: 20 - 150 A
• Maximum current at 25%: 140 A
• Open-circuit voltage Maximum: 75 V
• Maximum current consumption: 28 A
• Power consumption at 60%: 2 kW
• Usable electrode diameter: 1.6 - 4 mm
• Dimensions: 355 x 145 x 240 mm
• Net weight: 1.5 kg
