Description
Powerful, durable and compact hammer drill for drilling applications in masonry and concrete
Maximum impact of 2.4 J with high-end percussions per minute
Powerful 800 W motor even for the most demanding applications
Optimized for holes from 6 to 16 mm
Safety clutch to protect the operator in the event of the bit jamming

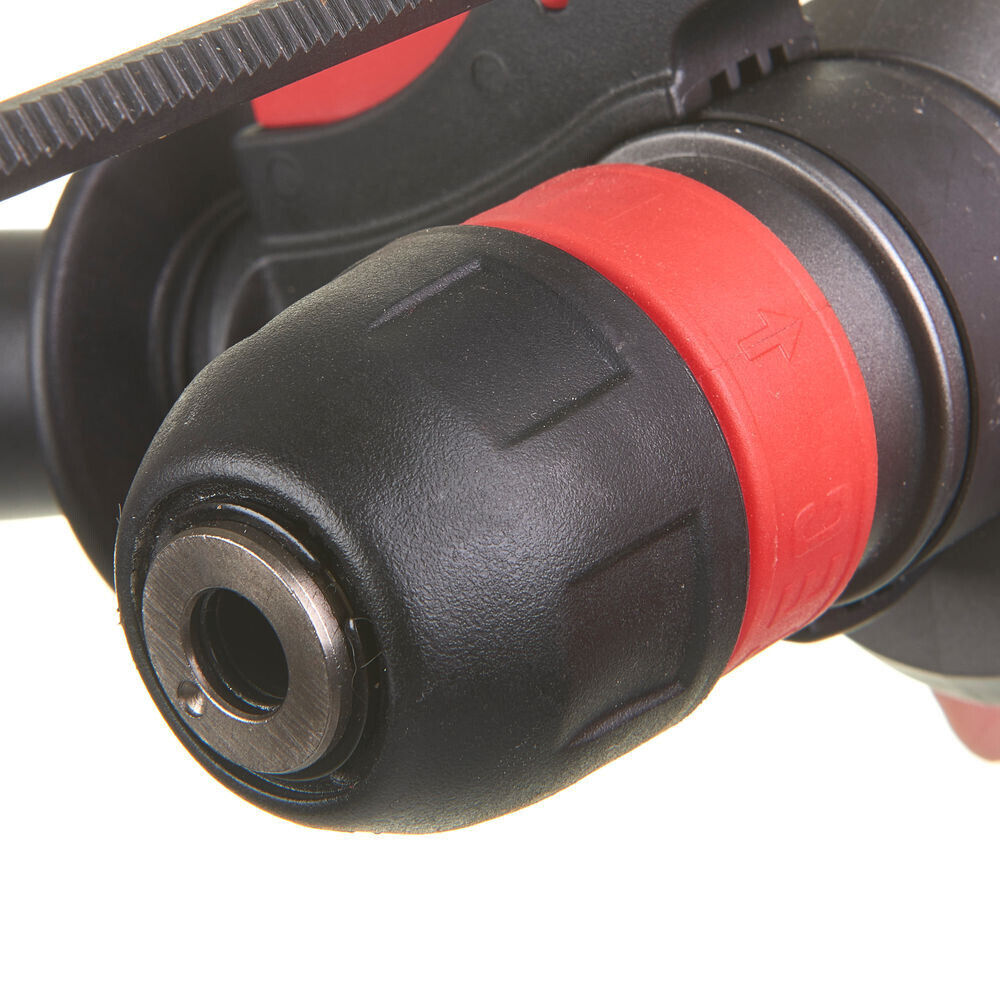

The X version is supplied with a FIXTEC™ chuck for cylindrical shank bits
Supplied with a 4-meter cable

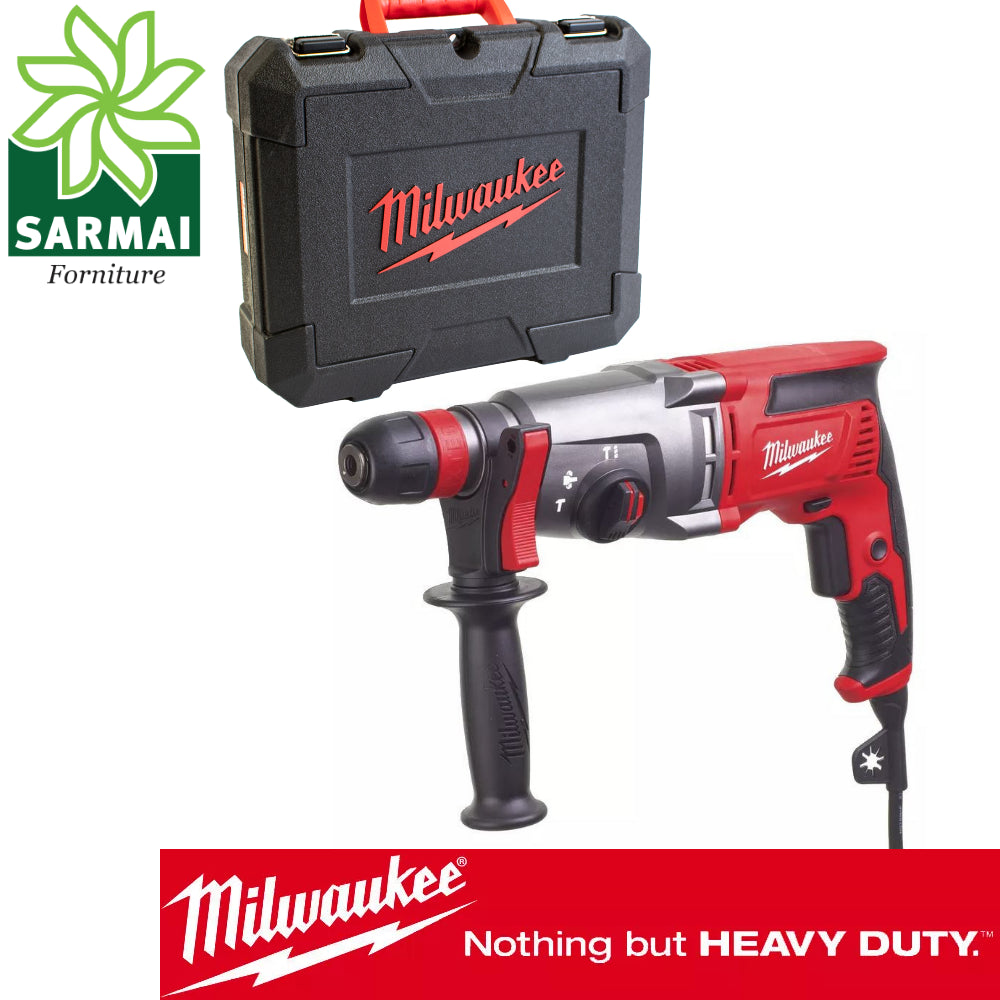

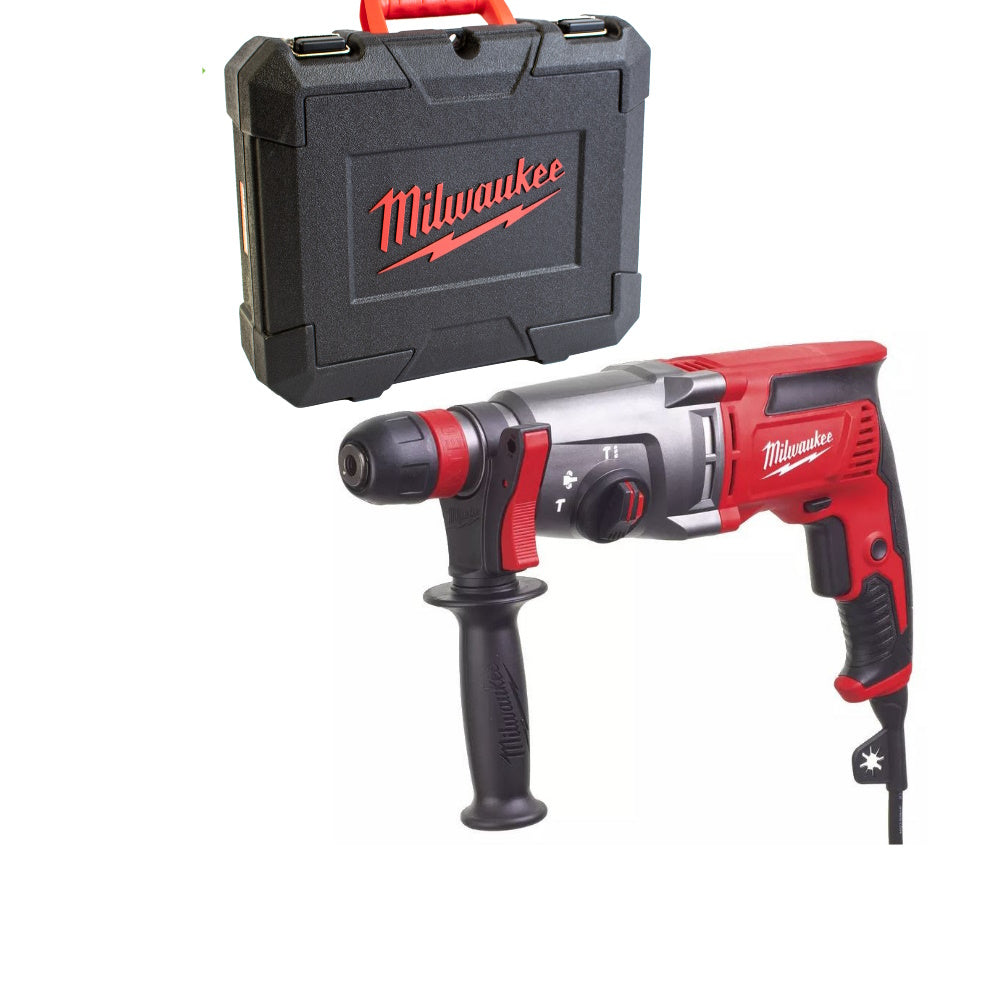

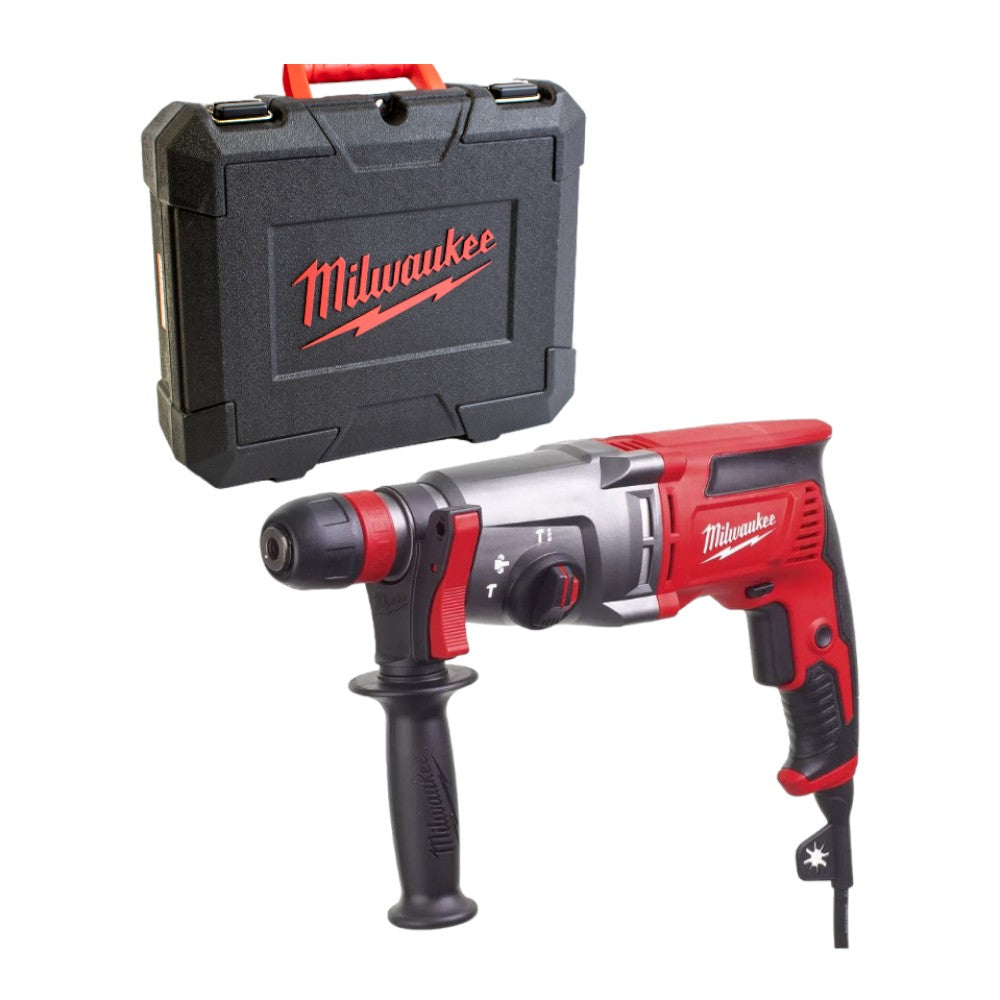

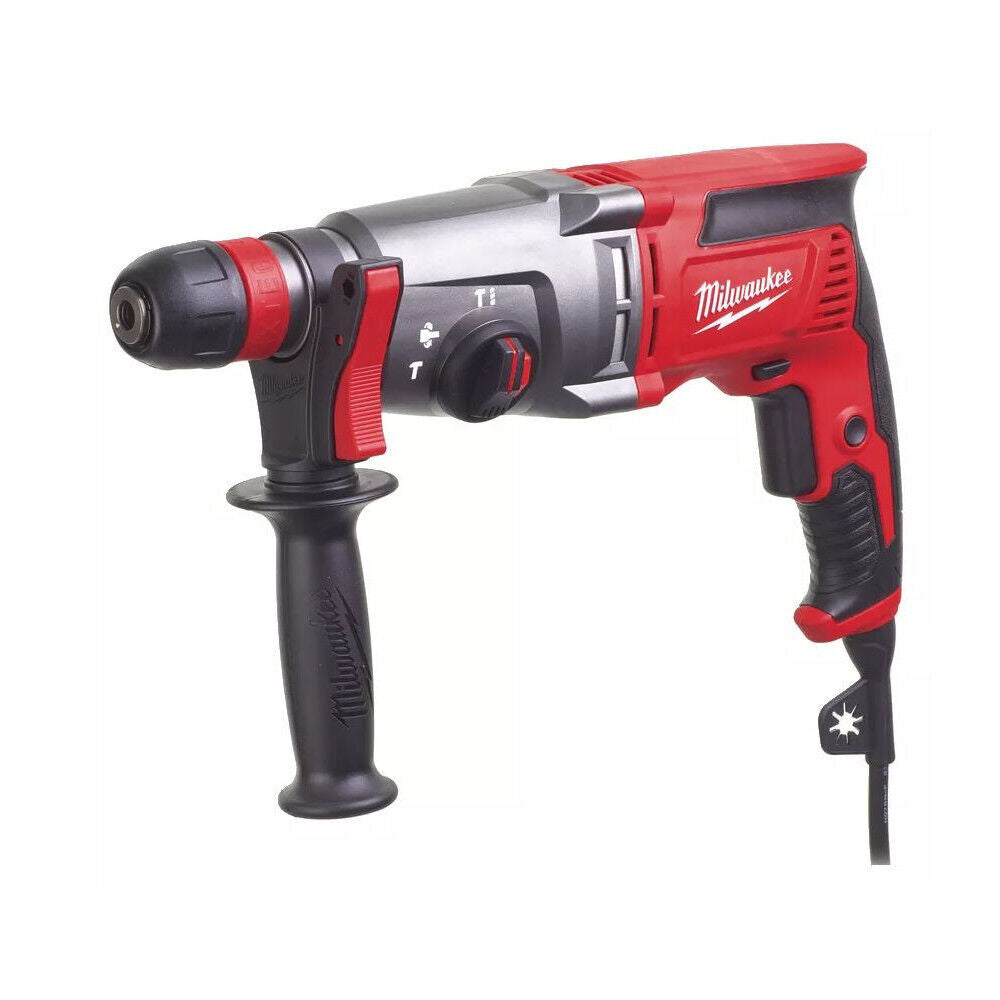

Milwaukee PH 26 TX Combination Hammer

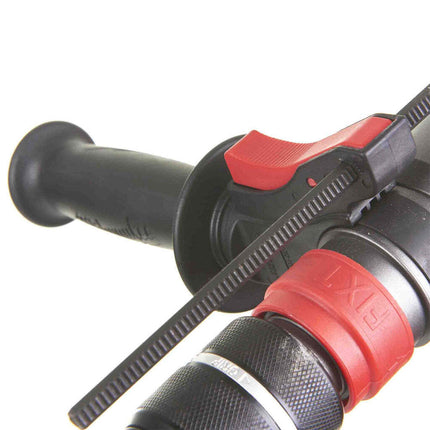

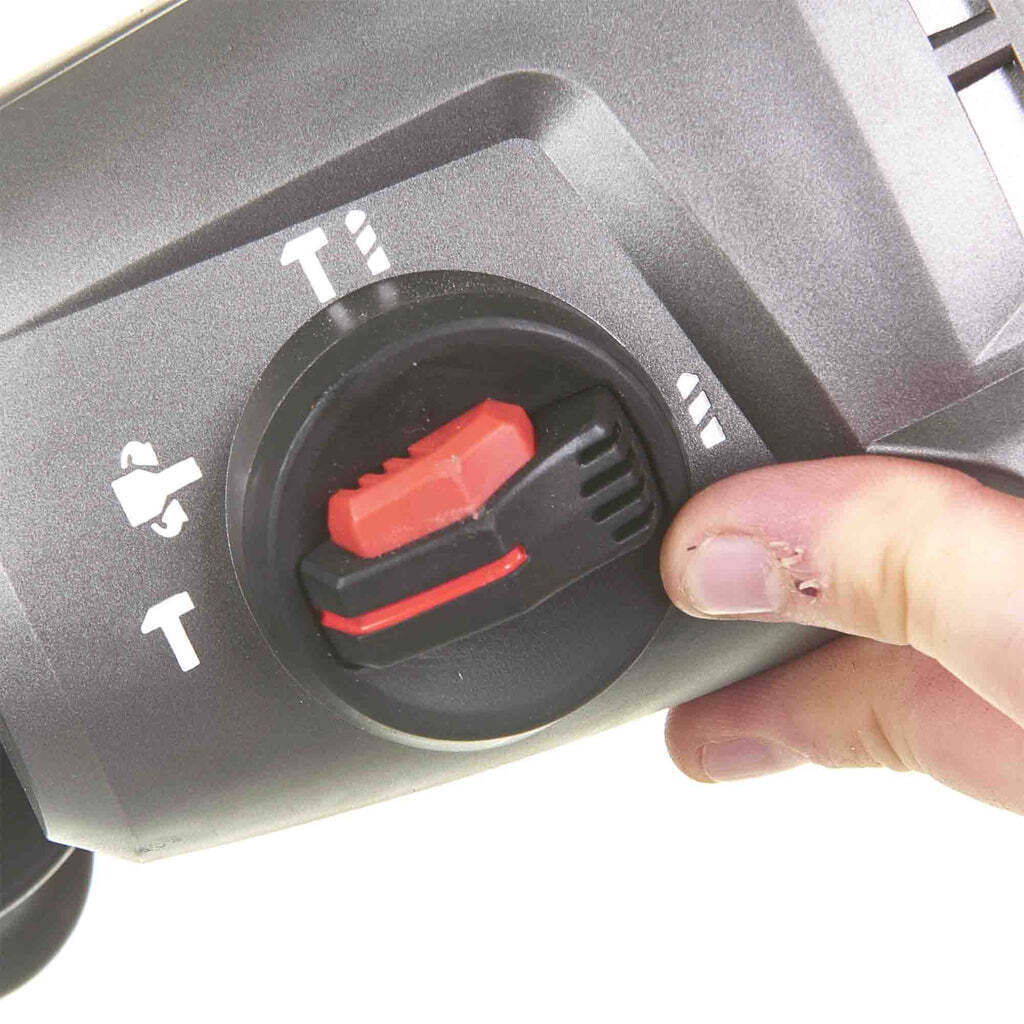

The Milwaukee PH 26 TX combination hammer is an SDS-Plus tool with an 800W motor suitable for drilling and chiselling. It offers 3 operating modes (rotation with impact, rotation only, and impact only) and an AVS handle to reduce vibration. The mode selector allows for quick transitions between functions.
Technical Specifications
Milwaukee PH 26 TX Technical Data
| Power Input |
800 W |
| Impact Energy |
2.4 J |
| No-Load Speed |
0–1500 rpm |
| Impact Rate |
0–4850 rpm |
| Hole Capacity Concrete |
26 mm |
| Drilling capacity in wood |
30 mm |
| Drilling capacity in metal |
13 mm |
| Weight |
3.1 kg |
| Vibration level (drilling concrete) |
11.4 m/s² |
| Vibration level (chisel) |
9.5 m/s² |
| Noise level (power) |
103.6 dB(A) |
| Noise level (pressure) |
92.6 dB(A) |
