Description
Included in the set: Battery, Case, Charger
Motor type: Brushless
Battery capacity: 5 Ah
Type: Hammer drill
Battery technology: Lithium-ion battery
Voltage: 18 V
M18 FUEL HAMMER DRILL - FPD3 502X
Features
• Thanks to the torque of 158 Nm it allows you to complete the most difficult jobs
• Only 175 mm long. Allows access even in the narrowest spaces
• Thanks to the AUTOSTOP™ function, the drill protects the operator from hyper-rotation of the limb. The M18 FPD3 stops automatically, protecting the user and signalling the activation of the AUTOSTOP™ function by lighting up a warning light on the bottom of the drill.
• 13 mm fully metal chuck, with carbide teeth for maximum durability and tip retention.
• Fast applications even under stress.
• The brushless POWERSTATE™ motor delivers maximum torque to complete all operations.
• Display indicating the residual charge.
• The mechanical clutch allows the use of a wide range of screw sizes and types.
• Electronics optimised for maximum autonomy.
• FUEL™ technology redefines battery-powered power tools. The brushless motor, REDLINK PLUS™ electronics and REDLITHIUM™ battery pack offer superior performance and durability
• Works with all M18™ MILWAUKEE® batteries
Technical Data
M18 FPD3 - 502X
<• Battery capacity: 5.0 Ah
• Battery type: Li-ion
• Voltage: 18 V
• Max. drilling capacity in wood: 89 mm
• Max. drilling capacity in metal: 16 mm
• Max. drilling capacity in masonry: 16 mm
• Max. torque: 158 Nm
• Standard equipment: belt clip, additional handle
• Impact rate: 0 - 33,000 bpm
• Keyless chuck: 13 mm
• Speed 1: 0 - 500 rpm
• Speed 2: 0 - 2100 rpm
• Weight with battery pack (epta): 2.2 (m18 b5) kg
• Uncertainty of sound power level: 3 db(a)
• Uncertainty of sound pressure level: 3 db(a)
• Sound power level (lwa): 106.78 db(a)
• Sound pressure level (lpa) 95.78 db(a)
• Vibration uncertainty screwing: 1.5 m/s²
• Vibration uncertainty drilling concrete: 1.5 m/s²
• Vibration uncertainty drilling metal 1.5 m/s²
• Vibration screwing: 1.48 m/s²
• Concrete drilling vibrations: 11.3 m/s²
• Metal drilling vibrations: 1.85 m/s²

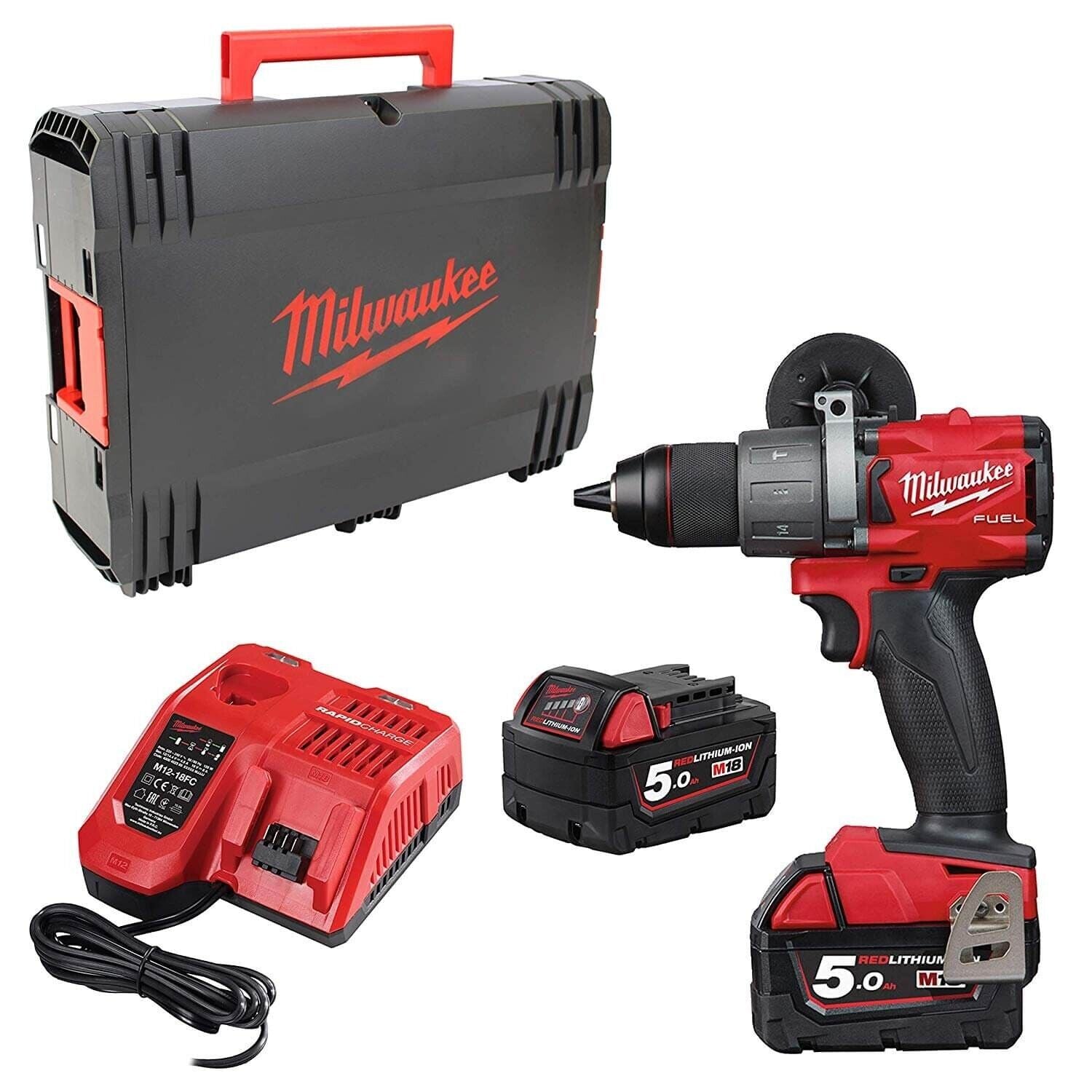

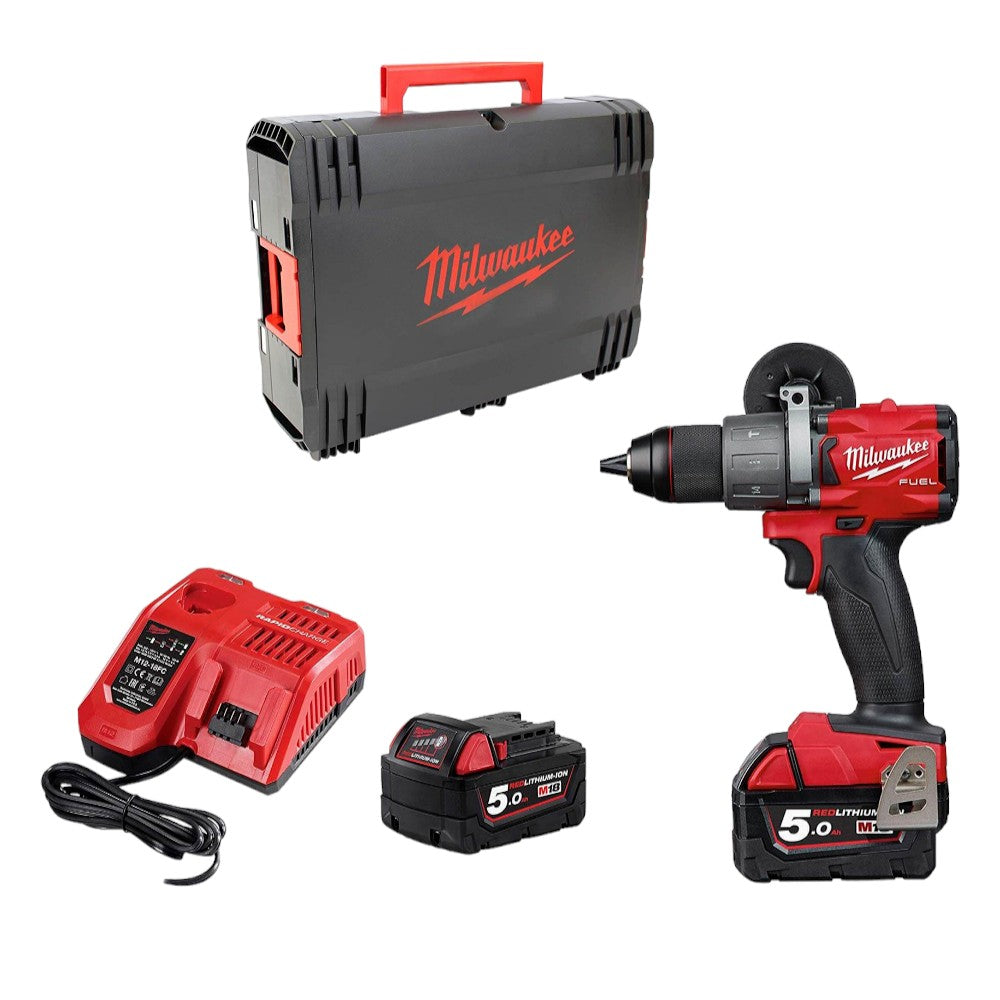

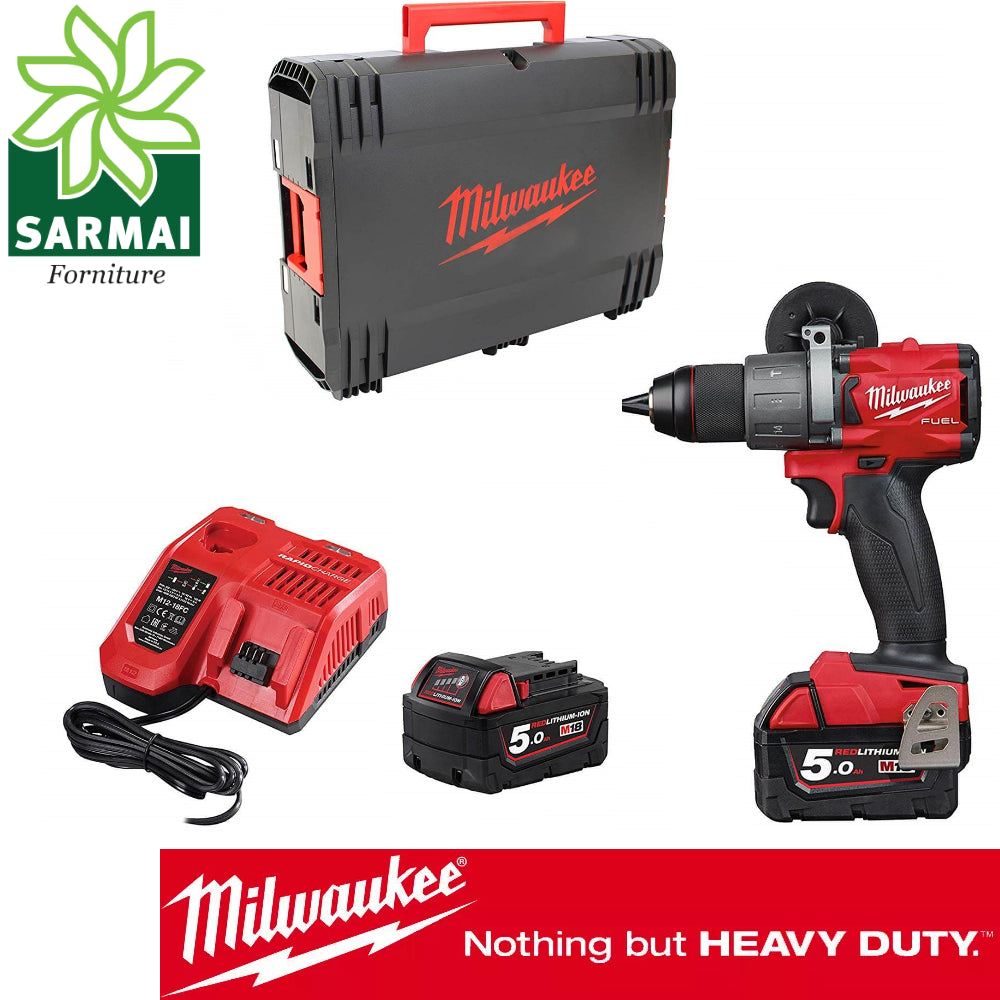

Included
• M18 FPD3 Cordless Drill Driver
• 2 18V 5 Ah Batteries
• Quick charger
• 1 Heavy-duty case
