Description
Mechanical clutch with 13 settings, selector for impact/hammer drilling
Impact rate: 0 - 22,500 blows/min
Weight with battery pack (epta): 1.4 kg
M12 FUEL™ COMPACT HAMMER DRILL DRIVER
• Small size (152 mm) allows access to the tightest spaces
• 45 Nm of torque - Excellent Torque to Size Ratio
• Heavy Duty 13 mm metal chuck holds drill bits securely for easy changes
• Mechanical clutch with 13 settings, selector for dry/impact driving
• The DNA of our FUEL™ platform redefines cordless technology. The POWERSTATE™ brushless motor, REDLITHIUM™ batteries and REDLINK PLUS™ intelligent electronics deliver unmatched power, run time and endurance.
• Belt clip and LED light
• The DNA of our FUEL™ platform redefines cordless technology. The POWERSTATE™ brushless motor, REDLITHIUM™ batteries and REDLINK PLUS™ intelligent electronics guarantee unparalleled power, runtime and endurance.
• Compatible with all MILWAUKEE® M12™ batteries
Technical Data
• Max. drilling capacity in wood: 35 mm
• Max. drilling capacity in metal: 13 mm
• Max. drilling capacity in masonry: 13 mm
• Max. torque: 45 nm
• Percussion frequency: 0 - 22,500 strokes/min
• Speed settings: 2
• 13 mm keyless chuck
• Speed 1: 0 - 450 rpm
• Speed 2: 0 - 1,550 rpm
• Wood screws a: 8 mm
• Weight with battery pack (epta): 1.4 kg
• Sound power level uncertainty: 3 db(a)
• Sound pressure level uncertainty: 3 db(a)
• Sound power level (lwa): 100 db(a)
• Sound pressure level (lpa): 89.3 db(a)
• Vibration uncertainty screwing: 1.5 m/s²
• Vibration uncertainty drilling concrete: 1.5 m/s²
• Vibration uncertainty drilling metal: 1.5 m/s²
• Vibration screwing: 0.86 m/s²
• Vibration drilling concrete: 15.73 m/s²
• Vibration drilling metal: 1.92 m/s²

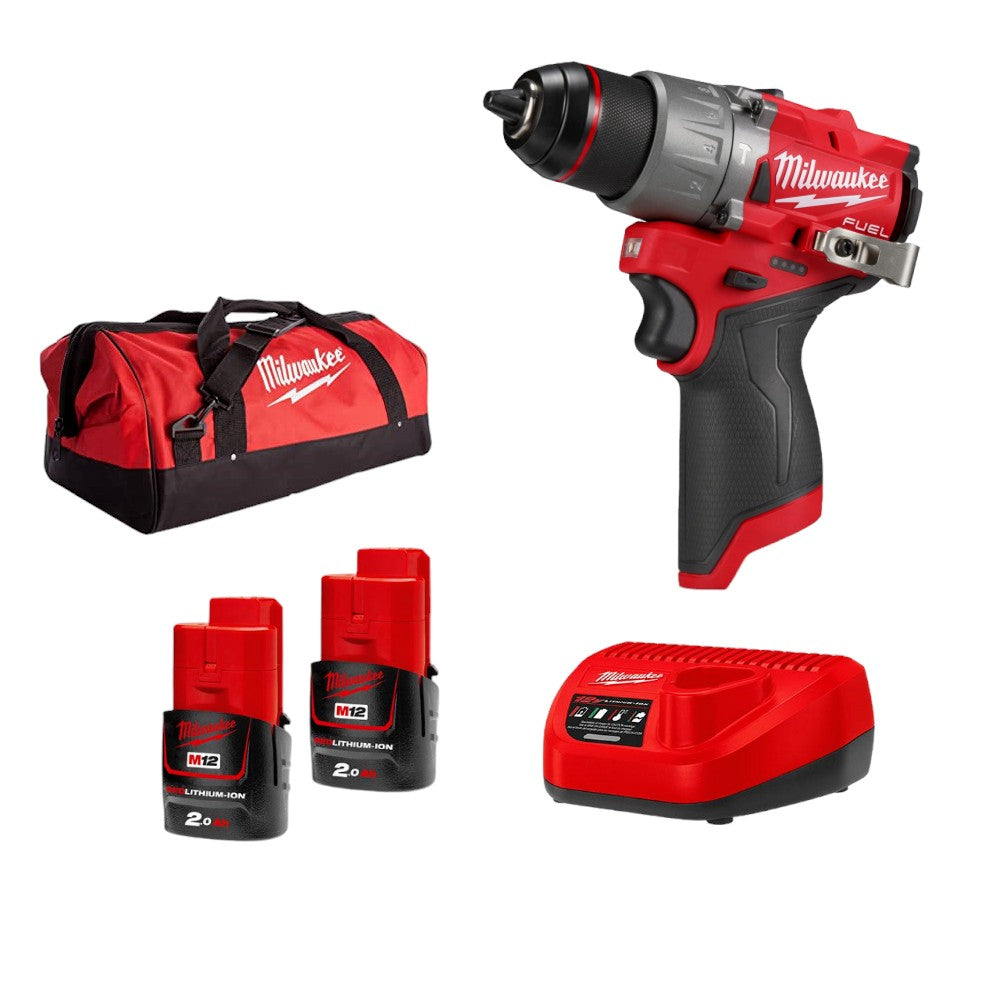

Included
• M12 fuel™ compact hammer drill (body only)
• 2 M12™ 2.0 AH batteries
• M12™ battery charger
• Tool bag 33x18xH20cm
