Description
for cutting steel, stainless steel, non-ferrous materials, plasterboard, fibre cement, plastic and ceramic
76 mm cutting blade, 16.3 mm cutting depth
Optimized for one-handed use, only 1.1 kg and 226 mm in length

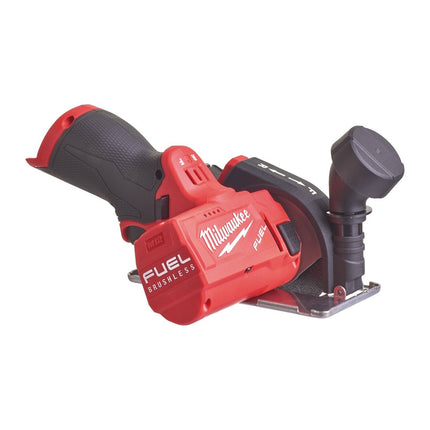

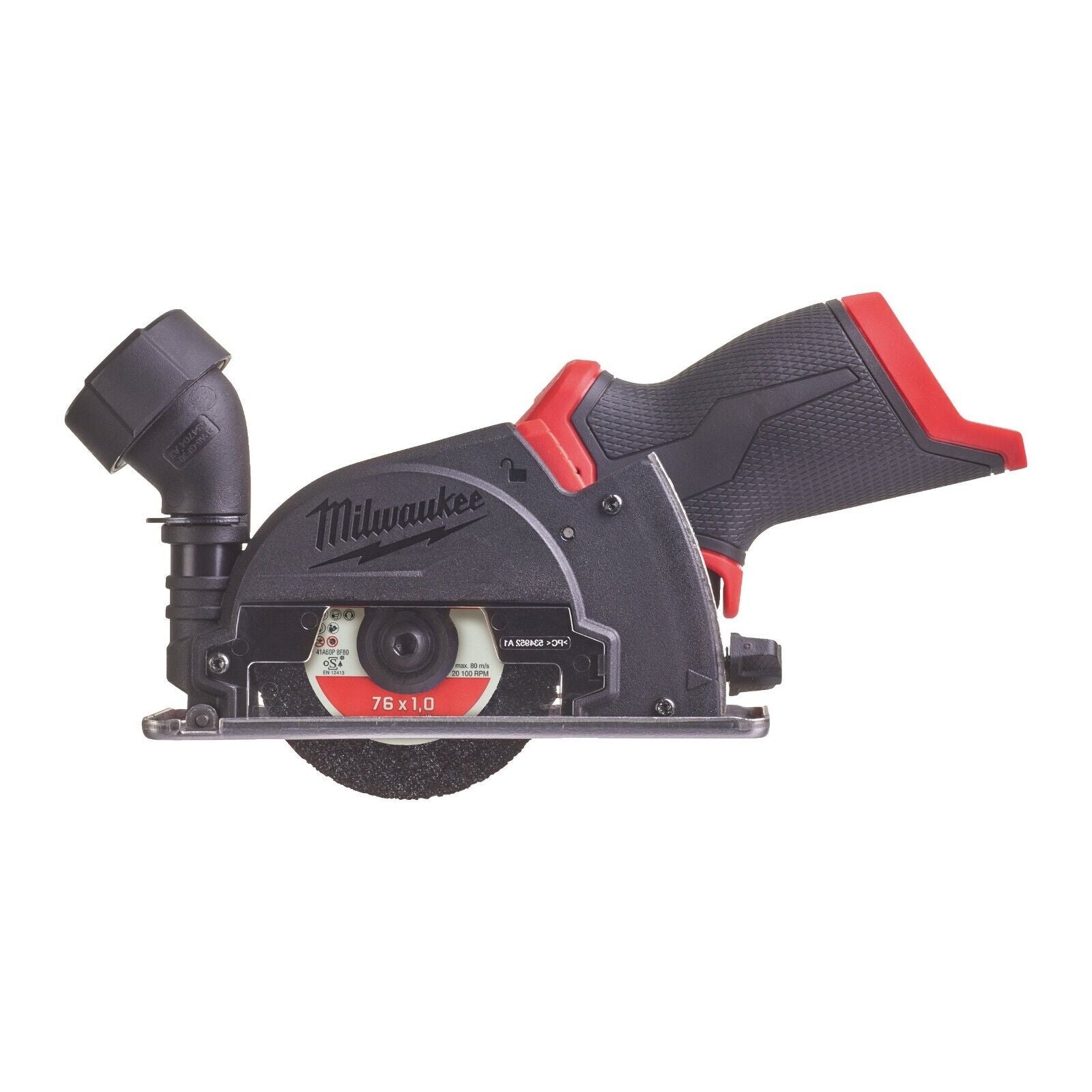

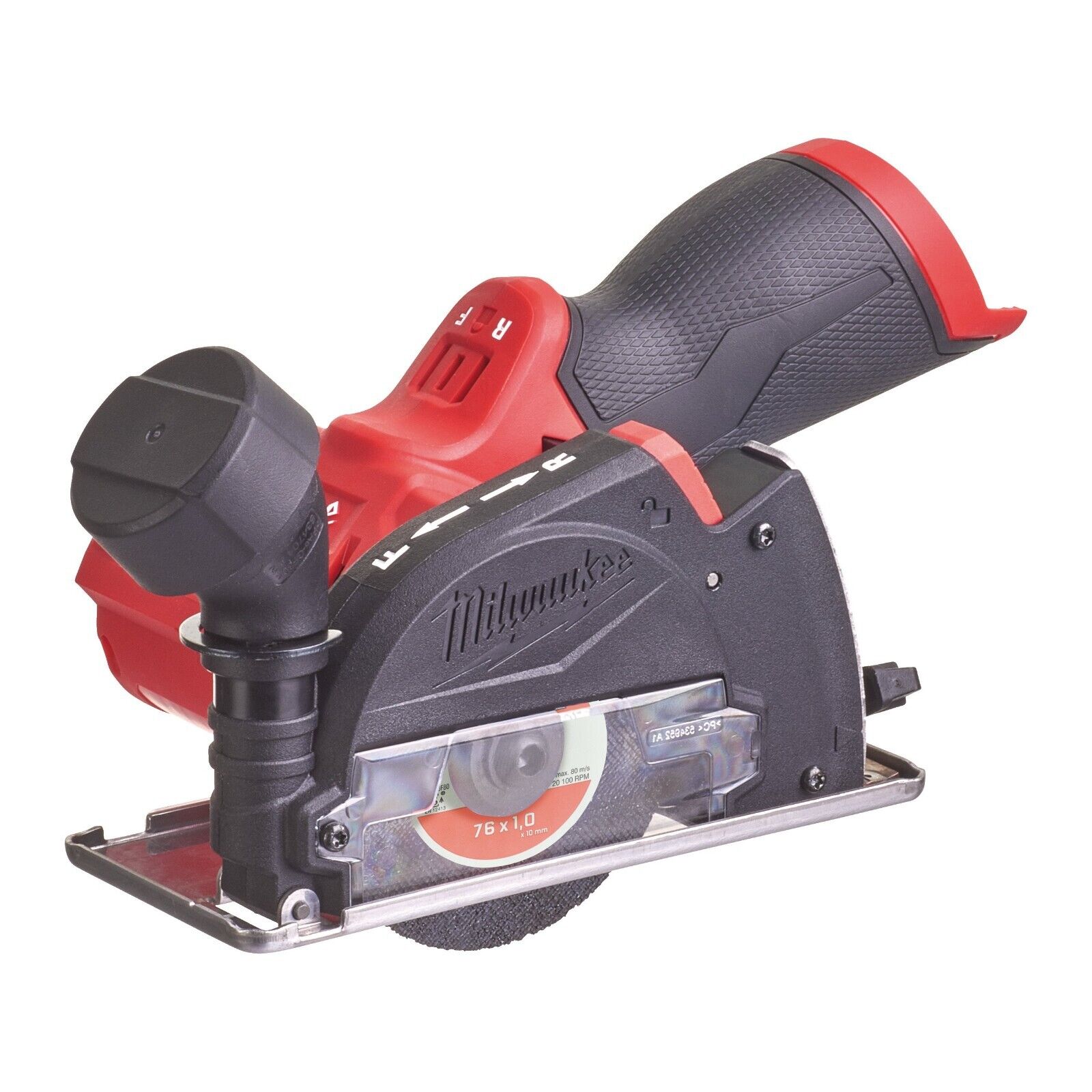

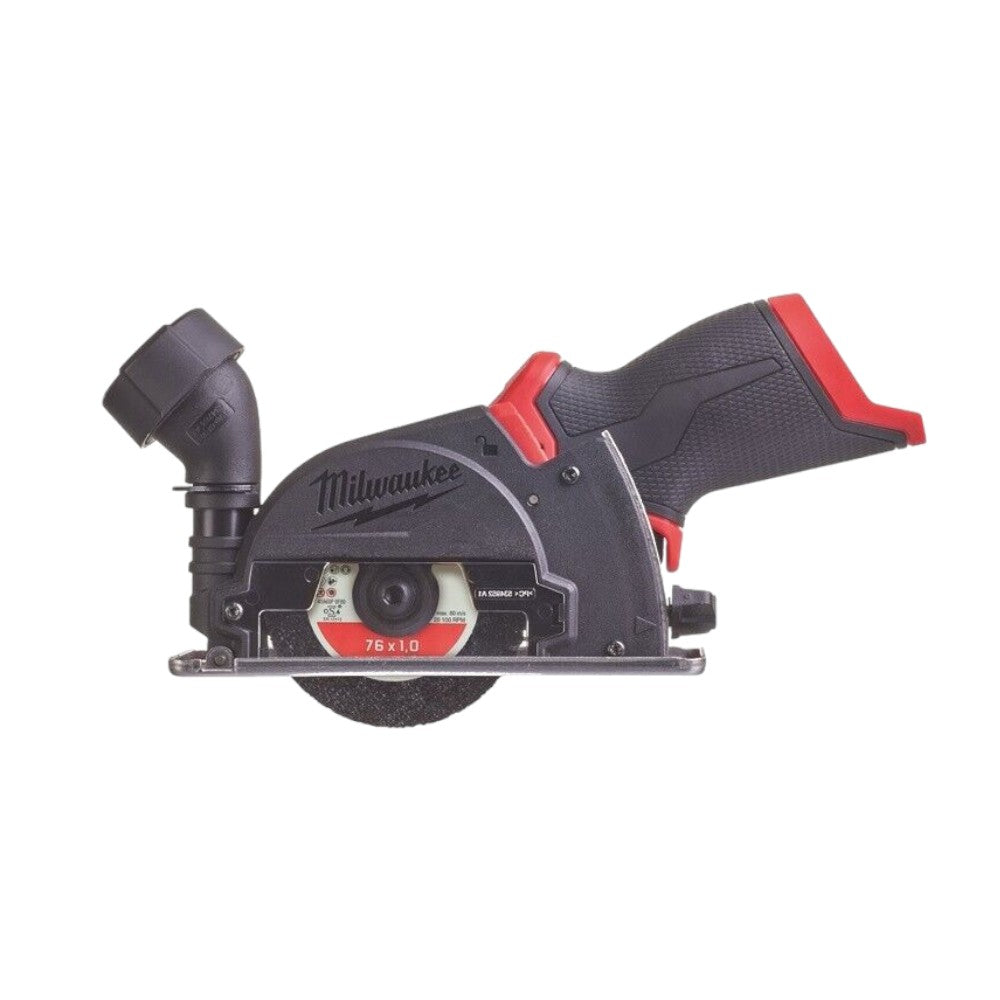

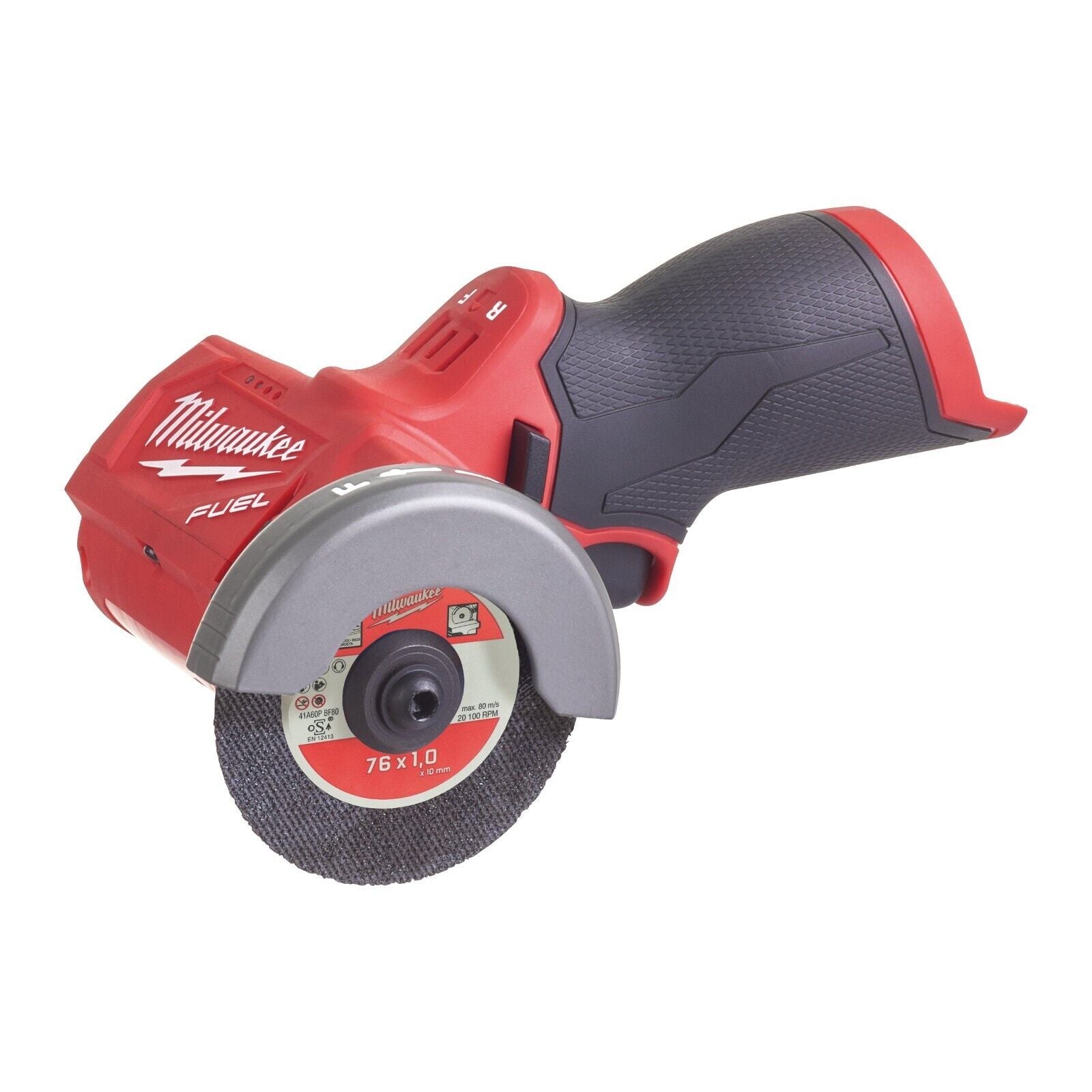

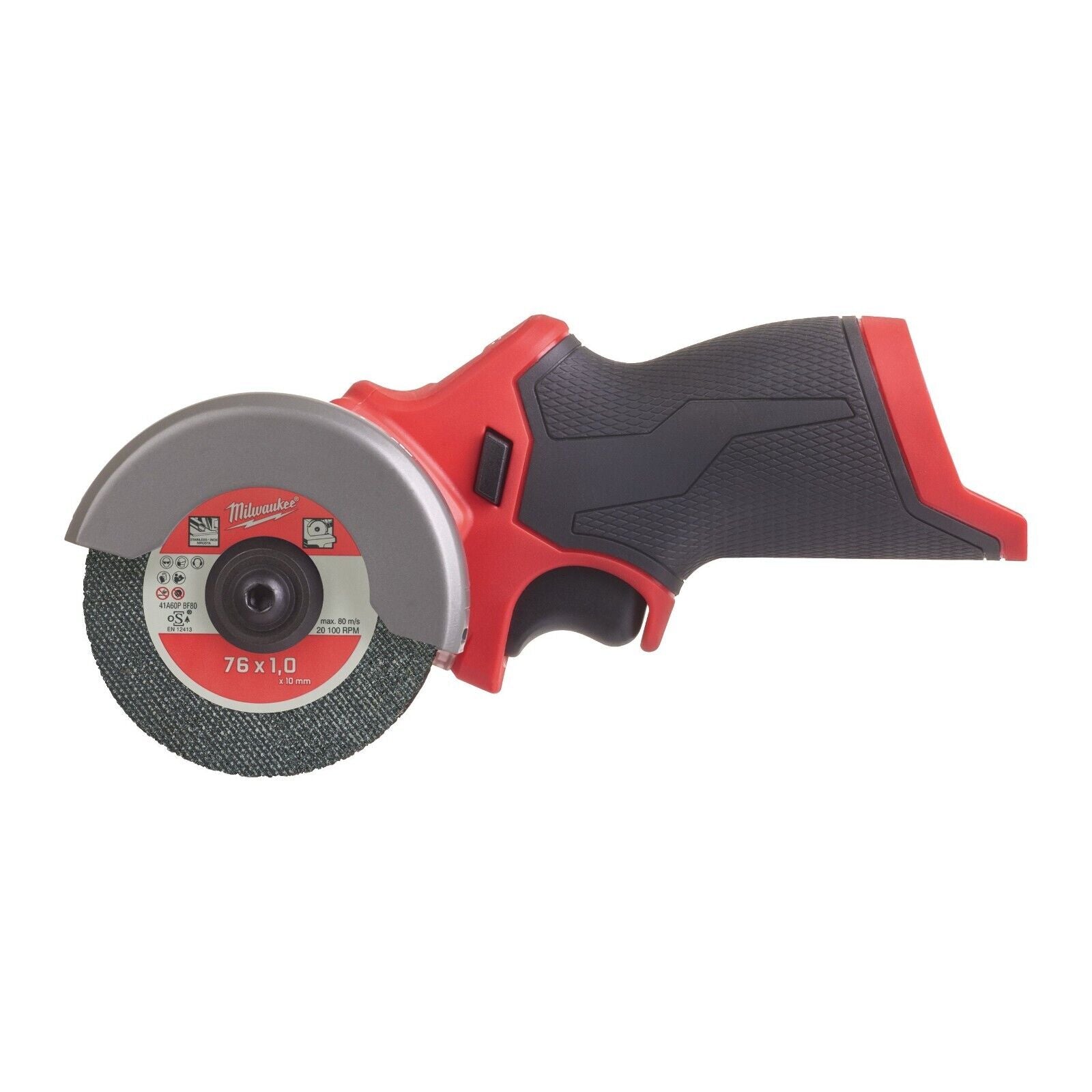

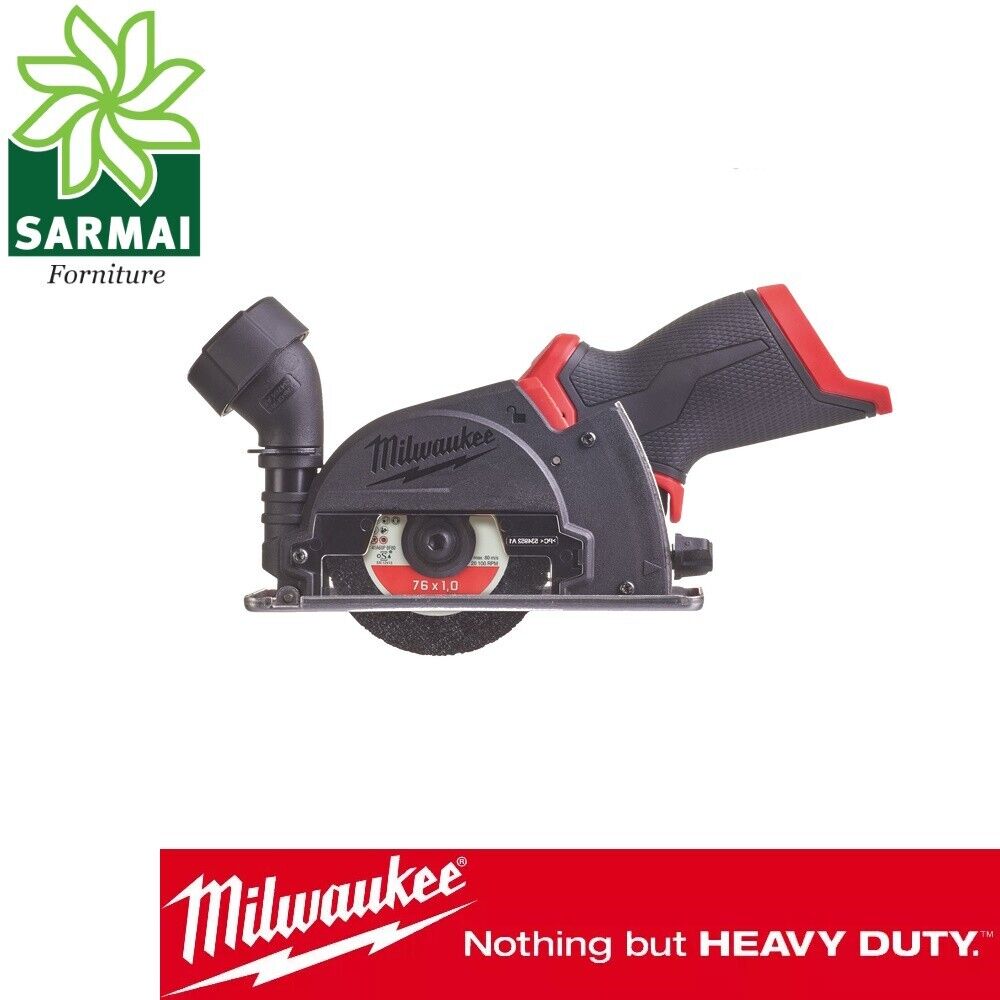

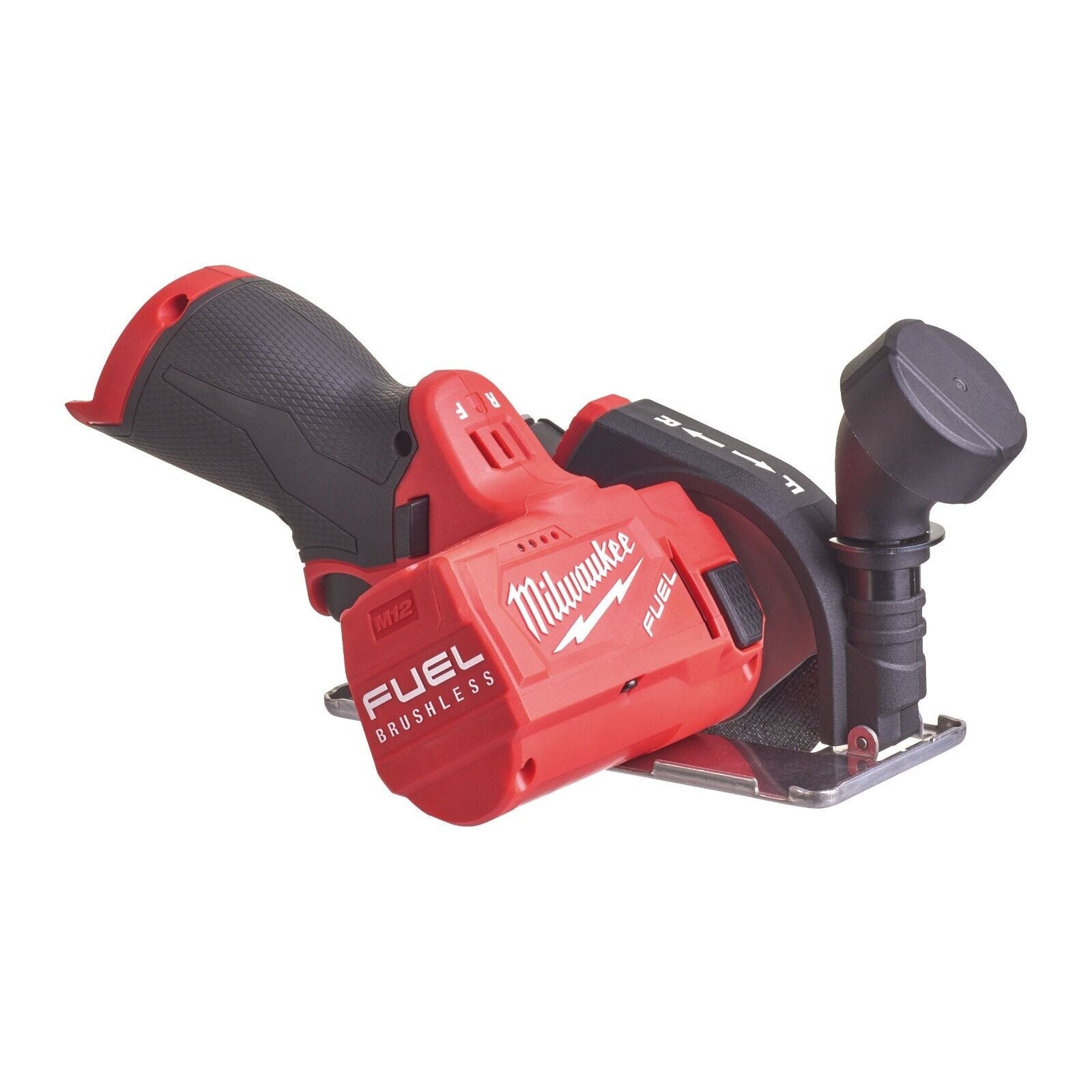

M12 FUEL™ MINI MULTI-MATERIAL CUTTING MACHINE
• Ensures precise cuts up to 20,000 rpm
• Optimized for one-handed use, only 1.1 kg and 226 mm in length
• Versatile: for cutting steel, stainless steel, non-ferrous materials, plasterboard, fibre cement, plastic and ceramic
• Adjustable guard and possibility of setting the direction of rotation of the blade: maximum protection from debris and sparks
• Quick-release guards with adjustable cutting depth, 32 mm connection for vacuum cleaners
• Battery charge level indicator and LED light to illuminate the application area
• FUEL™ technology redefines cordless power tools. Brushless motor, REDLINK PLUS™ electronics and REDLITHIUM™ battery pack deliver superior performance and durability
• 76 mm cutting blade, 16.3 mm cutting depth
• Works with all MILWAUKEE® M12™ batteries
Technical Data
• Bore: 10 mm
• Blade diameter: 76 mm
• Standard equipment: Extraction hood, 1 x metal, 1 x diamond, 1 x multi-material blades
• Max. cutting depth: 16.3 mm
• Kickback protection: no
• No-load speed: 20,000 rpm
• Weight: 1.1 kg
• Sound power level uncertainty: 3 db(a)
• Sound pressure level uncertainty: 3 db(a)
• Sound power level (lwa): 105 db(a)
• Sound pressure level (lpa): 94
• Vibration uncertainty: 1.5 m/s²
• Vibration level: 2.9 m/s²
Included
• M12 fuel™ multi-material mini cutter (machine body only)
• Extraction hood
• 3 types of discs:
- metal (4932464717)
- diamond (4932464715)
- multi-material (4932464716)
