Description
Compact 12V brushless rotary hammer: 1.1 J impact energy, up to 6,575 blows/min and 900 rpm no-load speed
Minimal vibration: 4.4 m/s², for prolonged applications
Capable of drilling over 60 50 mm x 6 mm holes on a single battery charge
POWERSTATE™ brushless motor delivers performance and durability in a compact size
REDLINK PLUS™ electronics provide enhanced overload protection for the tool and battery, ensuring longer life in heavy-duty applications
2 modes: rotation and rotary percussion, for maximum versatility
Optimized for drilling 6-10 mm (max 13 mm)

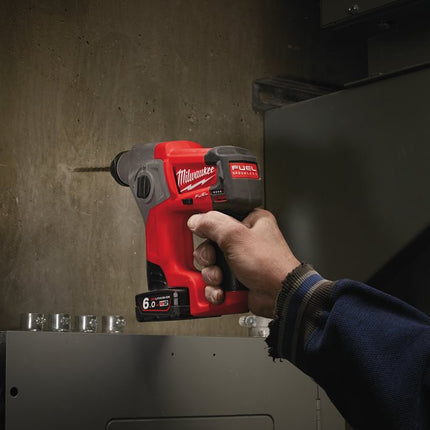

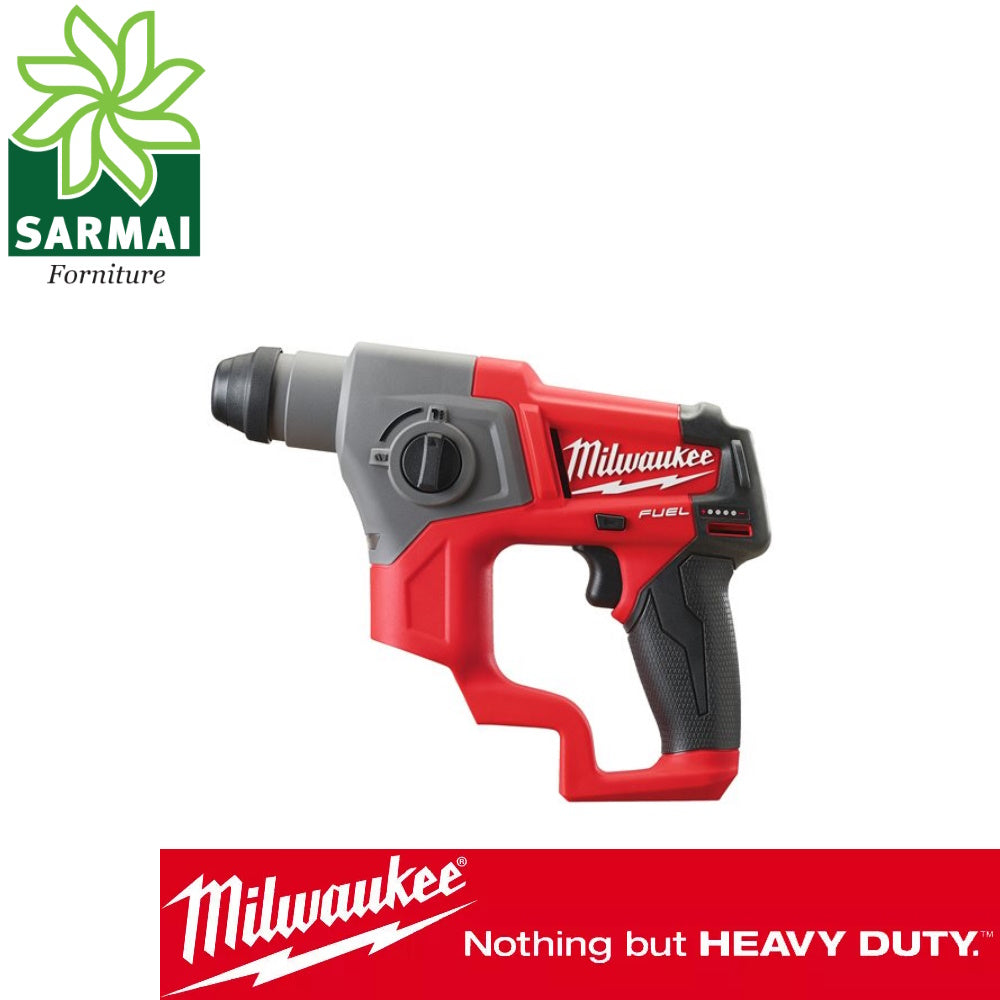

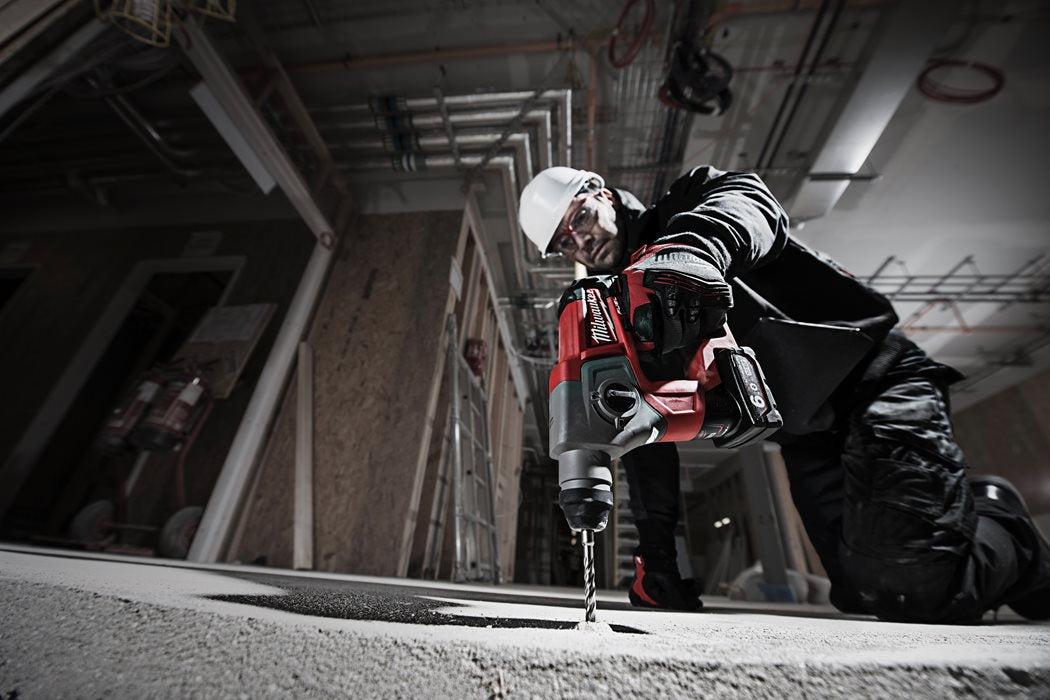

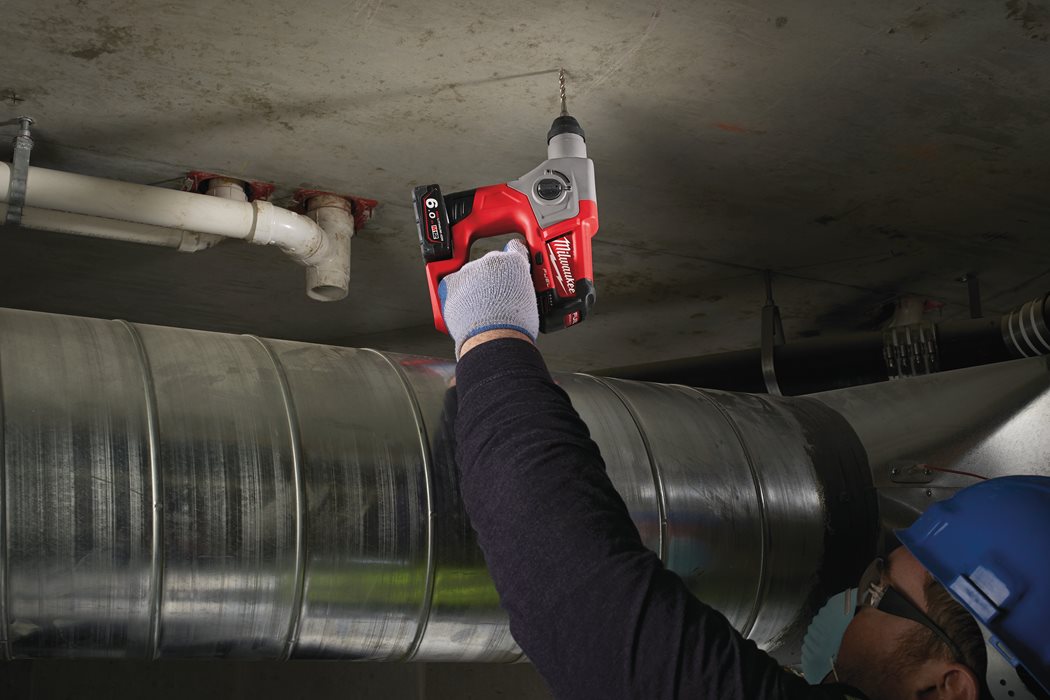

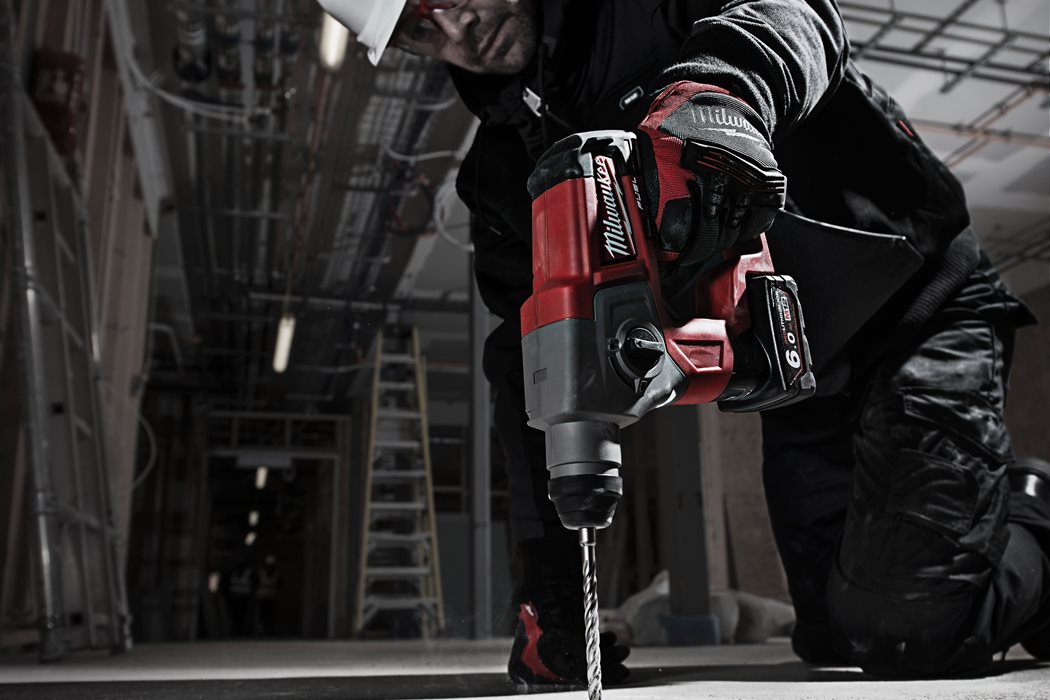

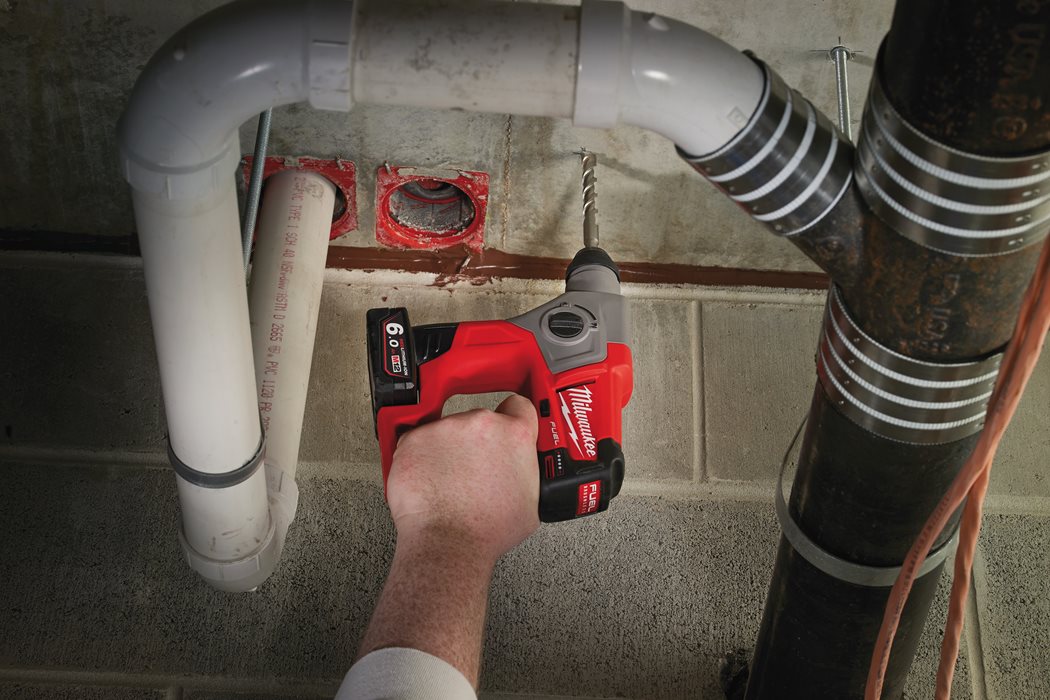

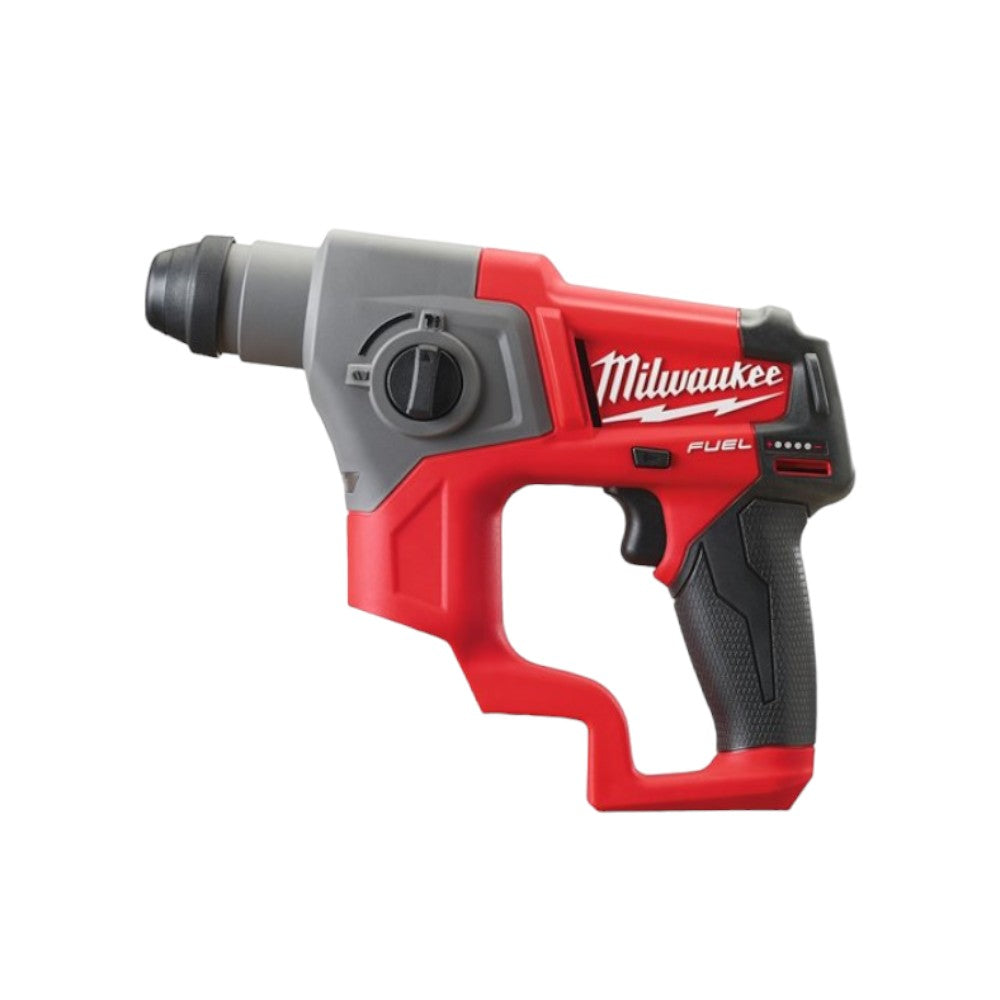

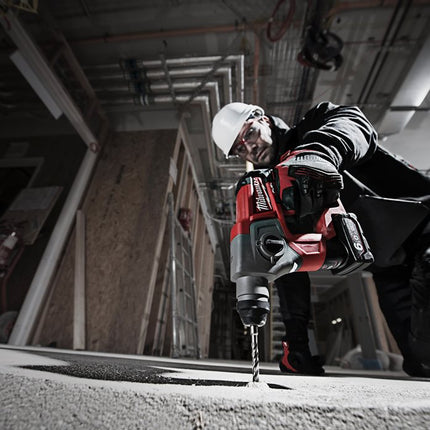

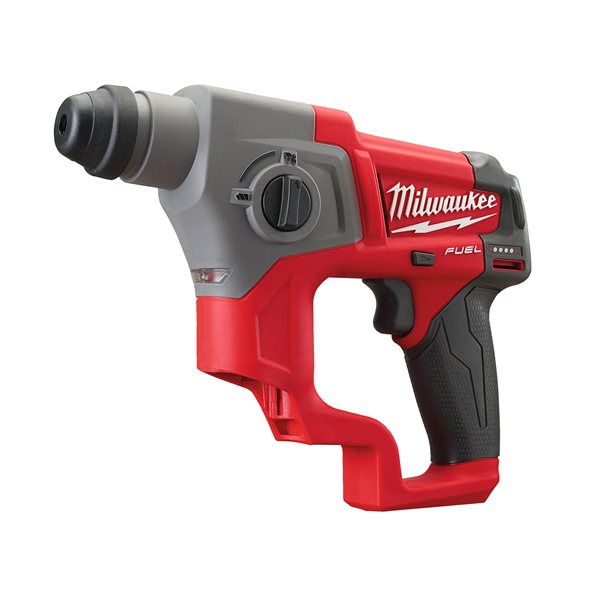

Milwaukee M12 CH-0 12V Rotary Hammer Drill (Body Only)
Compact 12V brushless rotary hammer drill with 1.1 J of impact energy (EPTA), up to 6,575 blows/min, and a no-load speed of 0–900 rpm. It features low vibration (4.4 m/s²) and can drill more than 60 50 mm × 6 mm holes on a single charge.
The POWERSTATE™ brushless motor delivers performance and durability in a compact size;
REDLINK PLUS™ electronics protect the tool and battery from overload; REDLITHIUM™ batteries offer greater runtime and
durability. Two operating modes are available (rotation or rotary-percussion). Optimized for holes from 6–10 mm (max. 13 mm).
43 mm collar compatible with the M12 UDEL universal vacuum cleaner. Compatible with all Milwaukee® M12™ batteries.
| Technical Specifications |
Value |
| Hook |
SDS-Plus |
| Drilling capacity in wood |
13 mm |
| Drilling capacity in metal |
10 mm |
| Impact energy (EPTA) |
1.1 J |
| Max. drilling capacity in concrete |
13 mm |
| Drilling frequency Hammer Drill |
0–6,575 impacts/min |
| Vibration uncertainty, chiseling |
1.5 m/s² |
| Optimum concrete drilling range |
Ø 5.5–12 mm |
| Weight with battery |
2.3 kg |
| Battery type |
Li-ion |
| No-load speed |
0–900 rpm |
| Vibration drilling |
4.4 m/s² |
| Voltage |
12 V |
| Sound power level (LWA) |
95.5 dB(A) |
| Sound pressure level (LPA) |
84.5 dB(A) |
Delivery: Supplied as body only, without batteries or charger.
