Description
Compact 12V brushless rotary hammer: 1.1 J impact energy, up to 6,575 impacts/min and 900 rpm no-load speed
Minimum vibration: 4.4 m/s², for prolonged applications
Capable of drilling over 60 50 mm x 6 mm holes on a single battery charge
POWERSTATE™ brushless motor delivers performance and durability in a compact size
REDLINK PLUS™ electronics provide enhanced overload protection for the tool and battery, ensuring longer life in demanding applications
REDLITHIUM™ battery pack delivers advanced battery pack construction and consistent performance, delivering longer runtime and maximizing battery life
2 modes: rotation and rotary hammer, for maximum versatility
Optimized for drilling 6-10 mm (max 13 mm)

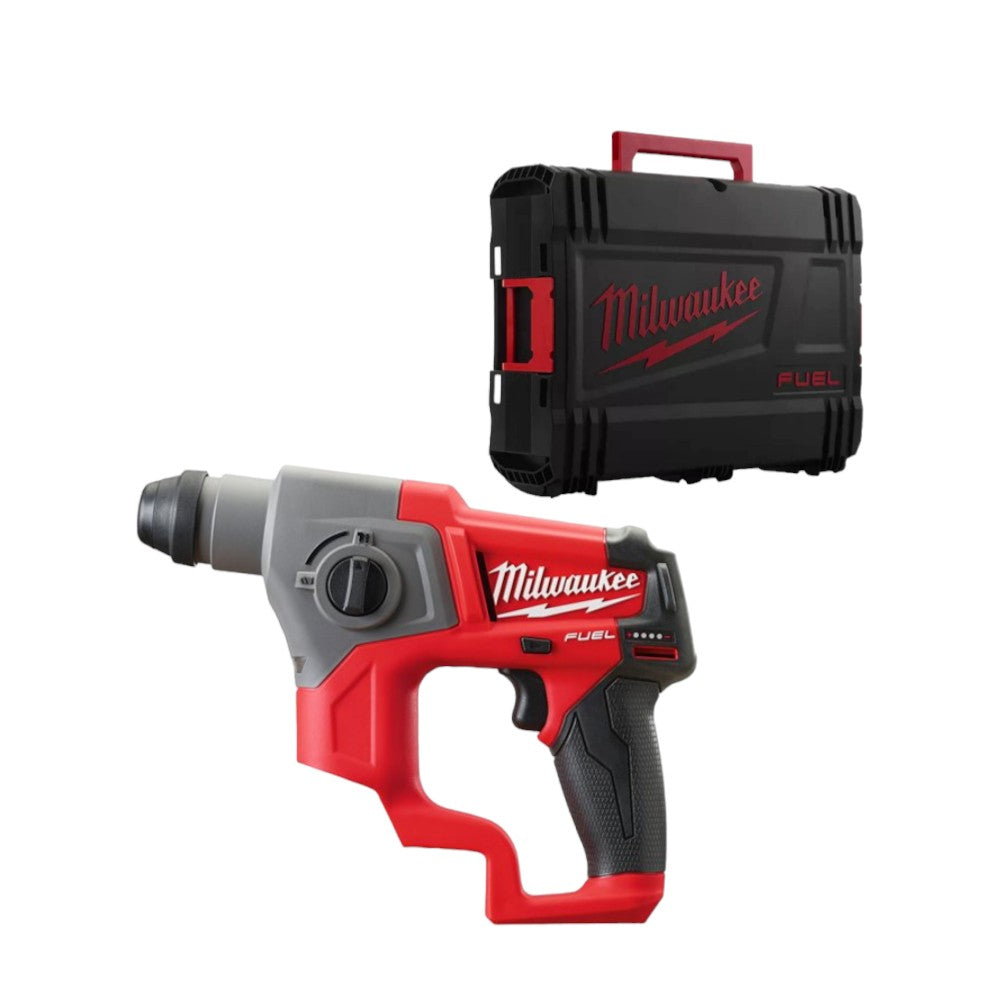

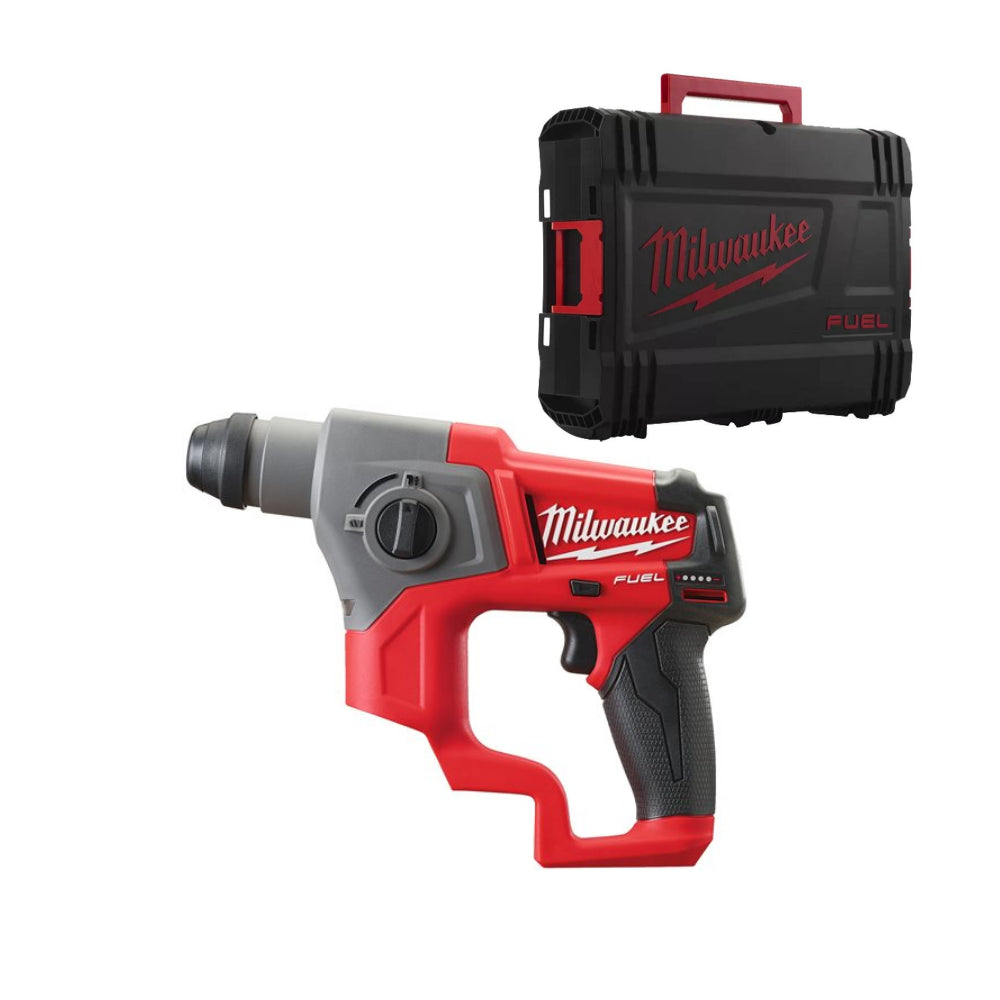

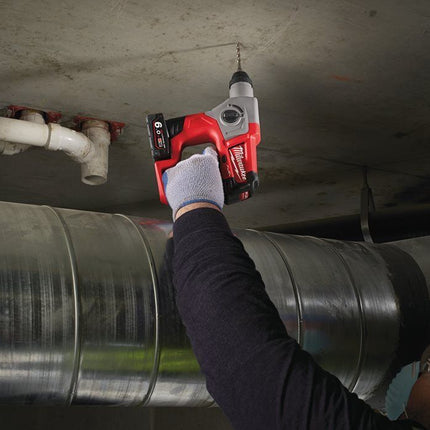

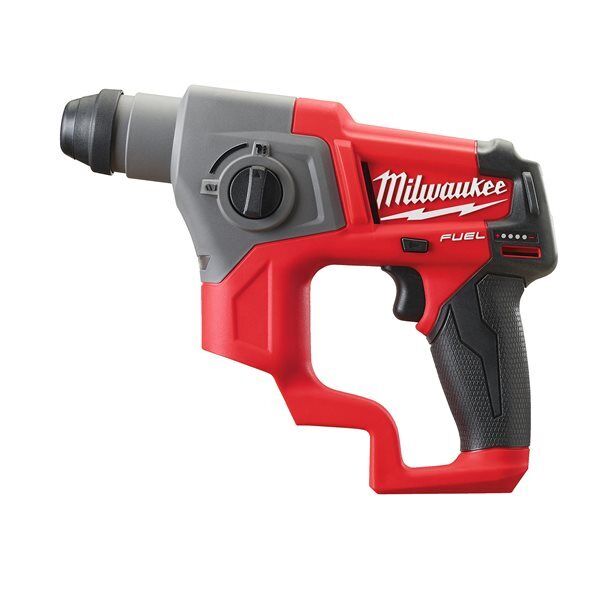

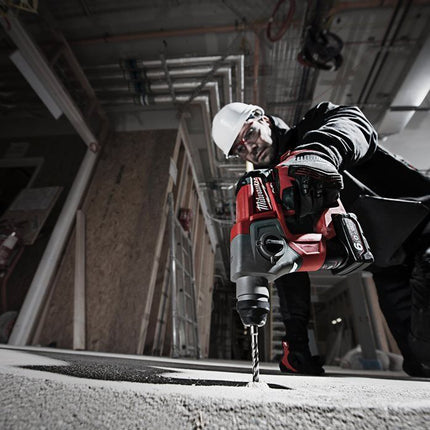

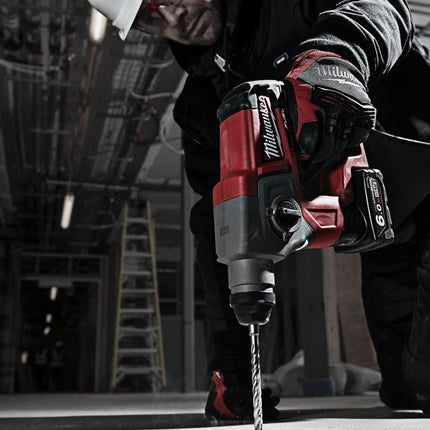

Milwaukee M12 CH-0 Cordless Hammer Drill
The Milwaukee M12 CH-0 compact hammer drill from the M12 Fuel series combines power and versatility in a lightweight 12 V body. Thanks to the POWERSTATE™ brushless motor and REDLINK PLUS™ electronics, it offers high performance and long-lasting durability, with overload protection for the tool and battery. The tool is optimized for drilling in concrete from 6 to 10 mm (max 13 mm) and can drill more than 60 Ø 6 mm × 50 mm holes on a single battery charge (not included).
Key Features
- Compact 12 V SDS-Plus hammer drill with 1.1 J impact energy (EPTA).
- Impact rate of up to 6,575 blows/min and no-load speed of 0-900 rpm.
- Low vibration: 4.4 m/s² when drilling; 1.5 m/s² in chiselling (uncertainty 1.5 m/s²).
- POWERSTATE™ brushless motor and REDLITHIUM™ battery (not included) for greater runtime and battery life.
- REDLINK PLUS™ electronics with overload protection.
- Two operating modes: rotation and rotary hammer action.
- 43 mm collar compatible with the M12 UDEL universal vacuum cleaner.
- Compatible with all Milwaukee M12™ batteries.
Technical Data
Milwaukee M12 CH-0 Technical Data
| Parameter |
Value |
| Tool holder |
SDS-Plus |
| Maximum drilling capacity in wood |
13 mm |
| Maximum drilling capacity in metal |
10 mm |
| Impact energy (EPTA) |
1.1 J |
| Maximum drilling capacity in concrete |
13 mm |
| Drilling frequency Hammer Drill |
0–6,575 impacts/min |
| Vibration uncertainty, chiseling |
1.5 m/s² |
| Optimum drilling range, concrete |
Ø 5.5–12 mm |
| Weight with battery pack |
2.3 kg |
| Battery type |
Lithium-ion M12 (not included) |
| No-load speed |
0–900 rpm |
| Vibration during drilling |
4.4 m/s² |
| Voltage |
12 V |
| Sound power level uncertainty |
3 dB(A) |
| Sound pressure level uncertainty |
3 dB(A) |
| Vibration uncertainty during concrete drilling |
1.5 m/s² |
| Sound power level (LWA) |
95.5 dB(A) |
| Sound pressure level (LpA) |
84.5 dB(A) |
Included: BODY ONLY (batteries and charger not included).
