Description

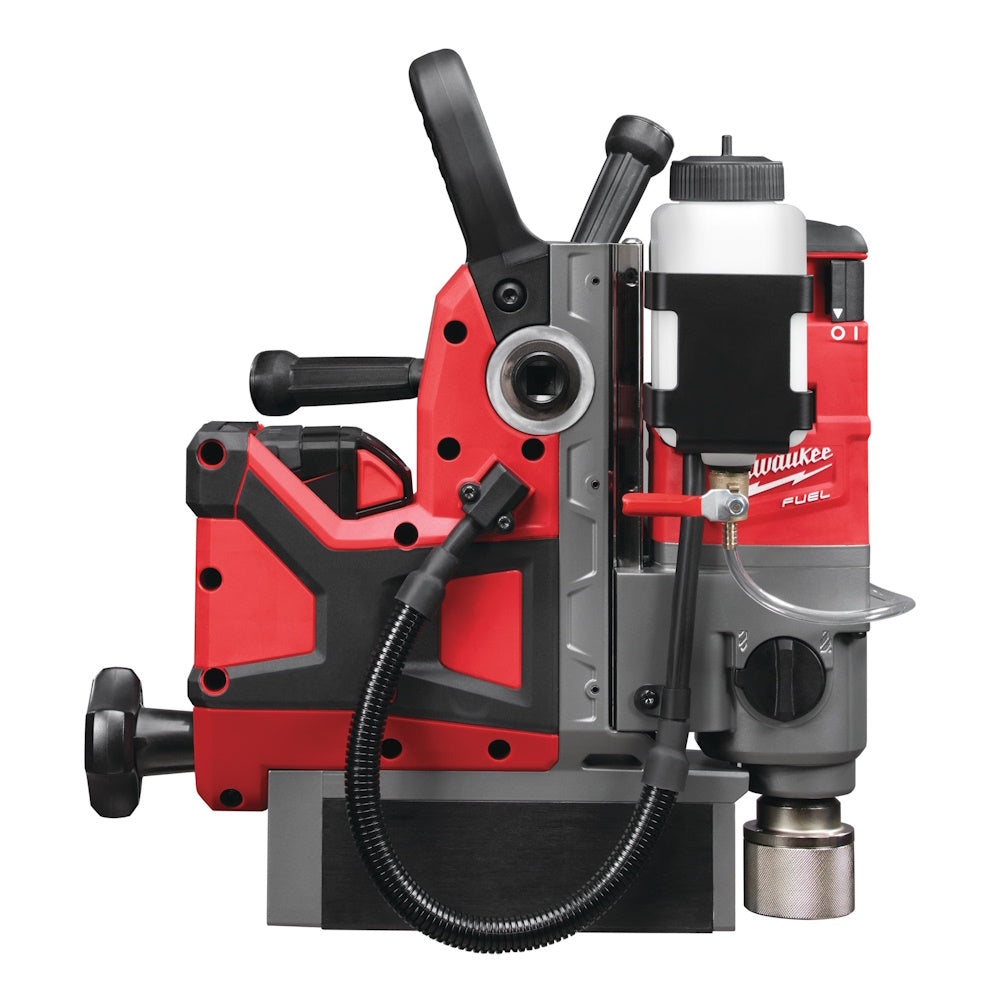

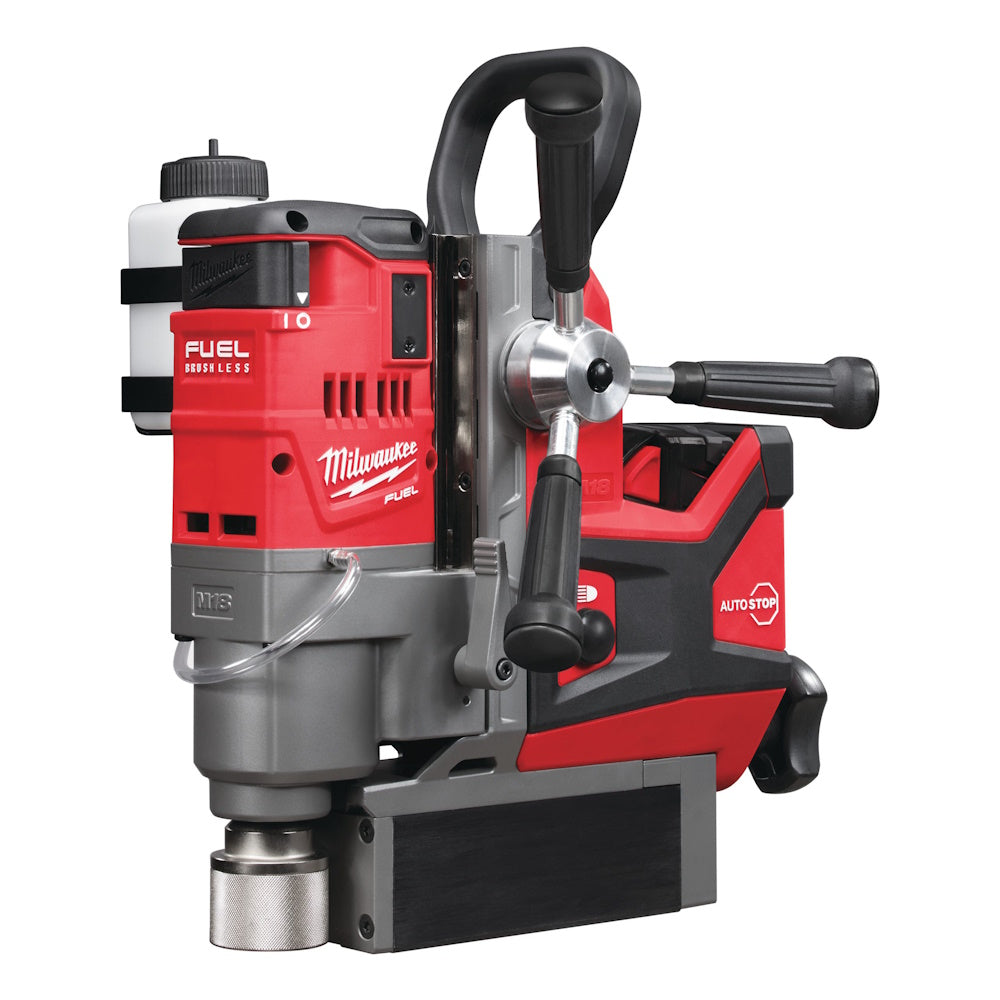

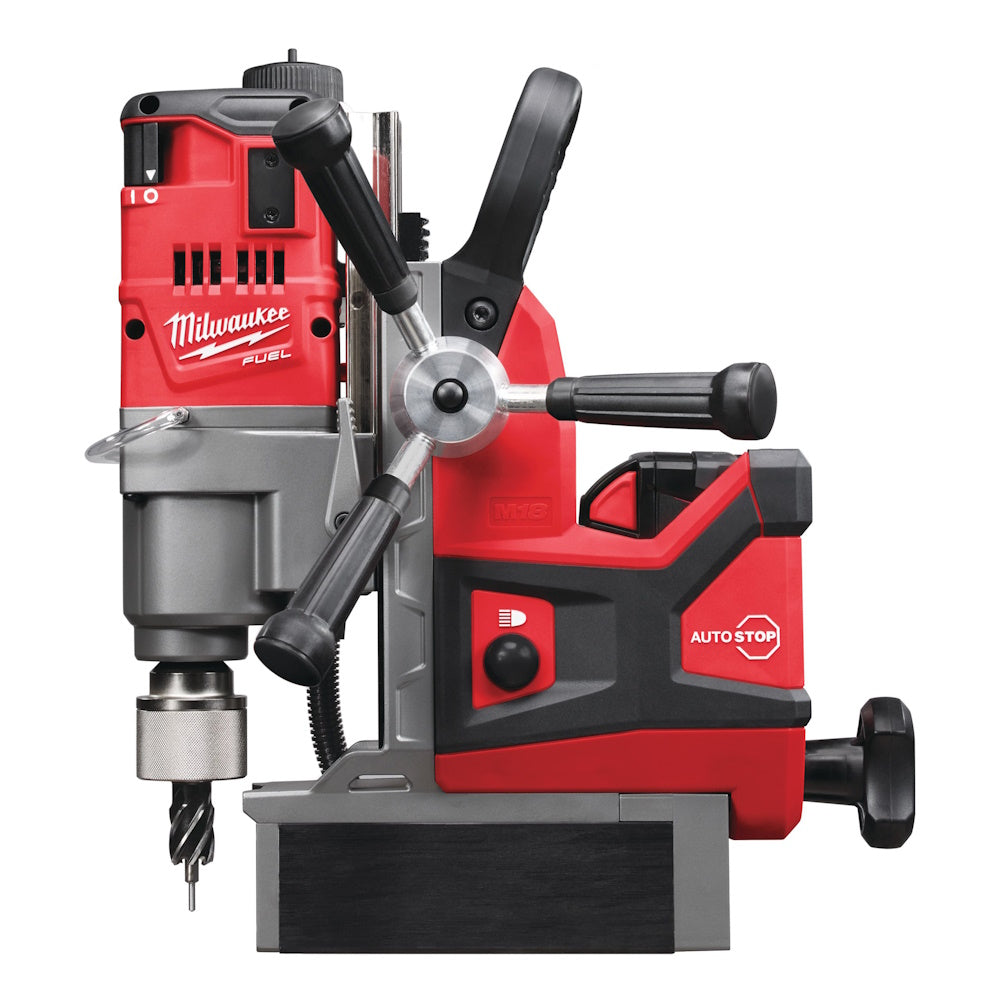

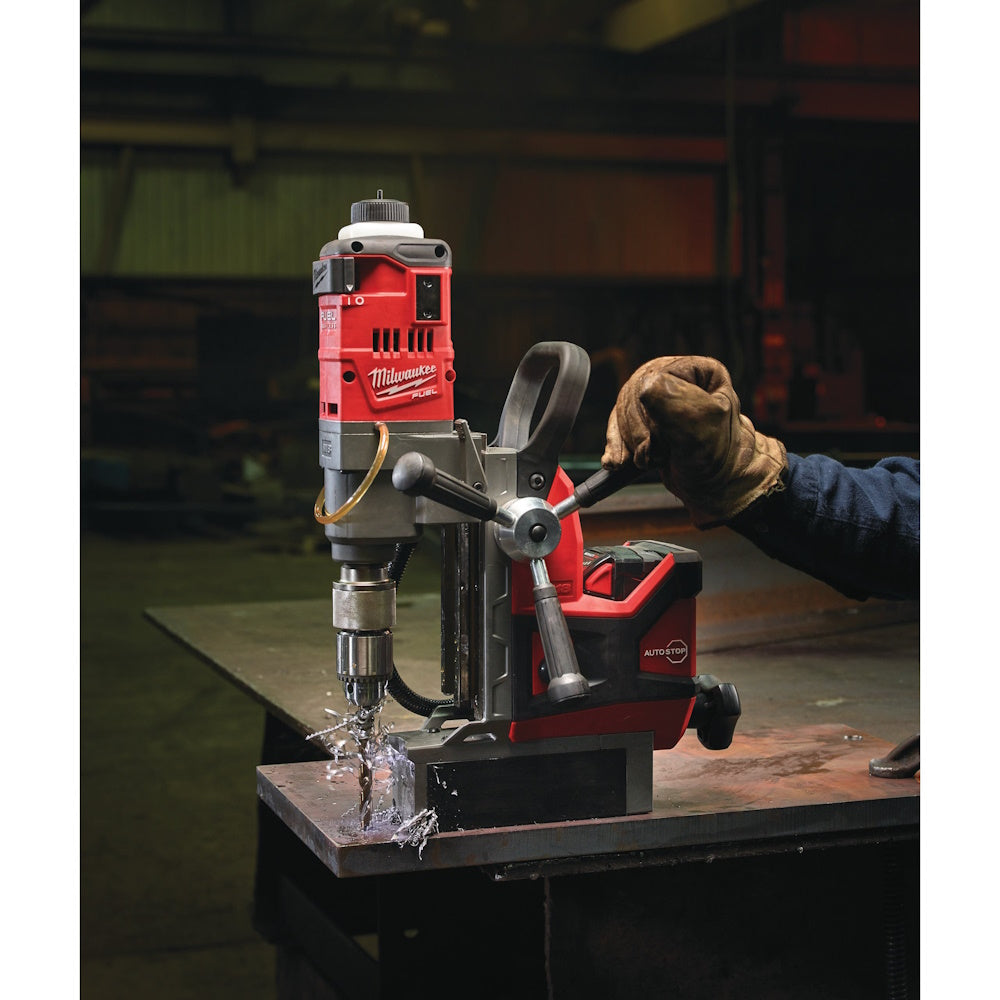

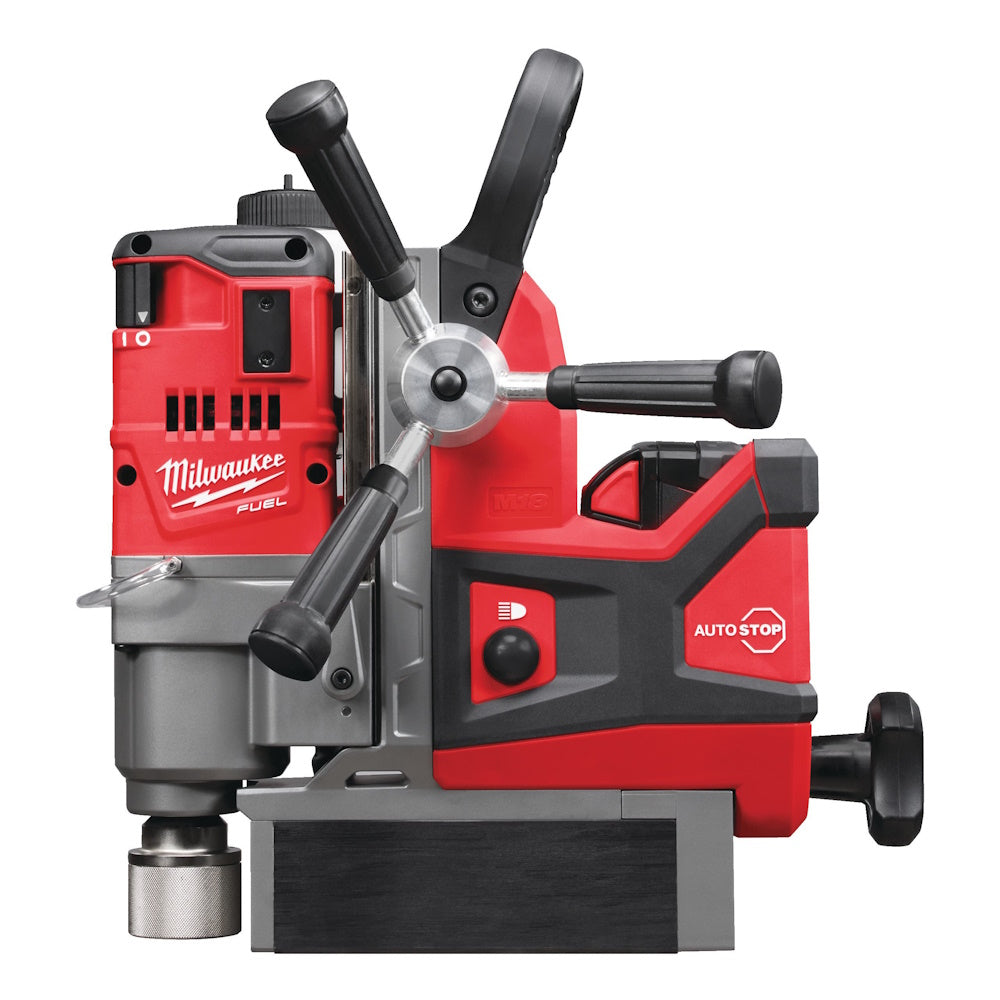

MILWAUKEE FMDP-502C M18 FUEL™ Magnetic Drill with Case
• POWERSTATE™ brushless motor, designed by MILWAUKEE®, capable of delivering performance equal to a corded tool, with a strong magnetic grip already on 6.35 mm of steel and a capacity of 40 18 mm holes on a single charge.
• The intelligent REDLINK PLUS™ system provides advanced digital overload protection for tools and batteries, and dramatically improves tool performance under load.
• The REDLITHIUM™ battery offers superior pack construction, electronics and consistent performance to deliver more run time and more work over the life of the battery.

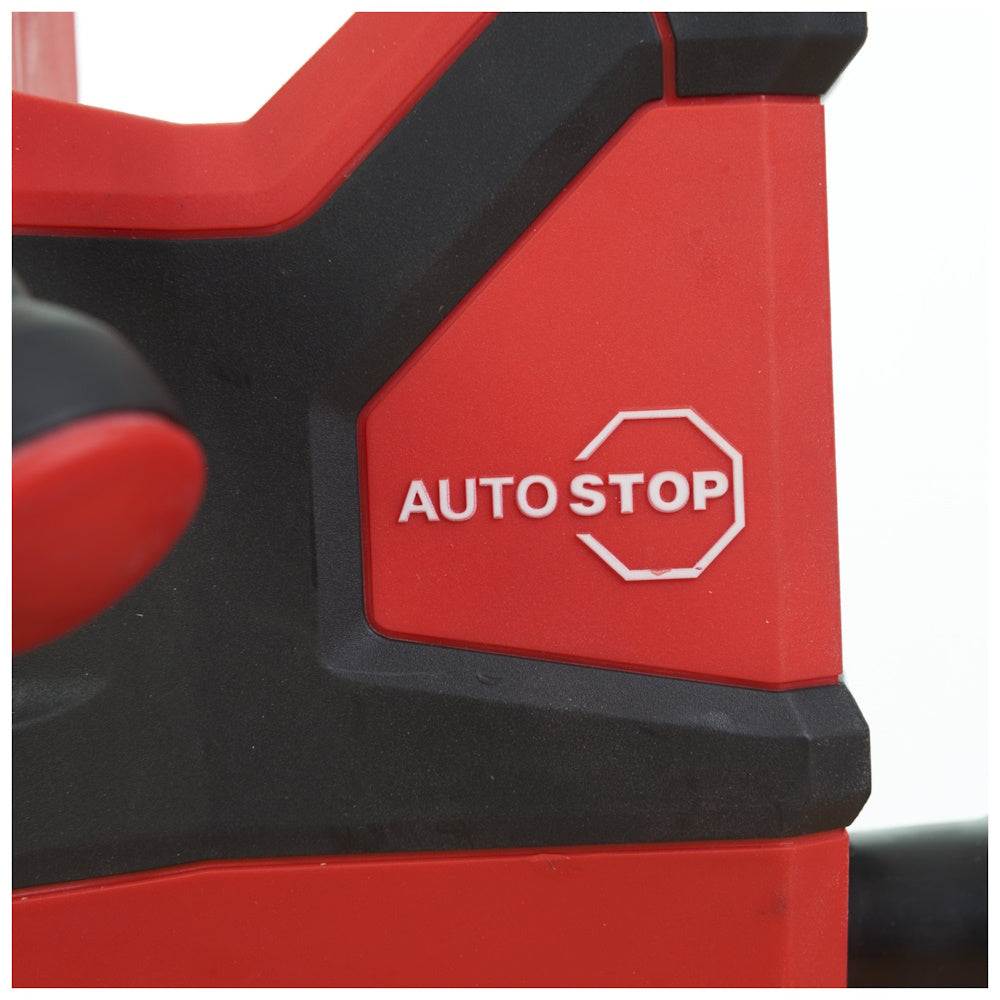

• Internal AUTOSTOP™ sensor: Detects misalignment of the magnetic base from its original position and automatically stops the drill.
• Permanent magnet with a maximum magnetic hold of 8,890 N on 25.4 mm of steel. Stroke length 146 mm, Machine mm 265x390, Base mm 218x63.
• 2 speeds: 400 and 690 rpm, for use with cutters or drill bits.• Maximum drilling capacity with 38 mm cutters, with 13 mm cylindrical shank twist drill bits.
• 19 mm Weldon attachment, with quick release (without key).

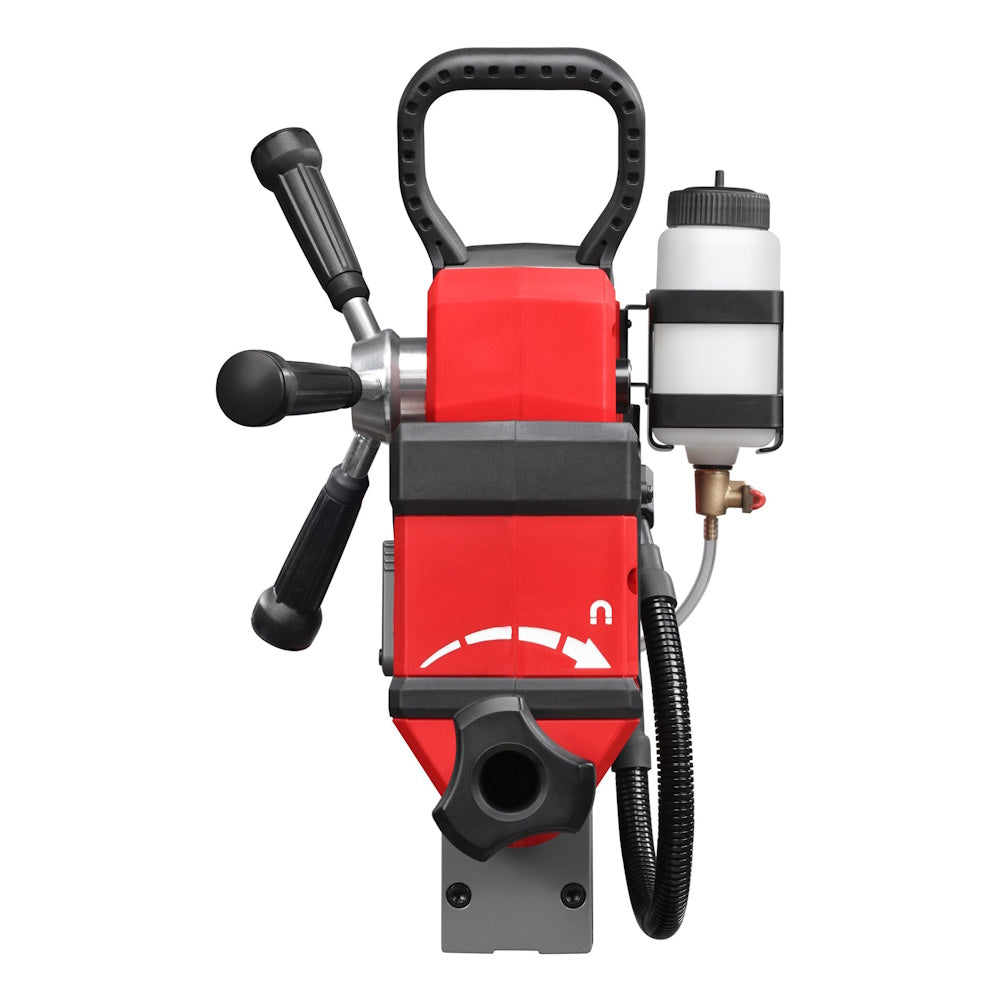

• Lubrication oil tank equipped with magnet, extremely convenient to position on the material you are working on, especially when drilling in a vertical position.
• Stroke length 146 mm.
• Possibility of positioning the handle on the right or left.
• Integrated LED lighting.
• Works with all batteries M18™.
Technical Data
• Battery capacity (Ah): 5.
• Charger included: M12-18 FC.
• Number of batteries supplied: 2.
• Battery charging time: 59 min.
• Battery type: Li-ion.
• Voltage (DC) (V): 18.
• Magnetic grip (N): 8890.
• Blade stroke (mm): 146.
• Equipment Standard: Charger, 2 x 5.0 Ah Redlithium batteries, lubrication tank, 13 mm drill chuck with adapter and key, centering bit, safety strap and case.
• Max. solid bit bore (mm): 13.
• Supplied in case.
• Maximum drilling capacity (mm): 38.
• Maximum drilling depth (mm): 50.
• No-load speed (rpm): 400 / 690.
• Weight with battery pack (EPTA) (kg): 13.0 (M18 B5).
• Uncertainty for sound power level (dB(A)): 3.
• Uncertainty for sound pressure level (dB(A)): 3.
• Sound power level (Lwa) (dB(A)): 93.4.
• Sound pressure level (Lpa) (dB(A)): 82.4.
• Vibration uncertainty (m/s²): 1.5.
• Vibration level (m/s²): 1.69.

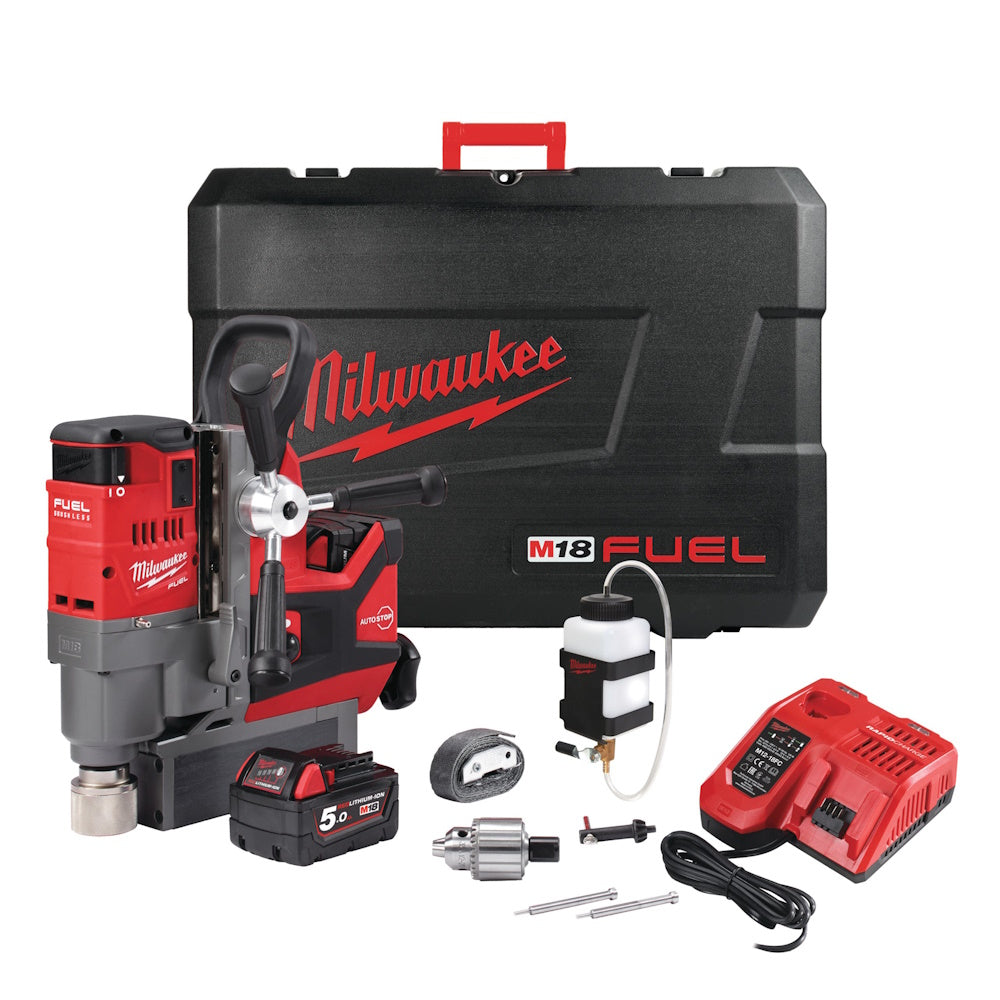

Supplied with
• M18 FUEL™ Magnetic drill.
• 2 M18™ 5.0 Ah batteries.
• Quick charger M12™ - M14™ - M18™.
• Case.

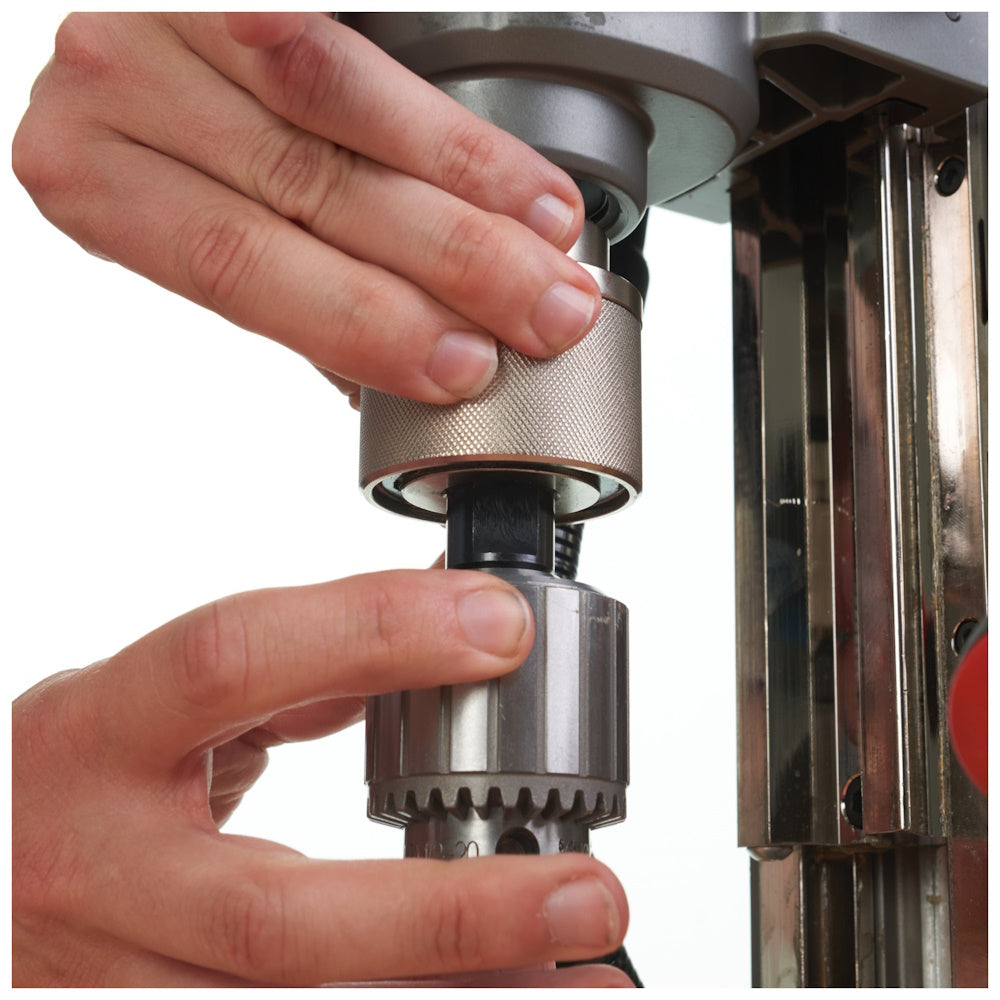

• 13 mm chuck with adapter and key.
• Centering tip.
• Safety strap.
• Lubrication tank.
