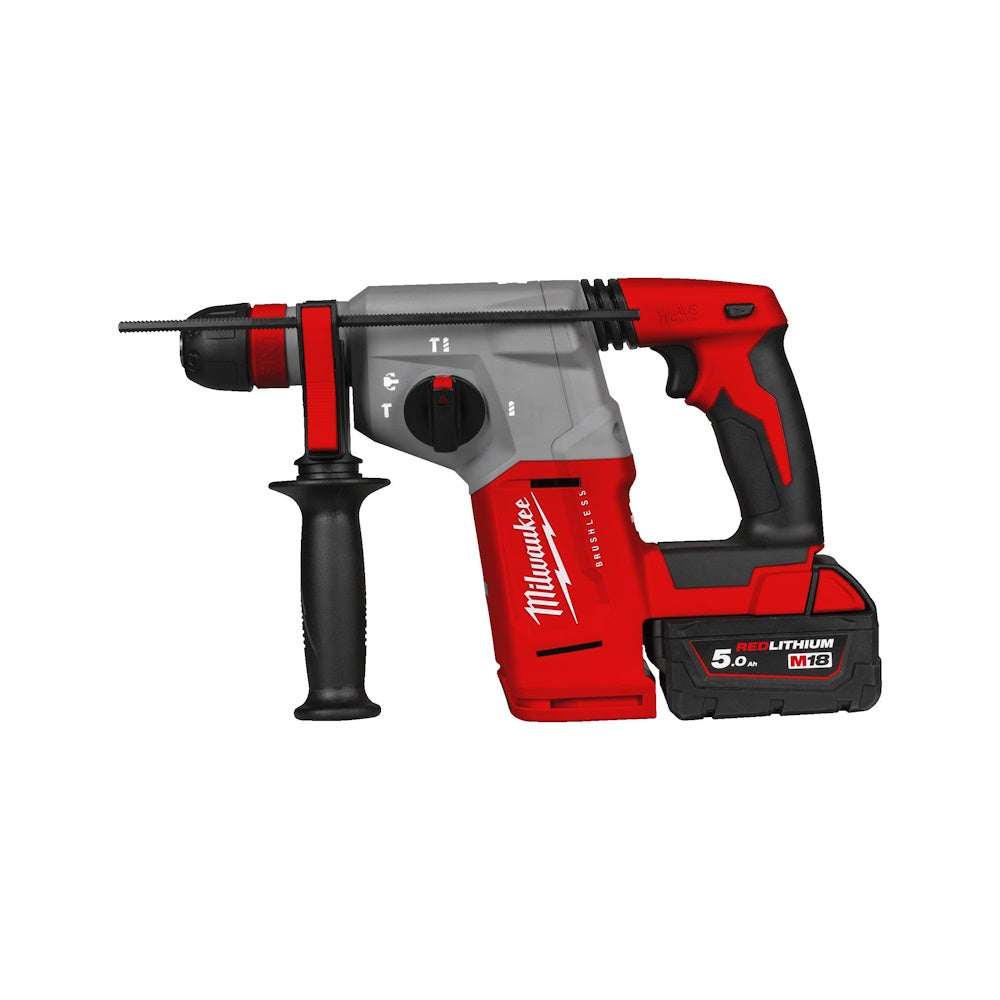

MILWAUKEE BLHX-502X SDS-Plus 26 mm hammer drill with brushless FIXTEC chuck

  • MILWAUKEE

Description

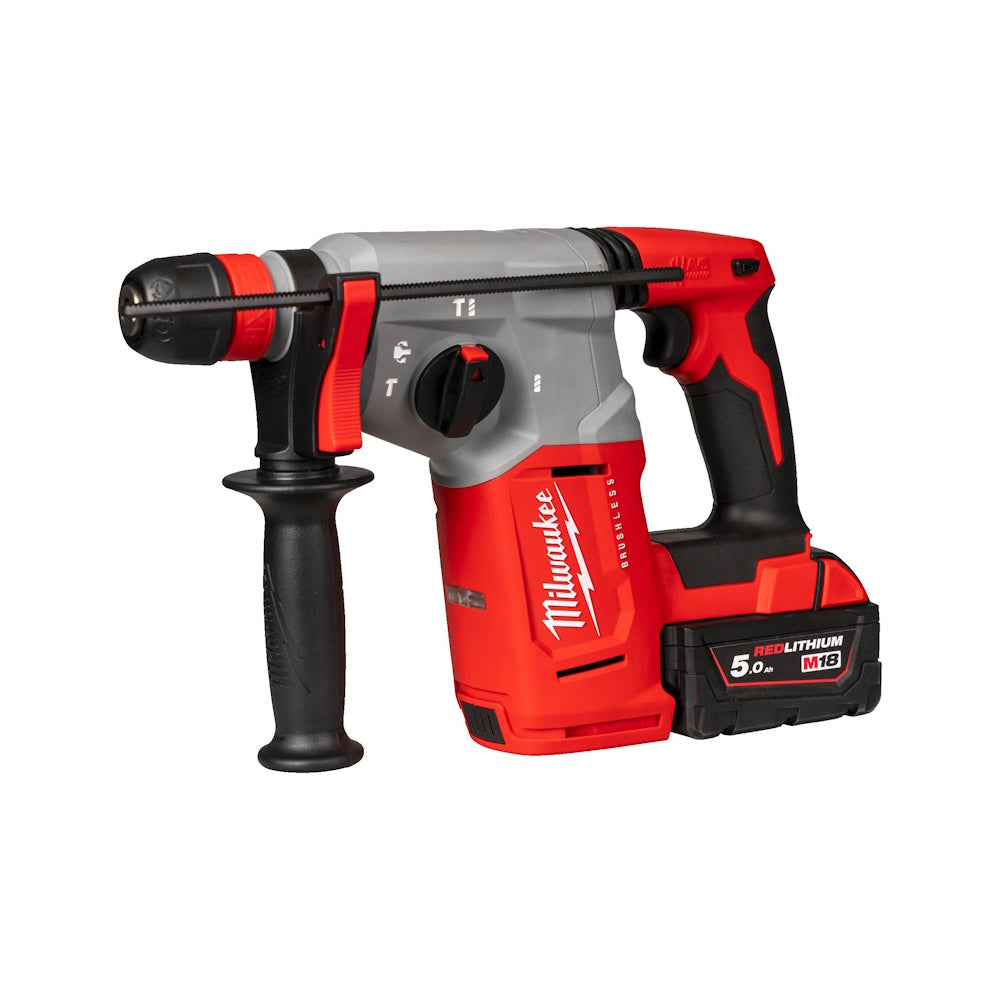

MILWAUKEE BLHX-502X 26 mm SDS-Plus Hammer Drill with FIXTEC brushless chuck

• Powerful impact mechanism and brushless motor capable of delivering 2.3 J of energy.
• Compact and ergonomic design for maximum comfort during use.

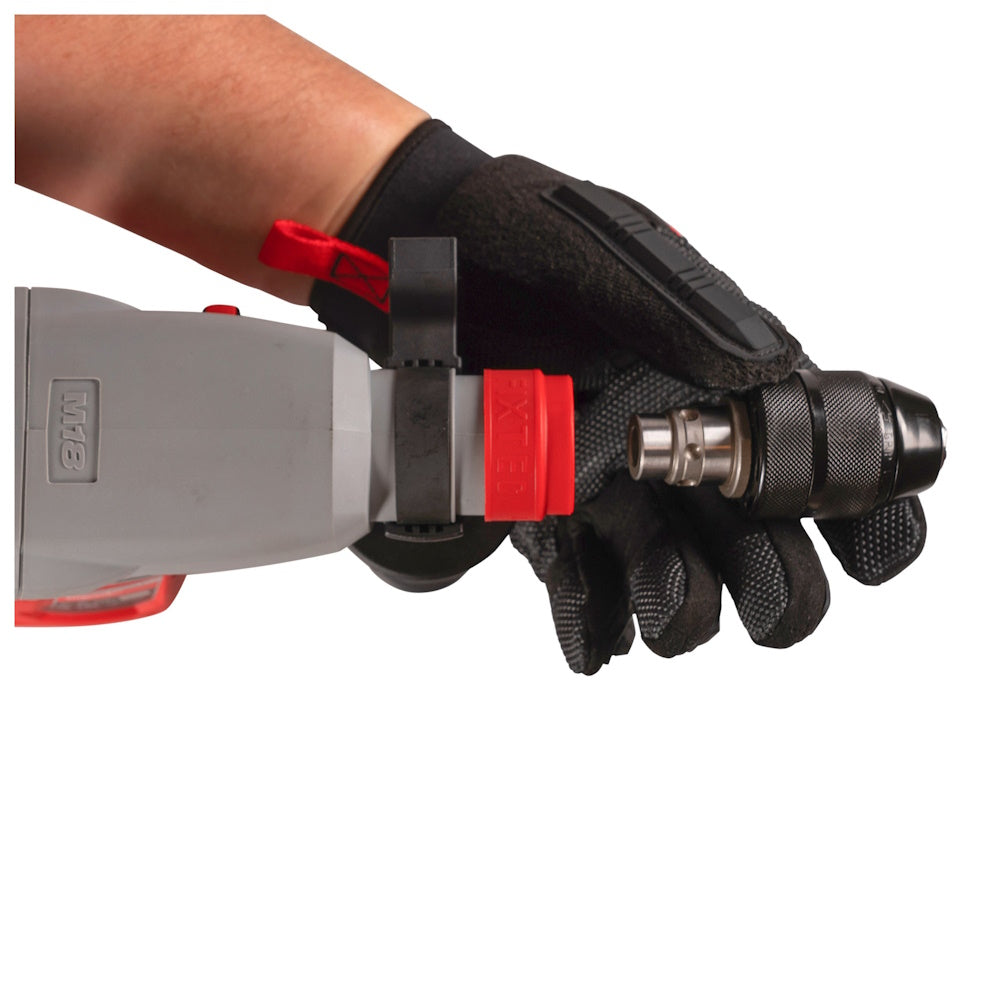

• FIXTEC™ system for keyless chuck change (SDS-Plus and 13 mm metal chuck).
• Metal gearbox for maximum resistance.

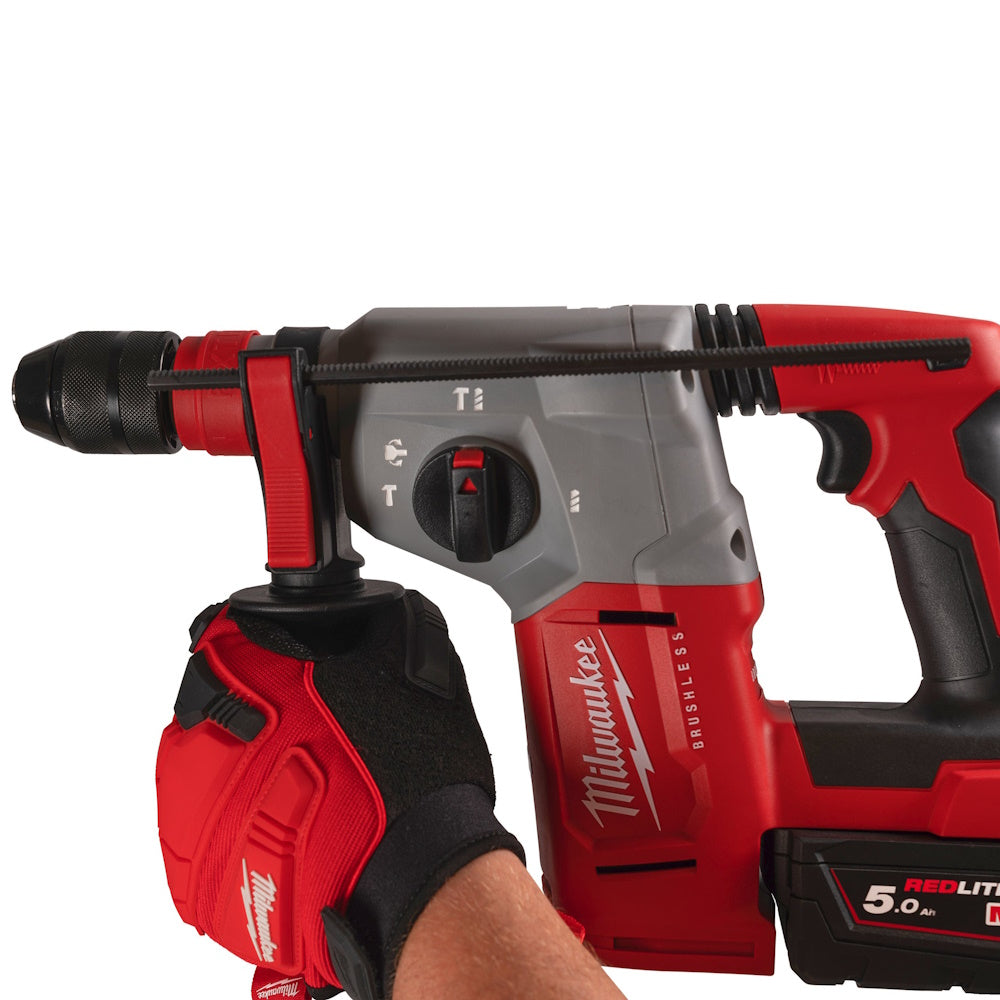

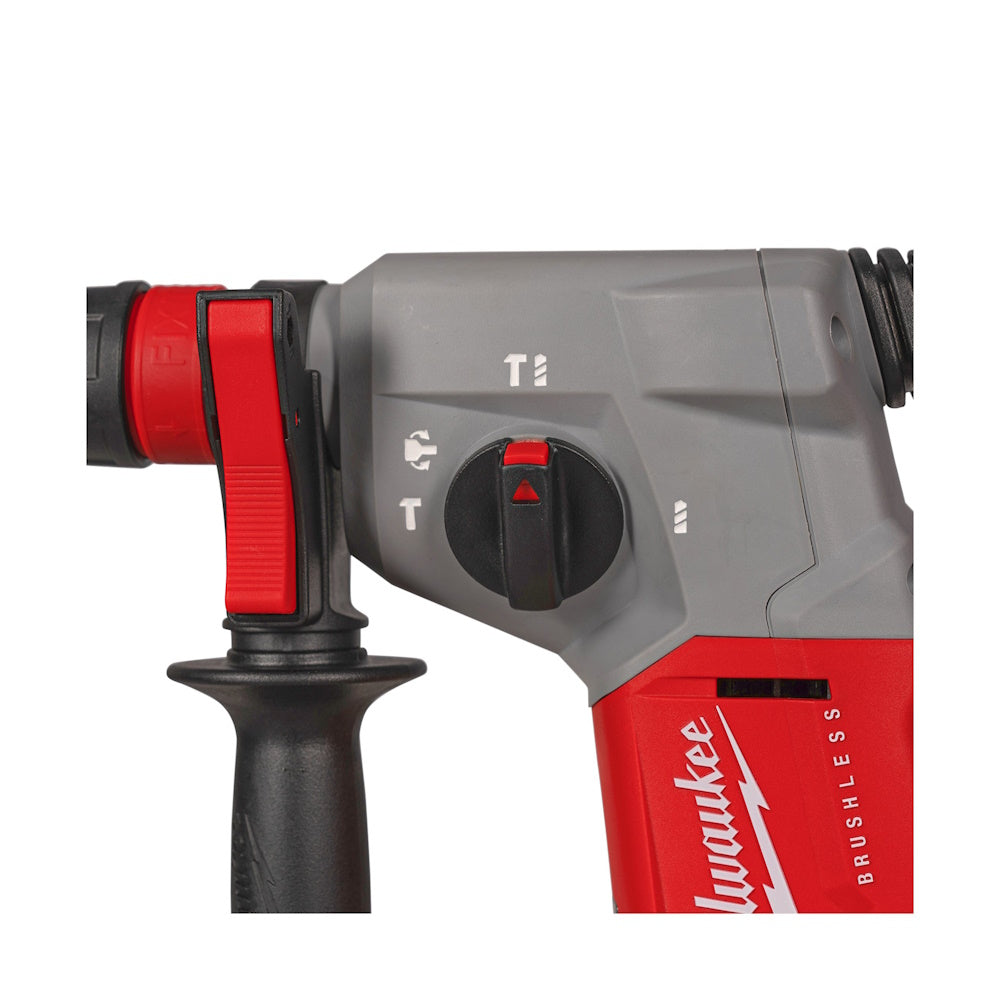

• 4 modes operating modes: rotary hammer, chiseling, rotation and neutral position for chisel orientation.
• Anti-vibration side handle.

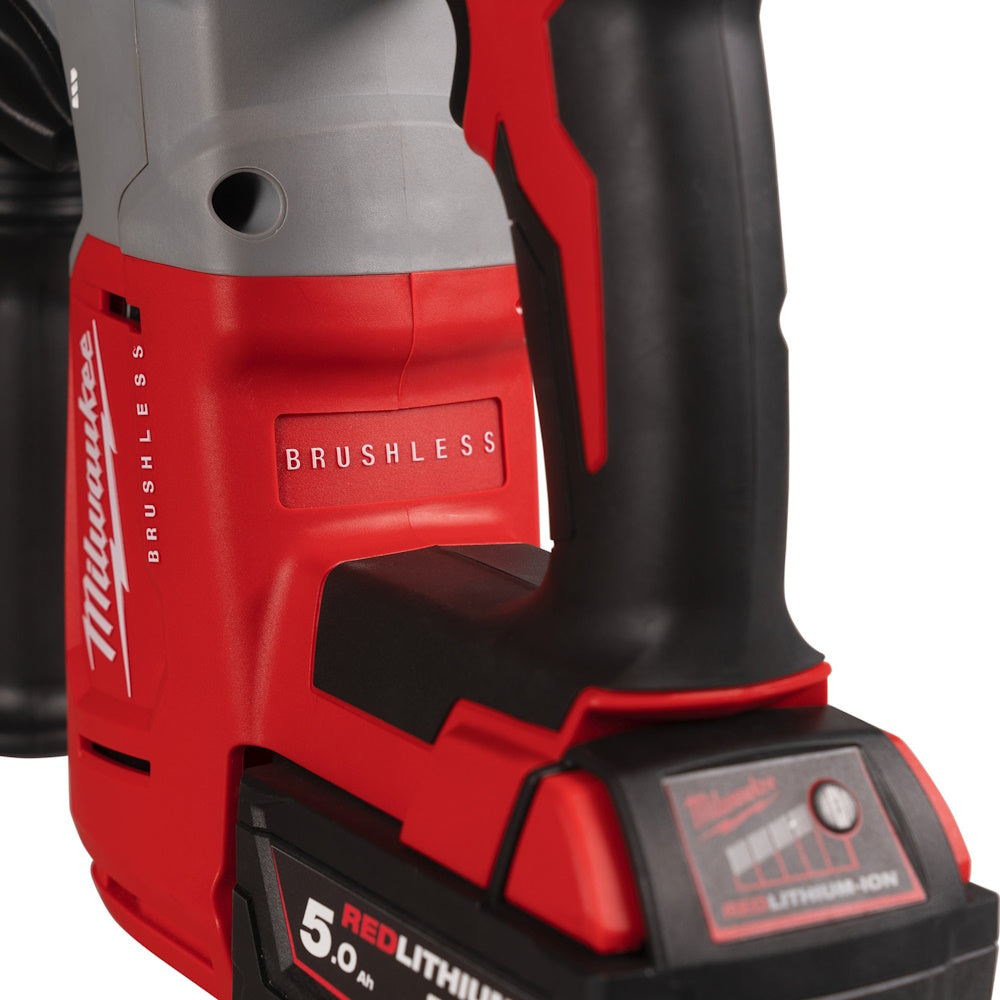

• The brushless motor, REDLINK PLUS™ electronics and REDLITHIUM™ battery pack offer superior performance and durability.
• Compatible with the M18 CDEX vacuum cleaner (4933447450).
• Works with all MILWAUKEE® M18™ batteries.

Technical Data

• Battery capacity (Ah): 5.0.
• Charger Included: M12-18 FC.
• Number of batteries supplied: 2.
• Battery charging time: 59 min.
• Battery type: Li-ion.
• Voltage (V): 18.
• Attachment: SDS-Plus + Reduced shank 13 mm.
• Max. drilling capacity for wood (mm): 26.
• Max. drilling capacity for metal (mm): 13.
• Compatible with Milwaukee dust extraction system: M18 CDEX.
• Impact energy (EPTA) (J): 2.3.
• Impact energy (J): 2.3.
• Standard equipment: Side handle, depth stop, chuck FIXTEC™ 13 mm metal.
• Supplied in: Heavy Duty Case.
• Max. concrete drilling (mm): 26.
• Impact rate (impacts/min): 4900.
• Optimized for drilling in concrete (mm): 6 - 18.
• No-load speed (rpm): 0 - 1400.
• Weight (Kg): 2.8.
• Weight with battery pack (EPTA) (kg): 3.5 (M18 B5).
• Uncertainty for sound power level (dB(A)): 3.
• Uncertainty for sound pressure level (dB(A)): 3.
• Level Sound power level (Lwa) (dB(A)): 101.7.
• Sound pressure level (Lpa) (dB(A)): 90.7.
• Vibration uncertainty drilling (m/s²): 1.5.
• Vibration uncertainty chiselling (m/s²): 1.5.
• Vibration drilling (m/s²): 14.9.
• Vibration chiselling (m/s²): 12.7.

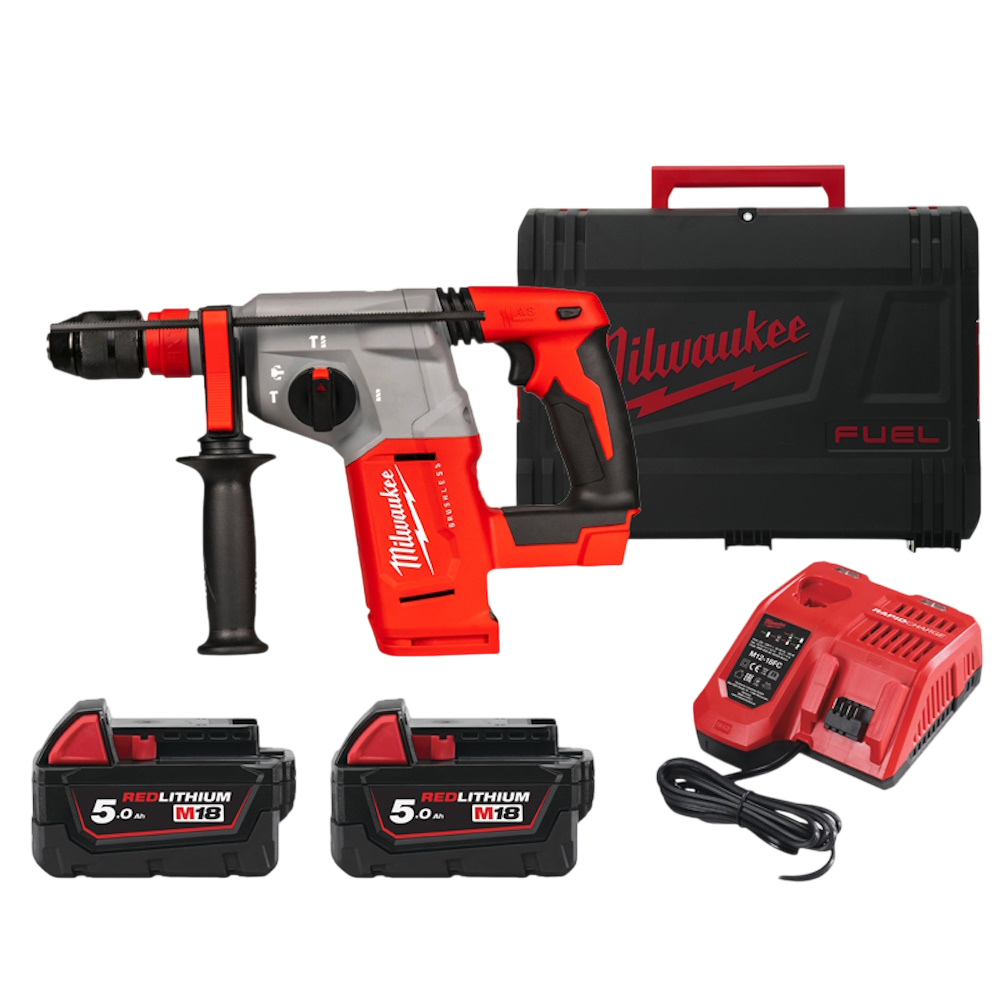

Supplied

• SDS-Plus hammer drill 26 mm with FIXTEC™ brushless M18™ chuck.
• 2 M18™ 5.0 Ah batteries.
• M12™ - M14™ - M18™ rapid charger.
• Heavy Duty case.
• Side handle.
• Depth gauge.
• 13 mm FIXTEC™ metal chuck.

MILWAUKEE BLHX-502X SDS-Plus 26 mm hammer drill with brushless FIXTEC chuck

  • MILWAUKEE
Product form

3 in stock Next day delivery  Mid weeks
Monday to Friday we offer next day delivery if the product is on stock and exceptions on holidays.

Weekends
We offer no deliveries on weekends.

International
Depending on where you're located, we offer next day delivery.

€710,00 Incl. VAT
