Description
AG 22-230 DMS
Disc diameter 230 mm
Powerful 2200 W motor with protection against abrasive dust for longer life
Extremely compact design: only 485 mm long and 5.2 kg in weight for greater maneuverability
Sturdy protective hood
Easy access to the brushes for quick maintenance
Standard equipment: Protective hood, additional handle, 4 m cable, wrench, fixing flange, nut

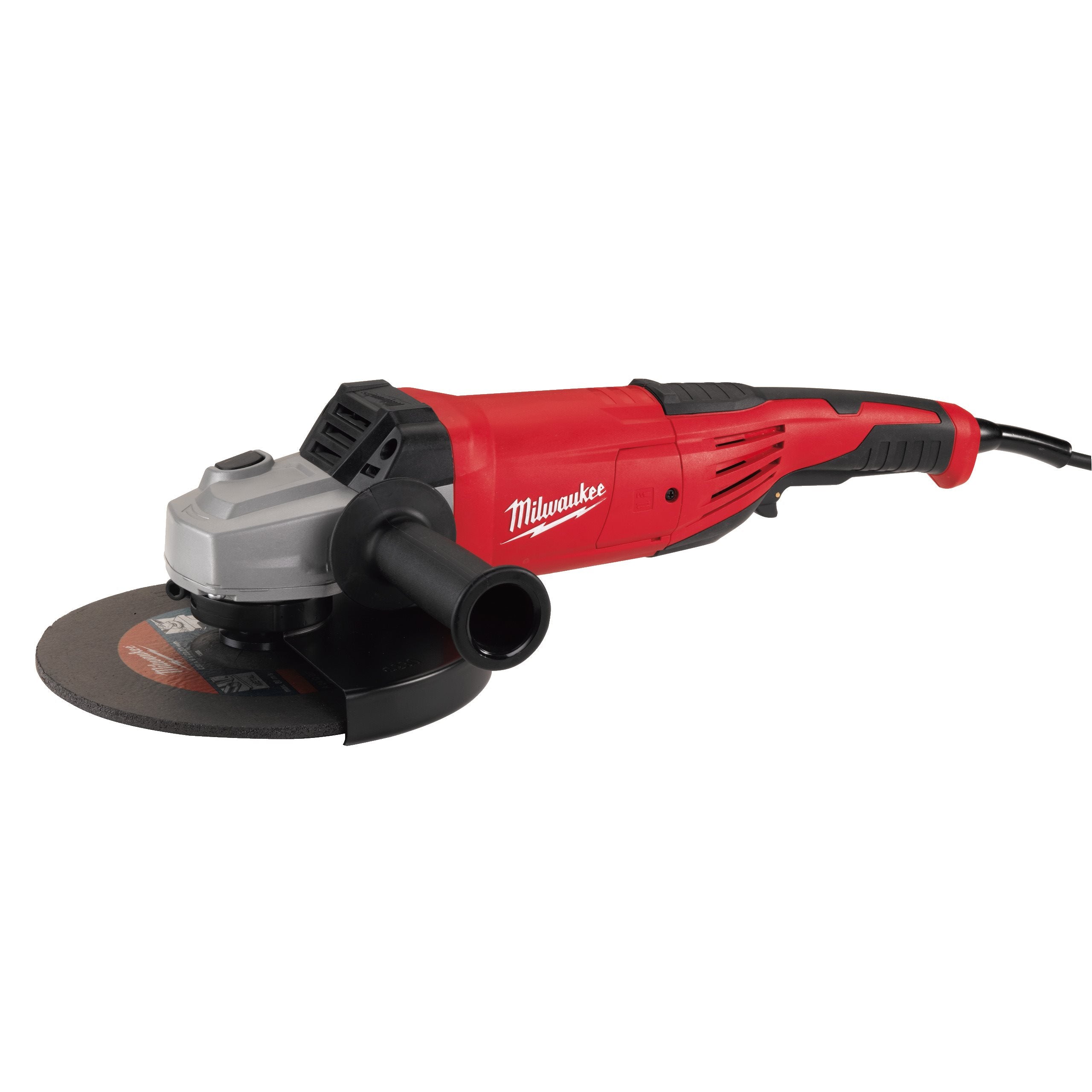

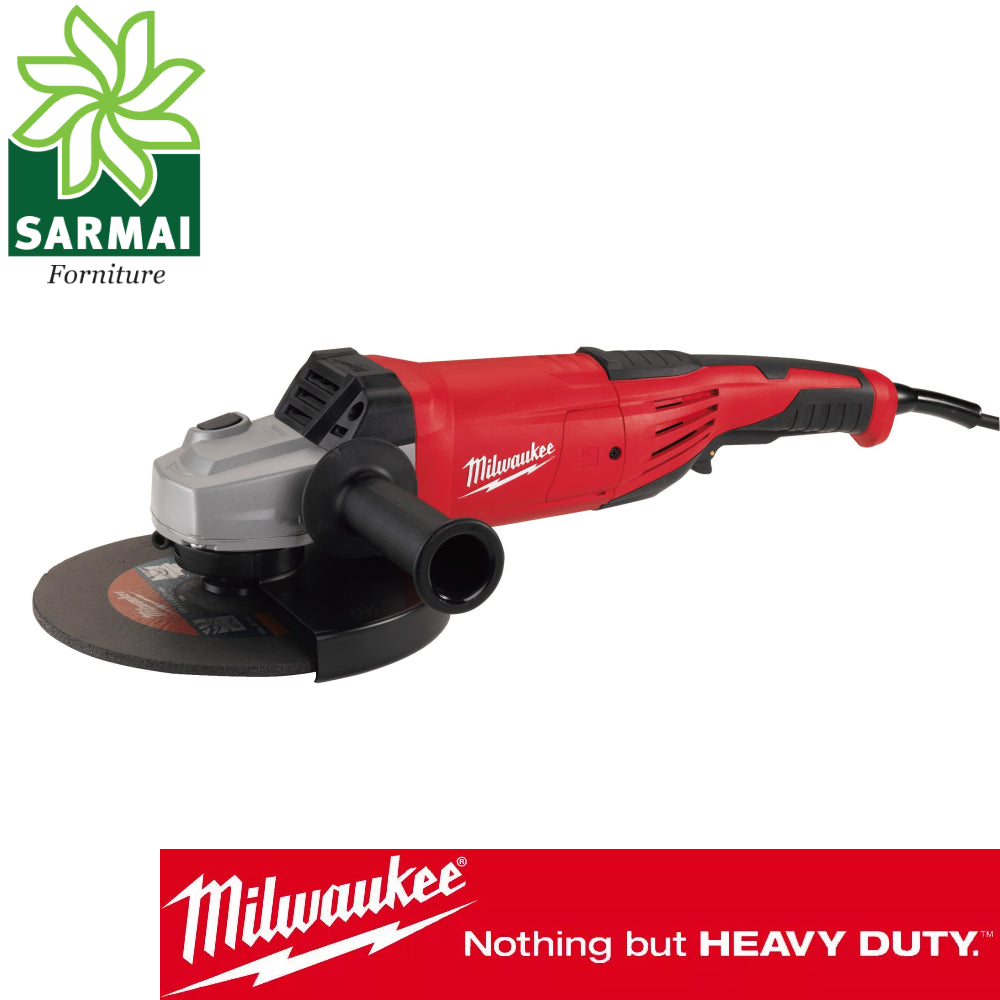

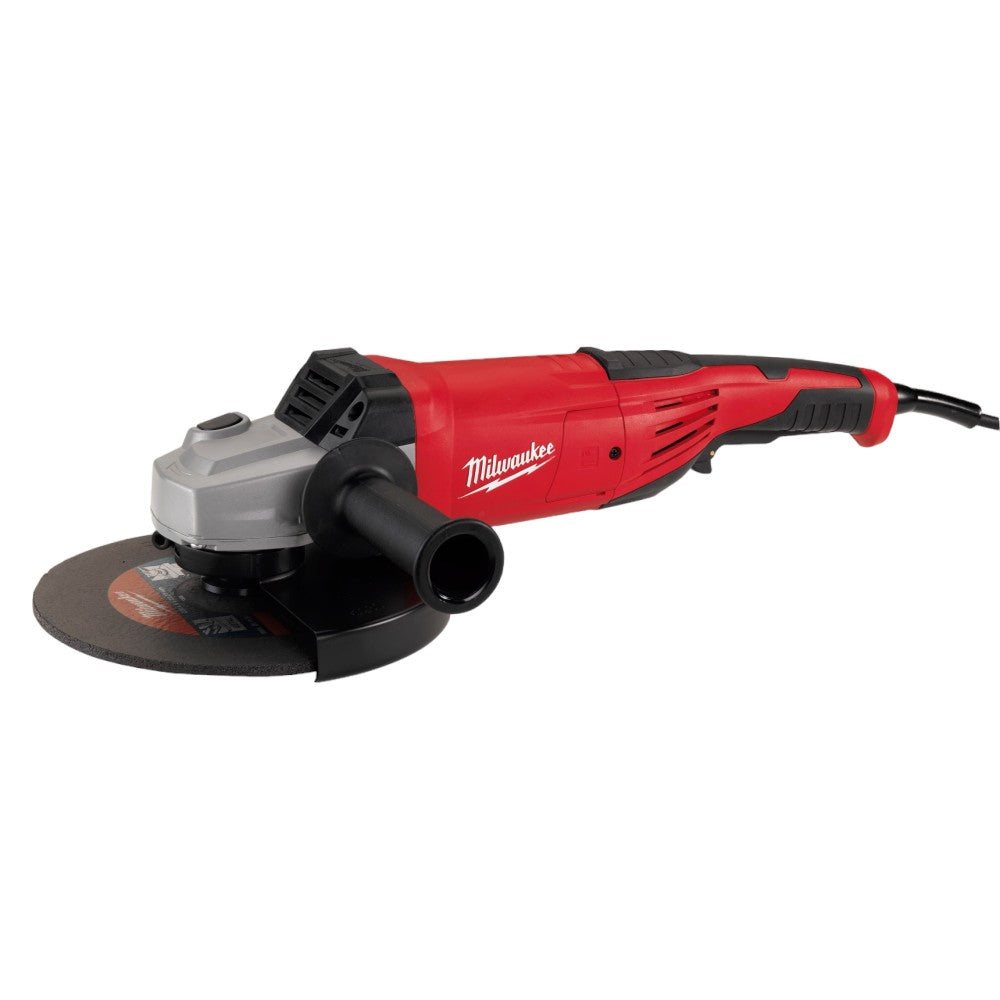

Milwaukee AG 22-230 DMS Angle Grinder
The Milwaukee AG 22-230 DMS angle grinder is a robust machine for cutting and deburring large diameters. It features a 2200 W motor with dust protection and offers a long life thanks to its compact design and electronic overload protection. Safety is ensured by the No-Lock paddle switch and a durable, easily adjustable protective hood.
Technical Specifications
Milwaukee AG 22-230 DMS Technical Data
| Power |
2200 W |
| Disc Diameter |
230 mm |
| No-load Speed |
6600 rpm |
| Spindle Thread |
M14 |
| Max. Drilling Depth Cutting Width |
68 mm |
| Switch Type |
Paddle (Non-Locking) |
| Disc Brake |
No |
| Variable Speed |
No |
| Restart Protection |
No |
| Weight |
5.2 kg |
| Length |
485 mm |
| Noise Level (Power) |
103.5 dB(A) ± 3 dB |
| Noise level (pressure) |
92.5 dB(A) ± 3 dB |
| Vibrations (sanding) |
2.6 m/s² (uncertainty 1.5 m/s²) |
| Vibrations (cutting) |
9.9 m/s² (uncertainty 1.5 m/s²) |
The machine is supplied with a flange, nut, service wrench, and adjustable guard.
