Description
LIGHTWEIGHT BRUSHLESS RECIPROCATING SAW WITH QUICK BLADE CHANGE
Features
• Brushless motor with three-stage pendulum action.
• Quick blade change.
• Motor speed adjustable between 800 and 3,000 rpm.
• Stroke length of 23 mm.
• Cutting capacity of 90 mm in wood and 10 mm in steel.
• Tilting base for 0° inclined cuts - 45°.
• Maintenance-free, long-lasting brushless motor.
• Compact and lightweight design.
• Dust extraction can be connected to the suction hose.

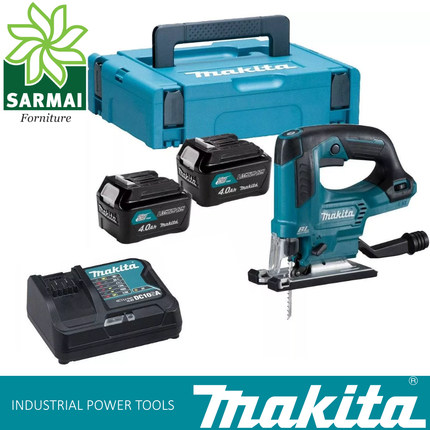

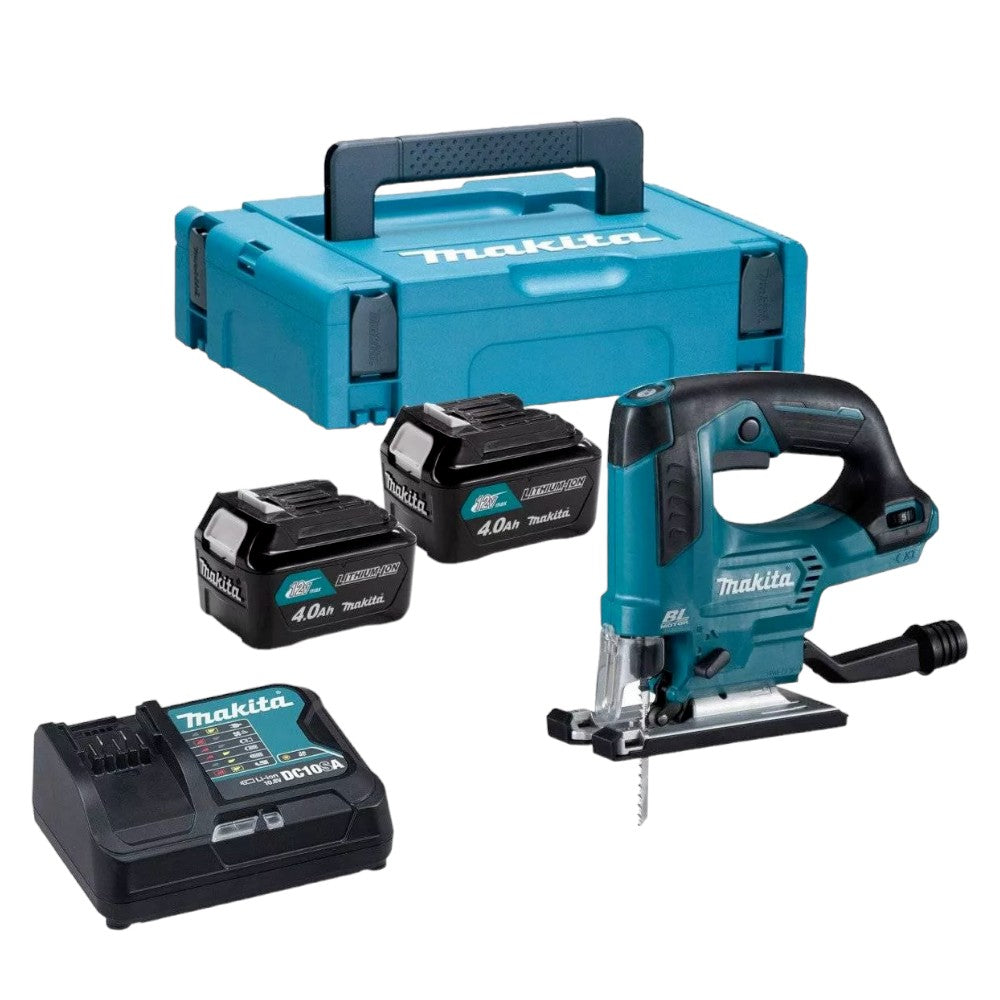

Included

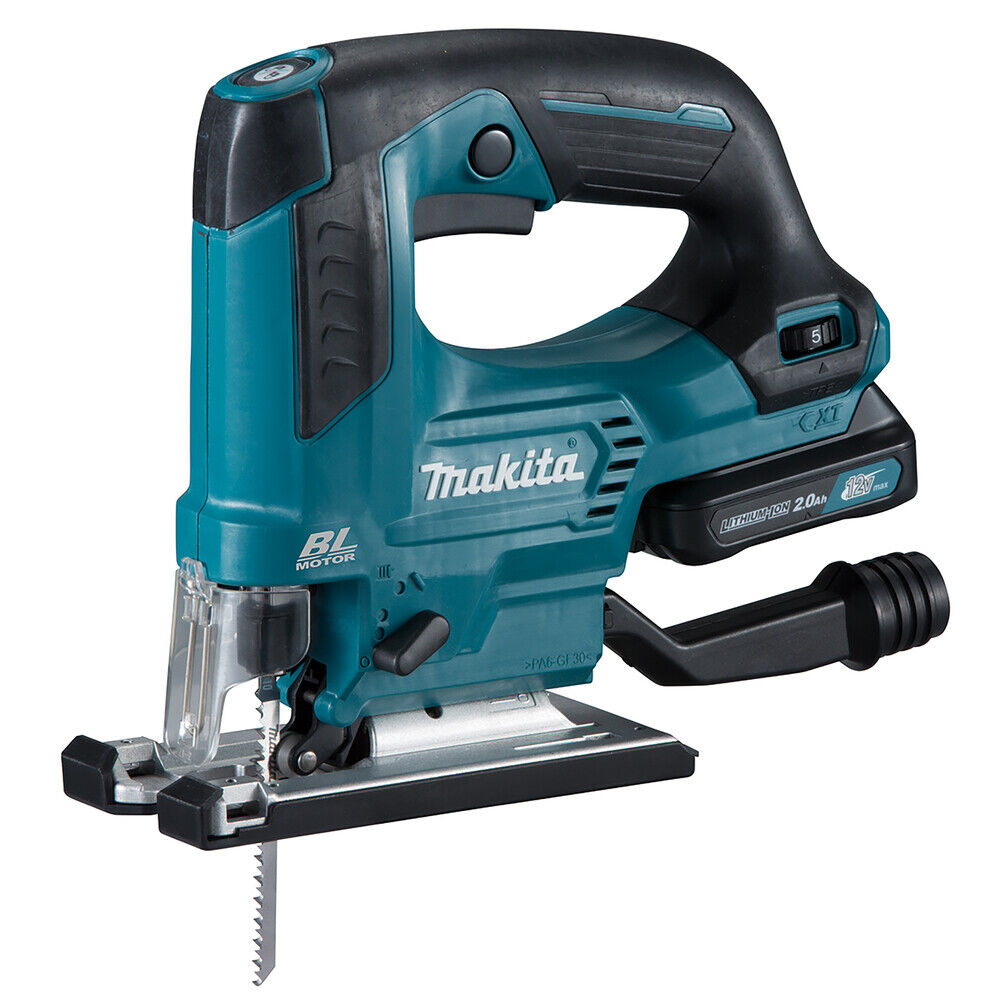

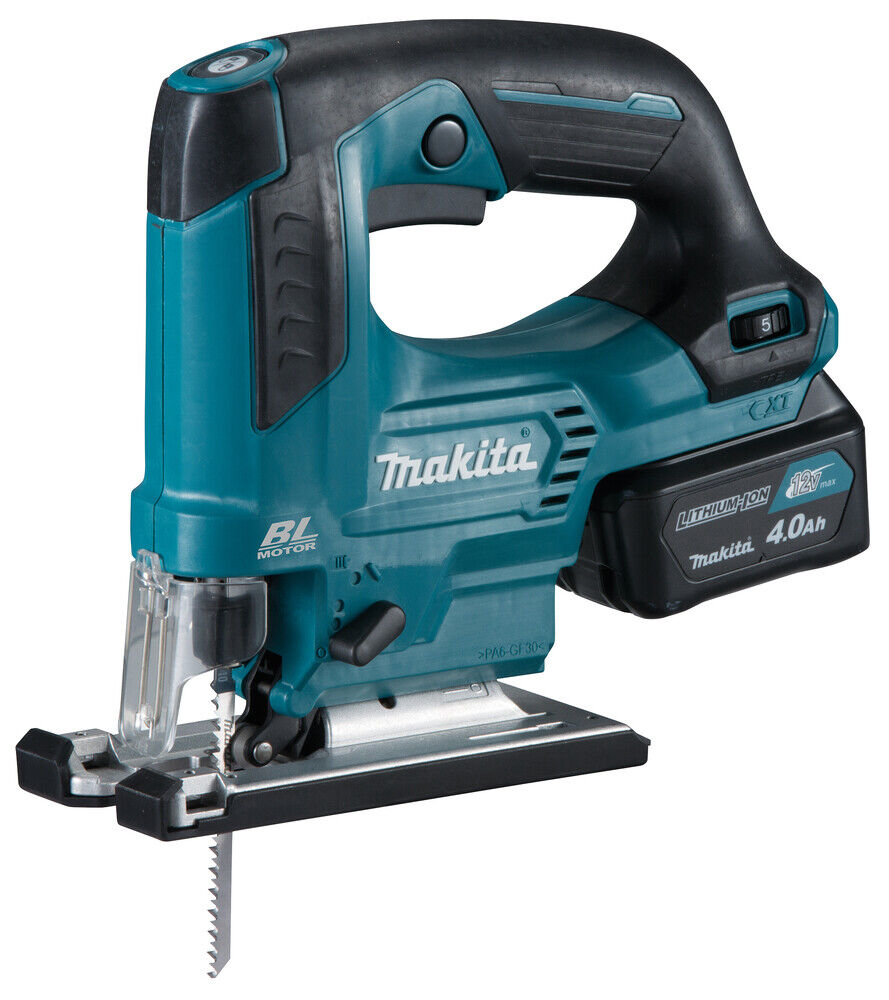

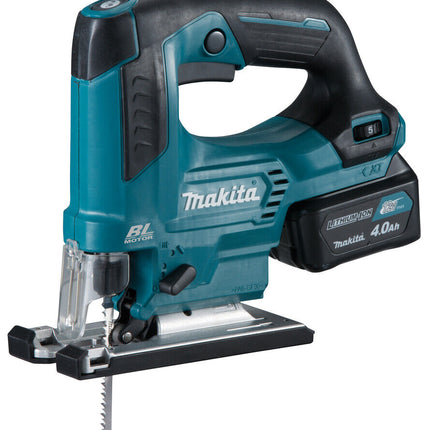

• JV103DSMJ jigsaw.
• 2 x 4 Ah batteries.
• Battery charger.
• In makpac case.
Technical data
• Nominal battery voltage: 12 V.
• Stroke length: 23 mm.
• Max. cutting capacity in wood (90°): 90 mm.
• Max. cutting capacity in steel (90°): 10 mm.
• Aluminum capacity: 20 mm.
• Discharge angle: 45°.
• Sound power level: 96 dB(A).
• Sound pressure level: 85 dB(A).
• Noise uncertainty (K-factor): 3 dB(A).
• Vibration level (3 axes): 8.5 m/s².
• Vibration (K-factor): 1.5 m/s².
• Weight without battery: 1.9 kg.
• Product dimensions: 237 x 76 x 206 mm.
• Maximum tilt (left): 45 °.
• Impacts per minute: 800 - 3000 min⁻¹.
