Description

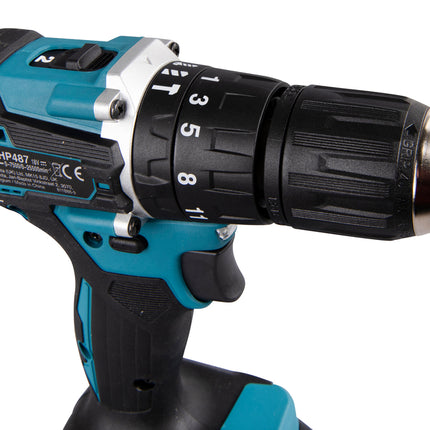

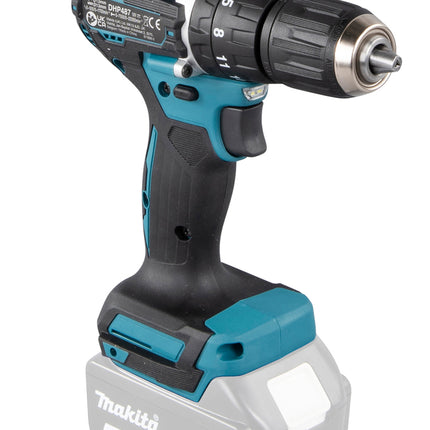

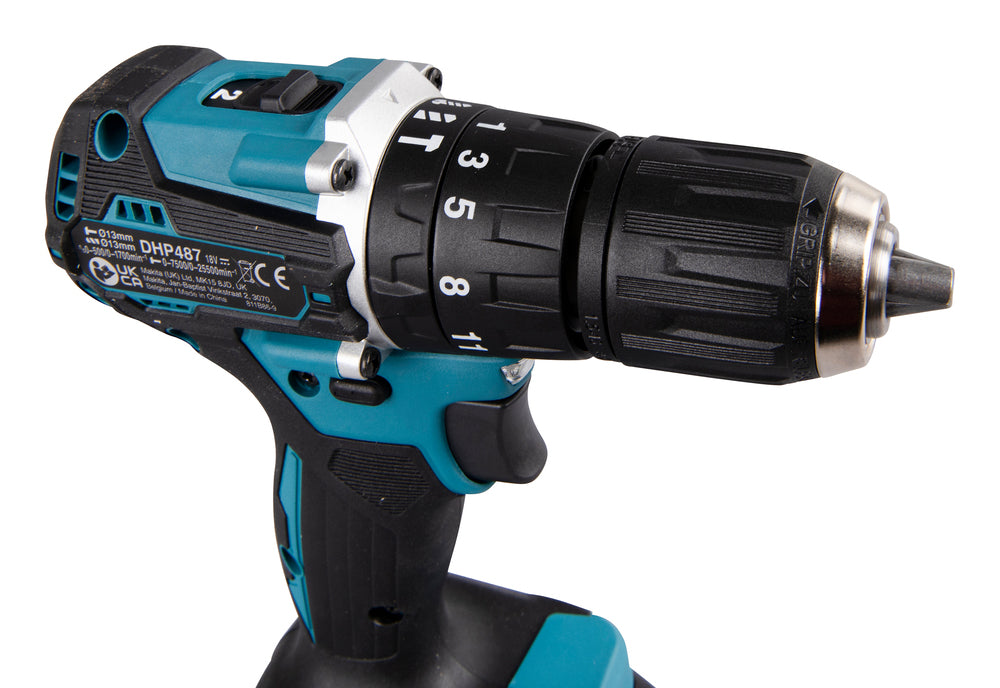

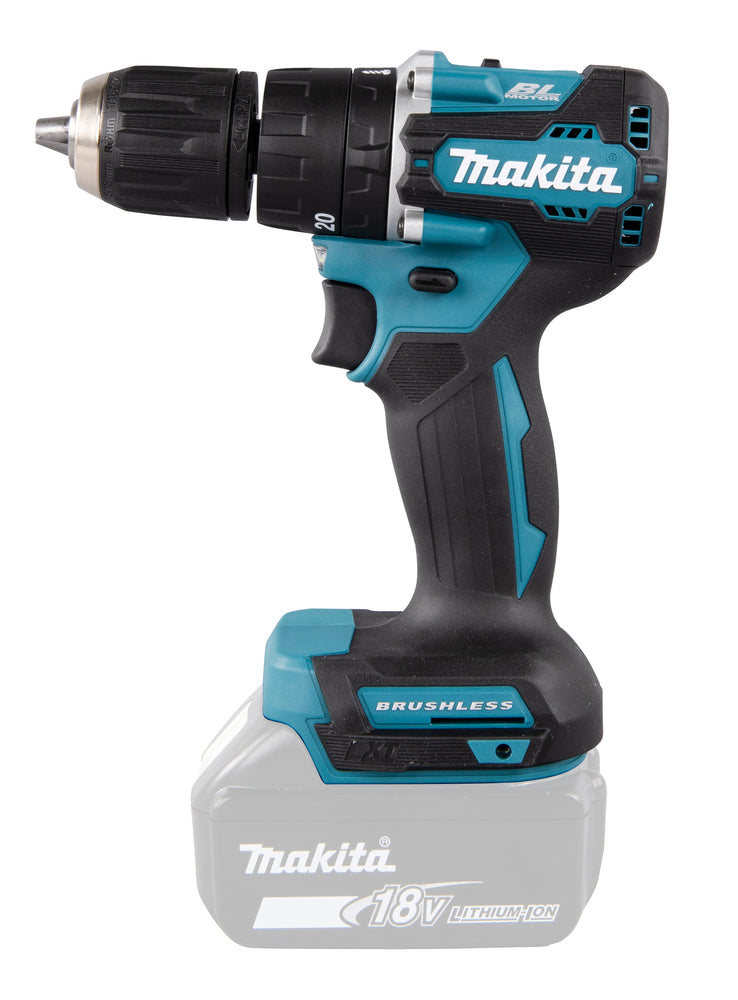

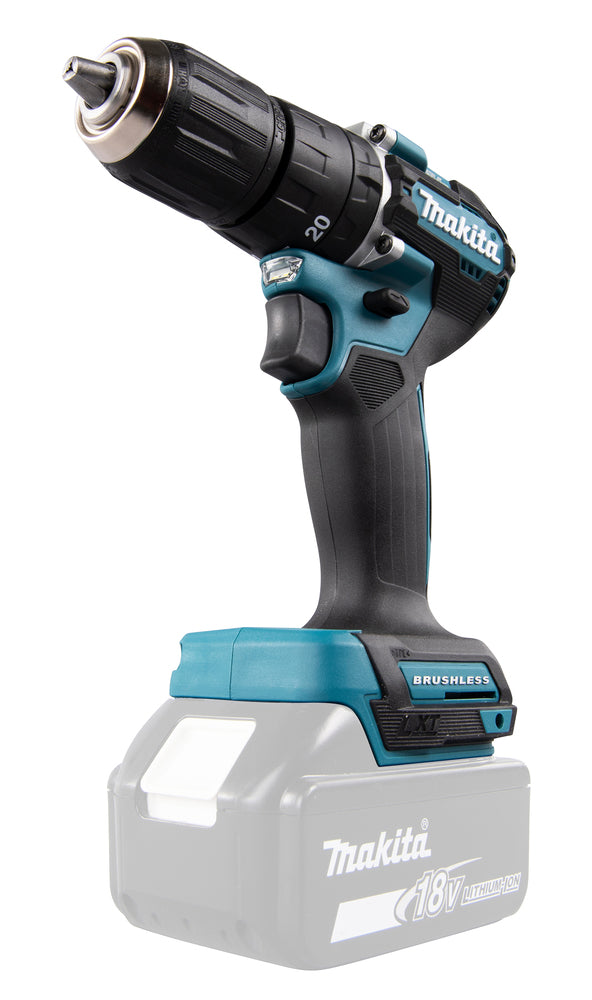

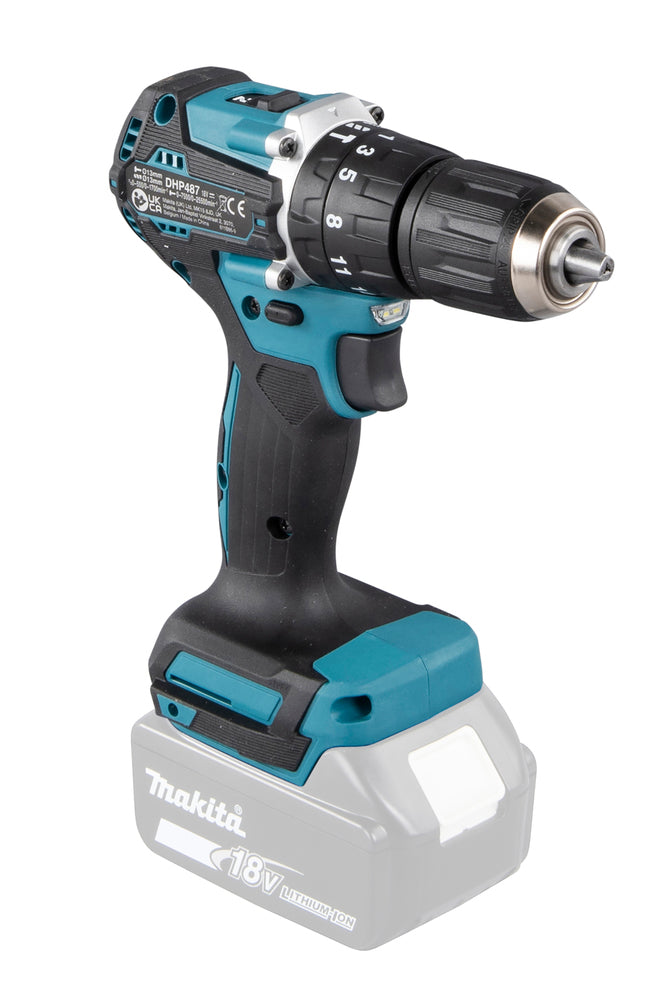

DHP487ZJ LXT® Impact Drill

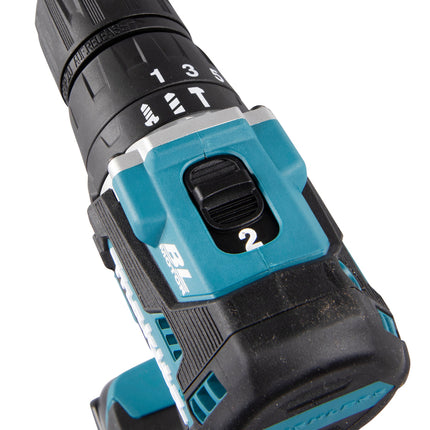

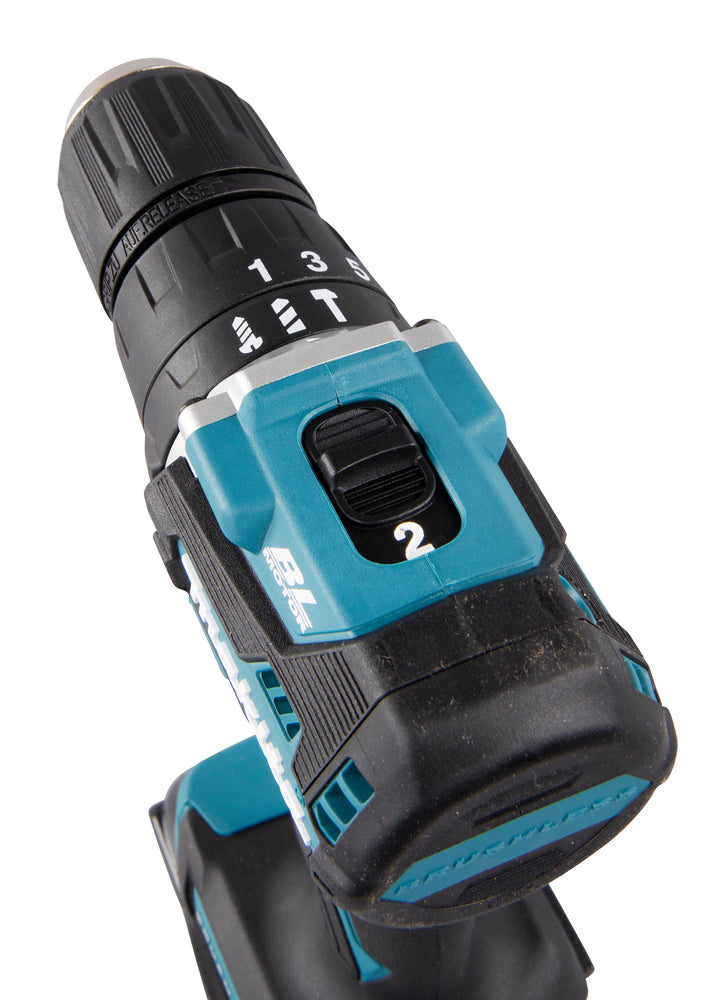

An efficient 18V LXT® impact drill with a brushless motor for screwdriving and drilling applications with or without the use of impact. Possibility of setting two power levels. Maximum tightening torque 40 Nm. A versatile tool for installers, builders and maintenance personnel. Integrated LED light. Supplied without batteries and charger. Supplied with MAKPAC case.
Features
• 18V • 40 Nm • 0-500/0–1,700 rpm

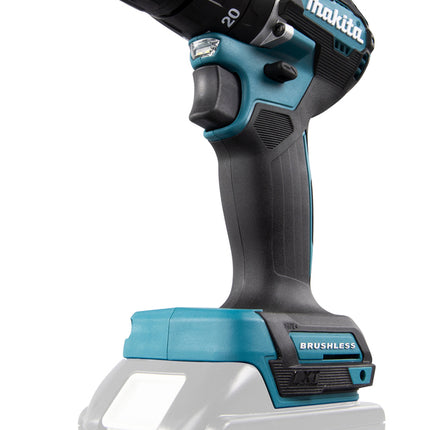

• Optimal handle design

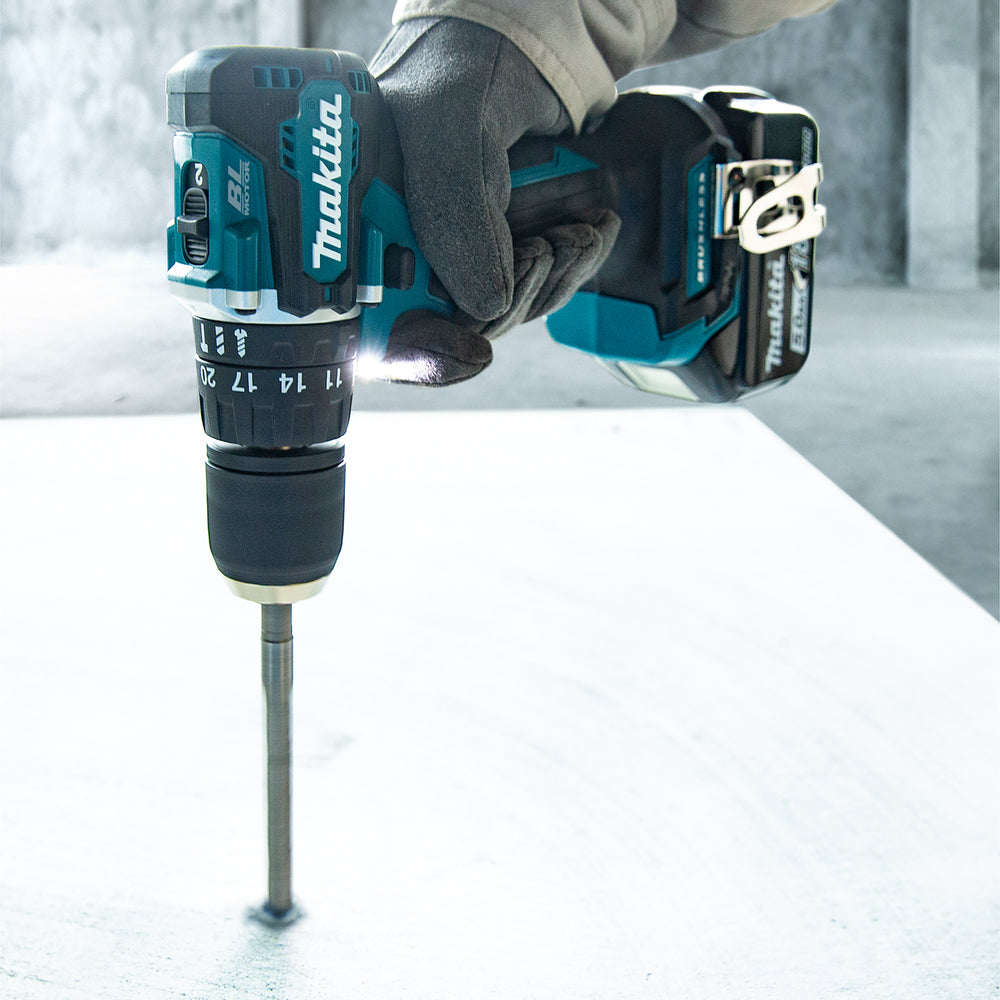

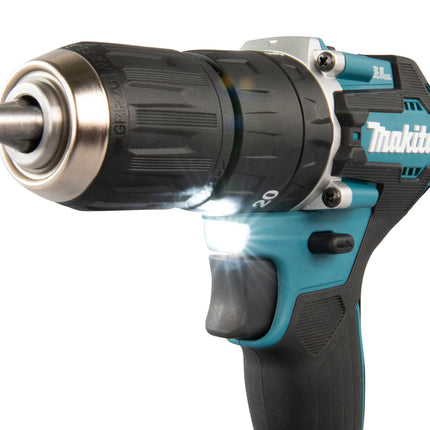

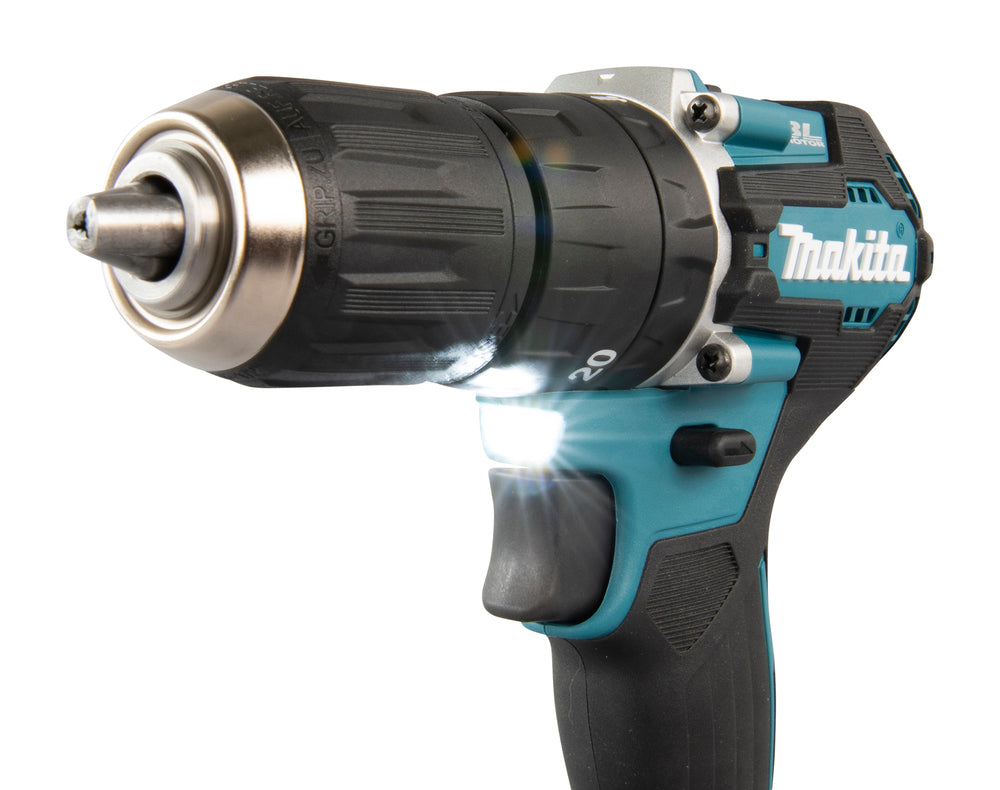

• LED light illuminates the work area
• Highly efficient and compact machine for professional use
• Battery protection system automatically cuts off power when the battery level is low
• Electronic overload protection protects the user and the device
Features Technical data
• Nominal battery voltage: 18 V
• LXT platform: Yes
• BL Motor: Yes
• No-load speed: 0 - 500 / 1700 min⁻¹
• Max. tightening torque rigid joint / flexible joint: 40 / 25 Nm
• Clutch adjustment: 20
• Pulses per minute: 0 - 7500 / 25500 min⁻¹
• Max. hole diameter in wood: 36 mm
• Max. hole diameter in masonry: 13 mm
• Max. hole diameter in concrete: 13 mm
• Max. hole diameter in steel: 13 mm
• Guide connection: 1/2"-20UNF "
• Chuck capacity: 1.5 - 13 mm
• Sound power level: 94 dB(A)
• Sound pressure level: 83 dB(A)
• Noise uncertainty (K-factor): 3 dB(A)
• Vibration level (3-axis), drilling: ≤ 2.5 m/s²
• Vibration level (3-axis), hammer drilling: 10.5 m/s²
• Vibration uncertainty (K-factor): 1.5 m/s²
• Weight with battery: 1.4 - 1.7 kg
• Product dimensions: 164 x 81 x 248 mm
• Max. diameter of hole in wood (A little auger): 36 mm
• Max. diameter of hole in wood (Forstner type bit): 35 mm
• Electronic brake: Yes
• Net weight: 1.0 kg
Included
• DHP487 impact drill

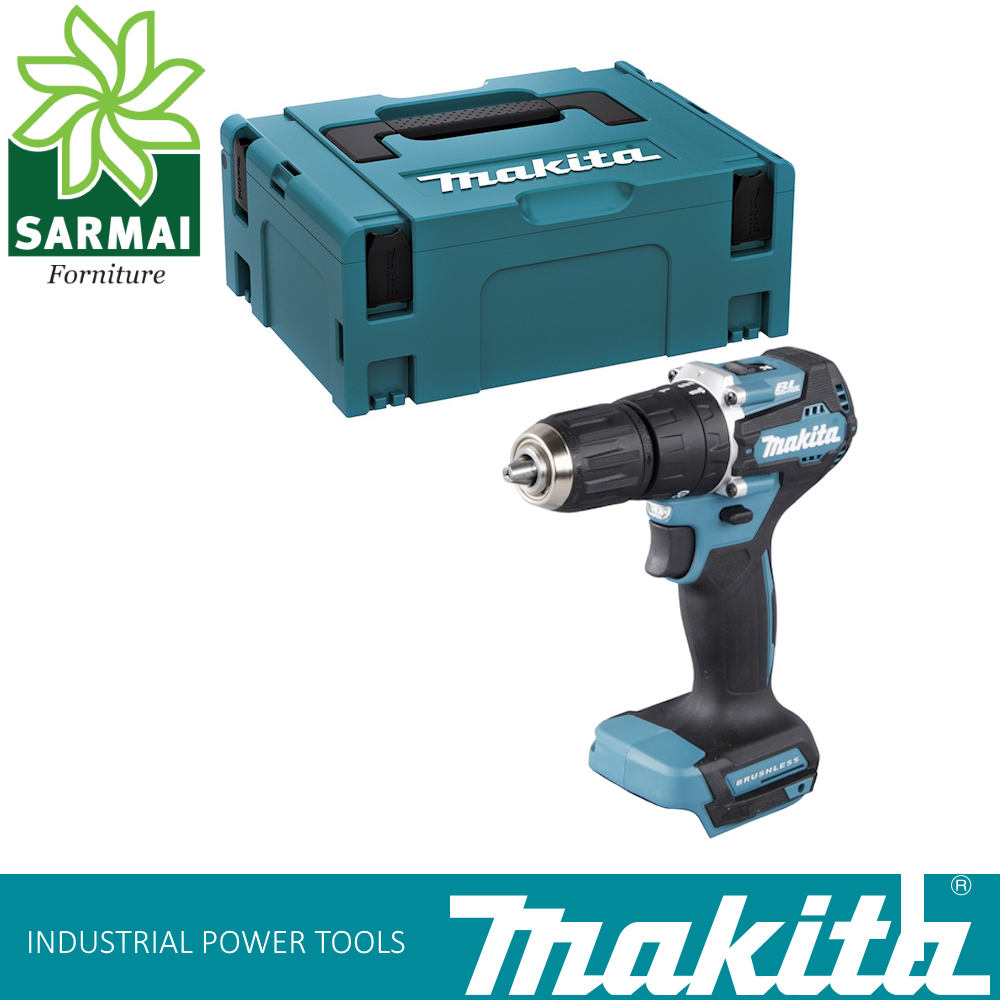

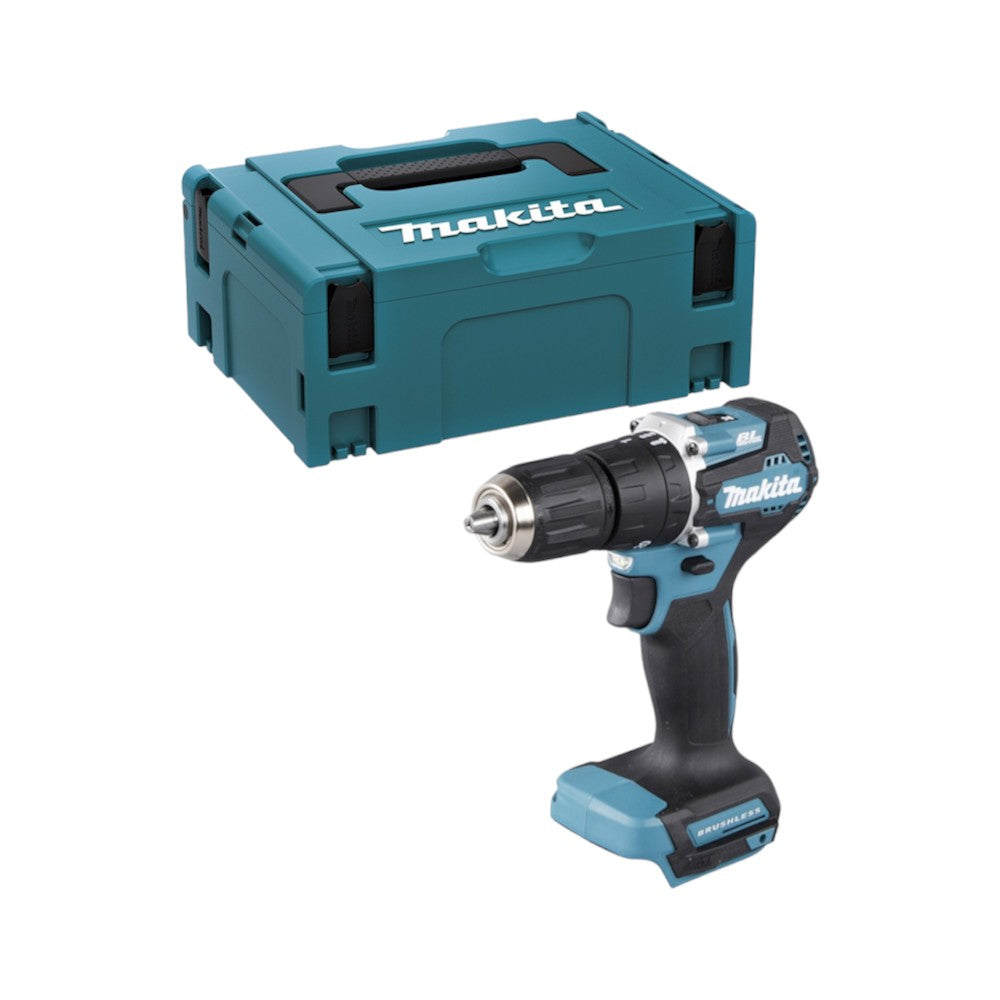

• Carrying case MAKPAC
• Use and Maintenance Manual
