Description

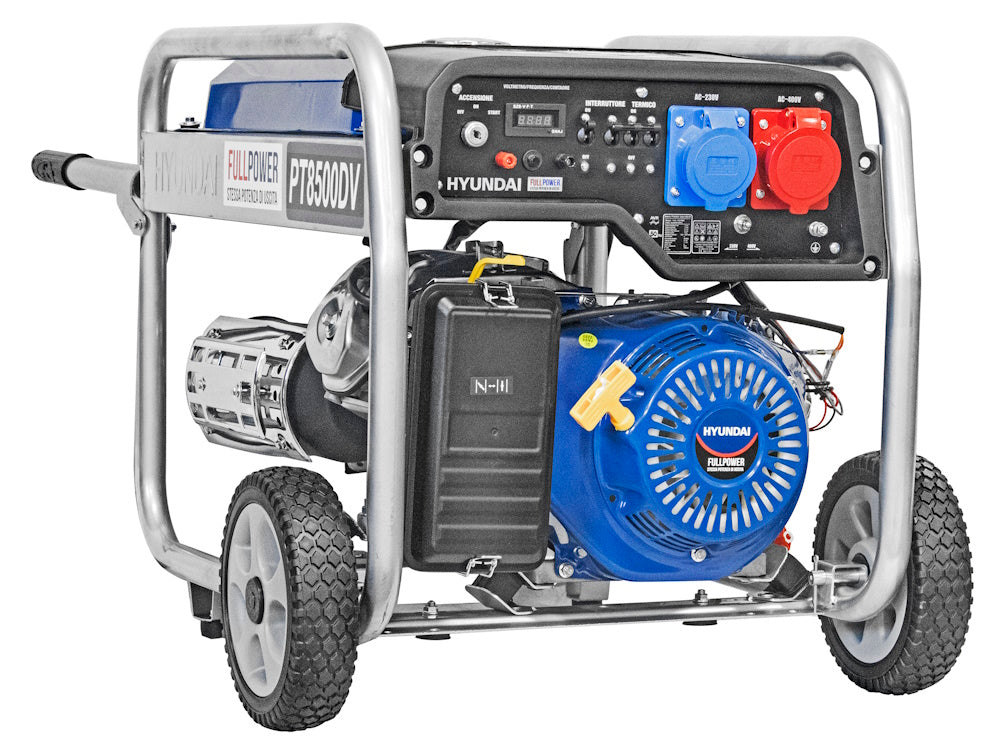

Hyundai PT8500DV Gasoline Generator
The PT8500DV generator is equipped with a 100% copper alternator and a Full Power system that delivers equal power in both single- and three-phase modes. It features an electric starter with an included battery, and features an integrated ATS and AVR system. The generator is supplied with a trolley with wheels and handles for easy movement.
Main Features
- Front control panel with three-function digital display (voltmeter, frequency meter, hour meter).
- Large fuel tank (22 L).
- Runtime of approximately 7 hours at 50% load.
- Noise level 77 dB(A) at 50% load.
- Sockets: 1 x 16 A single-phase and 1 x 50 A three-phase, 12 V socket.
- 4-stroke petrol engine, model HY420, 18 HP (450 cc).
- Net/gross weight: 85/88 kg.
- Dimensions: 710 × 550 × 580 mm.
Rating data
Hyundai PT8500DV electrical specifications
| Rated power single-phase/three-phase |
8.0 kW MF / TF |
| Maximum power single-phase/three-phase |
8.5 kW MF / TF |
| Voltage/frequency |
230–400 V / 50 Hz |
| Voltage regulation type |
AVR with integrated ATS |
| Alternator power |
9.0 kVA |
