Description

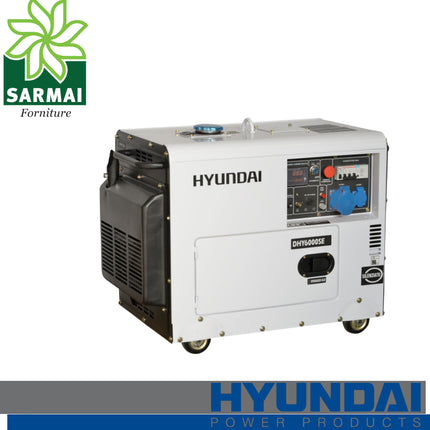

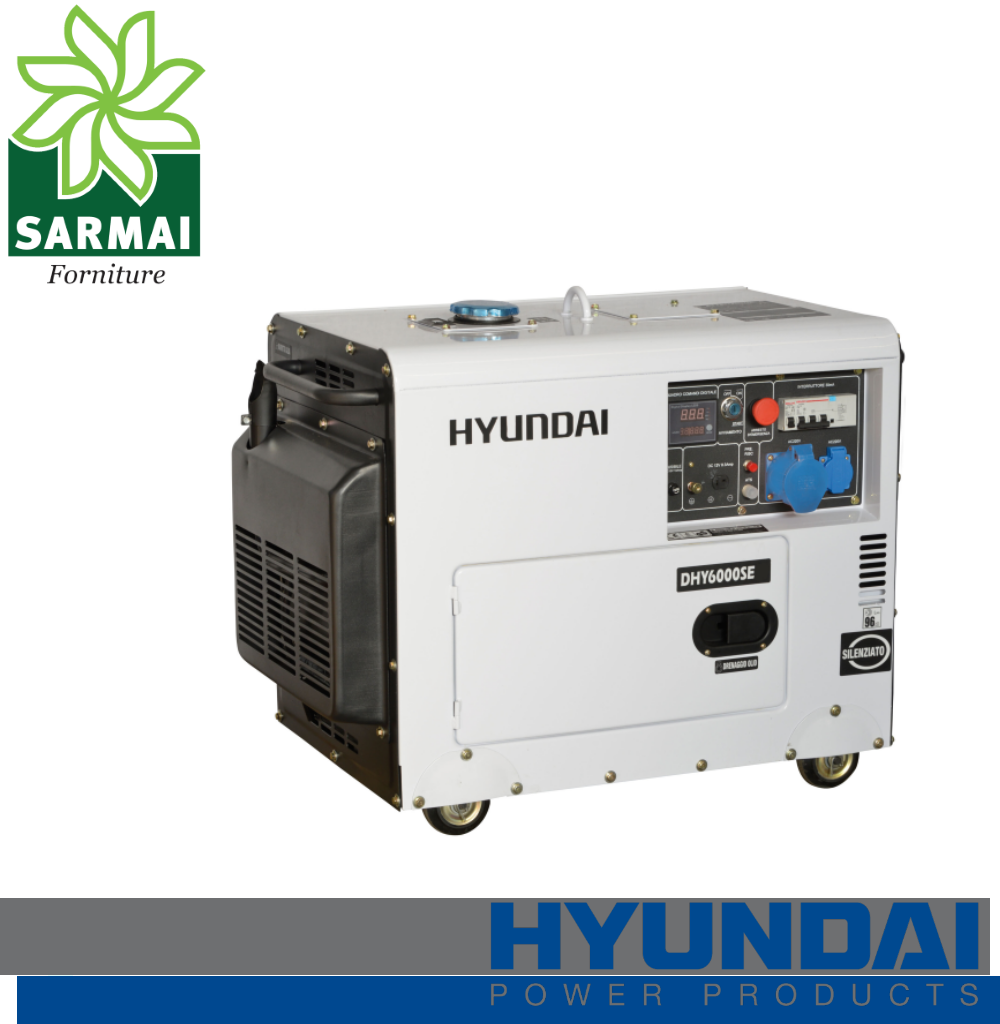

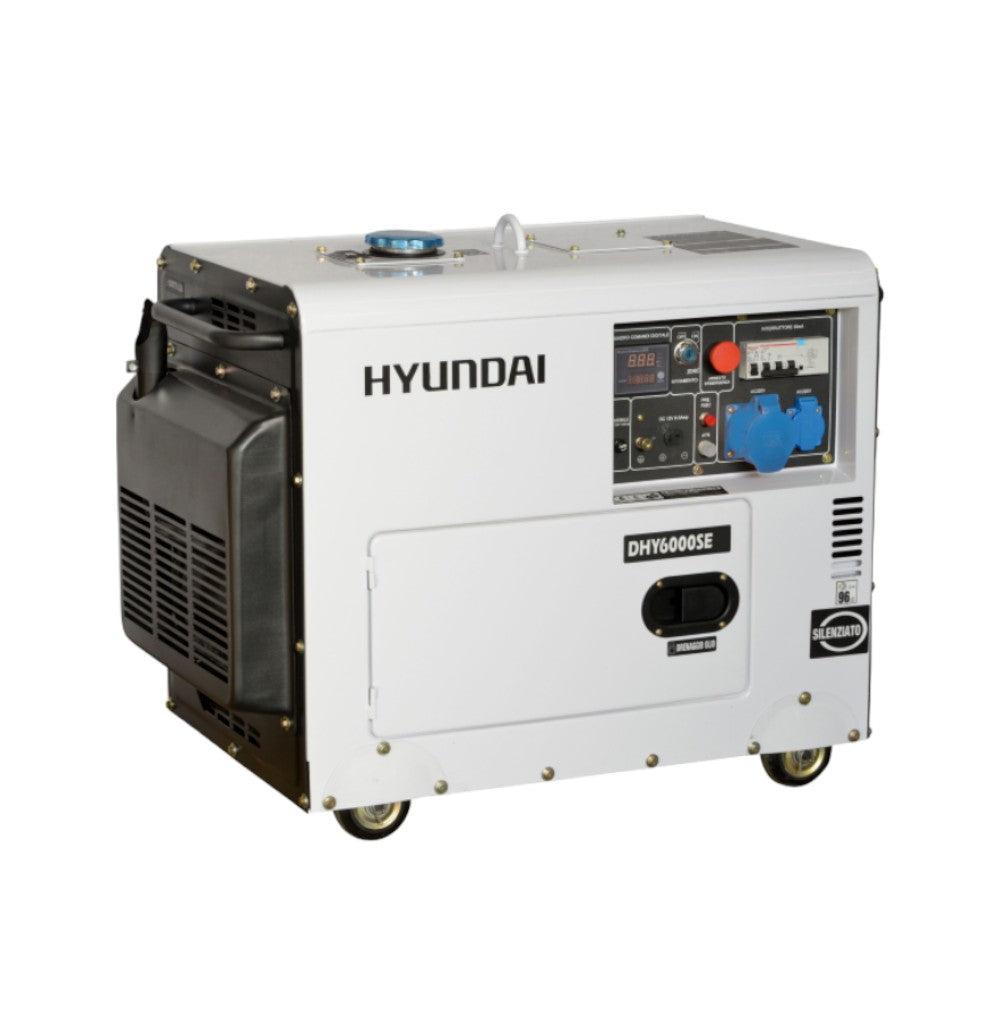

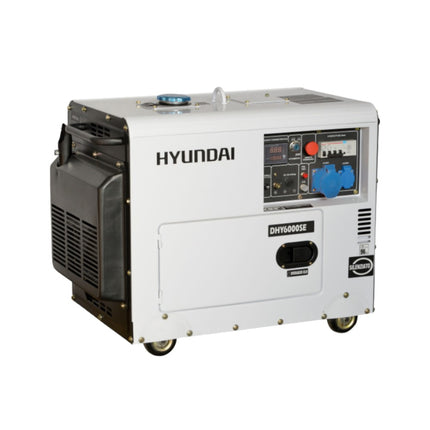

Hyundai Single-Phase Diesel Generator, Code 65231
The Hyundai generator, Code 65231 (DHY6000SE) provides a nominal 5 kW in single-phase operation with electric start and a battery included. It features an AVR voltage regulator, digital display, a silenced chassis with integrated wheels, and is prepared for an automatic start system (ATS).
Technical Data
Hyundai 65231 Specifications
| Rated Power |
5.0 kW |
| Maximum Power |
5.3 kW |
| Phase |
Single Phase |
| Starting |
Electric |
| Voltage/Frequency |
230 V / 50 Hz |
| Sockets |
1×16 A + 1×32 A |
| Fuel tank |
15 L |
| Autonomy at 50% load |
13 h |
| Noise level at 7 m (50% load) |
72 dB(A) |
| 12 V socket |
Yes |
| Battery |
30 Ah |
| Type Engine |
Diesel D400E, 10 HP |
| Displacement |
418 cc |
| Oil capacity |
1.65 L |
| Alternator |
KT-5, 6.3 kVA |
| Voltage regulation |
AVR |
| Net/gross weight |
157/159 kg |
| Dimensions Product |
950×570×760 mm |
| Packaging dimensions |
965×580×775 mm |
Equipment
The generator is equipped with a 16 A Schuko socket, a 32 A socket, a silent, corrosion-resistant frame with integrated wheels, a 5-function digital display, and a copper alternator winding. The package includes the generator and a toolbox.
