Description

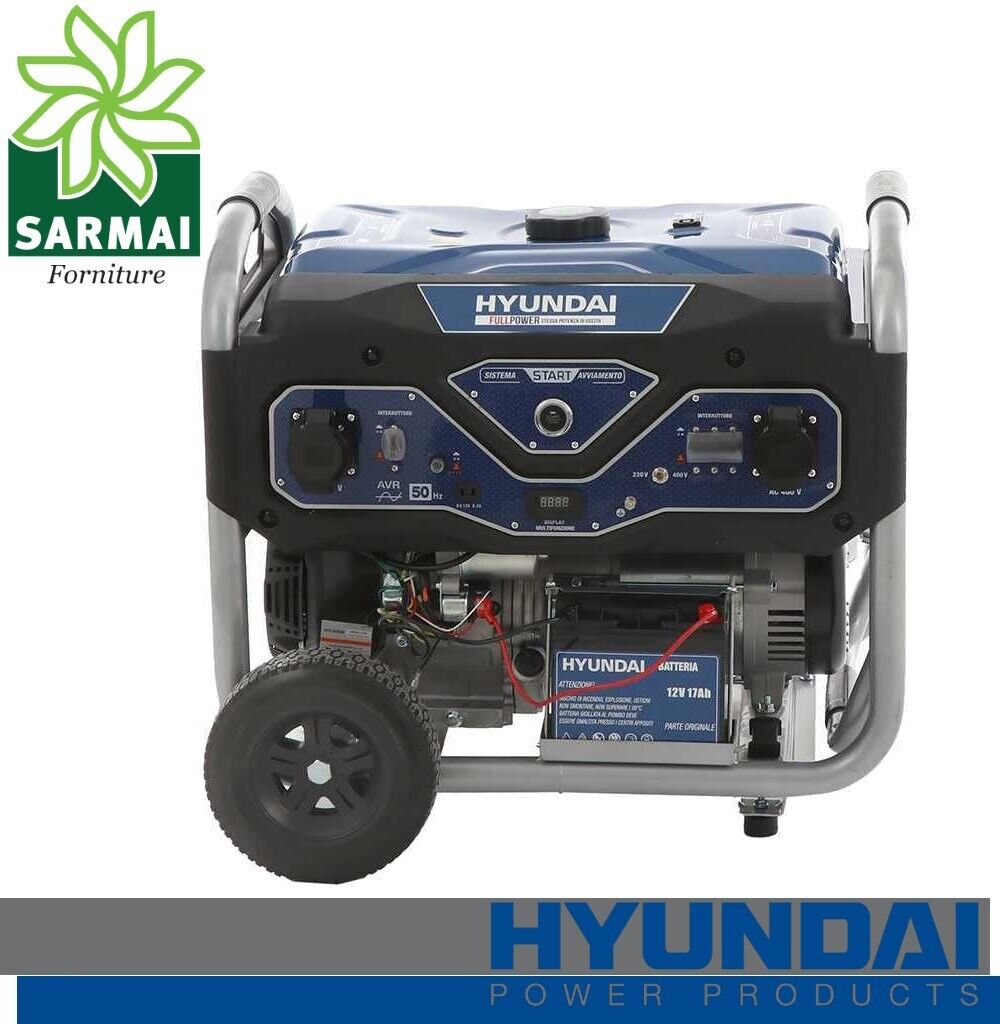

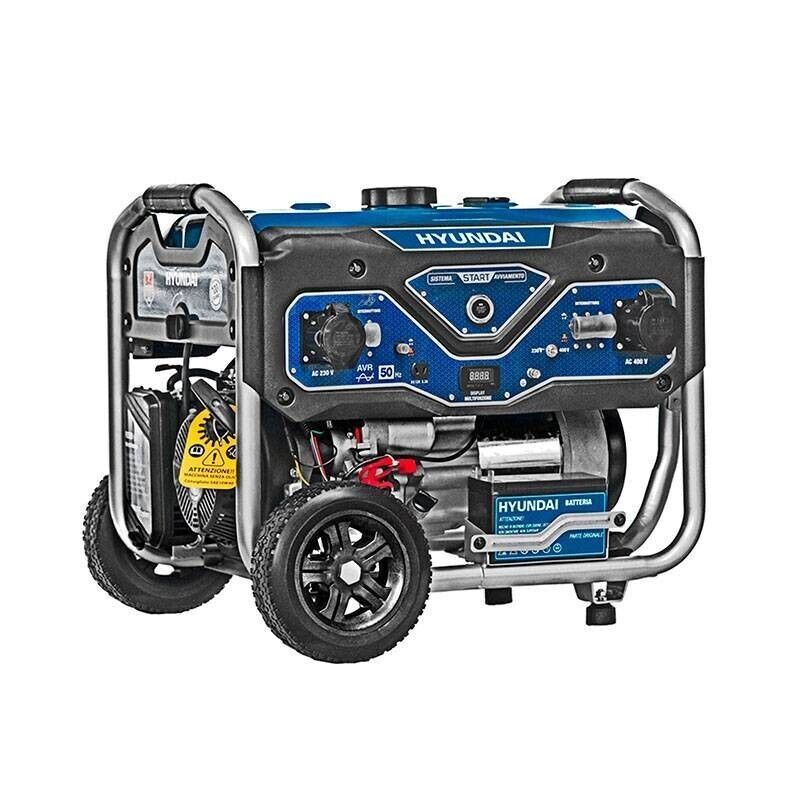

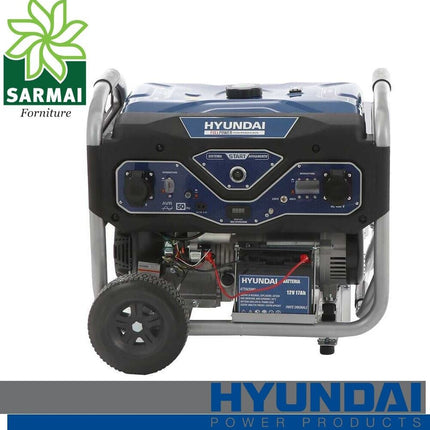

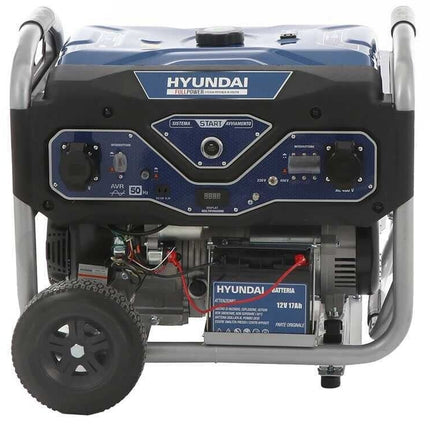

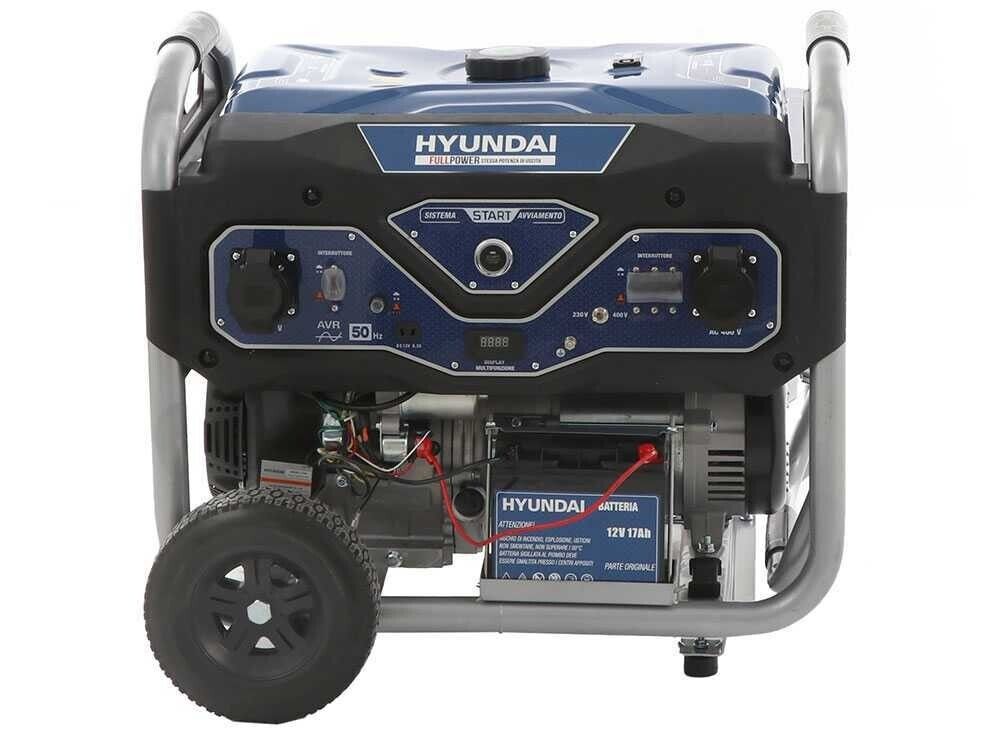

Hyundai LS FULL POWER Generator
• The Hyundai LS FULL POWER gasoline-powered petrol generator is ideal for providing electricity wherever it is needed.
• This generator has a tank that can hold up to 25 liters. The alternator is 100% copper-coated. It has a 15 HP, 420 cc engine. It is capable of emitting a maximum power of up to 5.5 kW in both three-phase and single-phase mode.
• It can also be used in the portable, non-wheeled version; simply do not attach the wheels. The wheels are easy to install and can be easily transported thanks to the handle on the side of the generator.
• Equipped with an AVR card: it provides automatic regulation of the output voltage, keeping it perfectly constant as the load varies.
• This generator is equipped with the innovative FULLPOWER system that guarantees the same output power between three-phase and single-phase, unlike traditional generators in which the single-phase output is reduced to 1/3 of the power of the three-phase.
Alternator and power output:
• The alternator of the Hyundai LS FULL POWER generator has a copper winding.
• Maximum rated power in emergency service LTP: 5.5 KW Single-phase/Three-phase
• Rated power in continuous variable service PRP: 5.0 KW Single-phase/Three-phase
• The GeoTech generator is equipped with an AVR card: an electronic device that automatically regulates the output voltage, making it constant as the load varies.
• The generator is equipped with anti-vibration rubber mounts that secure the alternator to the frame.
Control Panel
• The control panel of the Hyundai generator is complete and full of functions.
• In fact We find a 3-function Multimeter panel (display at the bottom)
• Voltage, frequency, and usage time, both current and total.
• A 400V three-phase socket
• A 230V industrial socket
• Earth leakage
• Electric start with button
• Connection for 12V terminals
Technical characteristics of the engine
• Type: 4-stroke, single-cylinder, air-cooled, OH, horizontal shaft
• Displacement: 420 cc
• Power: 15 Hp
• Fuel: Petrol
• Tank: 25 L
• Oil capacity: 1.1 L
• The engine is equipped with electric and recoil starter and a tank with a tap for opening
• The throttle and engine acceleration are adjusted automatically via the AVR card as the connected load varies
• OHV technology
Other Features
• Large capacity 25-litre fuel tank. This allows the generator to guarantee long battery life. This tank is made of metal and is equipped with an external fuel control system and tank cap.
• Foldable handle for easy transport and handles for transport without a trailer.
• Large rear wheels for transport
• Anti-vibration rubber pads
• Support rubber pads for engine and alternator
• Pull starter cord
• Voltage: 230V
• Frequency: 50 Hz
• Power factor: 1
• Noise level: 76 dB(A)/7m
