Description

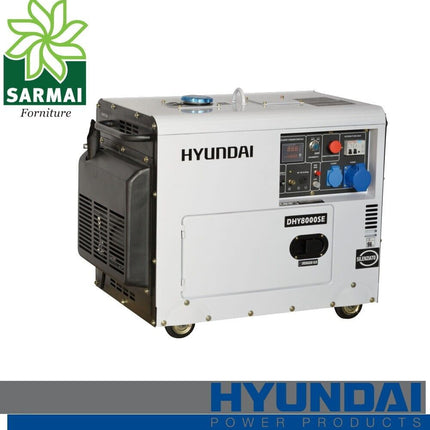

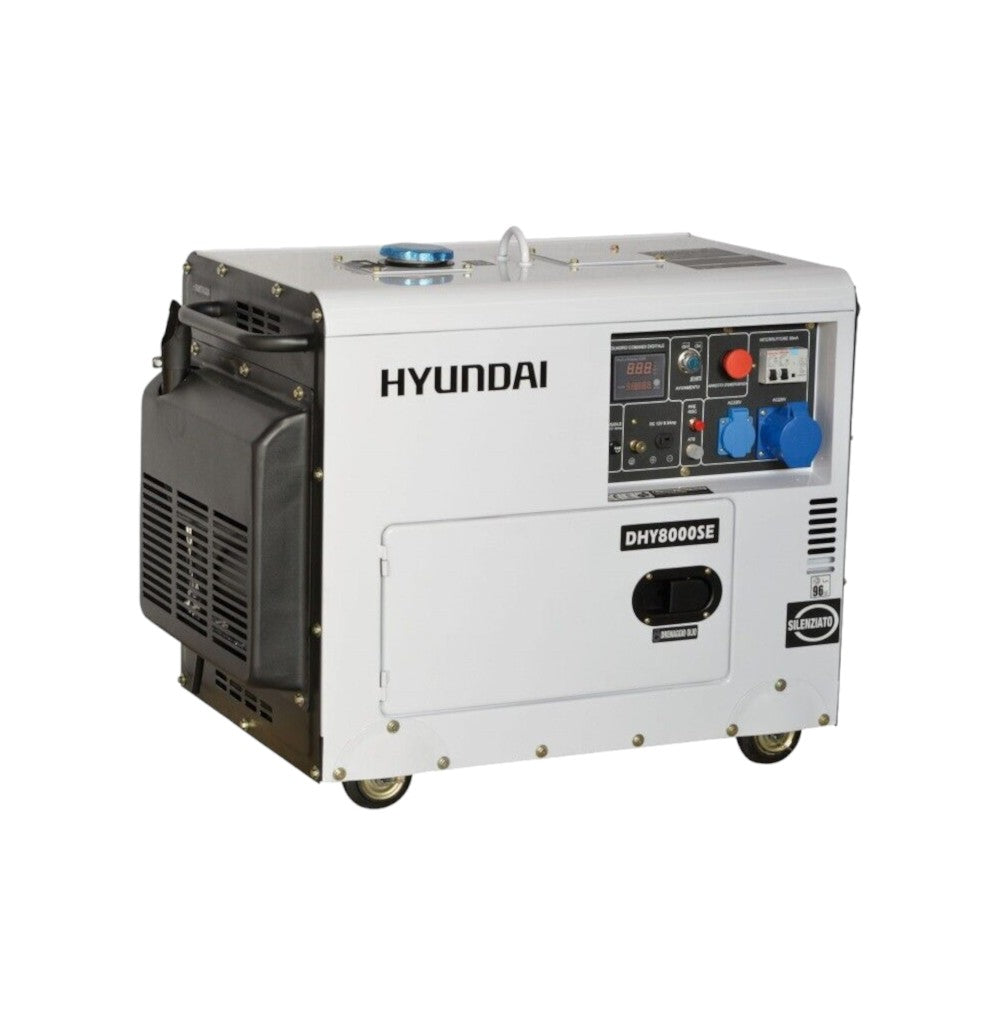

Hyundai silent diesel generator code 65237
The Hyundai diesel generator code 65237 (DHY8000SE) is designed to power outdoor devices with low noise (72 dB(A) at 7 m at 50% load). Equipped with electric start, a five-function digital panel, a 15-liter fuel tank, and a 12-volt socket. It is ready for an optional ATS kit for automatic starting in the event of a power outage.
Technical Data
Hyundai 65237 Specifications
| Rated Power |
6.0 kW |
| Maximum Power |
6.3 kW |
| Phase |
Single Phase |
| Starting |
Electric |
| Voltage/Frequency |
230 V / 50 Hz |
| Sockets |
1×16 A + 1×32 A |
| Fuel tank |
15 L |
| Autonomy at 50% load |
12 h |
| Noise level at 7 m (50% load) |
72 dB(A) |
| 12 V socket |
Yes |
| Battery |
30 Ah |
| Engine |
Diesel D500E, 12 HP |
| Displacement |
456 cc |
| Oil capacity |
1.65 L |
| Alternator |
KT-6, 7.5 kVA |
| Voltage regulation |
AVR |
| Net/gross weight |
156/168 kg |
| Dimensions Product |
950×780×760 mm |
| Packaging dimensions |
965×850×775 mm |
Equipment
- Digital control panel with 5 functions displaying V, A, kW, Hz, and hours.
- Alternator with 100% copper winding.
- Integrated ATS ready for connection to the mains for automatic starting.
