Description

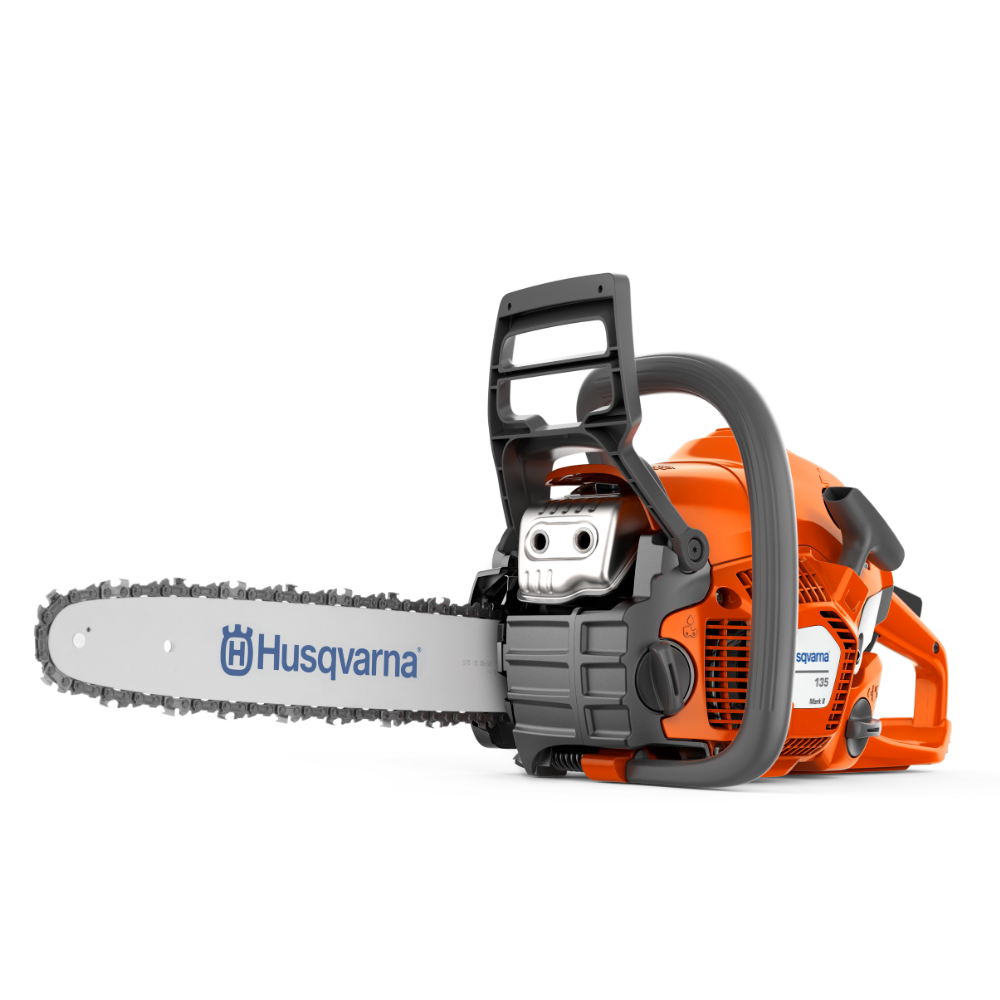

HUSQVARNA 135 MARK II 38 cc x-torq 1.6 Kw CHAINSAW WITH 35 CM BAR
Lightweight and easy to use, the Husqvarna 135 Mark II is an ideal chainsaw for cutting tasks around the garden, such as cutting firewood and felling small trees. It is equipped with an X-Torq® engine that delivers great power and torque thanks to highly efficient combustion. Easy to start and equipped with anti-vibration shock absorbers to reduce excessive strain on arms and hands. Inertia chain brake for added safety and easily adjustable chain using the side-mounted chain tensioner.
Included
• Husqvarna 135 Mark II Chainsaw.
• Bar Type (Long): Sprocket.
• Studs: Mounted.
• Chain Type: S93G.
• Bar Length (inches): 14 in.
Technical Data
Engine
• Chain speed at max. power: 16.8 m/s.
• Displacement: 38 cm³.
• Power output: 1.6 kW.
Equipment
• Recommended bar length, min.: 14 cm.
• Pitch: 3/8" mini.
• Recommended bar length, max.: 40 cm.
• Chain type: S93G.
• Bar length (cm): 35 cm.
• Bar length (inches): 14 in.
Dimensions
• Weight (excl. cutting attachment): 4.68 Kg.
Sound and noise
• Sound pressure level at operator's ear: 102 dB(A).
• Sound power level, guaranteed (LWA): 116 dB(A).
Vibrations
• Equivalent vibration level (ahv, eq) rear handle: 5.5 m/s².
• Equivalent vibration level (ahv, eq) front handle: 3.72 m/s².
Emissions
• Exhaust gas emissions (CO2 EU V): 804 g/kWh.
Features
• Air Injection™: The centrifugal air cleaning system expels dust and larger debris particles before they reach the air filter to increase engine life and ensure longer run times between filter cleanings.
• Powerful and efficient X-Torq® engine: The X-Torq® engine stands for efficient combustion, without compromising on torque or power. With each cycle, the cylinder is cleaned with fresh air before the mixture enters, to prevent unburned fuel from mixing with the exhaust gases. The result? Up to 75% lower emissions and greater efficiency while working.
• LowVib: Effective LowVib® dampers absorb vibrations, reducing fatigue on the user's arms and hands.
• Smart Start Technology: Specially designed engine and starter for Quick and easy starting with minimal effort. Resistance in the starter cord is reduced by up to 40%.
• Primer: Primer for easier and faster starting.
• Easy starting: The stop switch automatically resets to ON so the chainsaw is immediately ready for the next use.
• Combined choke/stop control: The combined choke/stop control allows very easy starting and reduces the risk of flooding the engine.
• Inertia chain brake: In the event of a kickback, the effective inertia chain brake immediately stops the chain to reduce the likelihood of injury.
• Side chain tensioner: Allows quick and convenient chain tensioning.
