Description

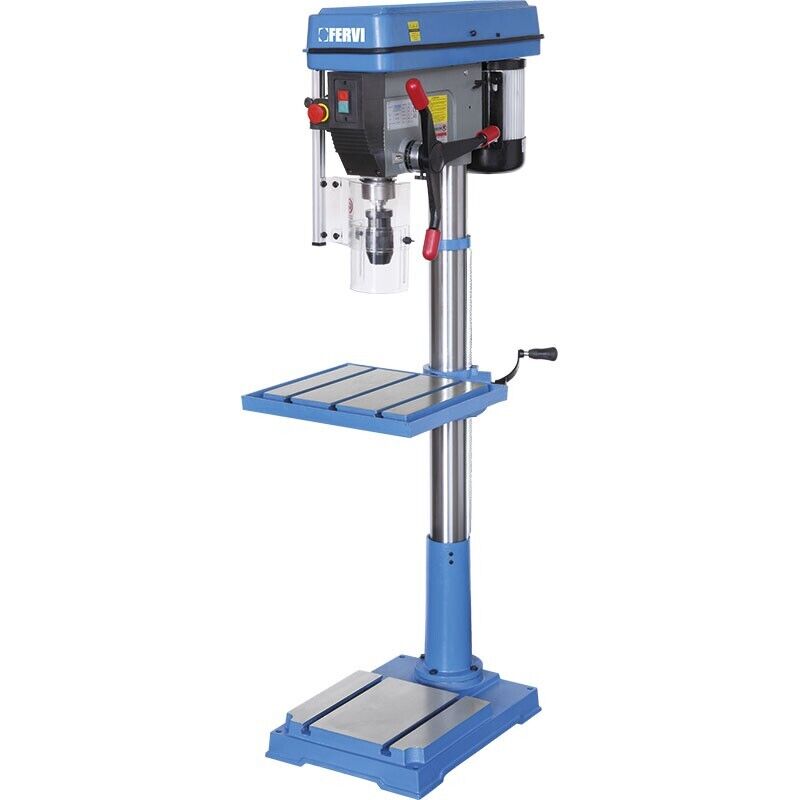

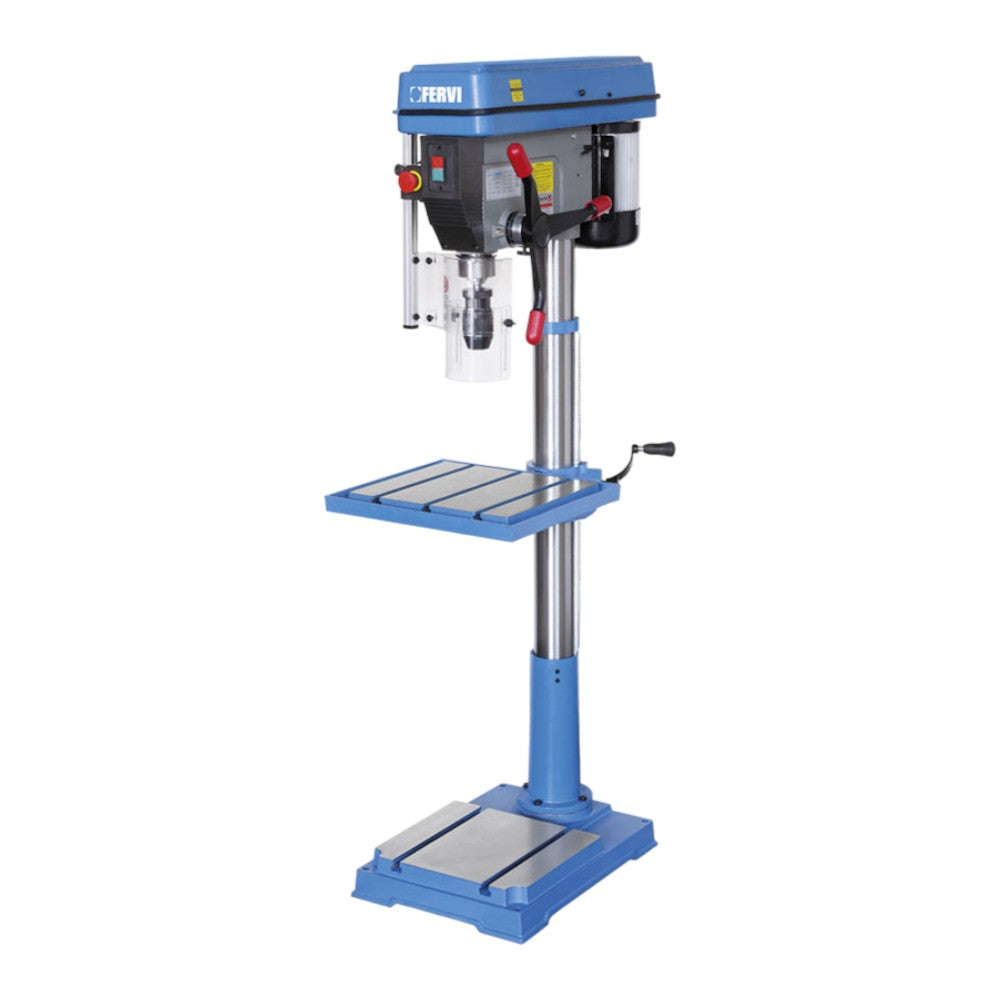

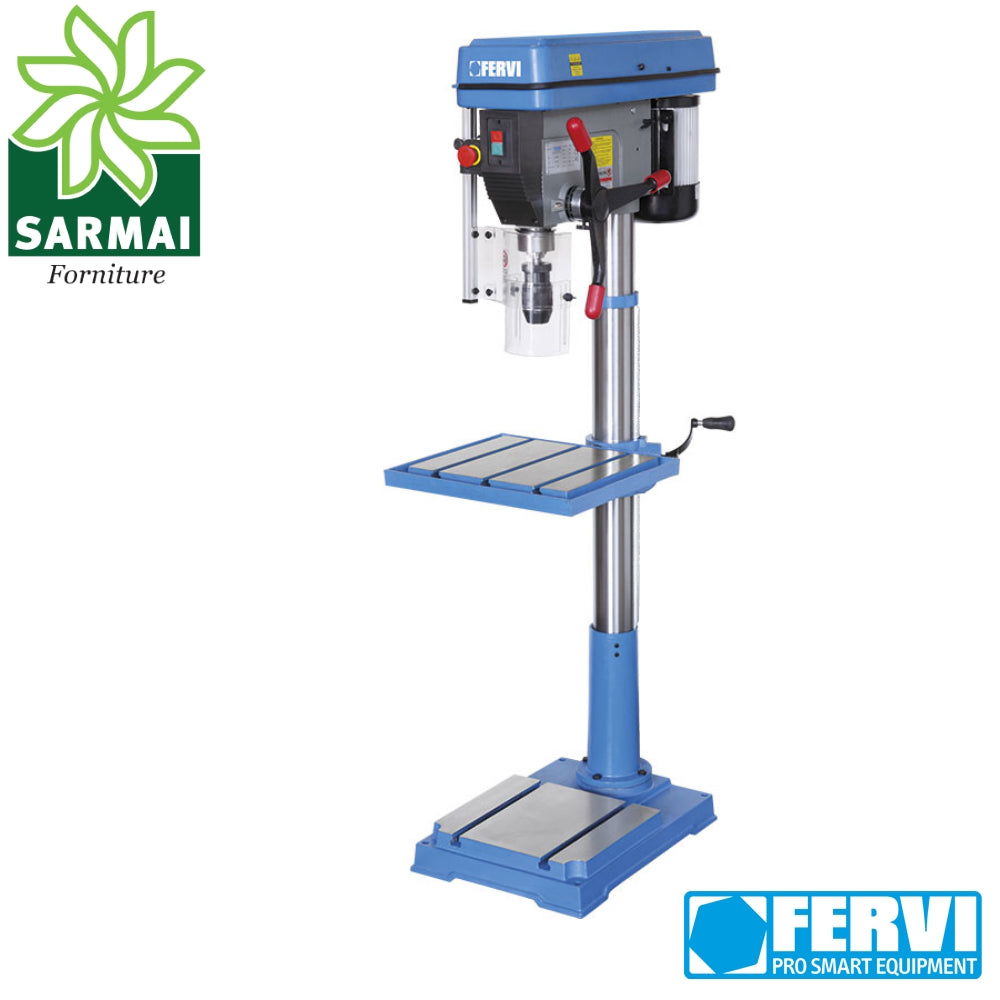

FERVI 0754/230V Belt-Driven Pillar Drill

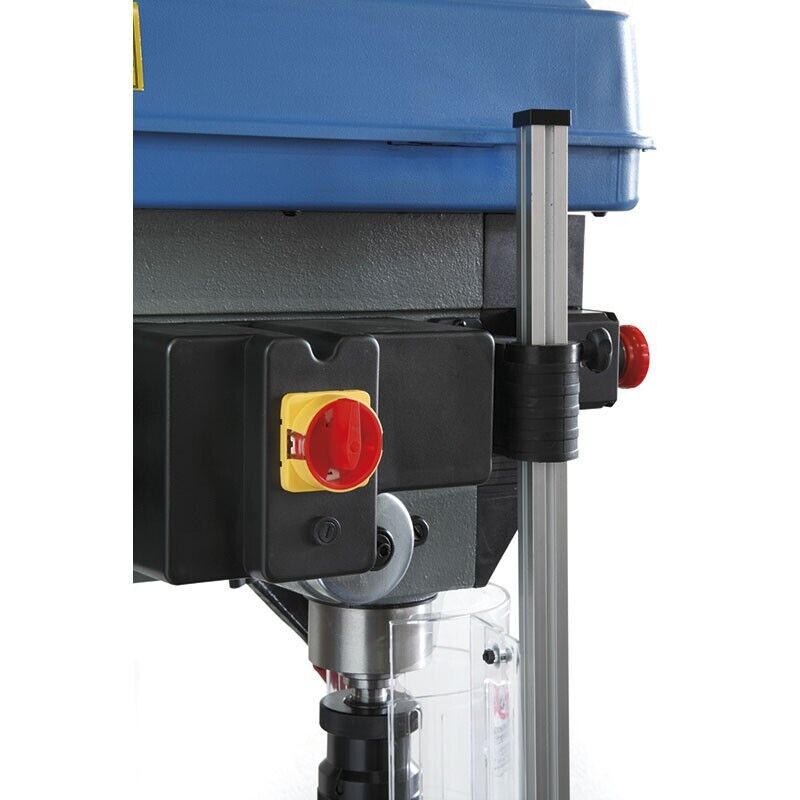

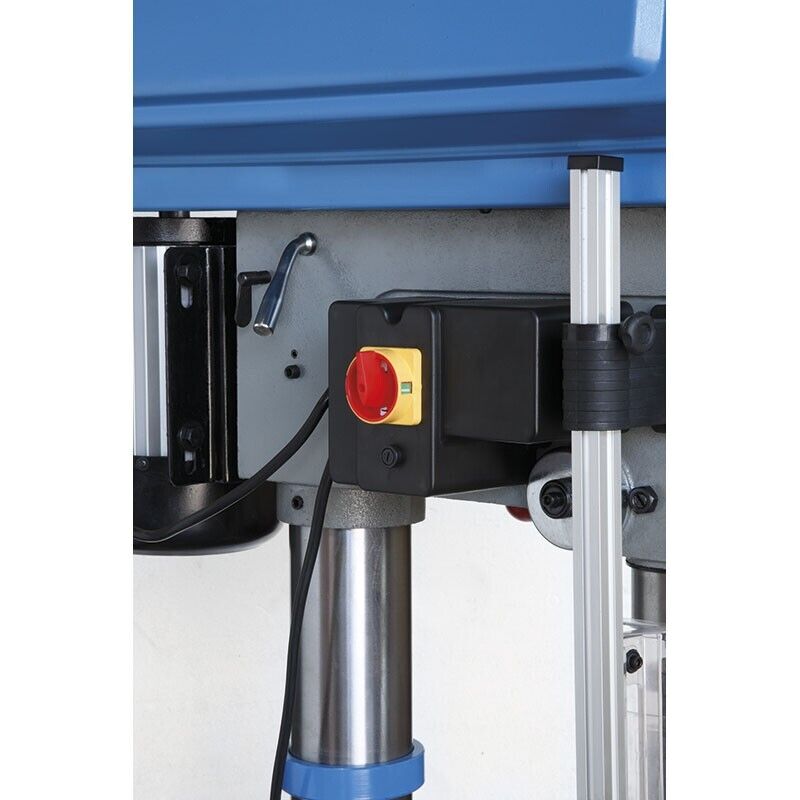

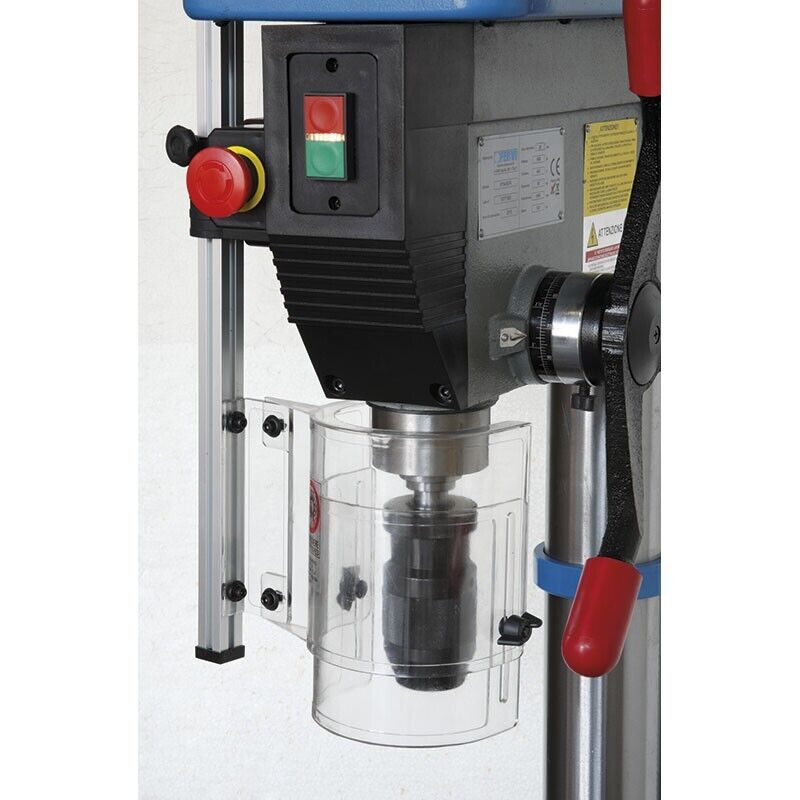

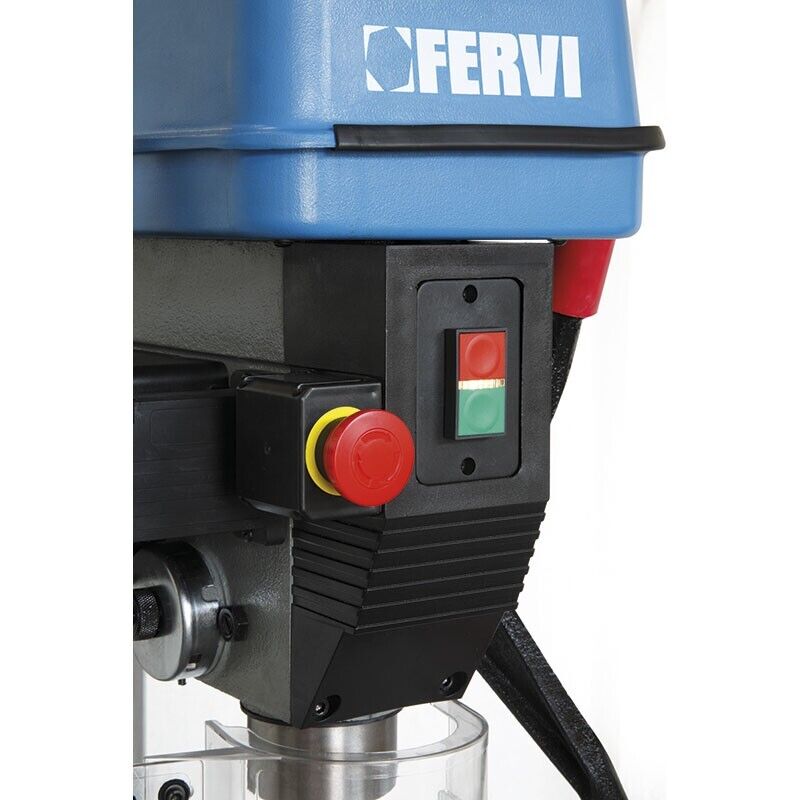

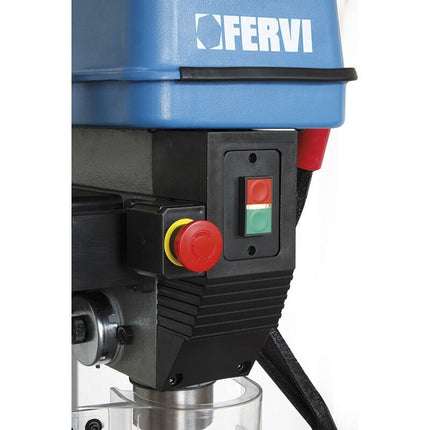

The Fervi 0754 is the largest and most robust model in the line, with a 1500W cast-head induction motor and a 230V power supply (a 400V version is also available). It offers 12 different speeds, with a spindle speed range of 150 to 2450 rpm. The worktable measures 475x425mm and can be tilted and raised vertically via a rack and pinion system. It also features linear holes for mounting a vice for more stable and precise work. The self-locking Ø 20mm spindle with CM4 spindle attachment has a 120mm stroke and a drilling capacity of Ø 32mm in cast iron with a pre-drilled hole. The maximum drilling capacity in steel with a pre-drilled hole is Ø 28mm, while the continuous drilling capacity is Ø 20mm. It is equipped with a depth stop, a transmission cover with a microswitch, a telescopic spindle guard, a control panel, and an electrical panel. The product is supplied disassembled on a pallet.
Technical Specifications
• Motor power: 1500W
• Motor power supply: 230V - 50Hz
• Drilling capacity in cast iron with pre-drilled hole: Ø 32 mm
• Maximum drilling capacity in steel with pre-drilled hole (s235jr): Ø 28 mm
• Continuous drilling capacity: Ø 20 mm
• Morse taper: 4
• Chuck: 5 - 20 mm B22
• Speed: 12 modes from 150 to 2450 rpm
• Spindle stroke: 120 mm
• Quill: Ø 62 mm
• Column: Ø 92 mm
• Table dimensions: 475x425 mm
• Slot: 14 mm
• Tilt: ± 45°
• Column-spindle distance: 260 mm
• Height: 1710 mm
Dimensions
• Height: 171 cm
• Net weight: 130 kg
• Product to be assembled, supplied complete with instructions
• Shipped on a pallet
• Packaging dimensions: 140x66xH33 cm
• Weight (including pallet): 140 kg
Standard equipment
• Self-tightening chuck 5 - 20 mm B22
• Chuck connection CM 4
