Description

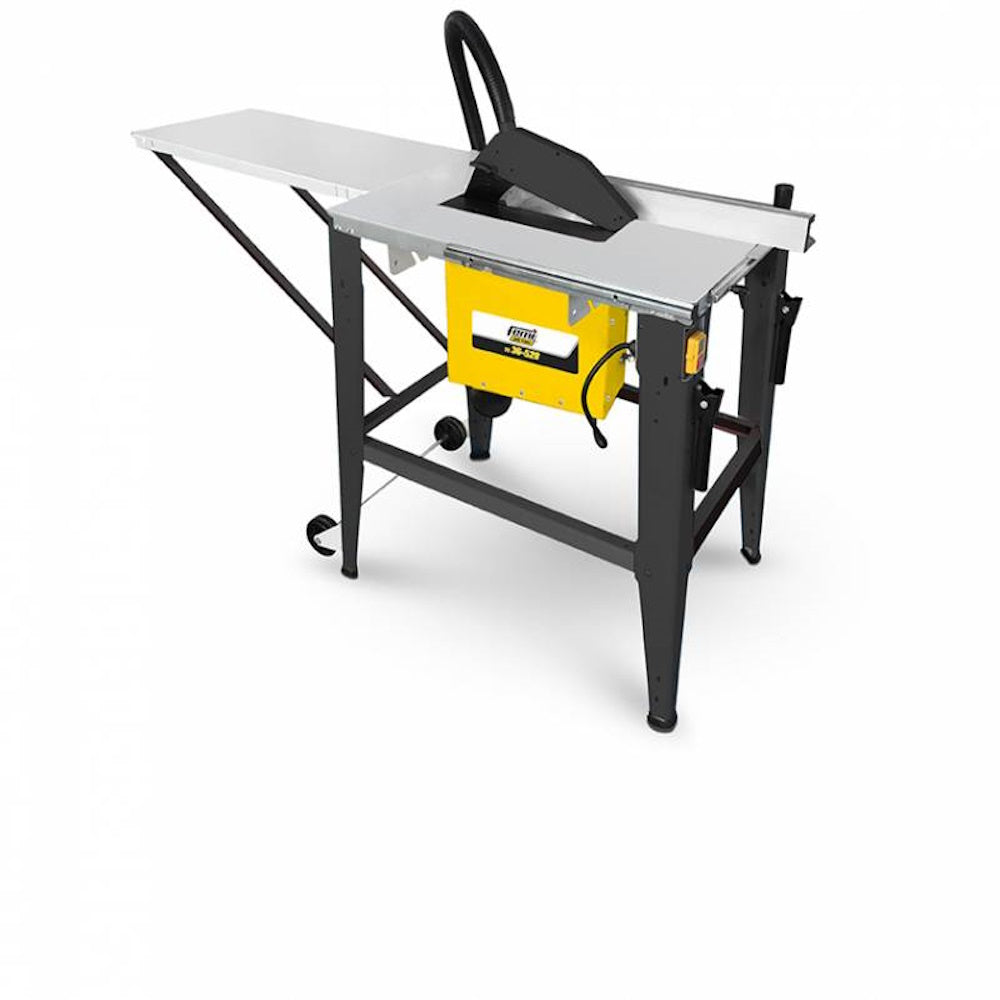

FEMI TS 36-528 - Circular saw table Ø315mm - 2000W
The Femi TS 36-528 circular saw table is equipped with a powerful 2000W induction motor suitable for cutting boards and panels on construction sites or in workshops. This powerful motor allows it to reach a maximum speed of 2800 rpm. This table-mounted miter saw is equipped with a Ø315mm blade with widia inserts. This blade has carbide tipped tips for greater cutting hardness and can also cut at higher speeds. It has a cutting capacity of 83mm at 90°, while at 45° it has a cutting capacity of 49mm. The Femi TS 36-528 is equipped with a pressed steel workbench with table extensions for supporting and sliding the boards, measuring 800x550mm. The base is equipped with handles and wheels for easy movement of the machine. A parallel guide, carrying handles, table extension, and wheels are included as standard. Its weight is 46kg.
Included
• Blade D. 315 mm.
• Parallel guide.
• Transport handles.
• Table extension.
• Wheels.
Technical Features
• Worktop dimensions: 800x550 mm.
• Base extension: 800x400 mm.
• Length of the table before/after the blade: 260/970 (with extension).
• Maximum cutting height at 0°: 83 mm.
• Maximum cutting height at 45°: 49 mm.
• Powerful 2000 Watt induction motor suitable for cutting boards and panels on construction sites or in laboratories.
• Blade D.315 mm with Widia inserts, tiltable up to 45°.
• Workbench in pressed steel with table extensions for supporting and sliding the boards.
• Base equipped with handles and wheels for easy movement of the machine.
Technical Data
• Voltage: Single-phase.
• Motor power (watts): 2000.
• Power supply (Volt-Hz): 230 - 50.
• Weight (Kg): 46.
• Packaging (mm): 890x610x440.
• Blade diameter (mm): 315 mm.
• Motor: Induction.
• RPM: 2800.
• Hob working height (mm): 800x550.
• Maximum cutting height at 0° (mm): 83.
• Maximum cutting height at 45° (mm): 49.
• Lateral extensions: No. 1 - 800 x 400 mm.
