Description

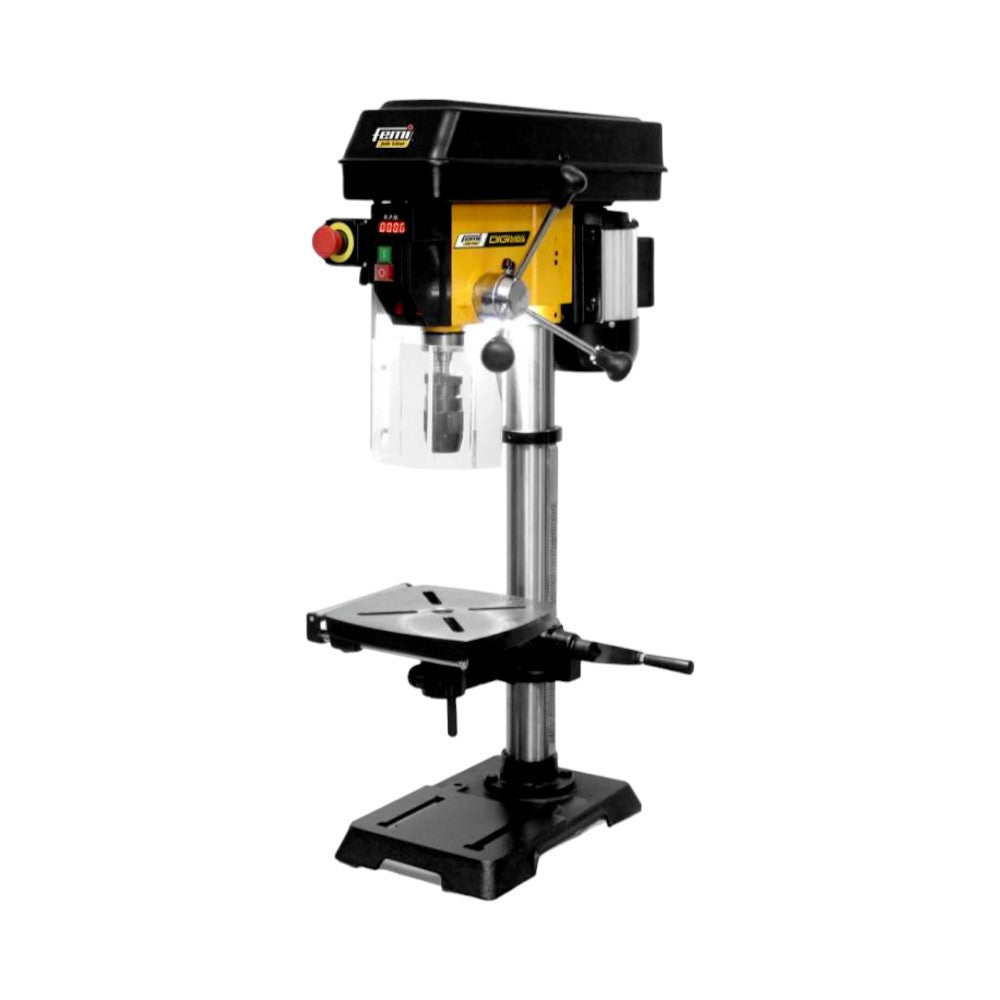

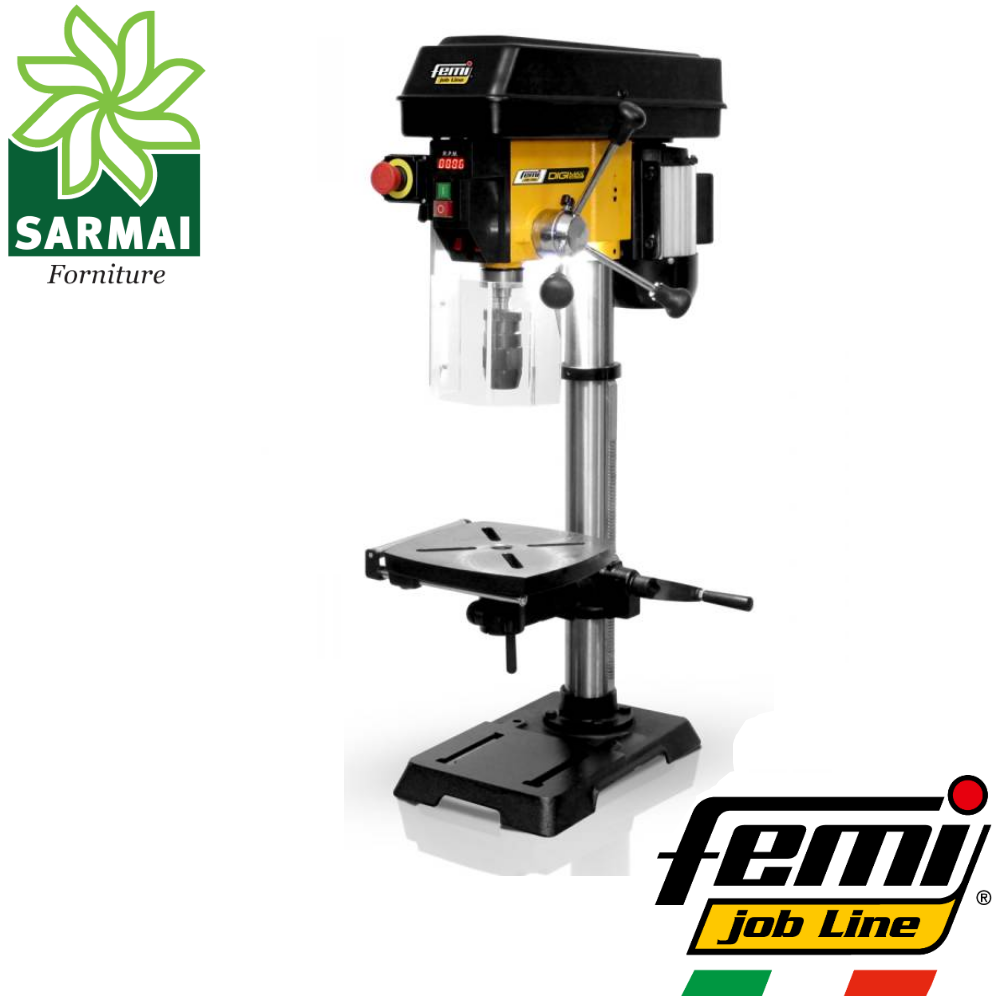

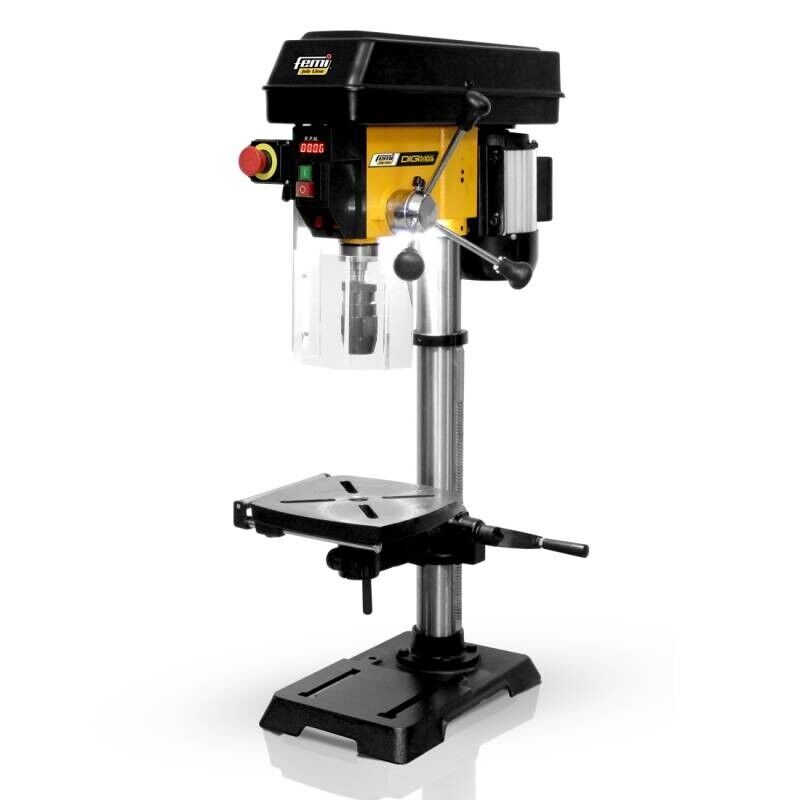

Femi Digimax 16B-Pro Pillar Drill Press
The Femi Digimax 16B-Pro pillar drill press is part of the Job Line and combines the precision of a digital speed display with the ease of use of an extendable worktable. The device allows you to adjust the rotation speed via an external control, adapting the machine to the material being drilled. The graduation on the column allows you to precisely set the drilling depth for repetitive jobs, while the spindle protection with microswitch ensures operator safety. The worktable is equipped with an integrated laser aiming light for easy workpiece alignment.
Main Features
- Digital display with rotation speed and external adjustment.
- Graduated rod for adjusting drilling depth and achieving precise machining.
- External speed adjustment function for great versatility.
- Spindle protection with safety microswitch.
- Worktable with extension and integrated laser aiming light.
Technical Data
Femi Digimax 16B-Pro Technical Data
| Parameter |
Value |
| Voltage |
Single-phase |
| Motor power |
500 W |
| RPM |
Variable 390–2,200 min⁻¹ |
| Type |
Benchtop drill press |
| Chuck type |
Keyless |
| Chuck capacity |
1–16 mm (B16 shank) |
| Speed |
Continuous adjustment |
| Height |
900 mm |
| Column diameter |
60 mm |
| Spindle stroke |
90 mm |
| Spindle mount |
MT2 |
| Spindle-to-column distance |
150 mm |
| Drilling capacity |
16 mm |
| Work surface |
243×243 mm |
Standard equipment
- Spindle protection with safety microswitch.
- Ergonomic knob.
- Integrated LED light.
- Laser aiming device.
Dimensions and weight
Femi Digimax 16B-Pro dimensions and weight
| Parameter |
Value |
| Weight |
42 kg |
| Packaging dimensions |
760×495×285 mm |
