Description

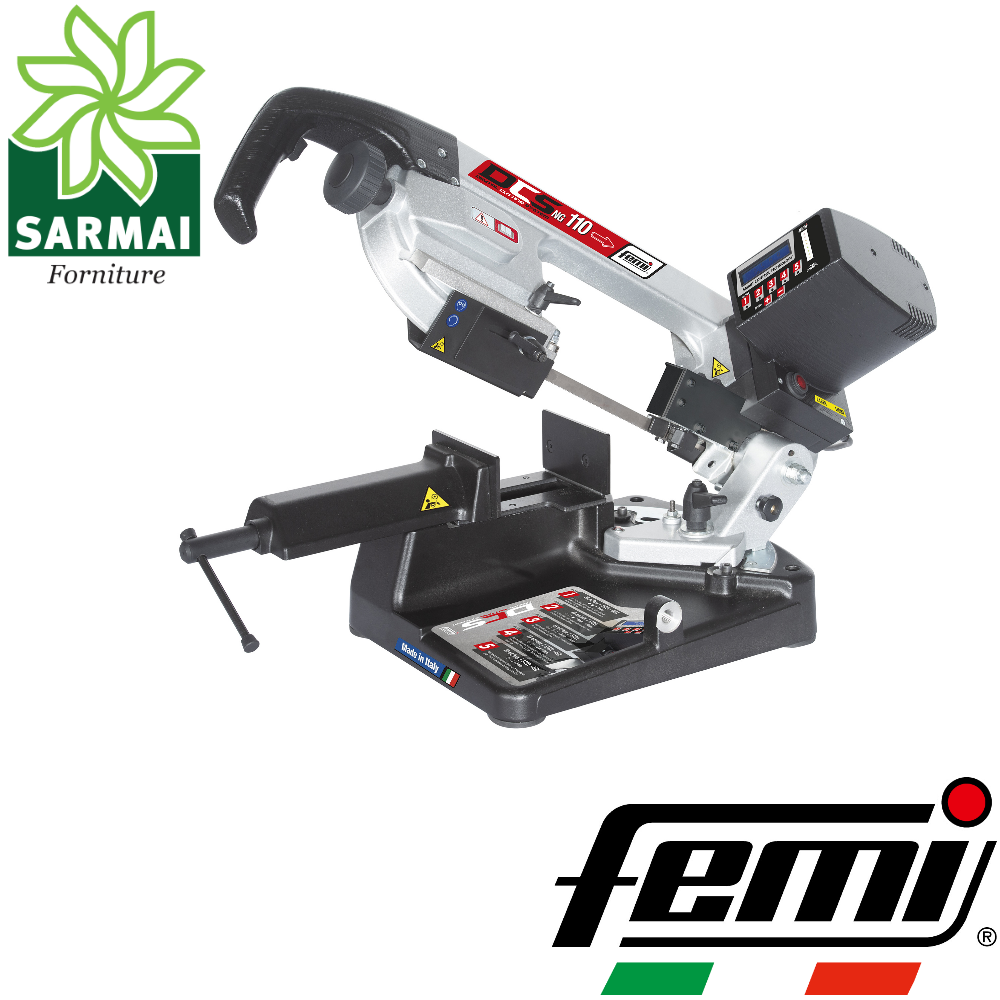

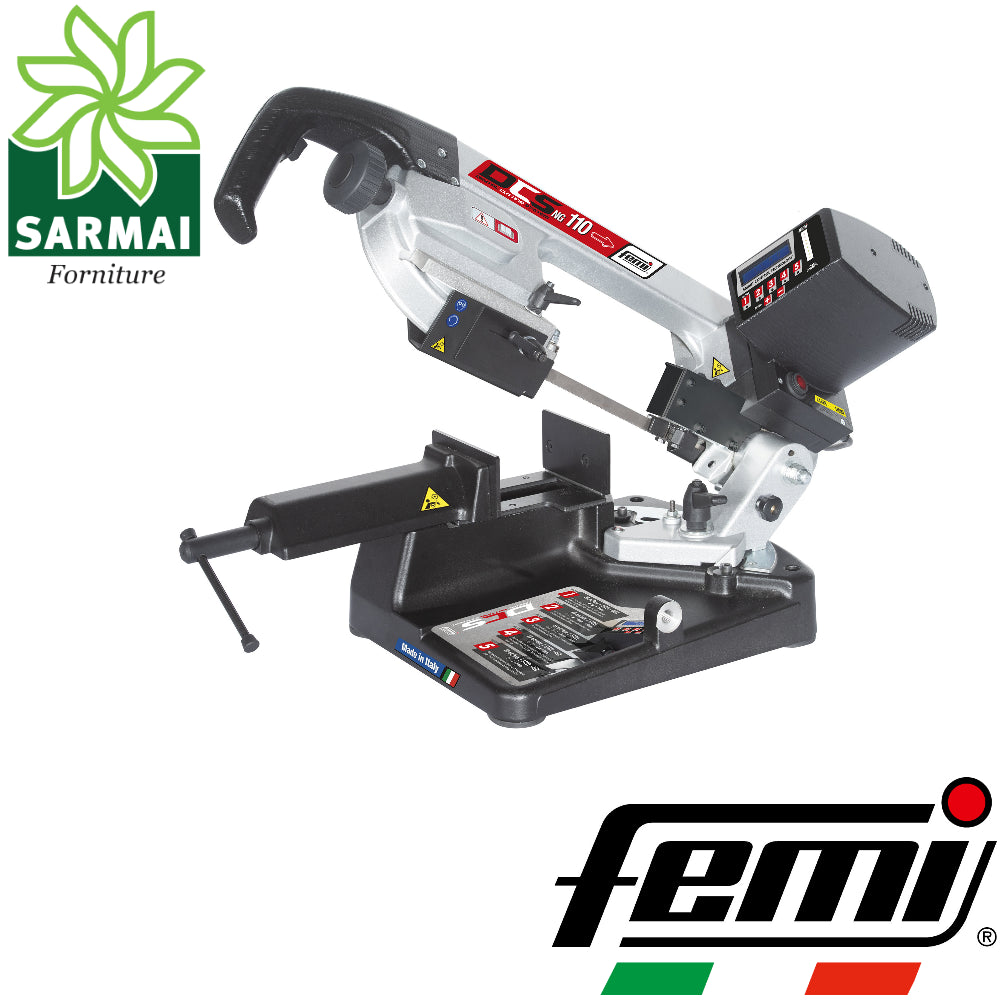

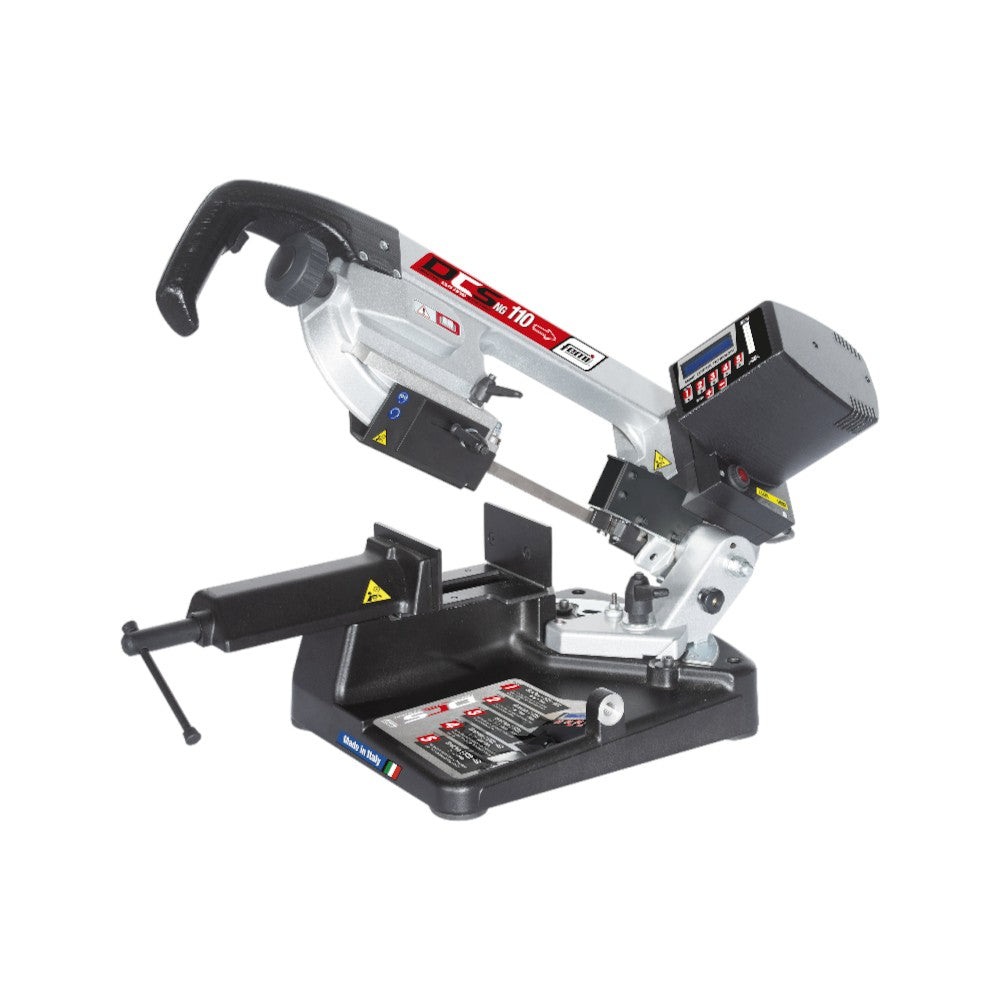

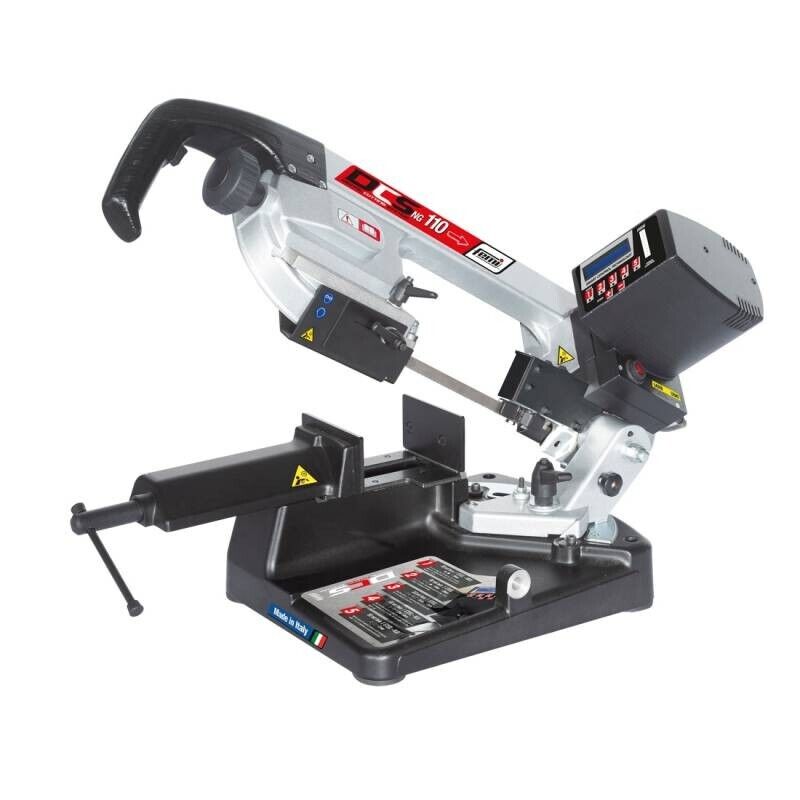

Femi DCS NG110 Digital Band Saw

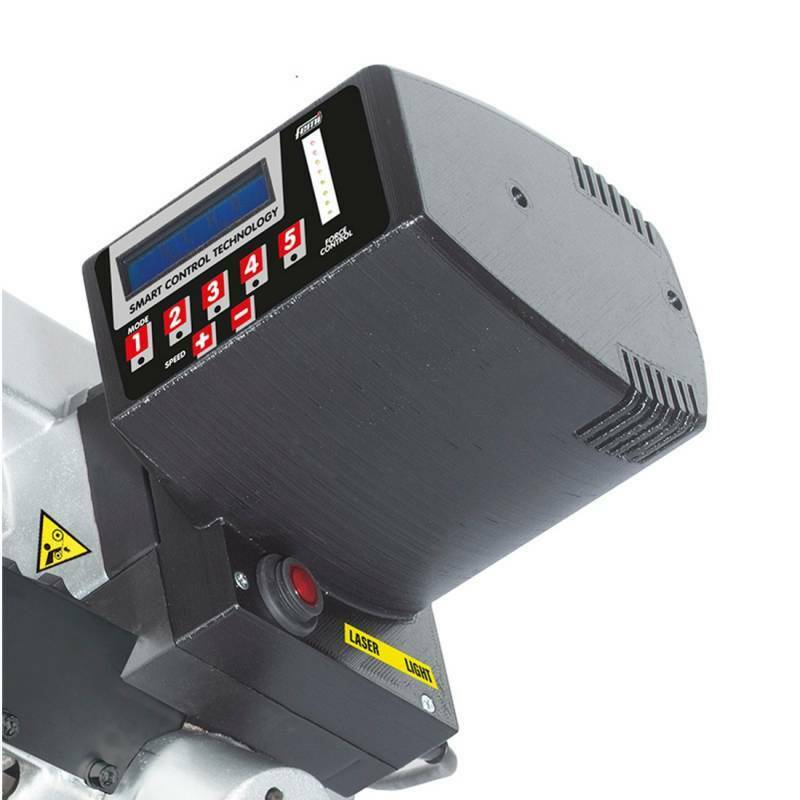

The DCS NG110 is equipped with a revolutionary electronic control system with five preset operating modes that guarantees optimal cutting in the main conditions of use. An overload indicator warns of excessive use to prevent motor strain, blade breakage, and inaccurate cuts. The NG system uses the blade's counter-rotating action, reducing cutting times by up to 40% compared to a traditional band saw. An innovative friction blade tensioner (patented) allows for the control and adjustment of the correct blade tension. The cutting angle is adjustable from 0° to 45°, and the die-cast aluminum base with integrated vice offers solidity and precision.
Technical data
Femi DCS NG110 technical data
| Arm descent |
Manual |
| Blade development |
1335×13×0.65 mm |
| Motor power |
950 W |
| Power supply |
230 V – 50 Hz |
| Weight |
17 kg |
| Blade speed |
30–80 m/min (electronic Constant Speed regulation) |
| Teeth Z/1″ |
8/12 |
| Packaging dimensions |
730×390×500 mm |
Standard equipment
- Adjustable bar stop rod for serial cuts (L = 500 mm).
- Filter for reducing electromagnetic interference.
Dimensions
Machine dimensions: 400×750×280 mm.
Cutting capacity
DCS NG110 cutting capacity
| Angle |
Rectangular cross-section |
Circular cross-section |
Square cross-section |
| 0° |
110×85 mm |
Ø 105 mm |
100×100 mm |
| 45° |
75×37 mm |
Ø 74 mm |
72×72 mm |
