Description

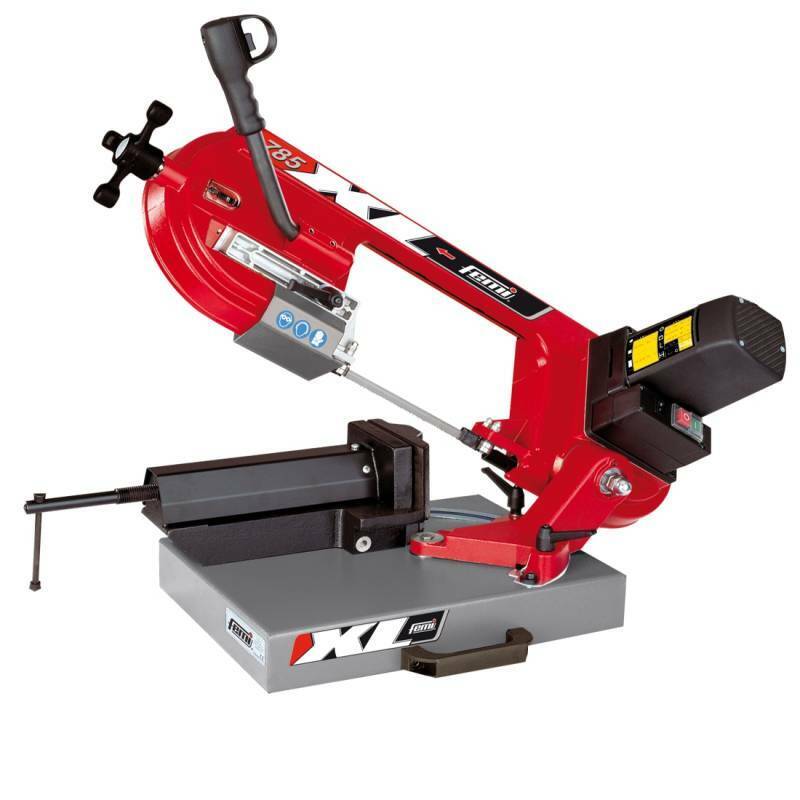

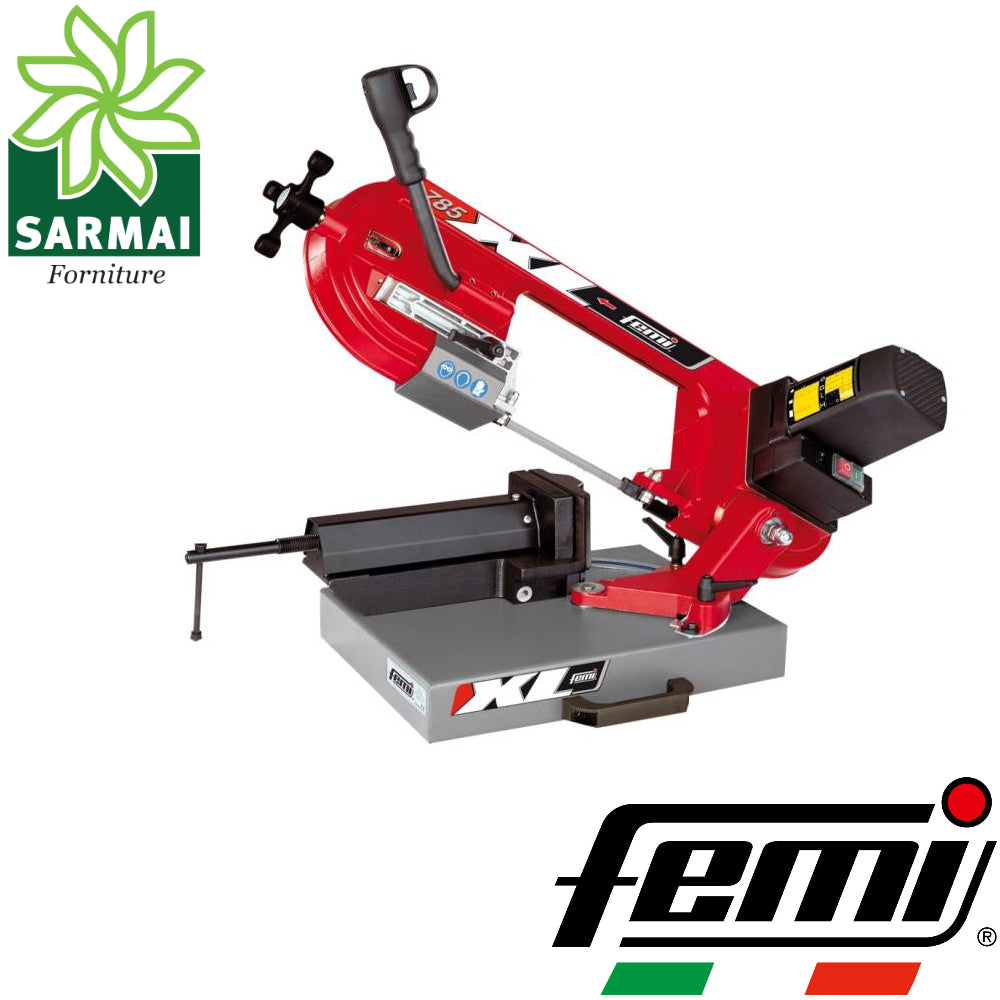

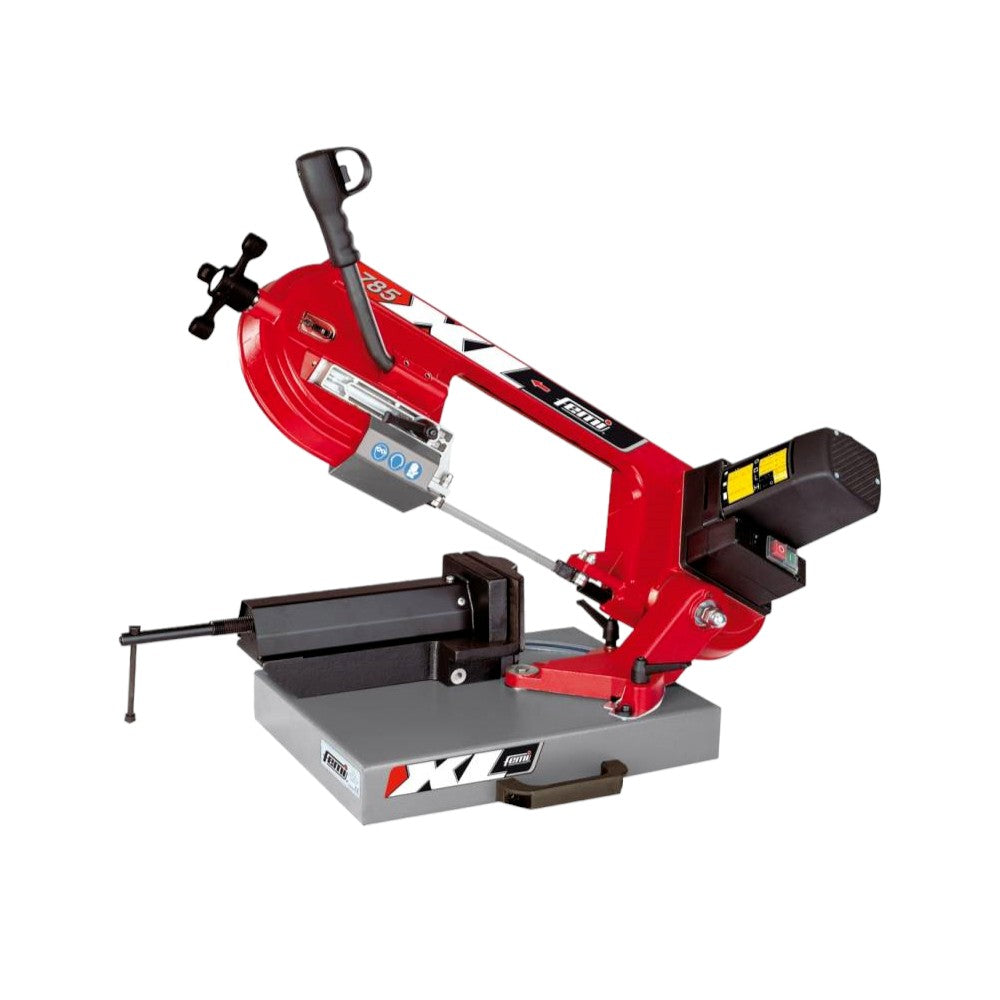

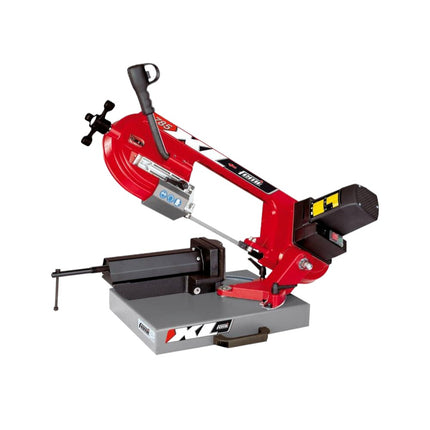

Femi 785 XL Band Saw

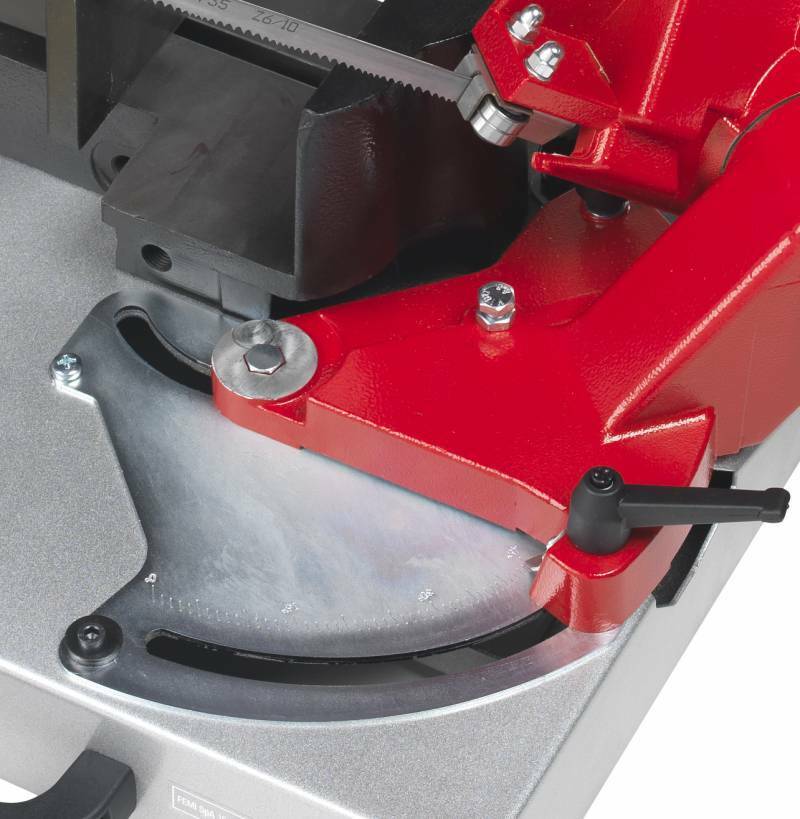

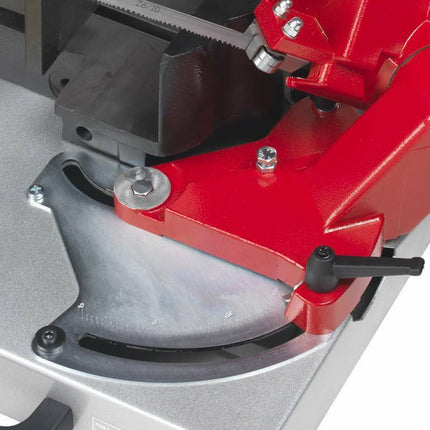

The Femi 785 XL band saw offers an increased cutting capacity of 205 x 150 mm thanks to its exclusive patented rotary-sliding arm system. The 1600 W motor operates at two speeds with electronic switching and thermal protection. The machine is equipped with carrying handles and a locking device for easy movement.
Technical Data
Femi 785 XL Technical Data
| Arm Descent |
Manual |
| Blade Development |
1735×13×0.9 mm |
| Motor Power |
1600 W |
| Power Supply |
230 V – 50 Hz |
| Weight |
38 kg |
| Blade speed |
60/80 m/min (2 speeds) |
| Teeth Z/1″ |
6/10 |
| Packaging dimensions |
1000×390×570 mm |
Standard equipment
- Adjustable bar stop rod for serial cuts (L = 500 mm).
- Transport handles.
- Filter for reducing electromagnetic interference.
Dimensions and cutting capacity

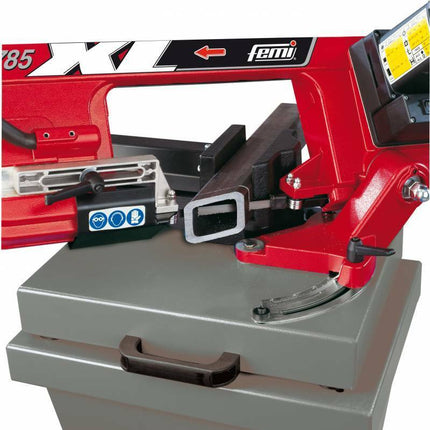

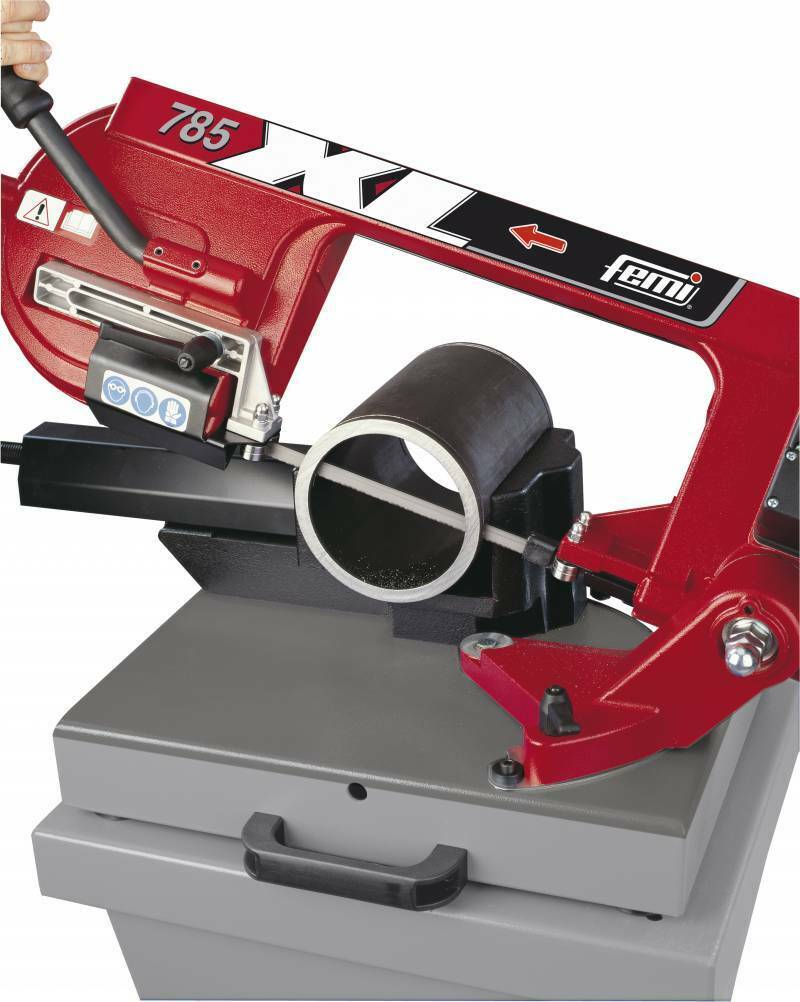

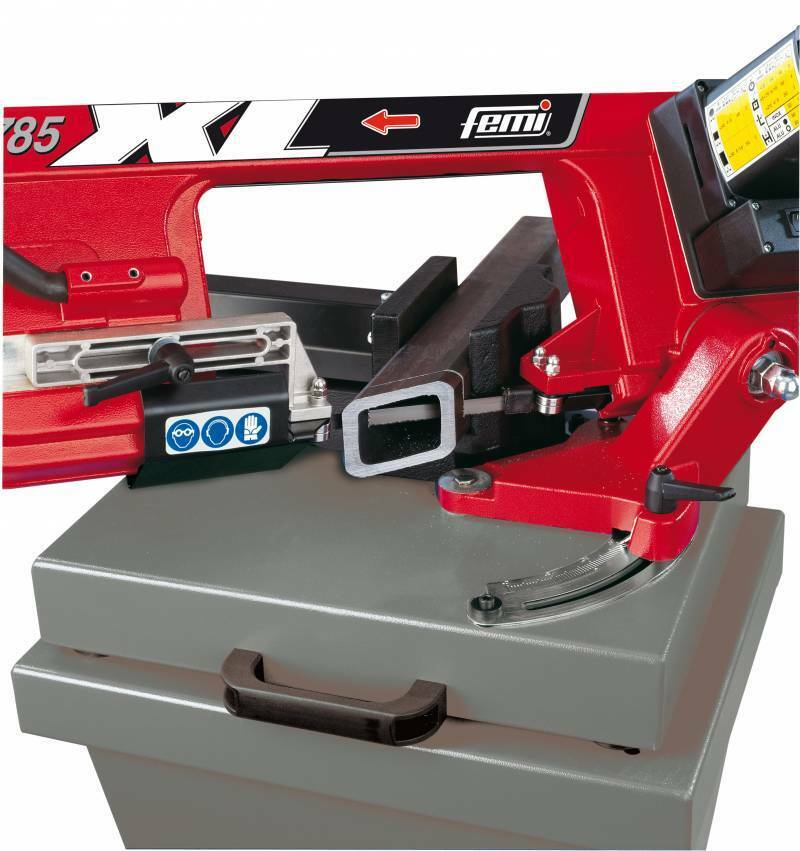

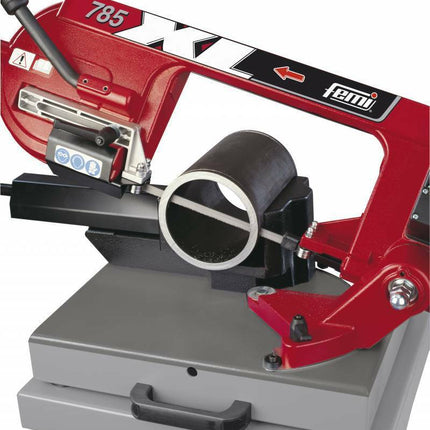

The machine measures 870×350×400 mm. Cutting capacities are the same as those of the 782 XL model: 205×150 mm (rectangular), Ø 152 mm (round), and 150×150 mm (square) at 0°; 105×95 mm, Ø 106 mm, and 102×102 mm at 45°.
