Description

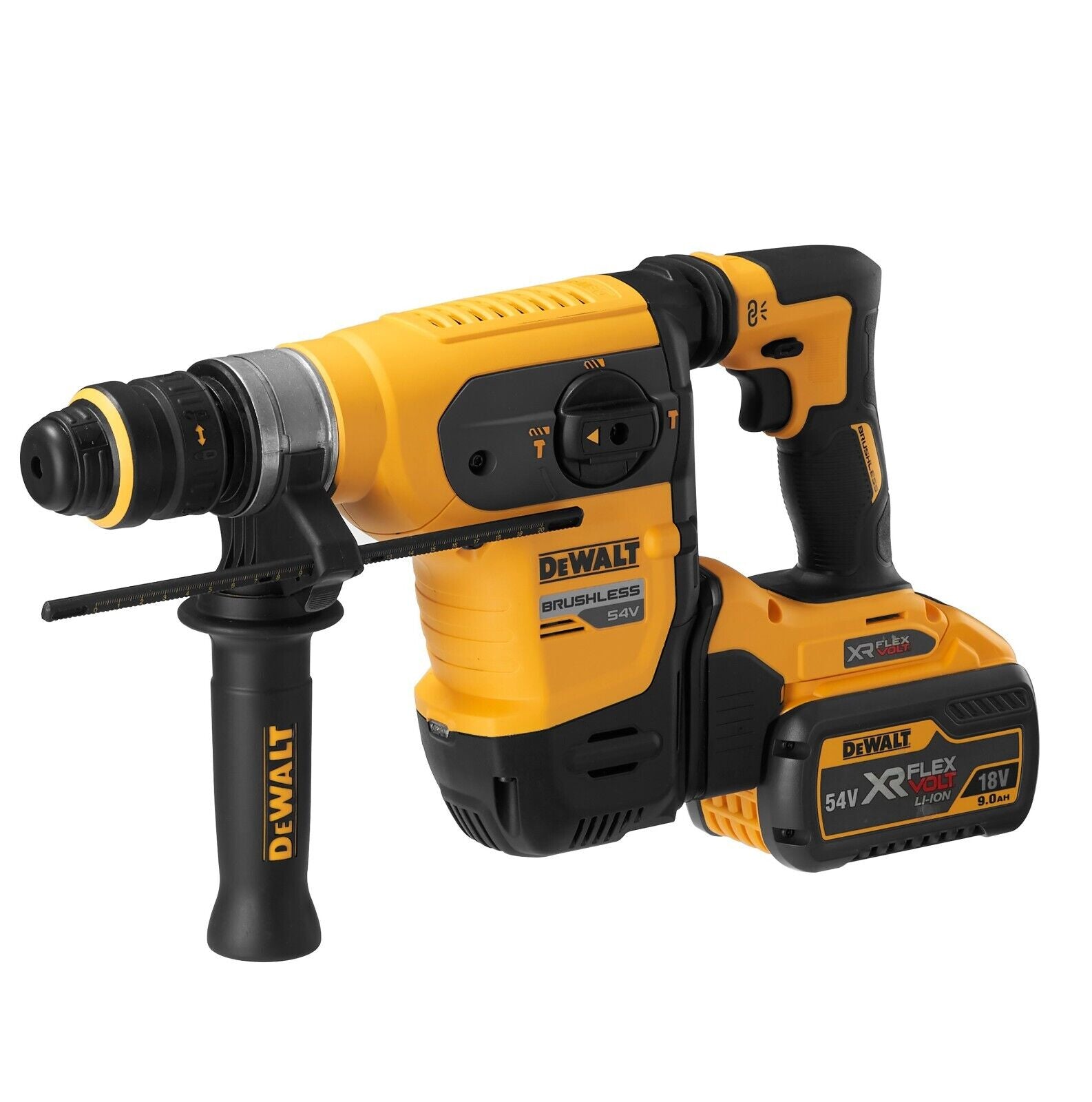

32MM SDS-PLUS HAMMER DRILL WITH DOUBLE CHUCK QUICK COUPLING XR FLEXVOLT 54V
• Class-leading, high-speed drilling with over 74 holes (18 mm Ø x 80 mm) per charge
• Brushless motor with high-capacity XR FLEXVOLT 9.0Ah 18V / 54V lithium-ion battery for extreme run time and reduced maintenance
• Perform & Protect: Best-in-class vibration at 6.3 m/s², minimizing user fatigue.
• Ideal for drilling anchors and fixing holes in concrete, brick, and masonry from 4mm to 32mm.
• Quick-release chuck for quick changes between SDS Plus chuck and 3-jaw self-tightening chuck.
• LED light positioned on the front body for excellent visibility during use.

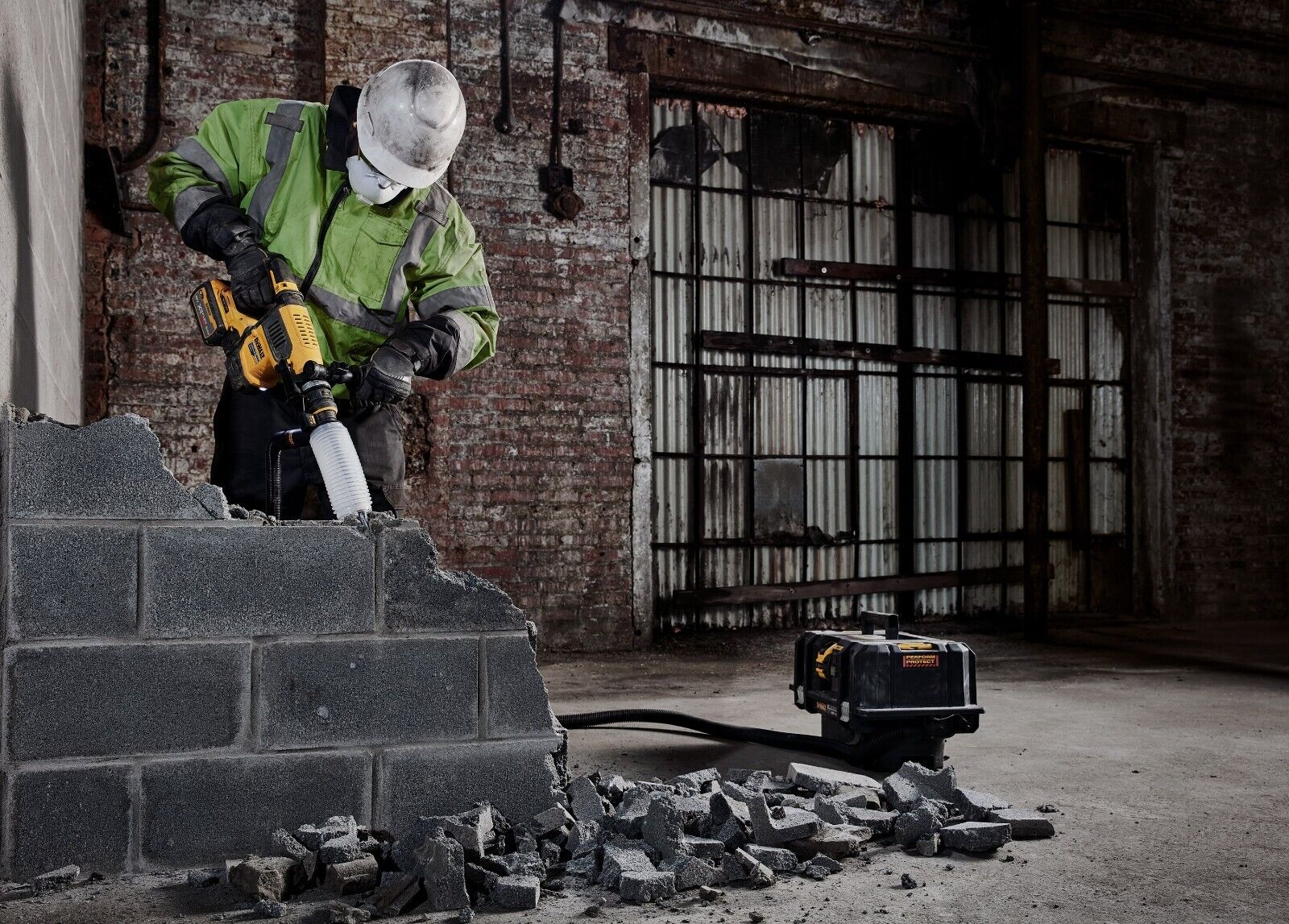

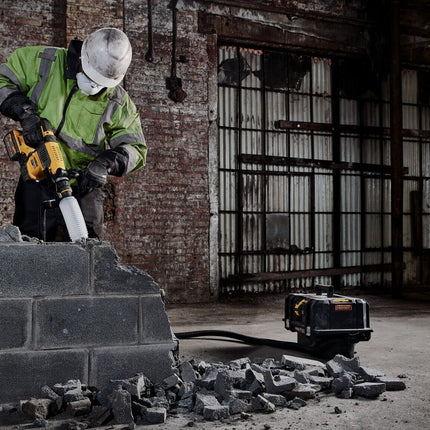

• Innovative anti-rotation technology with electronic clutch capable of stopping the machine in the event of violent acceleration.

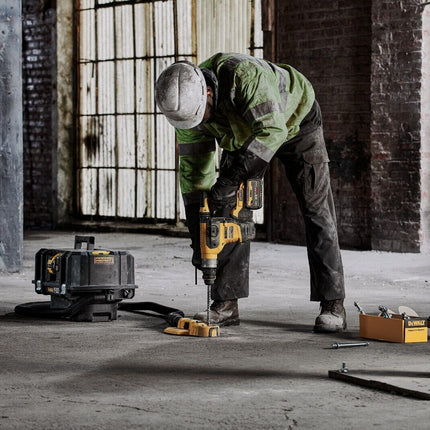

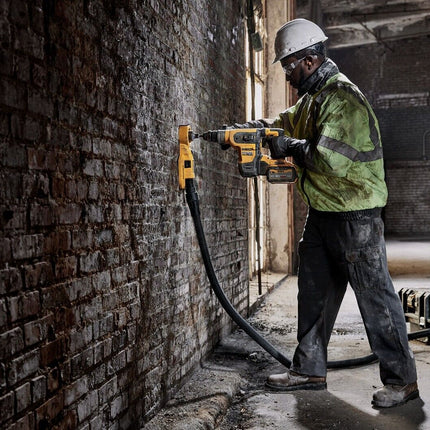

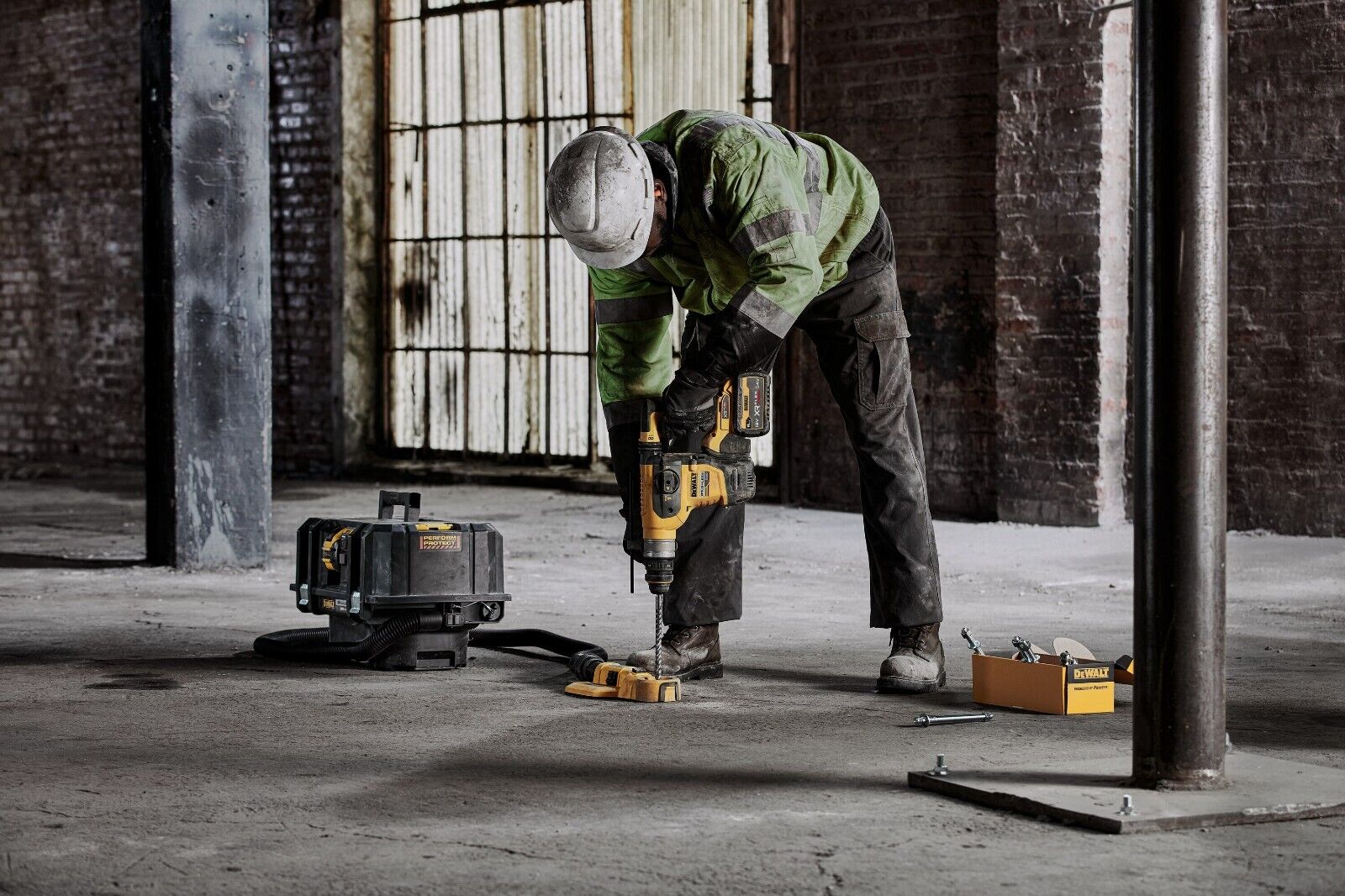

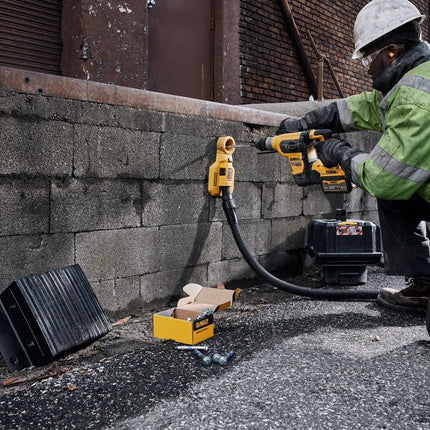

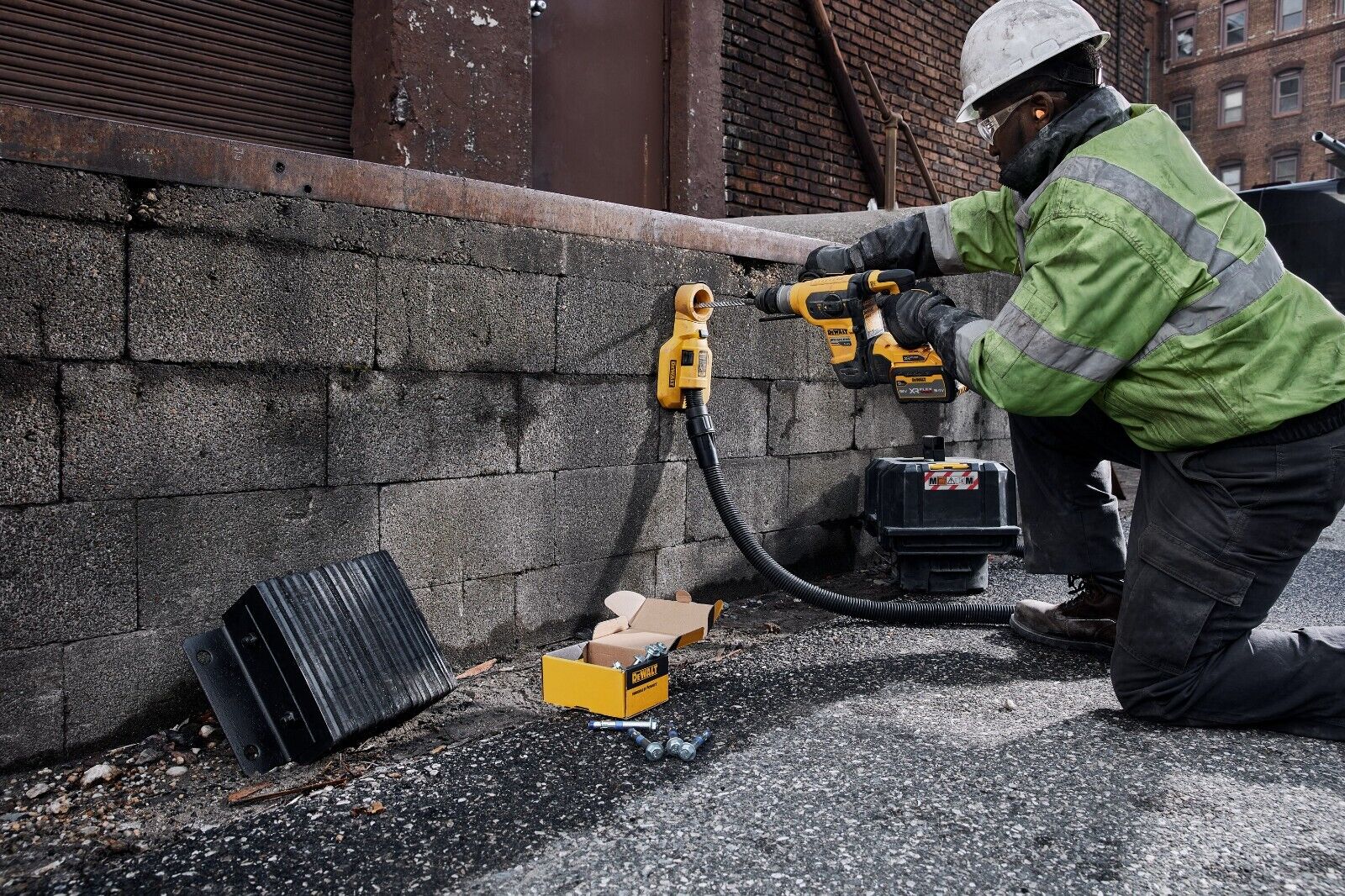

• Wireless Tool Control: wirelessly pairs the tool with another WTC device (e.g., a dust extractor) for automatic activation/deactivation.

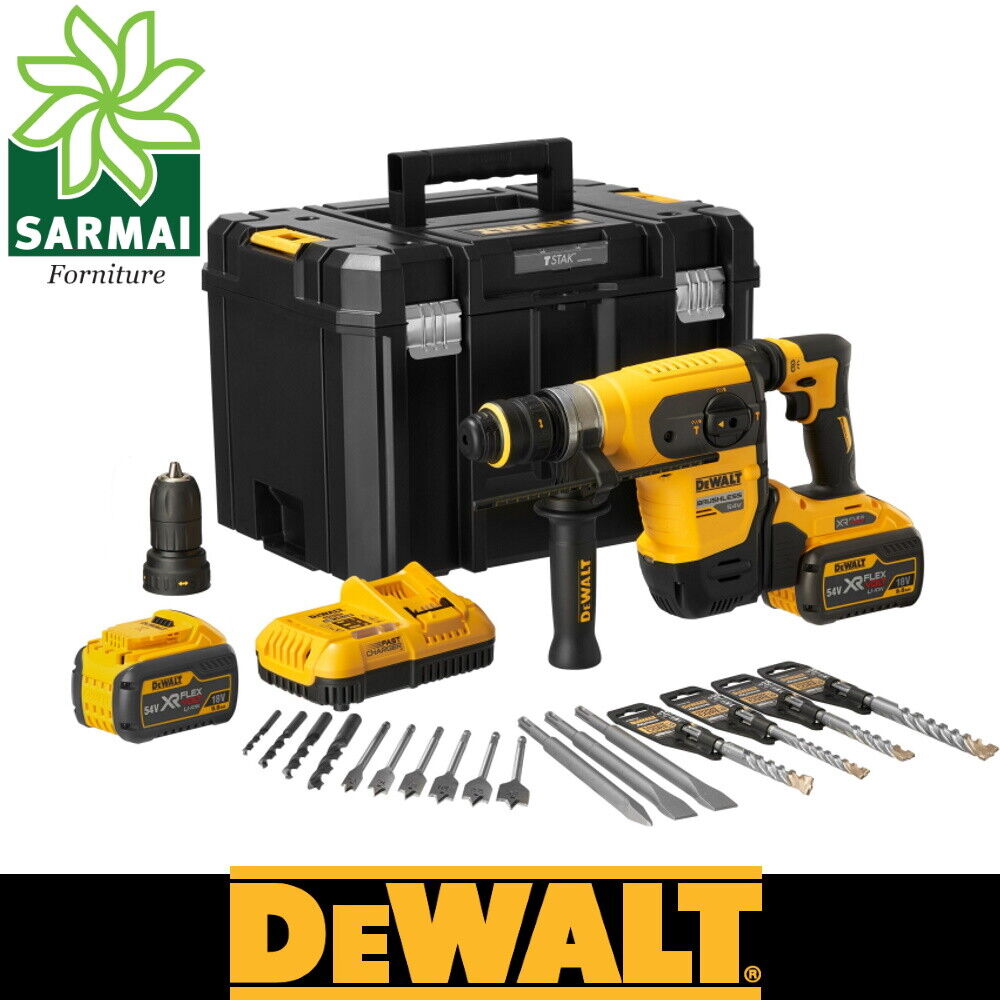

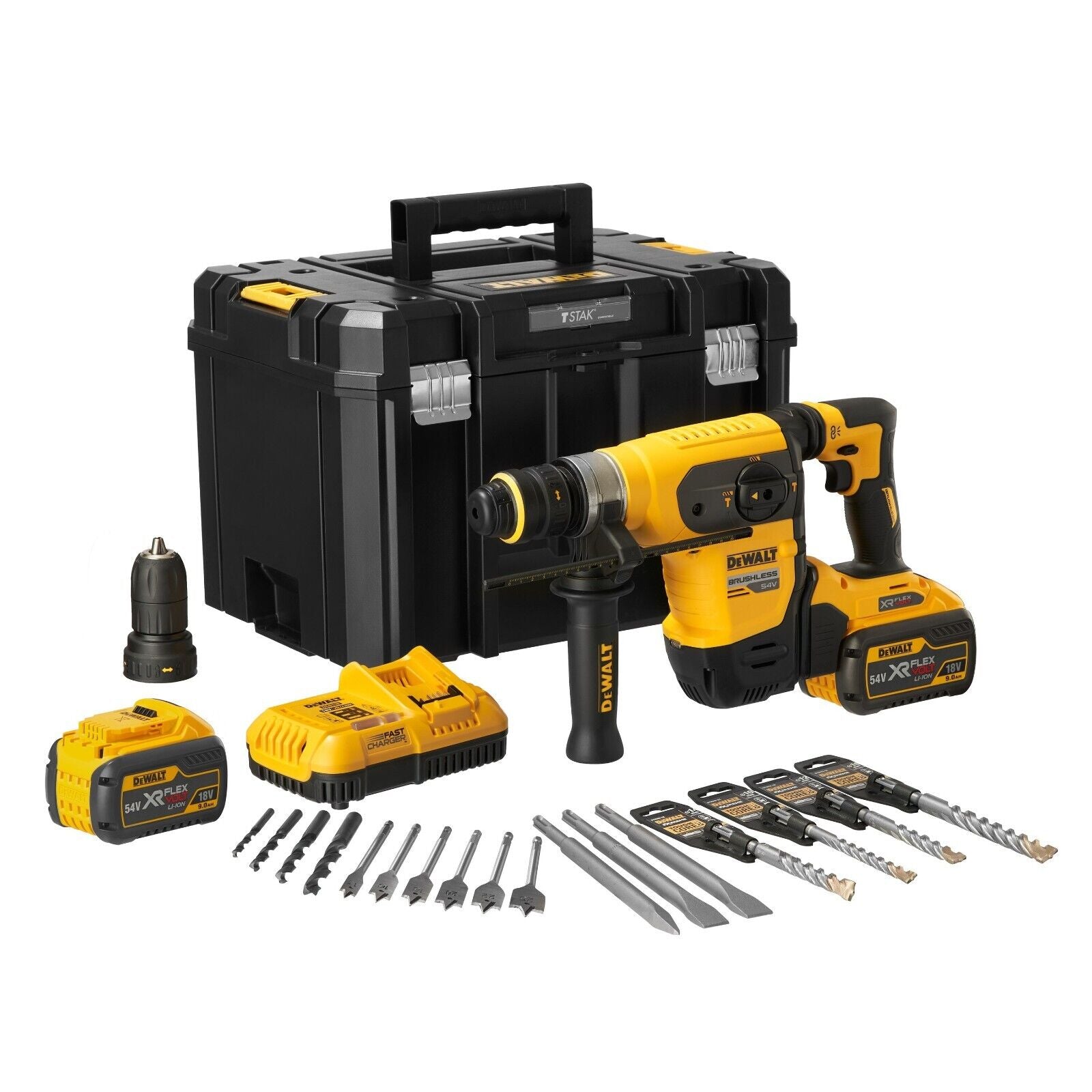

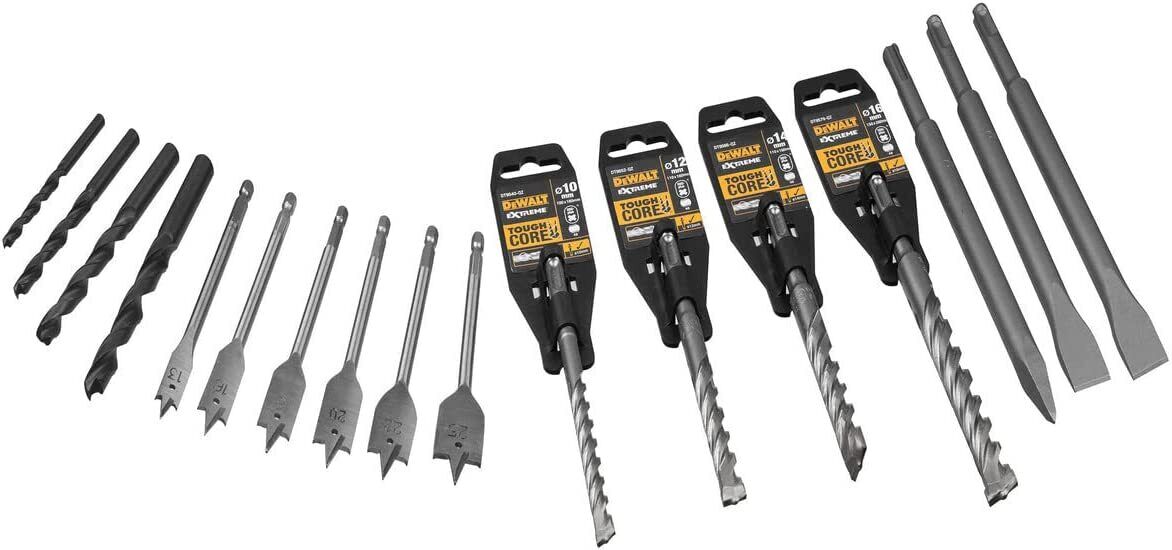

Included

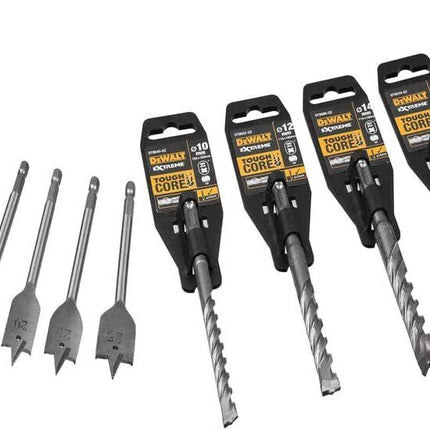

• 13 mm flat wood drill bit
• 16 mm flat wood drill bit
• 18 mm flat wood drill bit
• 20 mm flat wood drill bit
• 22 mm flat wood drill bit
• 25 mm flat wood drill bit
• SDS-Plus pointed chisel
• 2 PCS 20 mm SDS-Plus flat chisel
• HSS-R metal drill bit 6 mm
• HSS-R metal drill bit 8 mm
• HSS-R metal drill bit 10 mm
• HSS-R metal drill bit 12 mm
• SDS-Plus "EXTREME 2" concrete drill bit 10 mm
• SDS-Plus "EXTREME 2" concrete drill bit 12 mm
• SDS-Plus "EXTREME 2" concrete drill bit 14 mm
• SDS-Plus "EXTREME 2" concrete drill bit 16 mm
• 2 x 9.0 Ah XR FLEXVOLT batteries
• DCB 118 universal charger
• TSTAK case
• SDS-Plus quick-release chuck
• 13mm quick-release keyless chuck
Technical Data
• WEIGHT: 4.1 KG
• Max. drilling diameter - concrete: 32 MM
• Max. drilling capacity - metal: 13 MM
• Max. drilling diameter - wood: 32 MM
• Impact energy (EPTA 05/2009): 4.5 J
• No-load speed: 0-725 rpm
• Hand/arm vibration - concrete drilling: 6.3 m/s²
• Power source: Battery
• Battery capacity: 9 Ah
• Battery: XR FLEXVOLT
• Fitting: SDS Plus
• Vibration control: Yes
• Anti-rotation system: Yes
• Clutch: Yes
• Compatible with powder solution: Yes
• Protect: Yes
• Quick-change chuck: Yes
• Hammer drilling mode: Yes
• Chipping mode: Yes
• Rotation mode only: Yes
• Max. drilling capacity (Crown): 127 mm
• Weight (battery included): 5.5 kg
• Impacts per minute: 0-4200 Perc./min
• Uncertainty (Vibration): 1.5 m/s², 1.5 m/s²
• Hand/arm vibration - Chiseling: 5.2 m/s²br/> • Hand/Arm Vibration - Metal Drilling: <2.5
• Uncertainty K3 (Vibrations): 1.5 m/s²
• Hand/Arm Vibration - Screwdriving: <2.5
• Uncertainty K4 (Vibrations): 1.5 m/s²
• Sound Pressure: 92 dB(A)
• Uncertainty (Sound Power): 3 dB(A)
• Sound Power: 103 dB(A)
