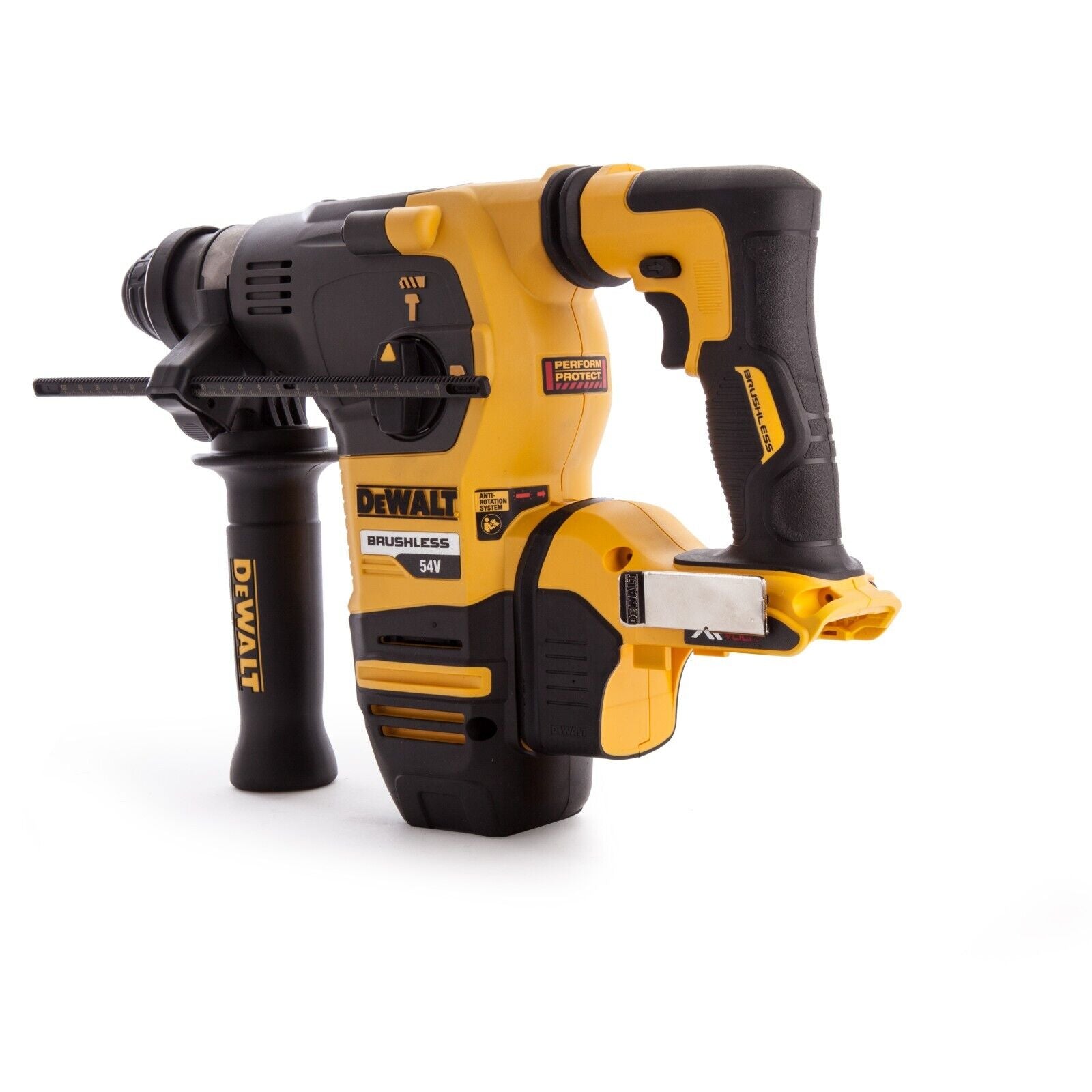

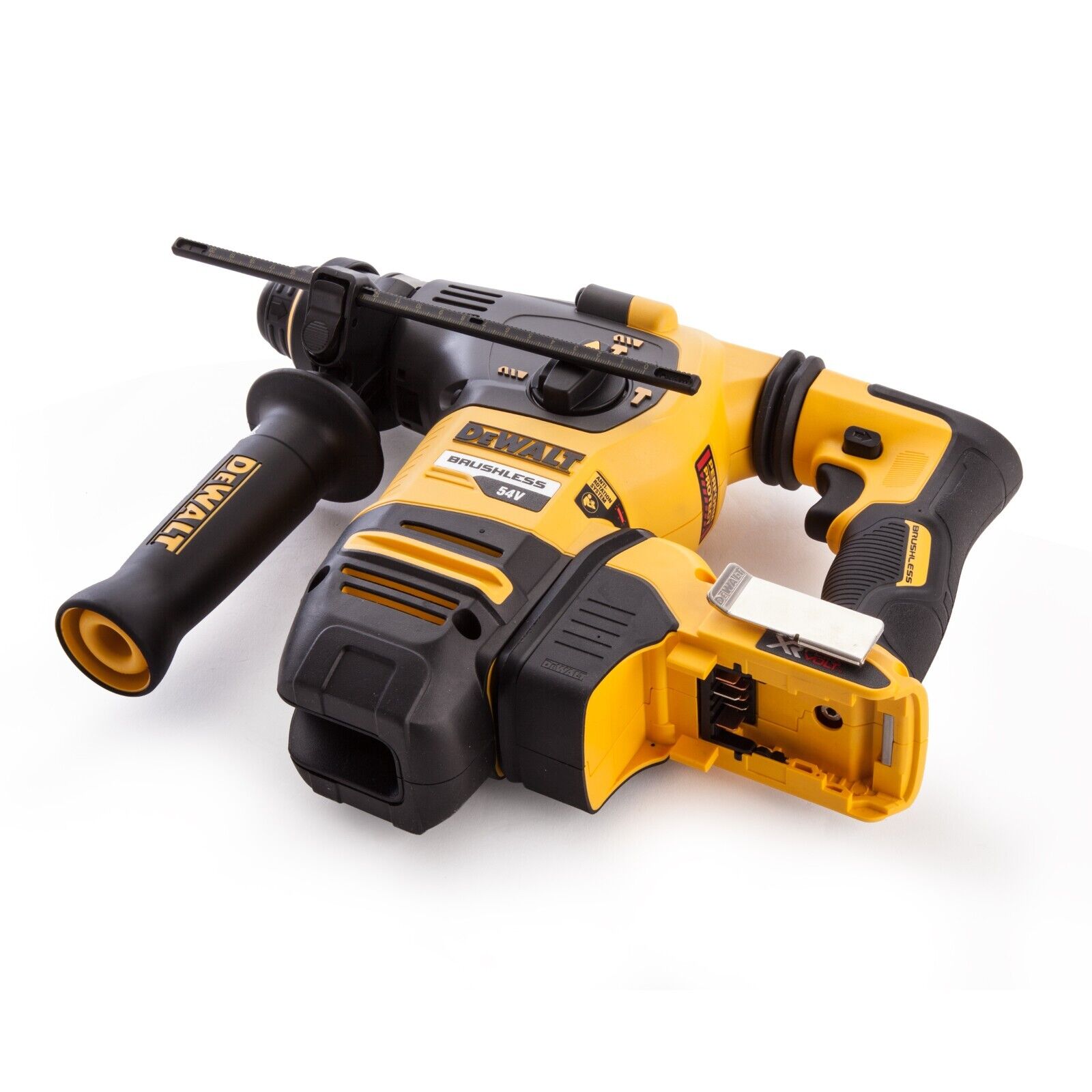

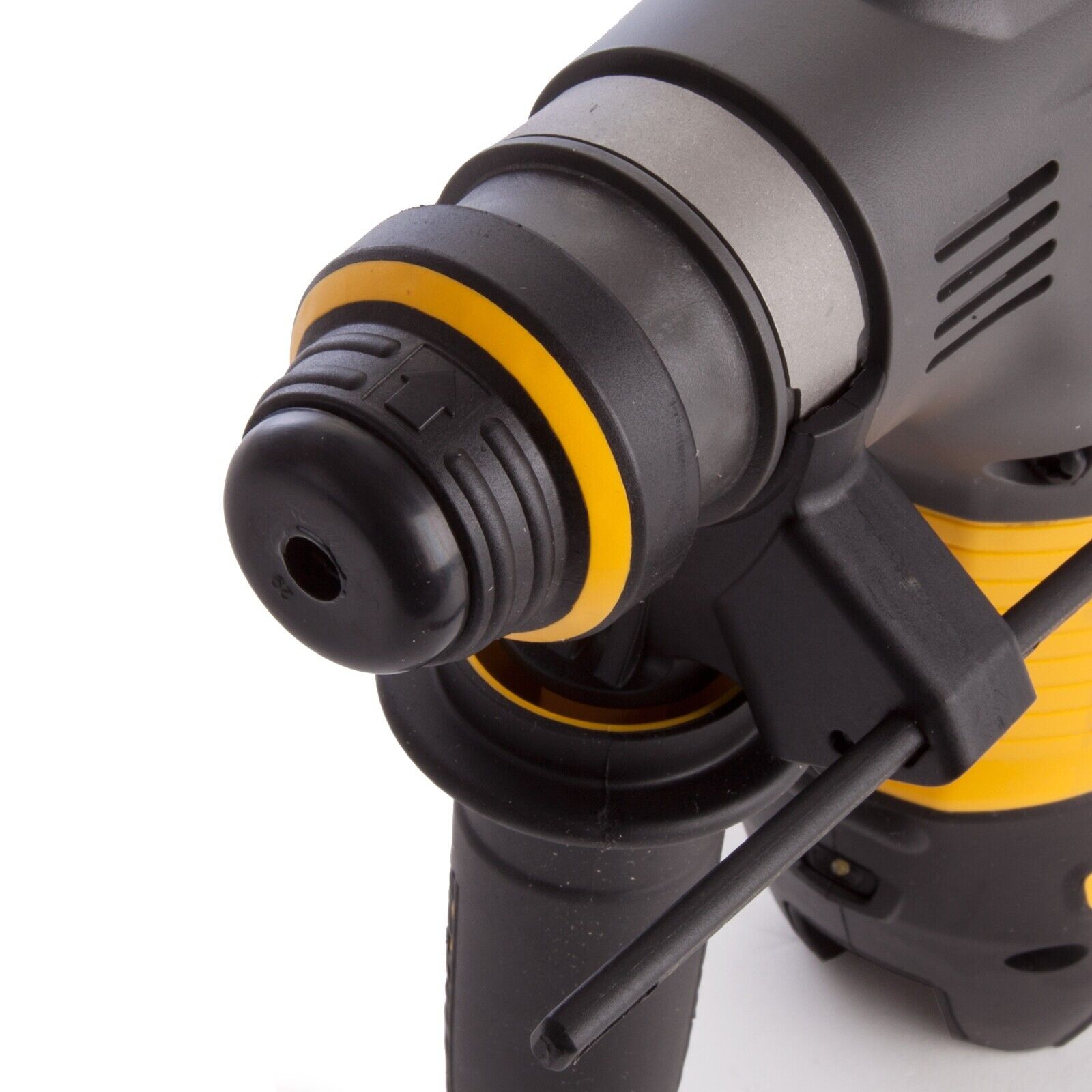

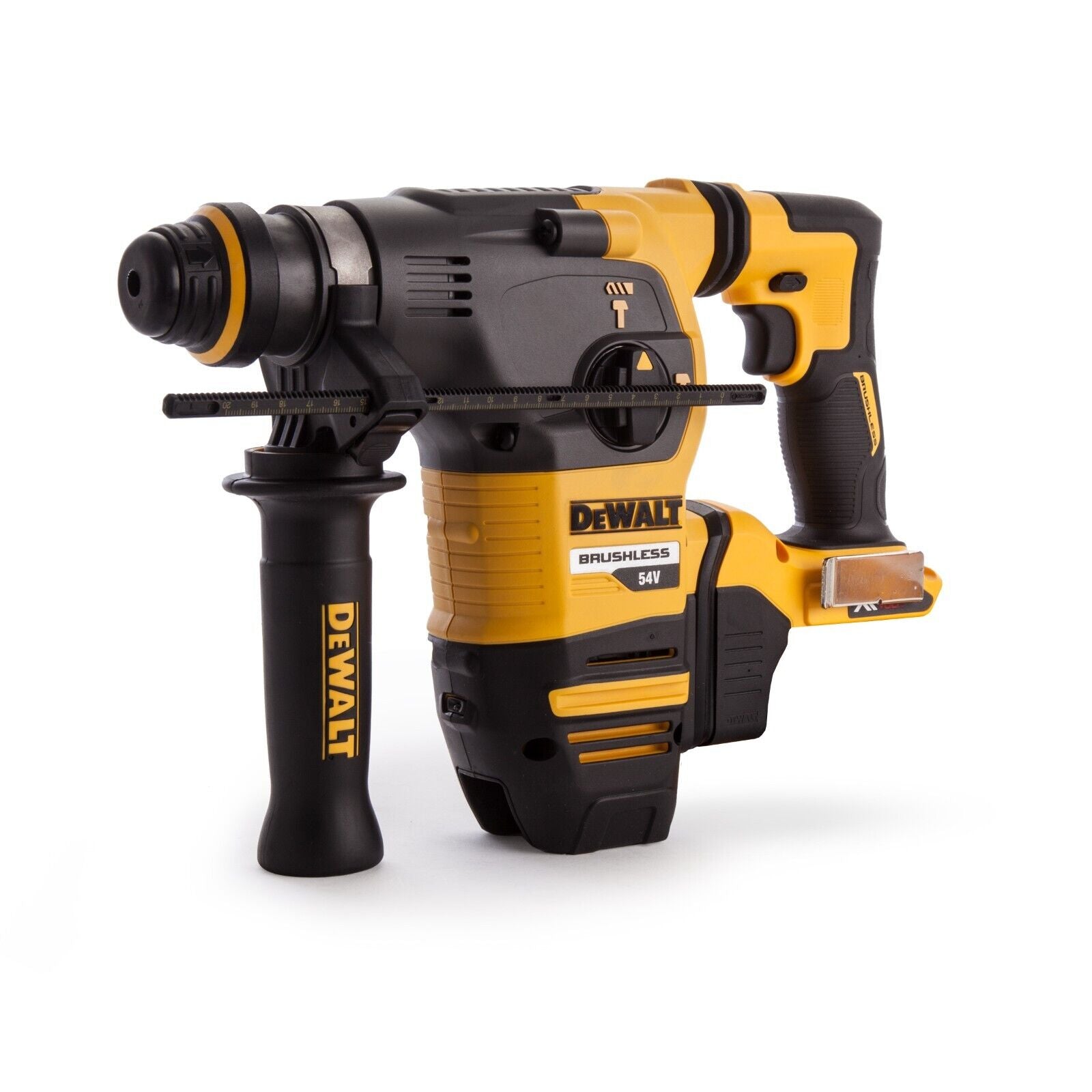

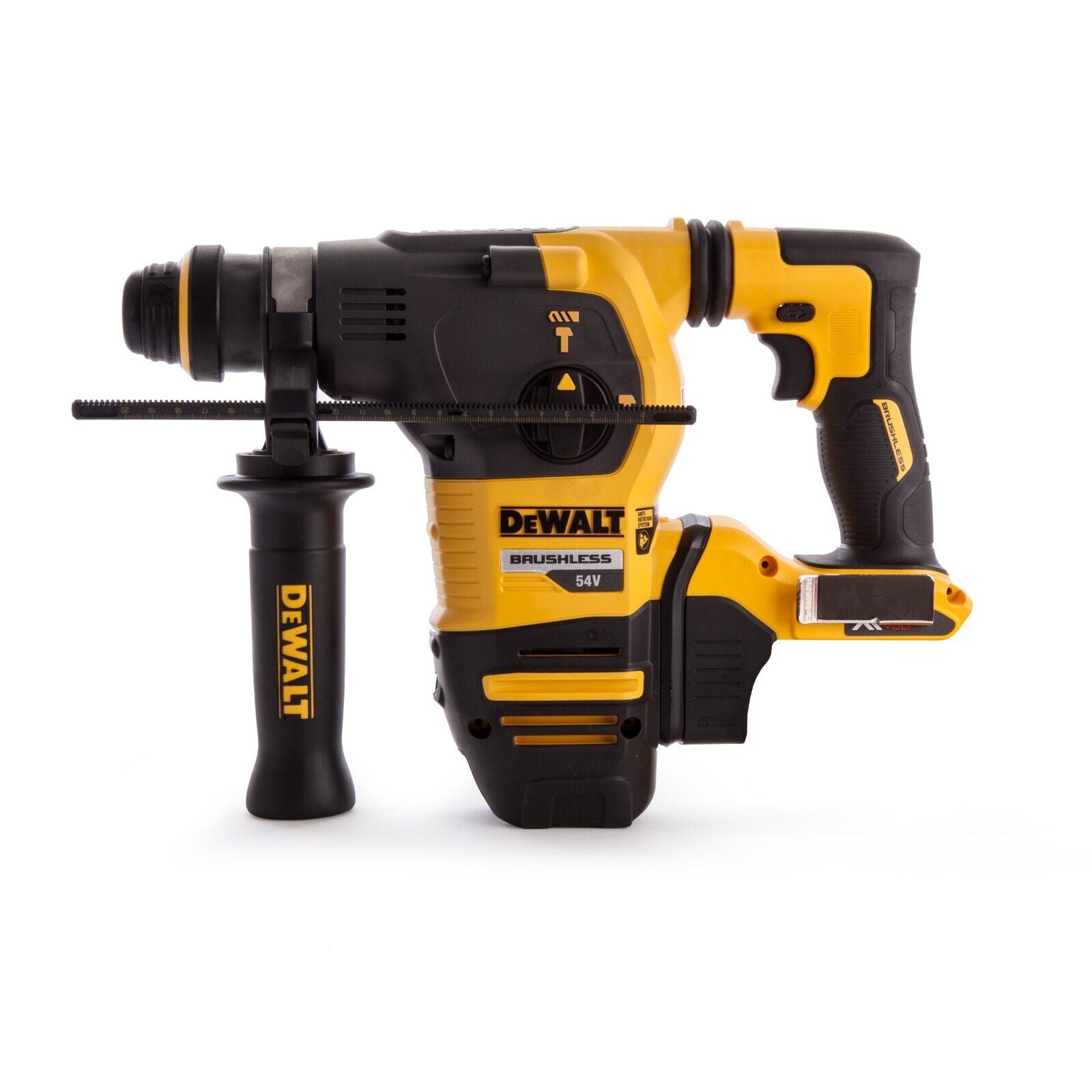

DeWalt DCH323T2 FlexVolt Hammer Drill

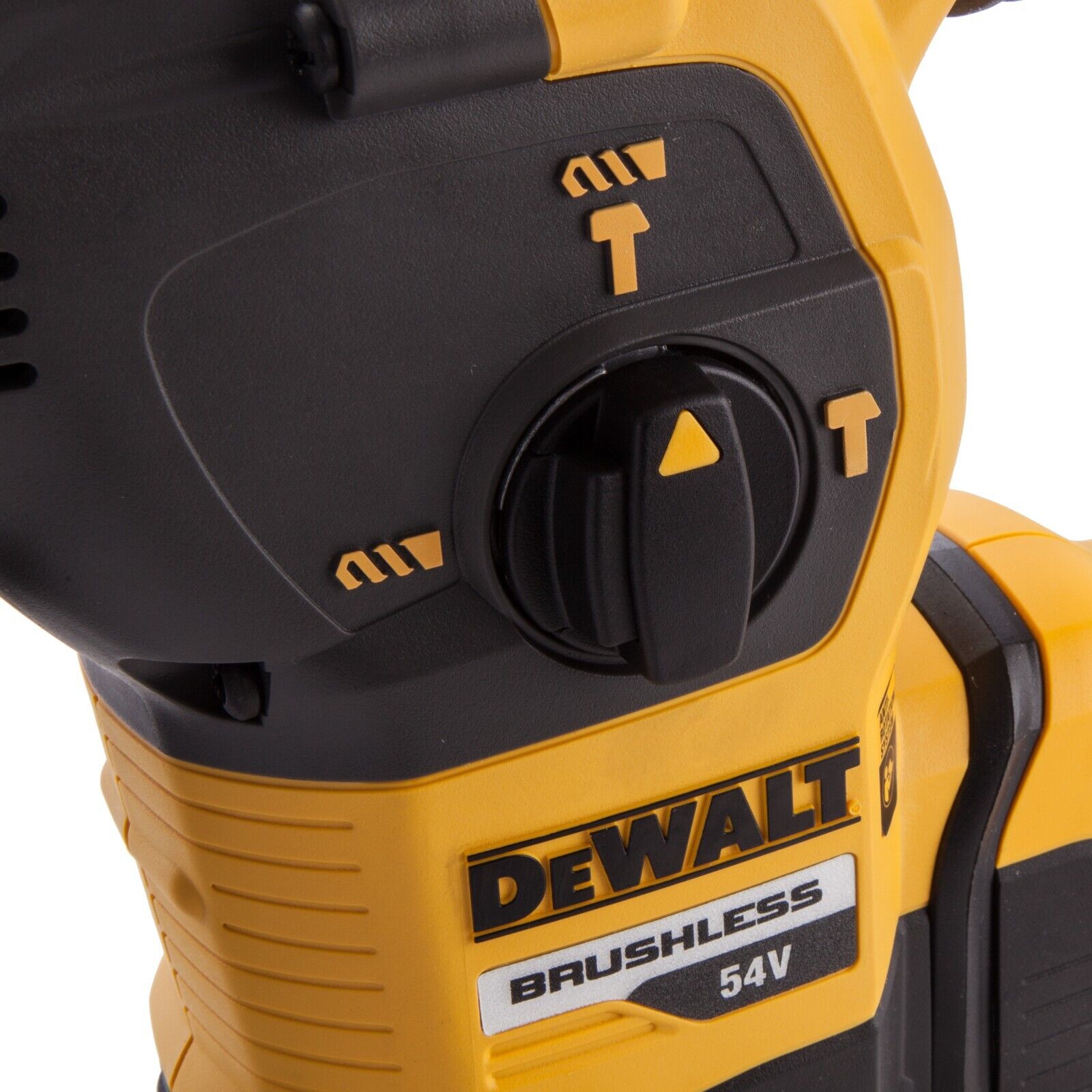

The DCH323T2 is an SDS-Plus hammer drill powered by XR FlexVolt technology, allowing for use with 18V or 54V batteries. The brushless motor and highly efficient mechanism deliver 2.8J of energy per impact, with three working modes (rotation, rotary-percussion, and hammer-only). The tool features an electronic clutch to protect the operator, a rubber-coated handle for safe control, an integrated LED light, and the Perform & Protect to reduce vibrations and increase safety.

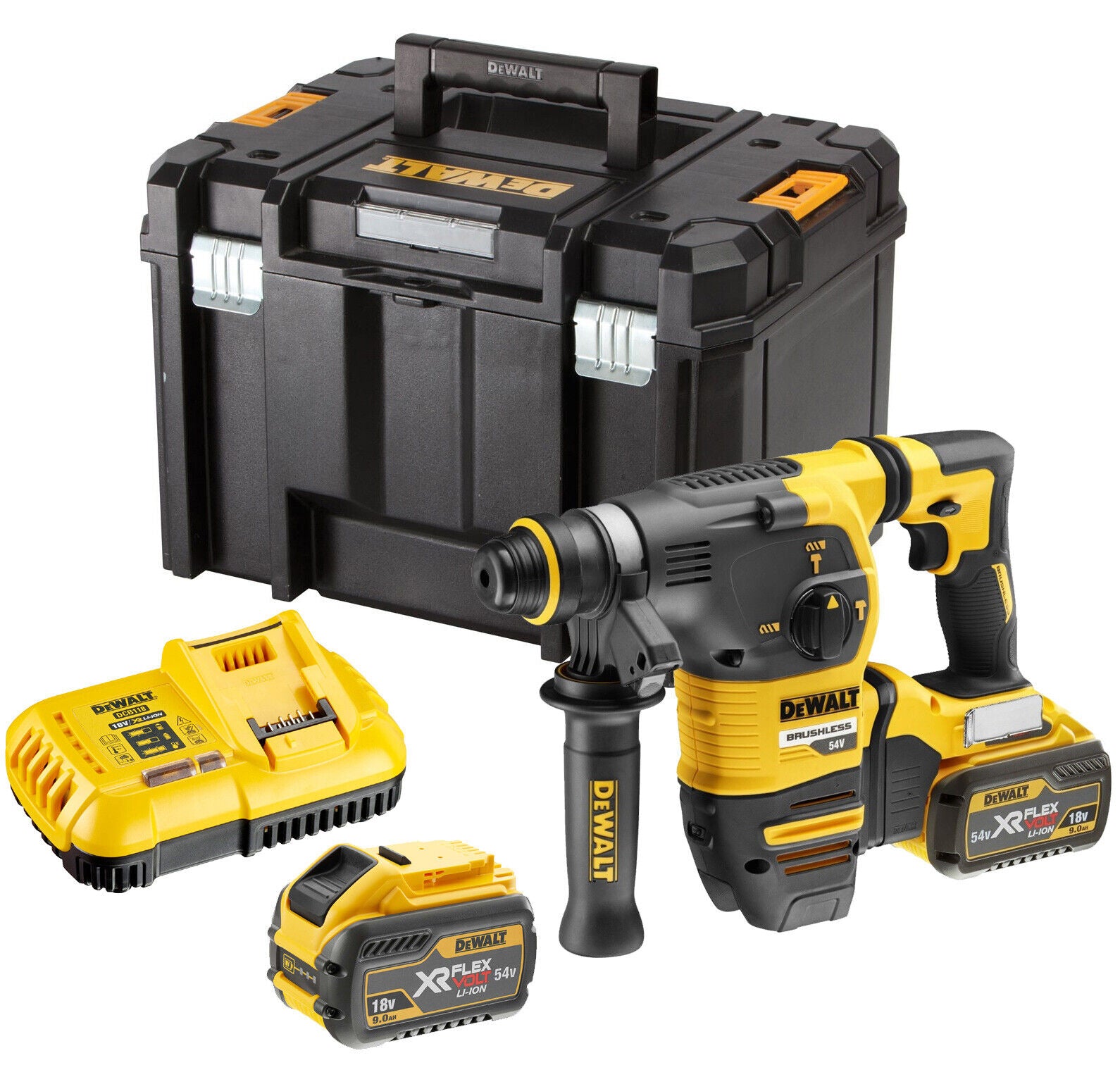

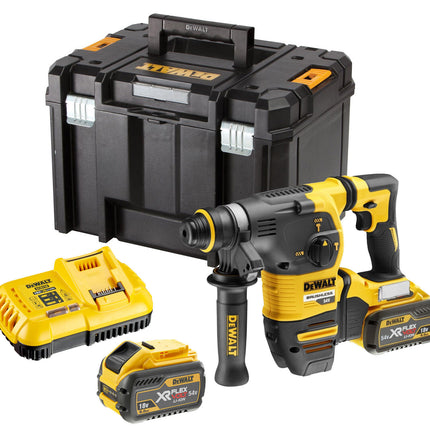

Box contents
- DCH323 hammer drill.
- Two XR FlexVolt 18/54 V 6.0/2.0 Ah batteries.
- DCB118 rapid charger.
- Side handle and depth gauge.

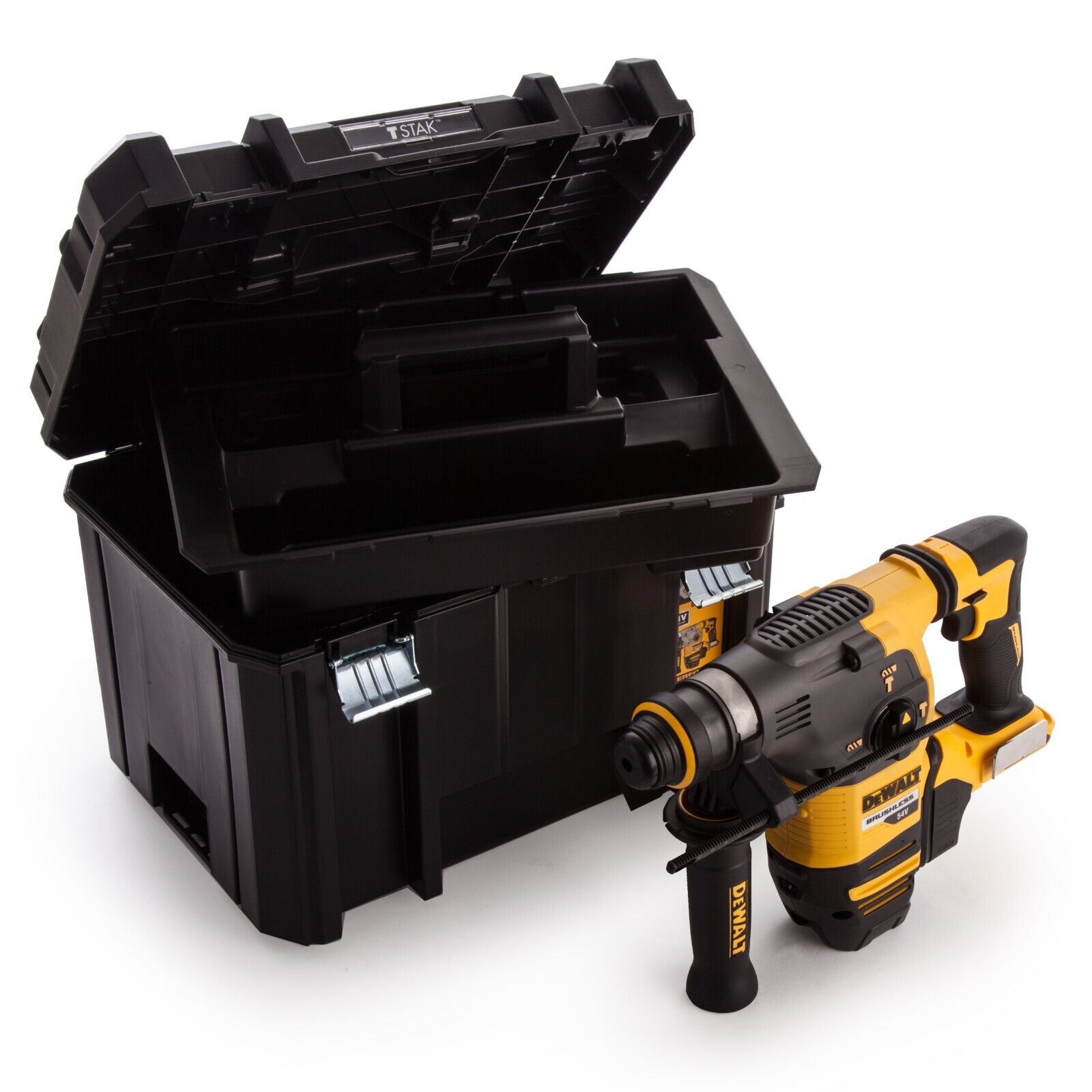

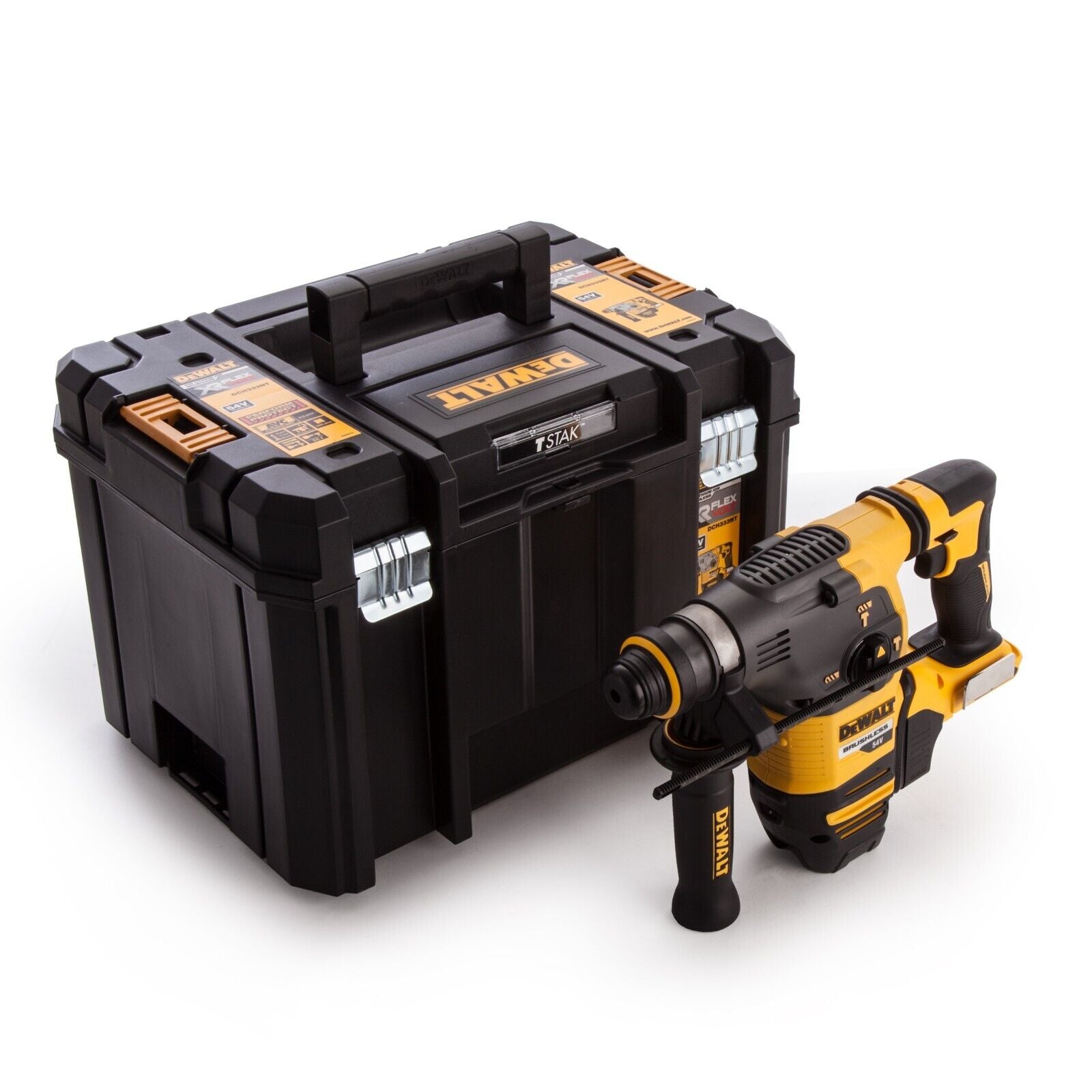

- TSTAK case.
Technical data
DeWalt DCH323T2 technical data
| Attachment type |
SDS-Plus |
| Voltage |
18 V / 54 V (FlexVolt) |
| Battery capacity |
6.0 Ah (18 V) / 2.0 Ah (54 V) |
| Impact energy (EPTA) |
2.8 J |
| No-load speed |
0–980 rpm |
| Impacts per minute |
0–4,390 impacts/min |
| Max. drilling capacity in concrete |
28 mm |
| Max. drilling capacity in Wood |
30 mm |
| Maximum drilling capacity in metal |
13 mm |
| Weight (without battery) |
3.6 kg |
| Weight with battery |
4.65 kg |
| Dimensions |
372 × 245 × 95 mm |
| Vibrations (drilling concrete) |
7.5 m/s² (k=1.5 m/s²) |
| Vibrations (chiselling) |
8.5 m/s² (k=1.5 m/s²) |
| Sound pressure level |
94 dB(A) |
| Sound power level |
105 dB(A) |
