Description

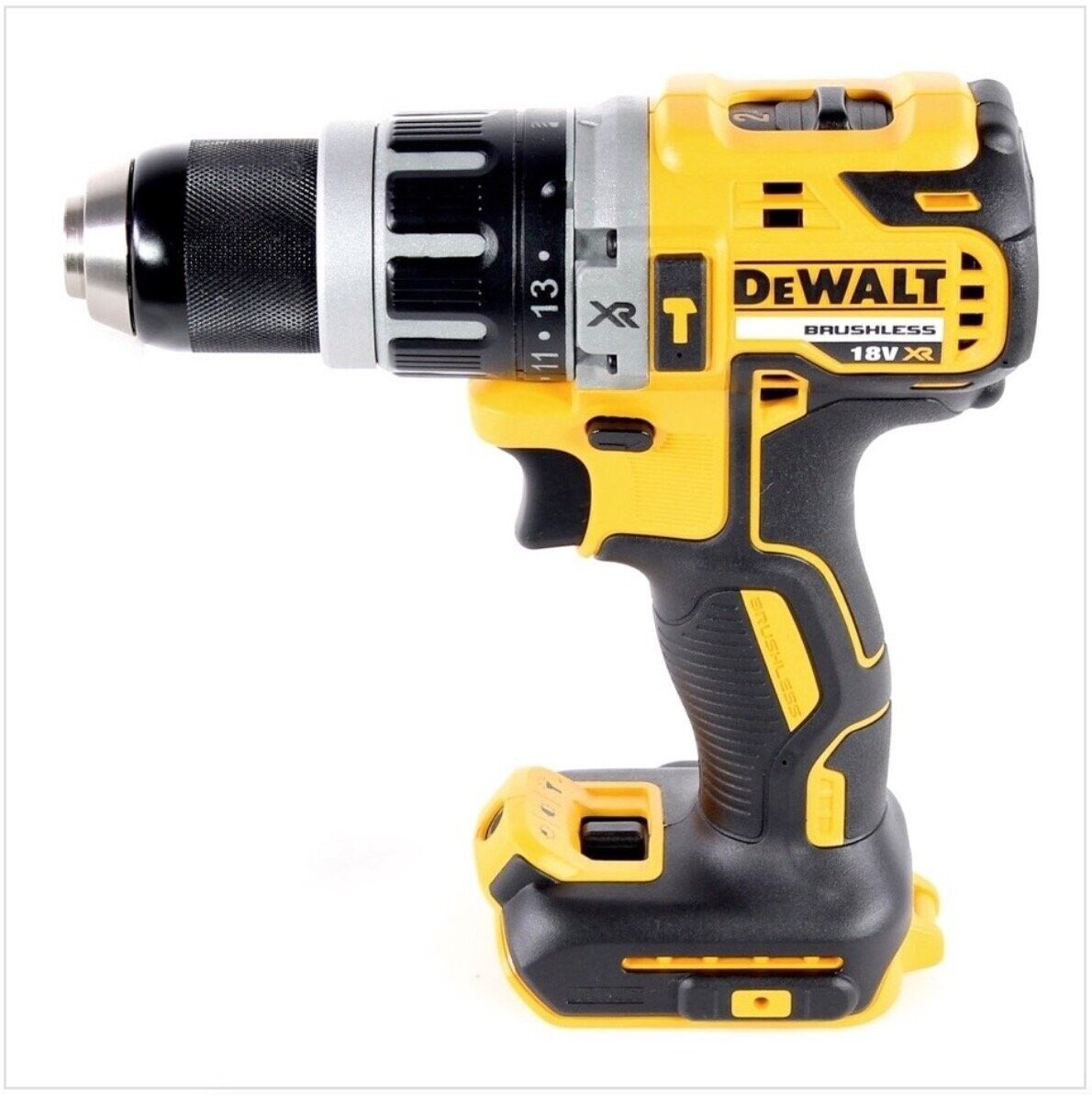

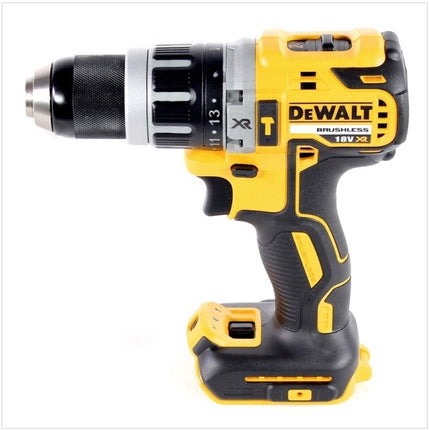

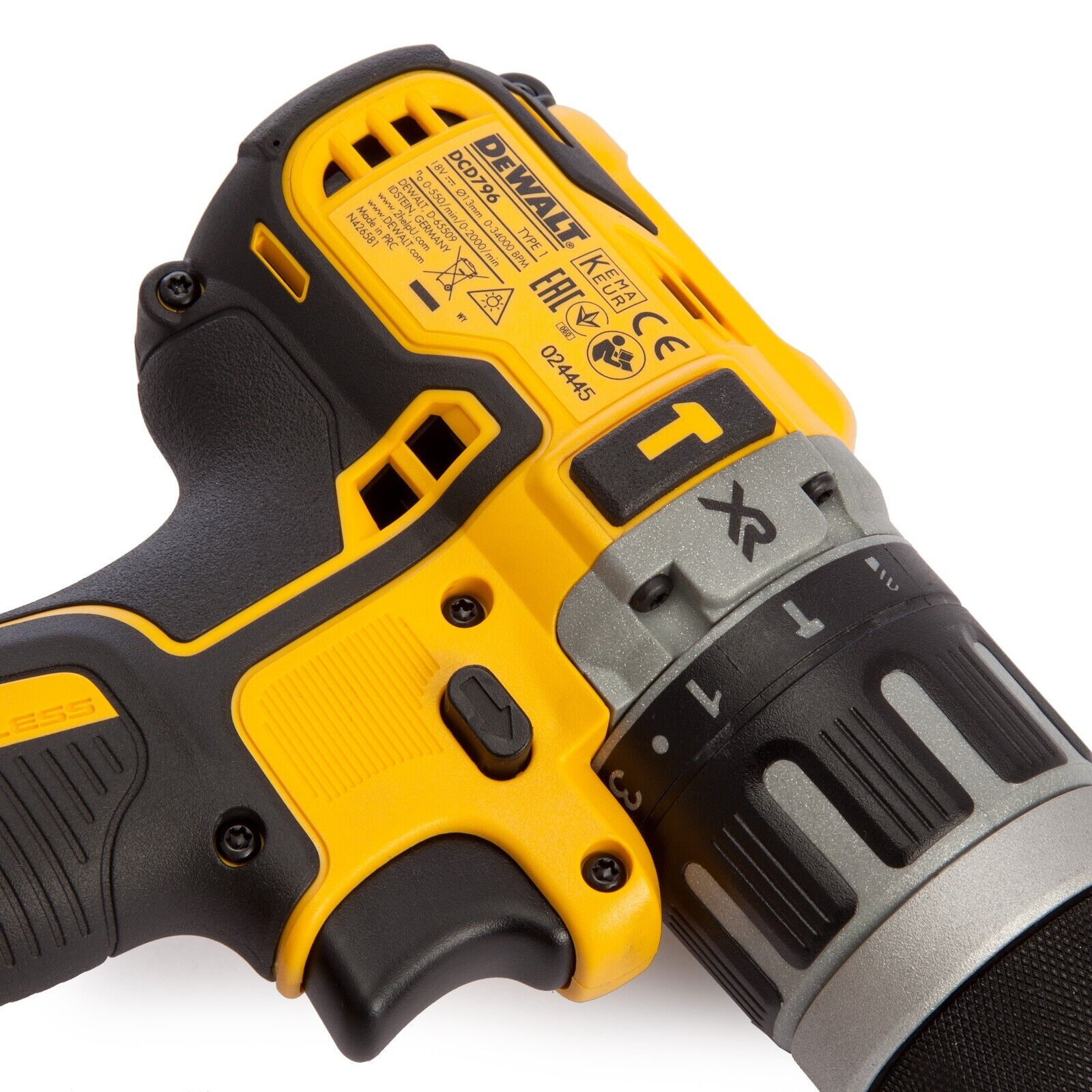

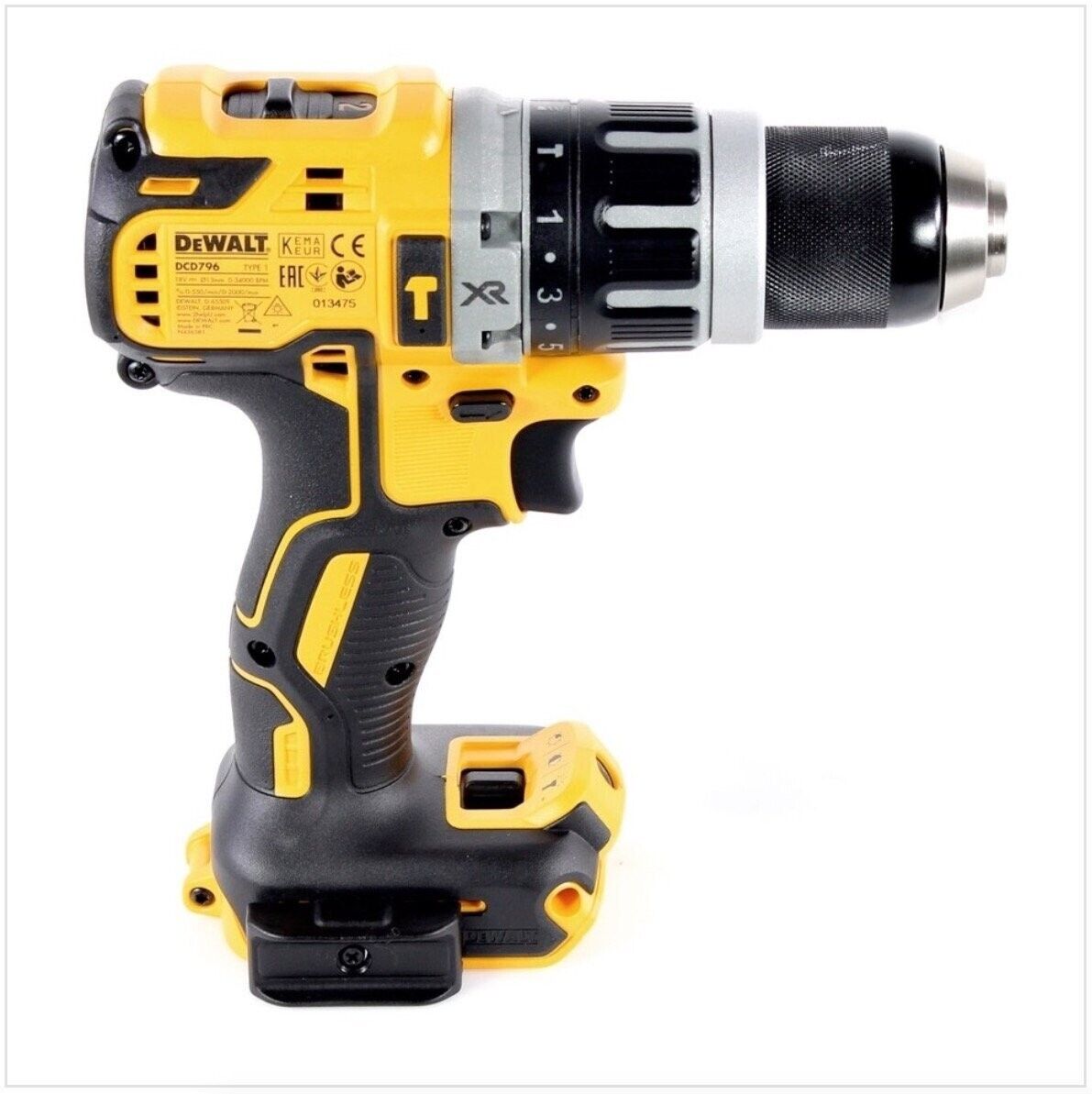

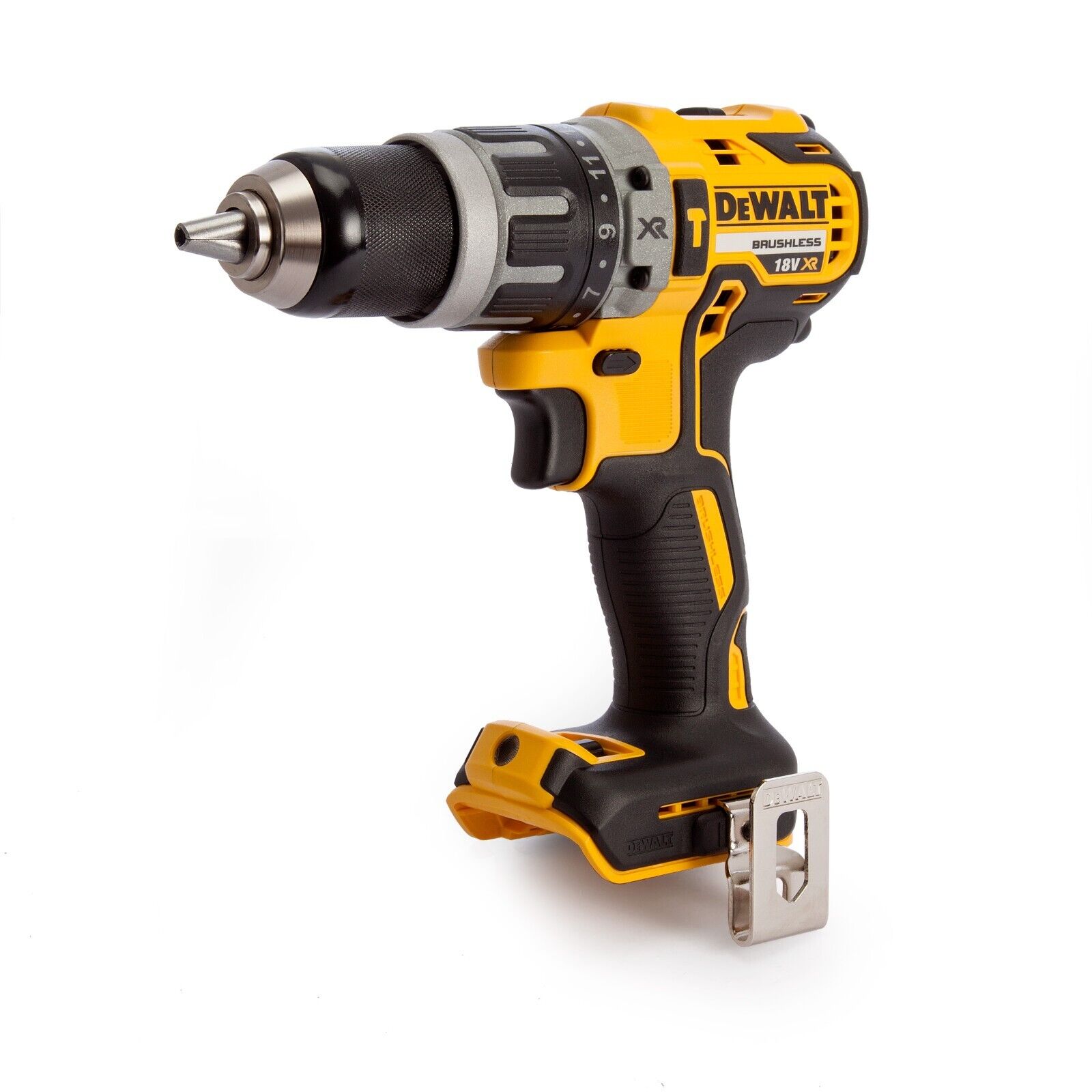

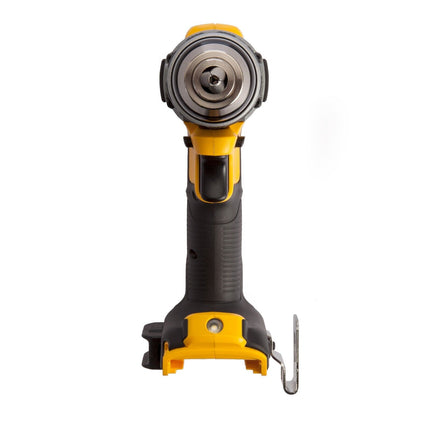

DeWalt DCD796P1 Hammer Drill Driver
The DCD796P1 is an 18V XR hammer drill driver designed for high performance and long run time. It features a brushless motor for reduced wear and maintenance, and all-metal gears with two speeds and a 15-position adjustable clutch to adapt to any material. The three-mode LED light (High, Medium, Low) provides optimal illumination, with a 20-minute runtime on the highest setting. The ergonomic rubber grip ensures comfort during extended periods of use.

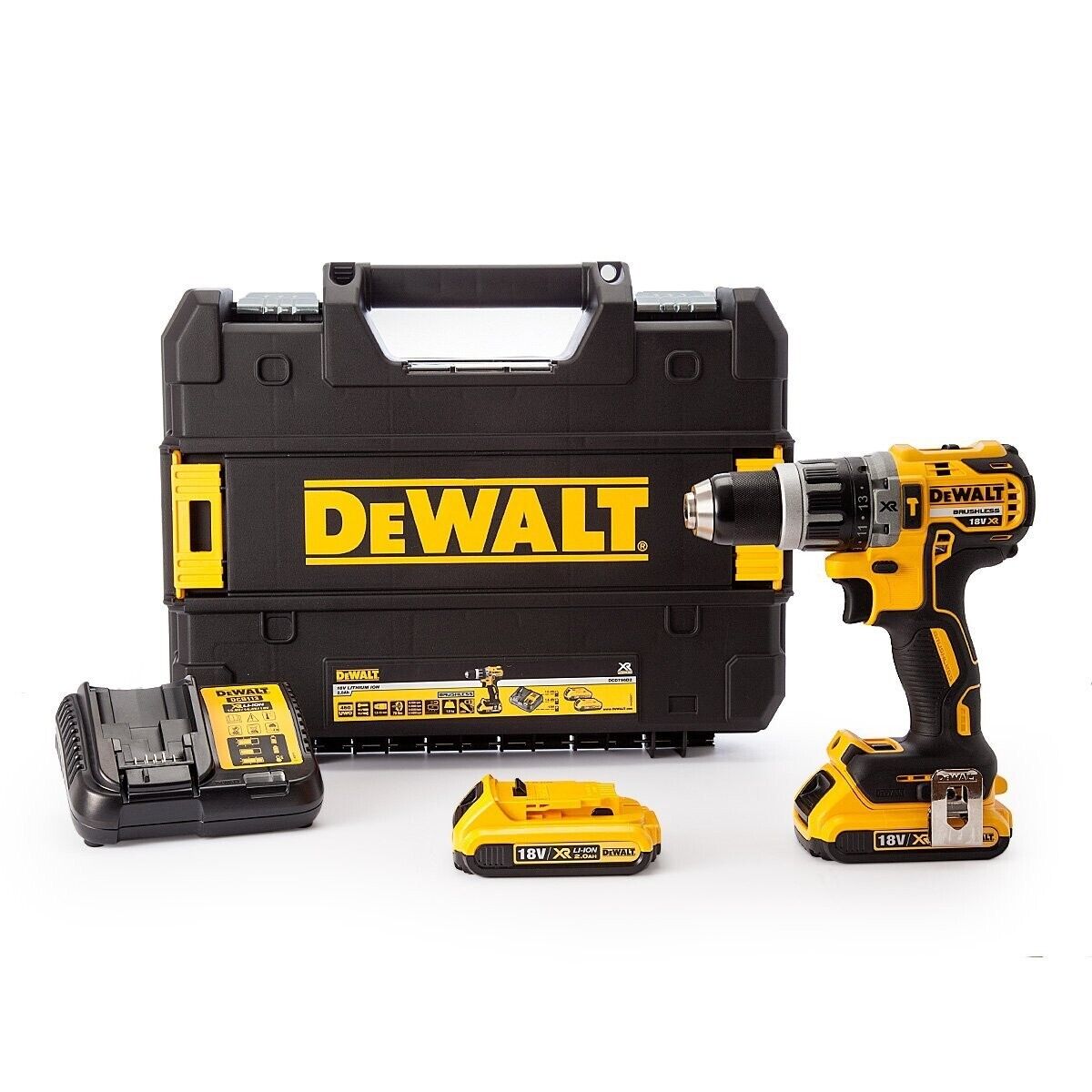

Kit Contents
- DCD796 Impact Drill Driver.

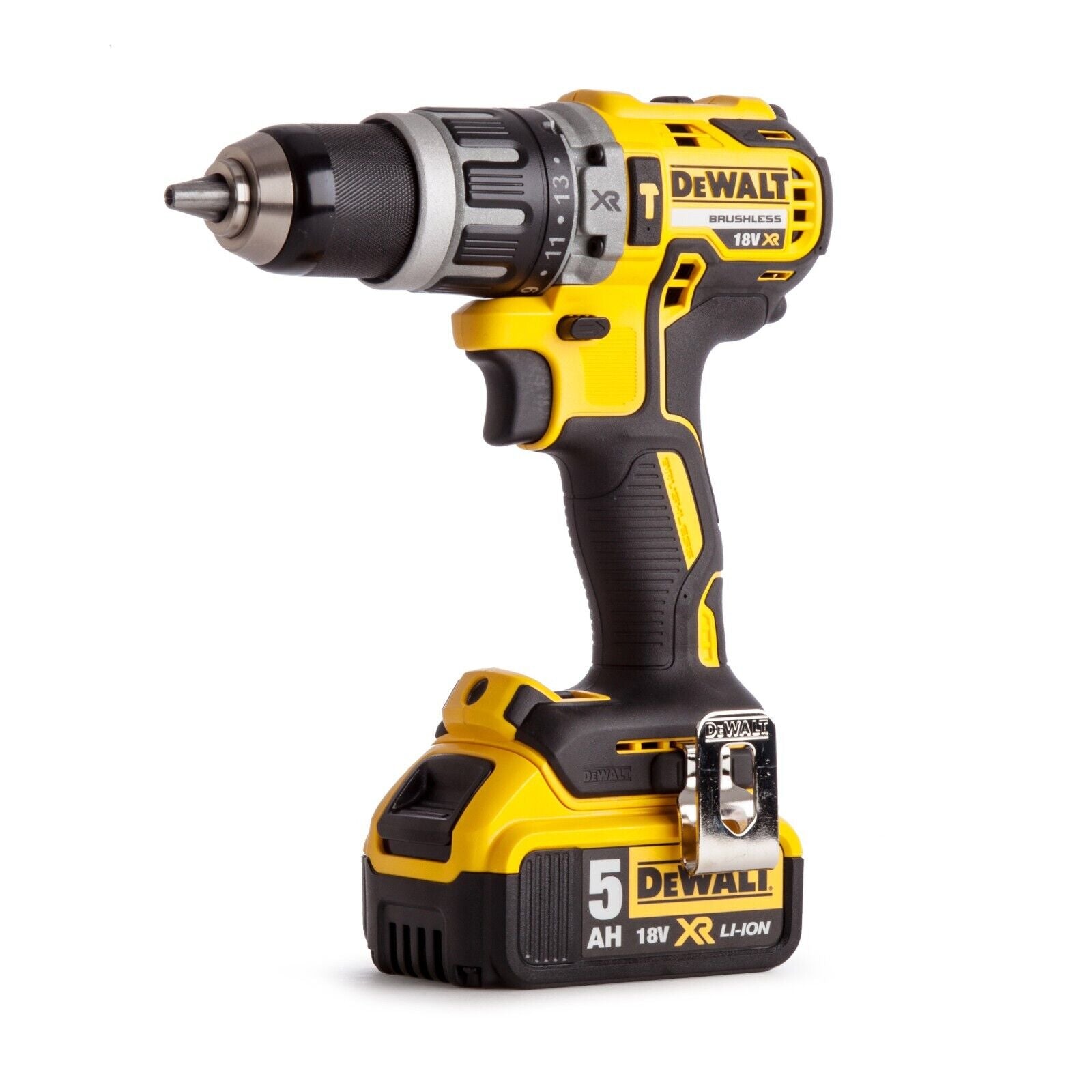

- 18 V 5.0 Ah XR Li-Ion battery.
- DCB115 Charger.
- TSTAK case compatible with the modular transport system.
Technical Data
DeWalt DCD796P1 Technical Data
| Voltage |
18 V |
| Max. Torque (hard/soft) |
70 Nm / 27 Nm |
| Power output |
460 W |
| No-load speed |
0–550 / 0–2,300 rpm |
| Impacts per minute |
0–9,350 / 0–34,000 rpm |
| Spindle capacity |
1.5–13 mm |
| Maximum drilling capacity – wood |
40 mm |
| Maximum drilling capacity – Metal |
13 mm |
| Maximum drilling capacity – masonry |
13 mm |
| Weight without battery |
1.25 kg |
| Dimensions (W x H x D) |
190 x 203 x 67 mm |
| Sound pressure level |
88 dB(A) |
| Sound power level |
99 dB(A) |
| Vibrations (drilling metal) |
≦ 3 m/s² (k=1.5 m/s²) |
| Vibrations (concrete drilling) |
≦ 14.4 m/s² (k=1.6 m/s²) |
| Vibrations (tightening) |
≦ 2.5 m/s² (k=1.5 m/s²) |
