Description

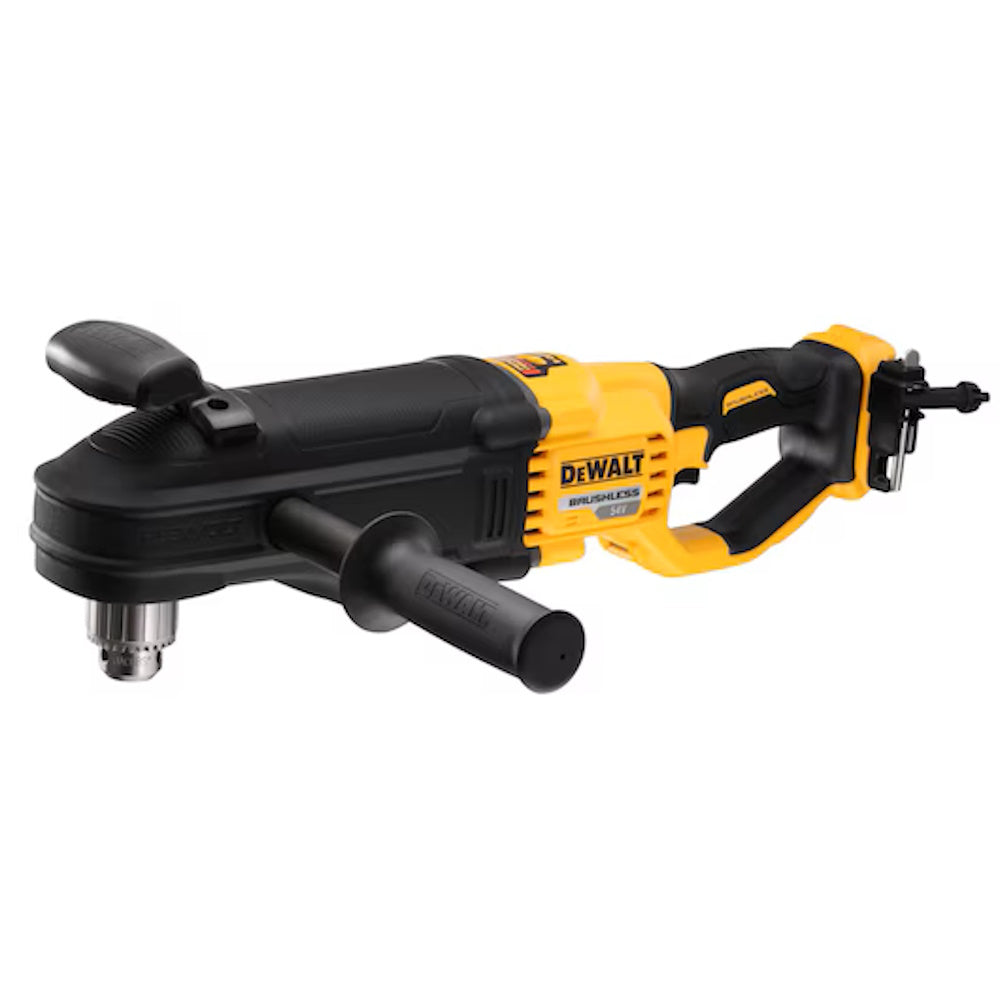

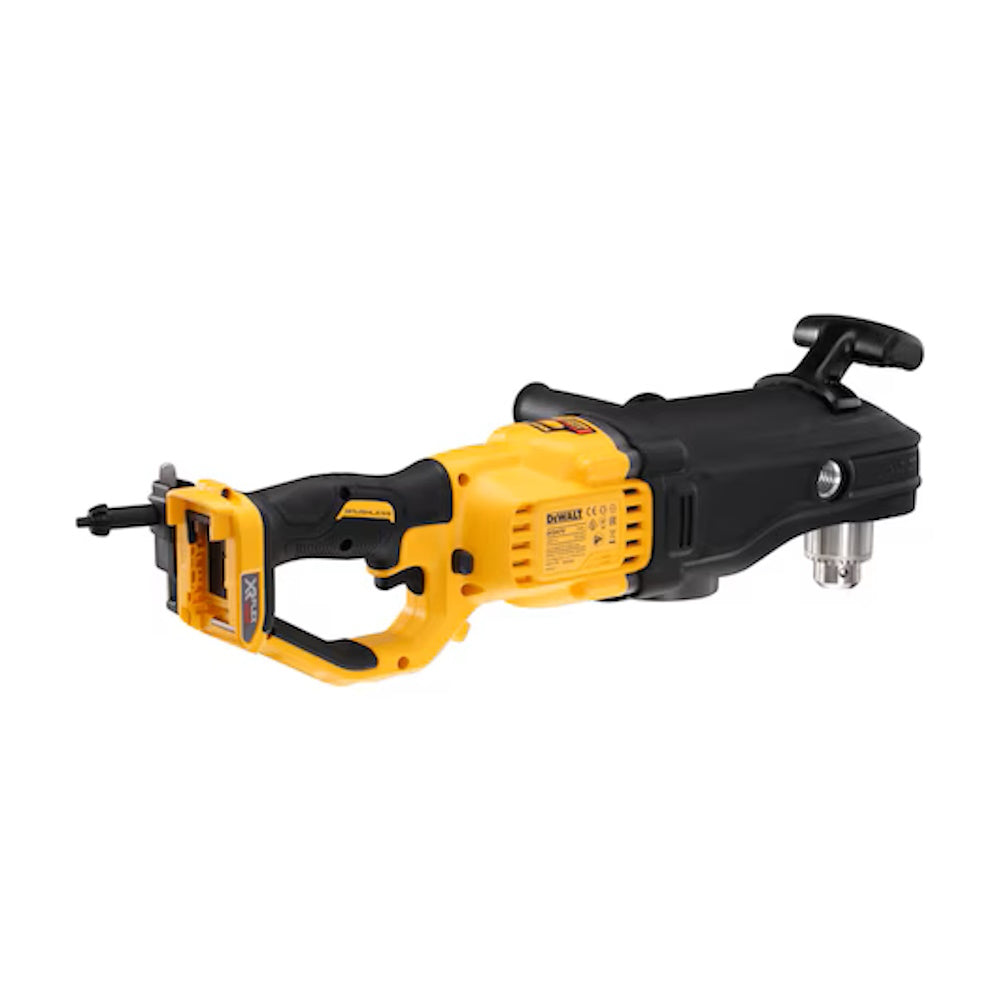

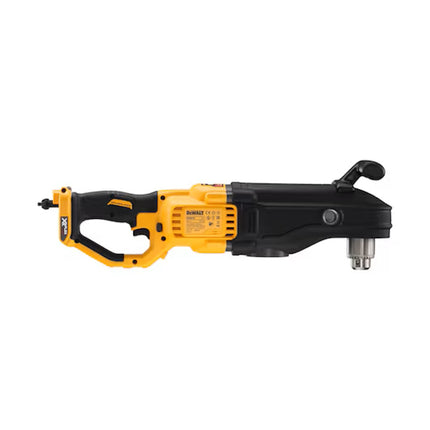

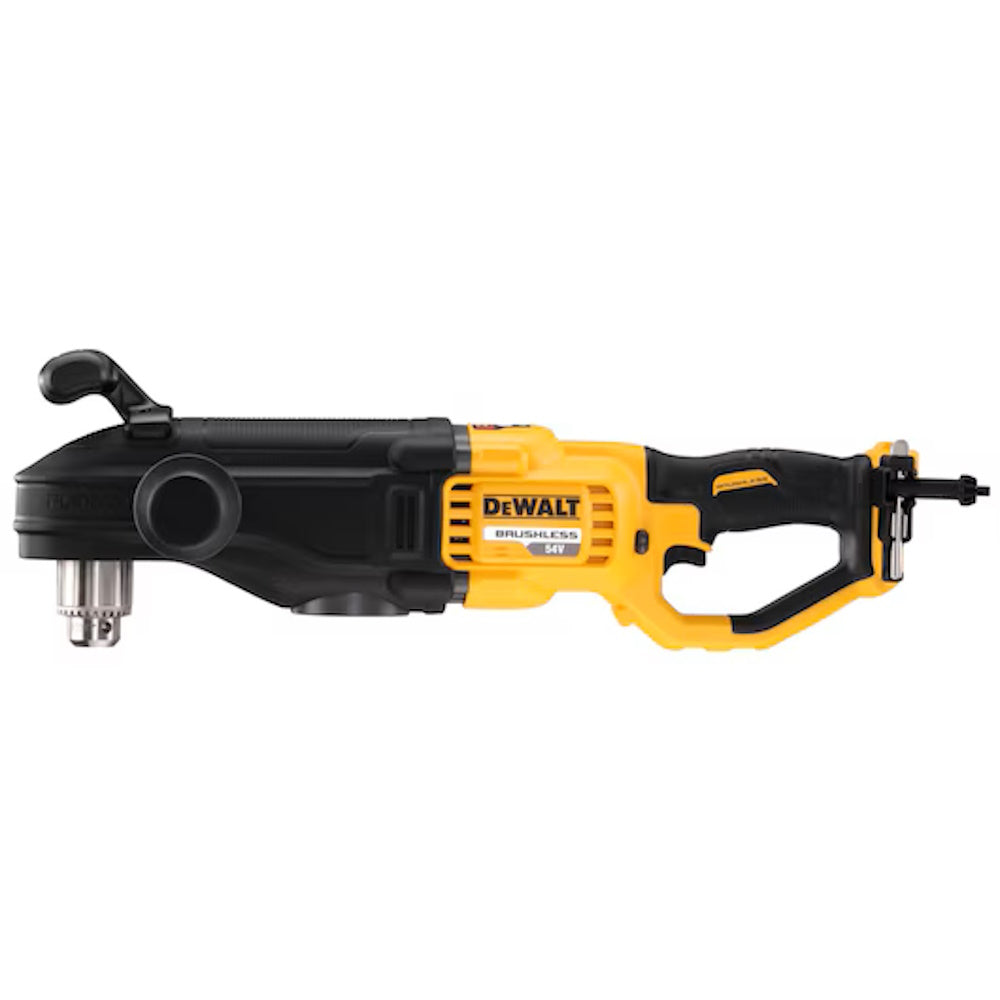

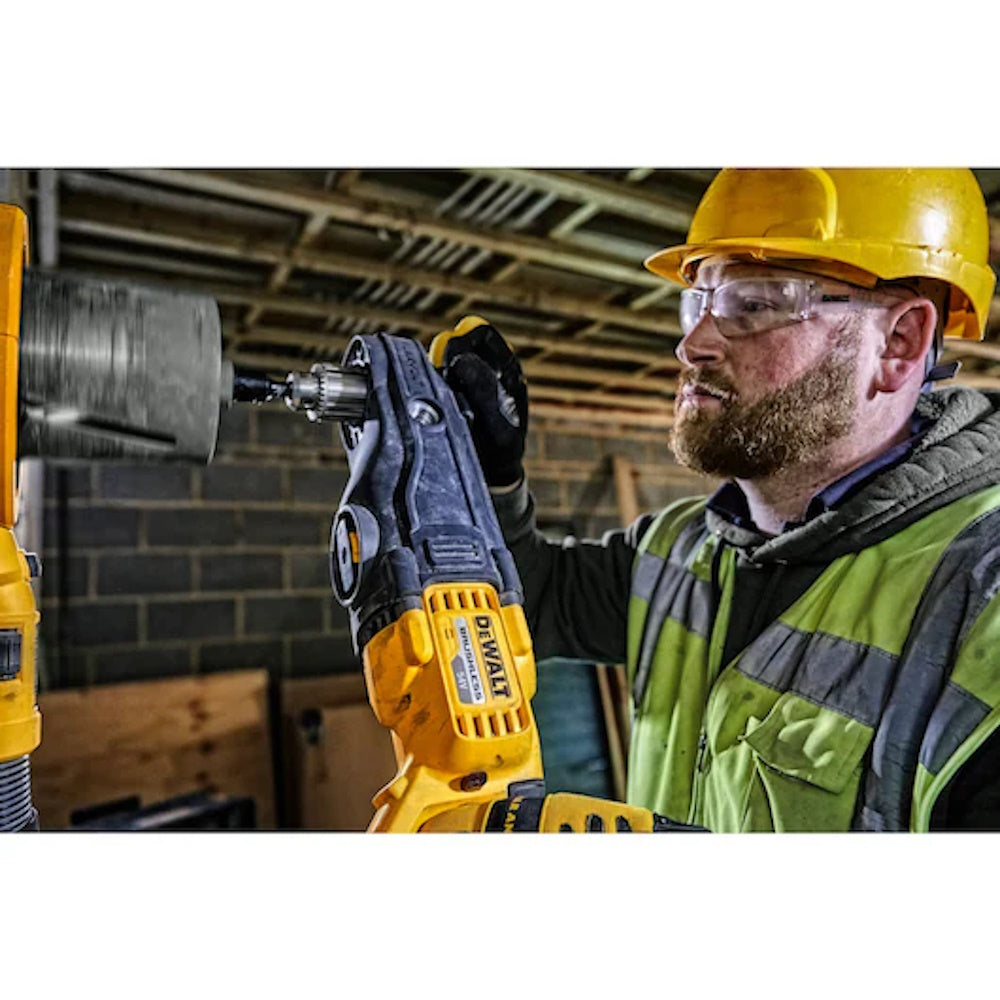

DEWALT DCD470N-XJ 54V XR FLEXVOLT Angle Drill
The DEWALT DCD470N-XJ is a 54V cordless angle drill from the XR FLEXVOLT line, designed to deliver exceptional power and control for applications requiring large-diameter drilling. It is ideal for professionals in the HVAC, plumbing, electrical, and construction sectors.
Included
• 54V XR FLEXVOLT angle drill.

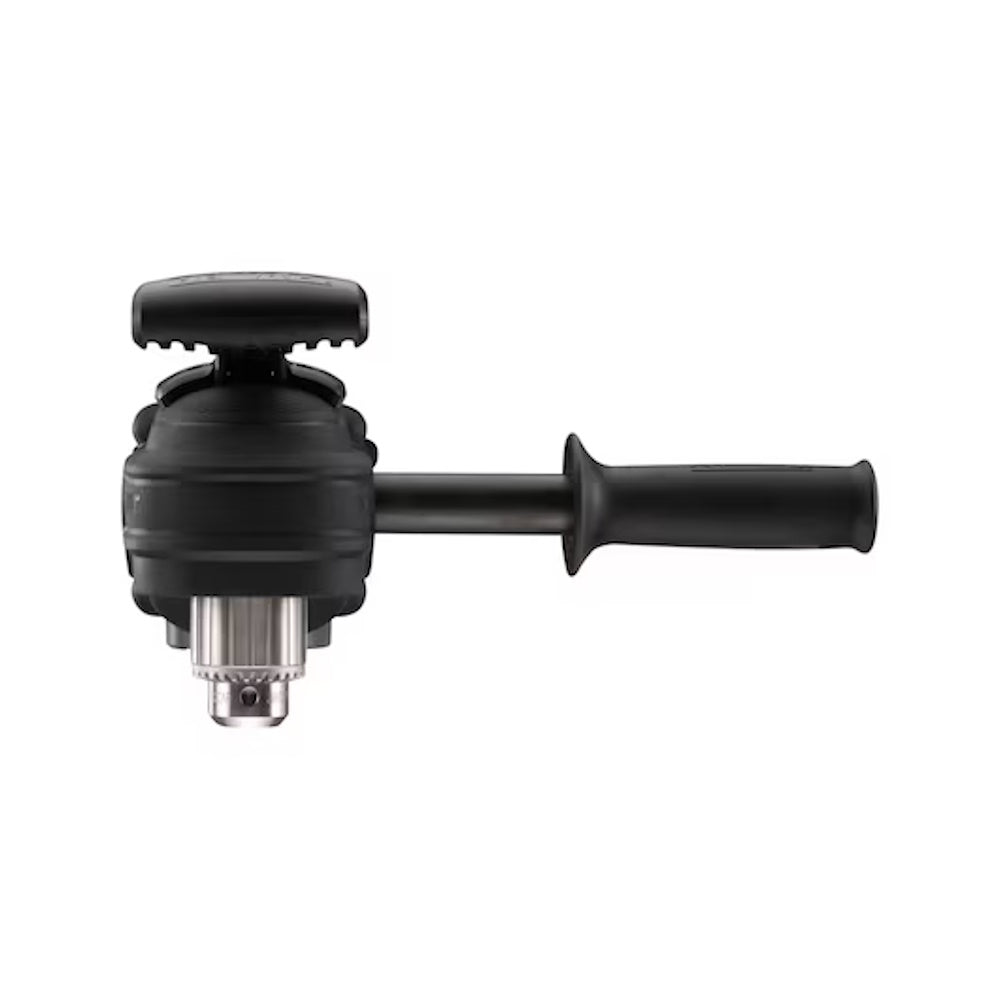

• 2-position side handle for greater control.
Features
• MOTOR: 54V brushless motor for greater power and autonomy.

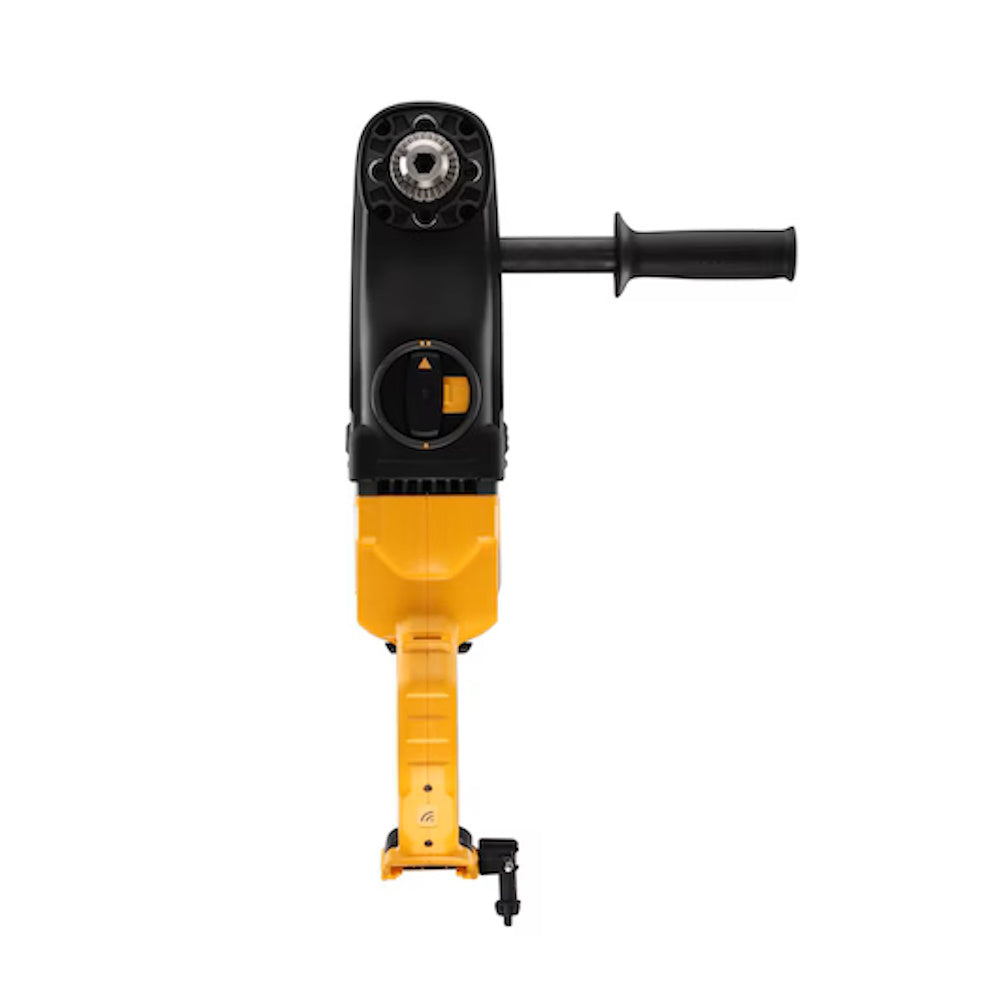

• HANDLE: Adjustable handle and 2-position side handle for greater safety, grip, and control.
• SPEED: 2 variable speeds (0-300 / 0-1250 rpm) to match the appropriate torque and speed for each application.

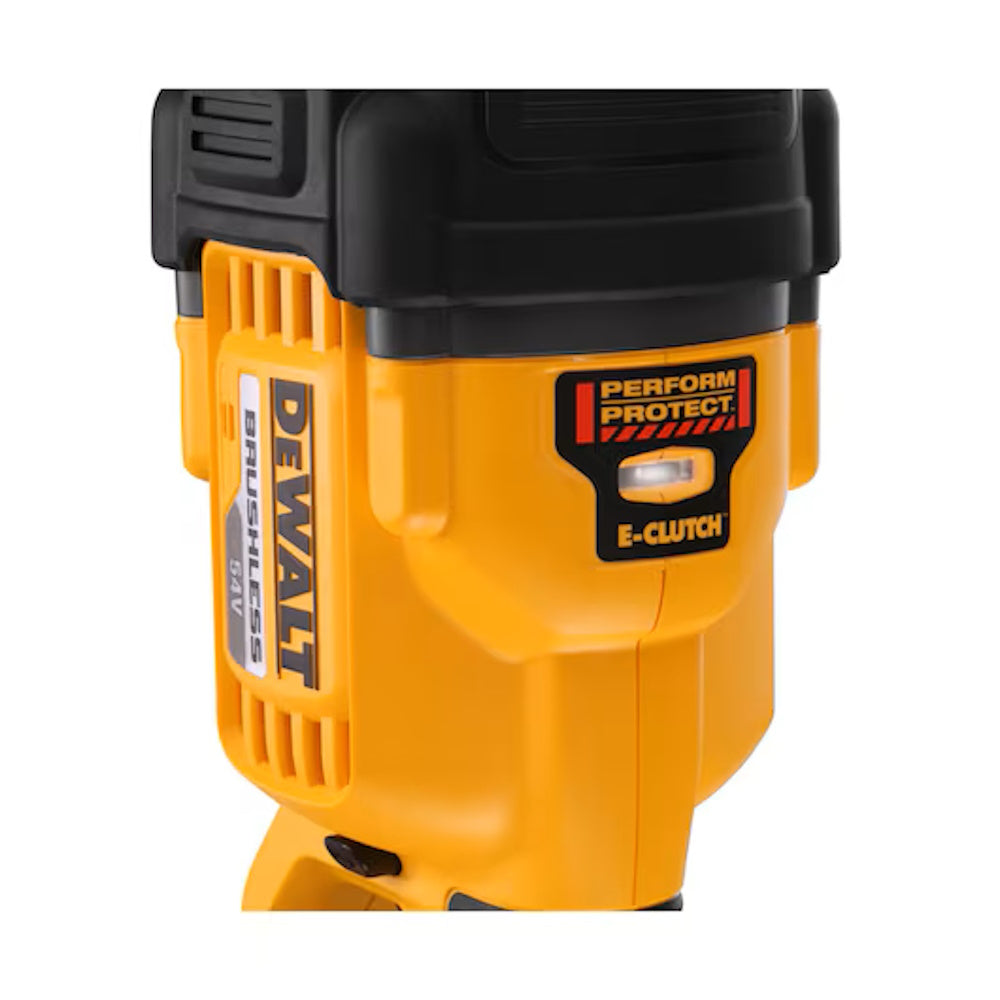

• E-CLUTCH (PERFORM & PROTECT): A function that detects the reaction torque caused by a machine blockage and reduces the speed to a manageable level until control is regained.
• GEARBOX: Metal gearbox for longer machine life and greater reliability.
Technical data
• Voltage: 54 VDC.
• Type: 2.
• 2nd speed: 0–1320 min-1.
• Max. tightening torque (hard/soft): 269/114 Nm.
• Chuck capacity: 13 mm.
• Max. drilling capacity Wood: 158 mm.
• Weight: 7 kg.
• LPA (emission sound pressure level): 84 dB(A).
• LWA (sound power level): 95 dB(A).
• K (uncertainty for the given sound level): 5 dB(A).
• Vibration emission value ah, Metal: 3.5 m/s2.
• Uncertainty K Metal: 1.5 m/s2.
• Vibration emission value ah,DD Concrete: 3.6 m/s2.
• Uncertainty K Concrete: 1.5 m/s2.
Recommended maximum capacities
• Auger bit Wood: 51 mm.
• Self-advancing bit Wood: 117 mm.
• Hole Saw Wood: 158 mm.
• Twist Drill Metal: 13 mm.

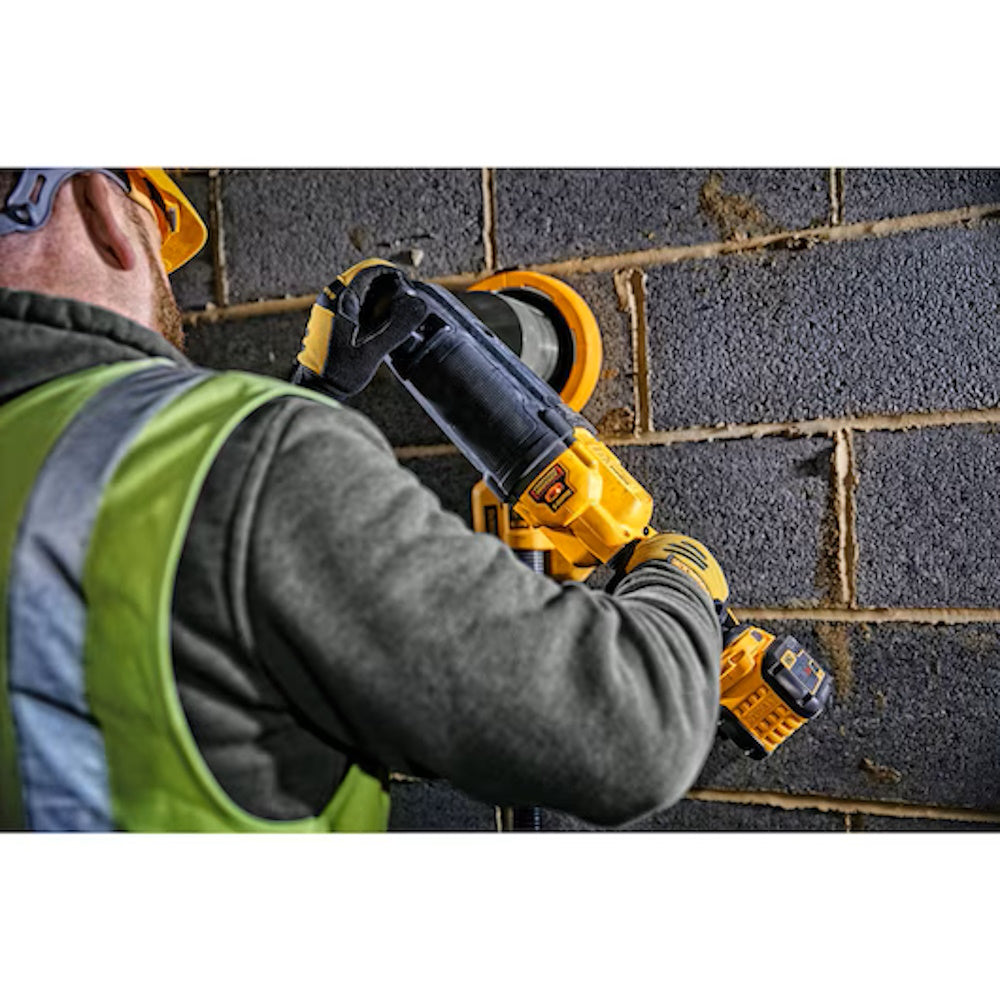

• Hollow Concrete Blocks/Lightweight Blocks/Slag Concrete Blocks: 152 mm.
• Bricks: 127 mm.
