Description
DCD85M Impact Drill Driver and DCF85M Impact Driver Kit

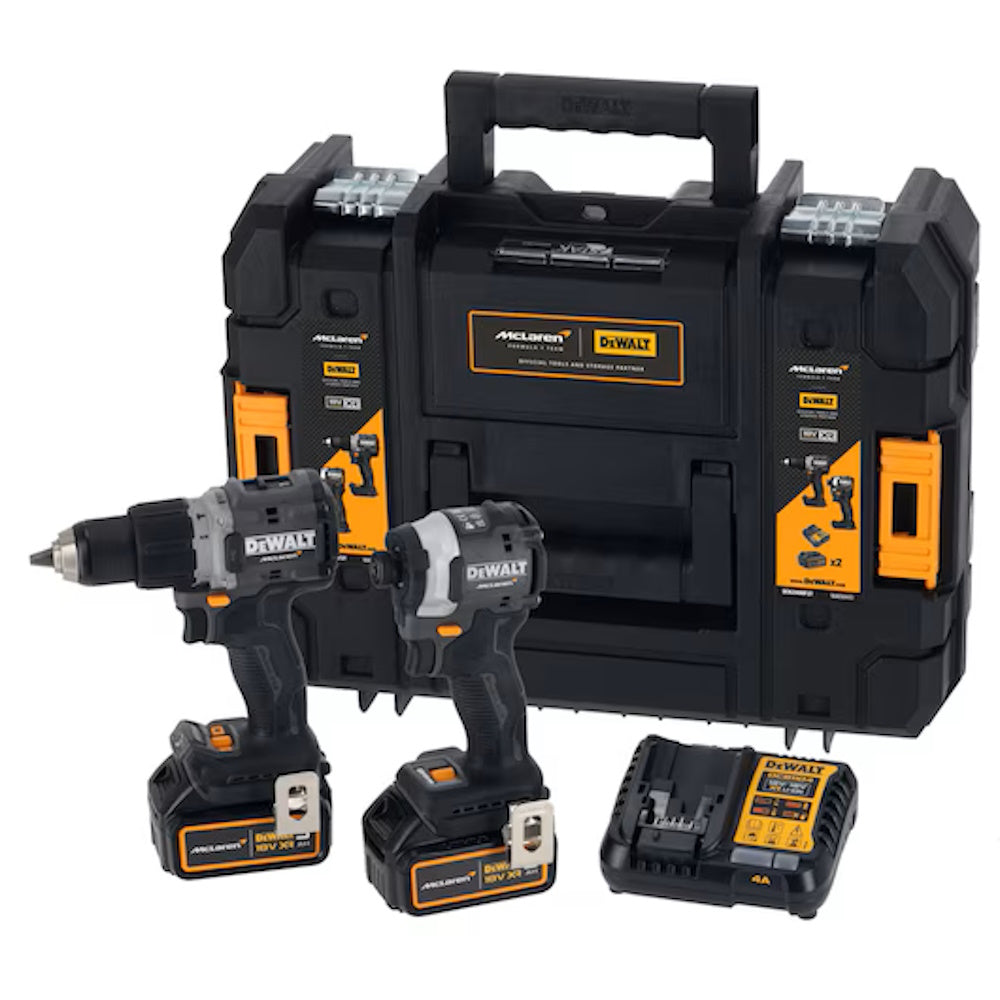

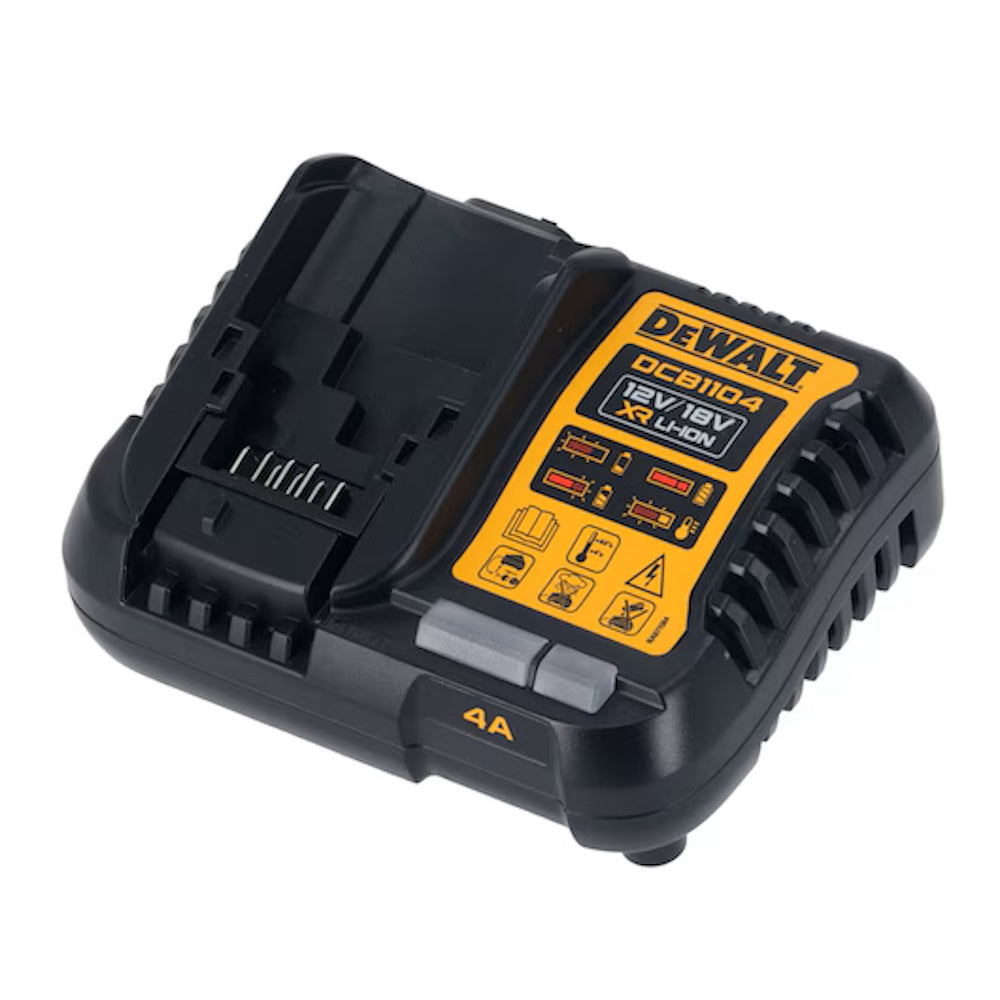

The DEWALT x McLaren F1 Team range is the result of a shared desire for performance.nThe DEWALT x McLaren F1 Team 18V XR brushless drill driver and impact driver are included.nThe kit contains: DCD85M impact drill driver, DCF85M impact driver, 2 x DCB184 5AH batteries, DCB1104 4 Amp charger, TSTAK kitbox.
Included
• Mclaren DCD85M 18V XR brushless impact drill.

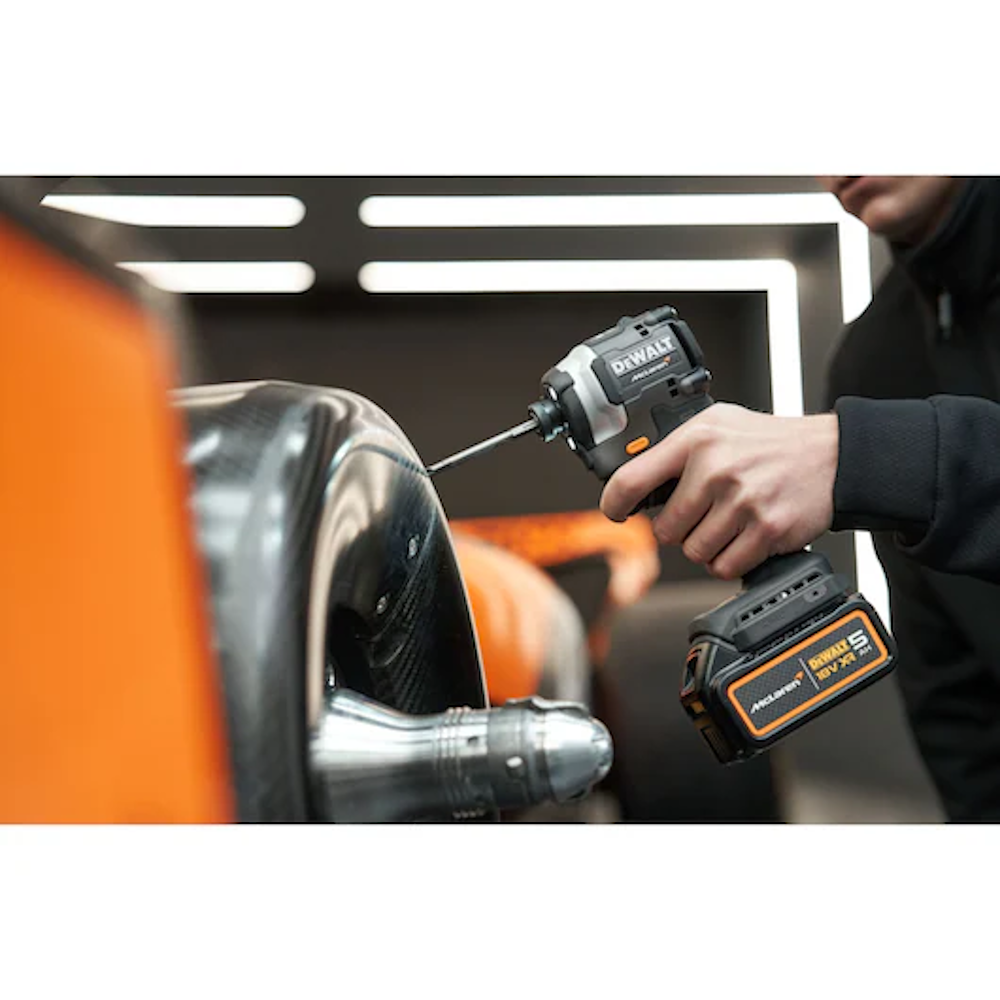

• Mclaren DCF85M 18V XR brushless impact driver.

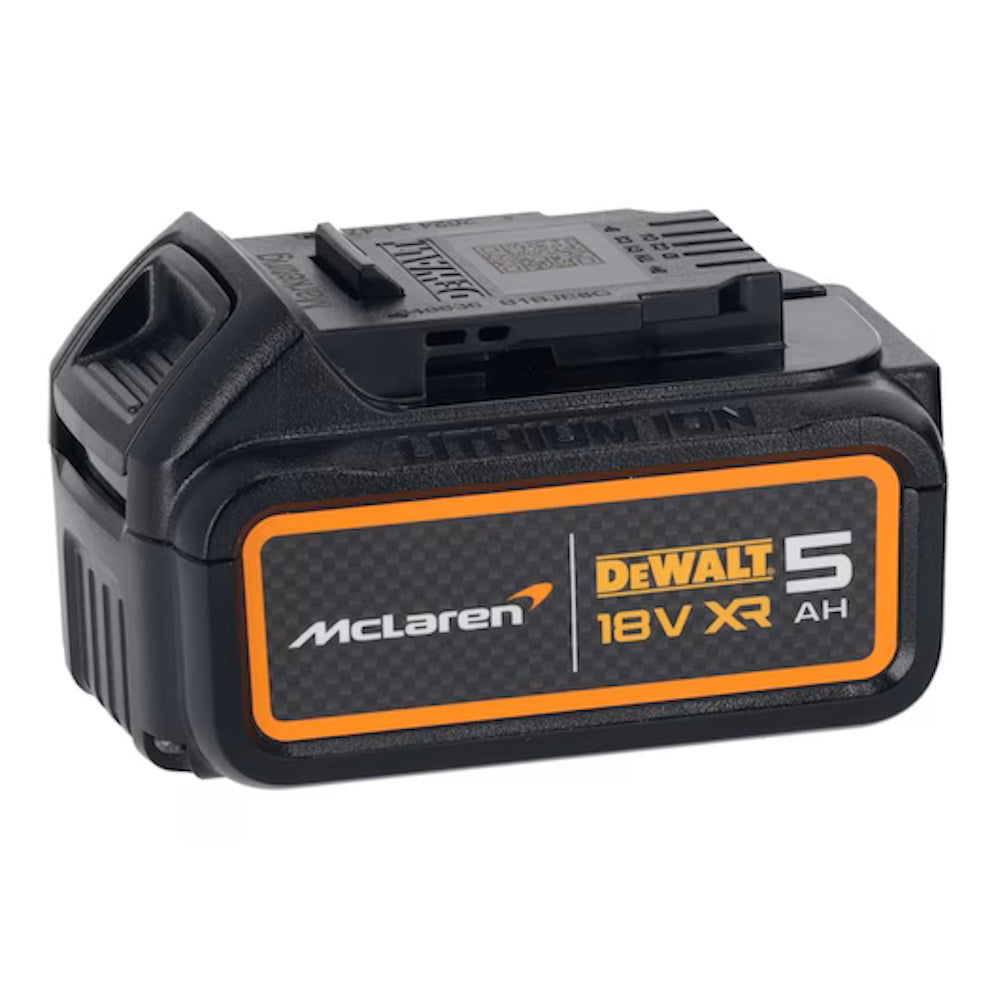

• 2 Lithium-ion batteries with charge status indicator 18V XR 5.0 Ah.
• 2 Magnetic bit holders.
• 2 Belt hooks.

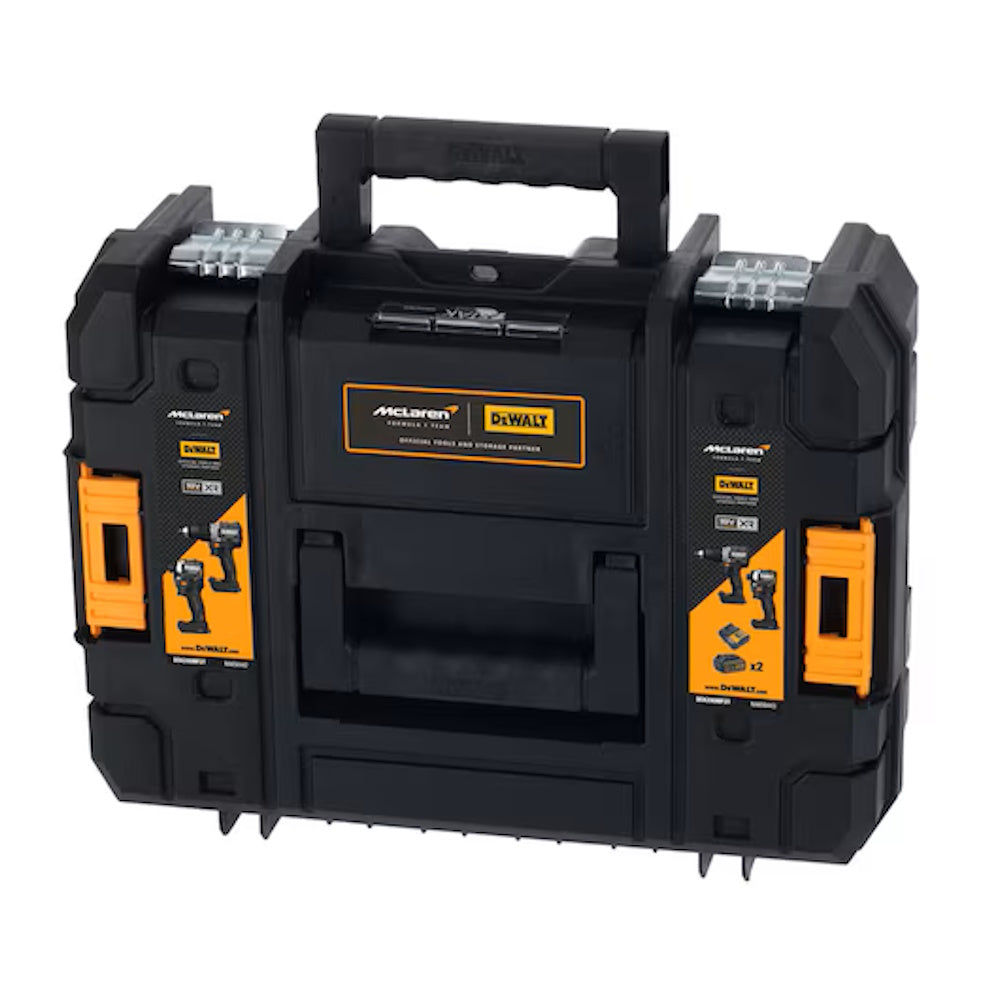

• TSTAK Kitbox for use intensive.

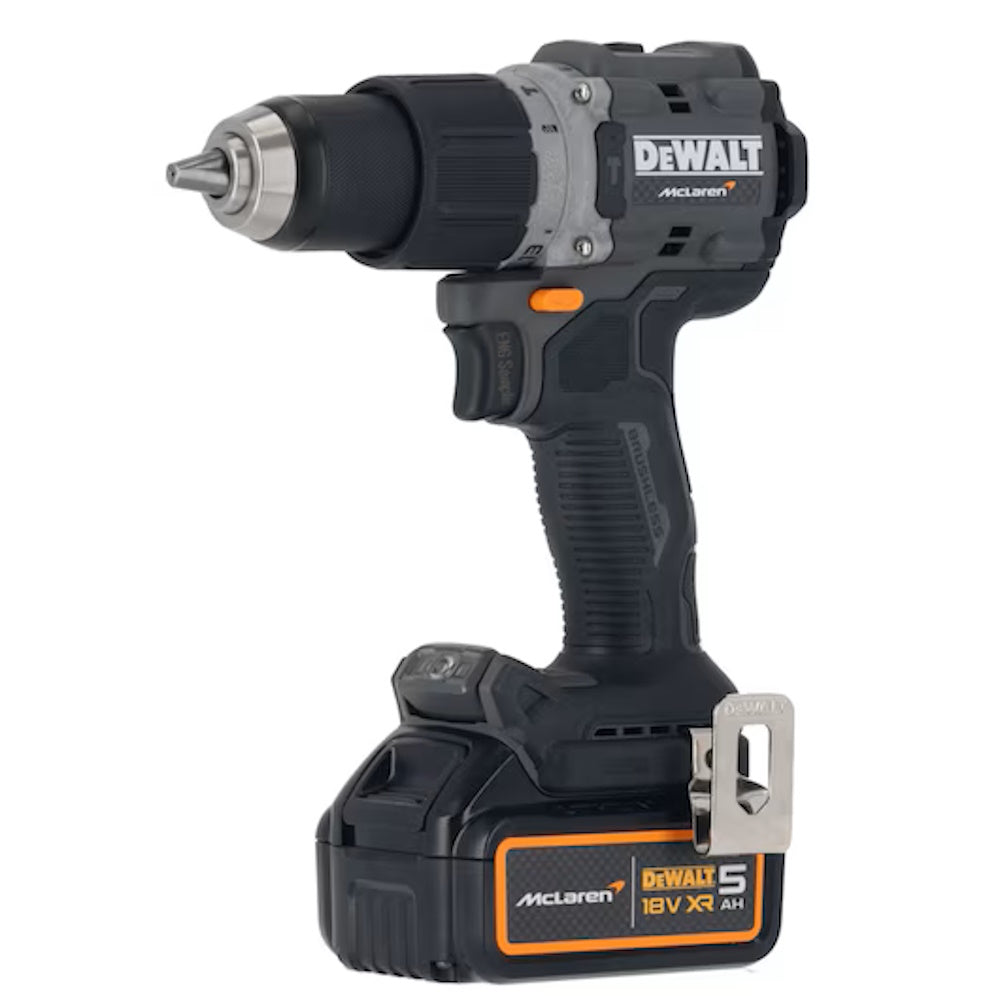

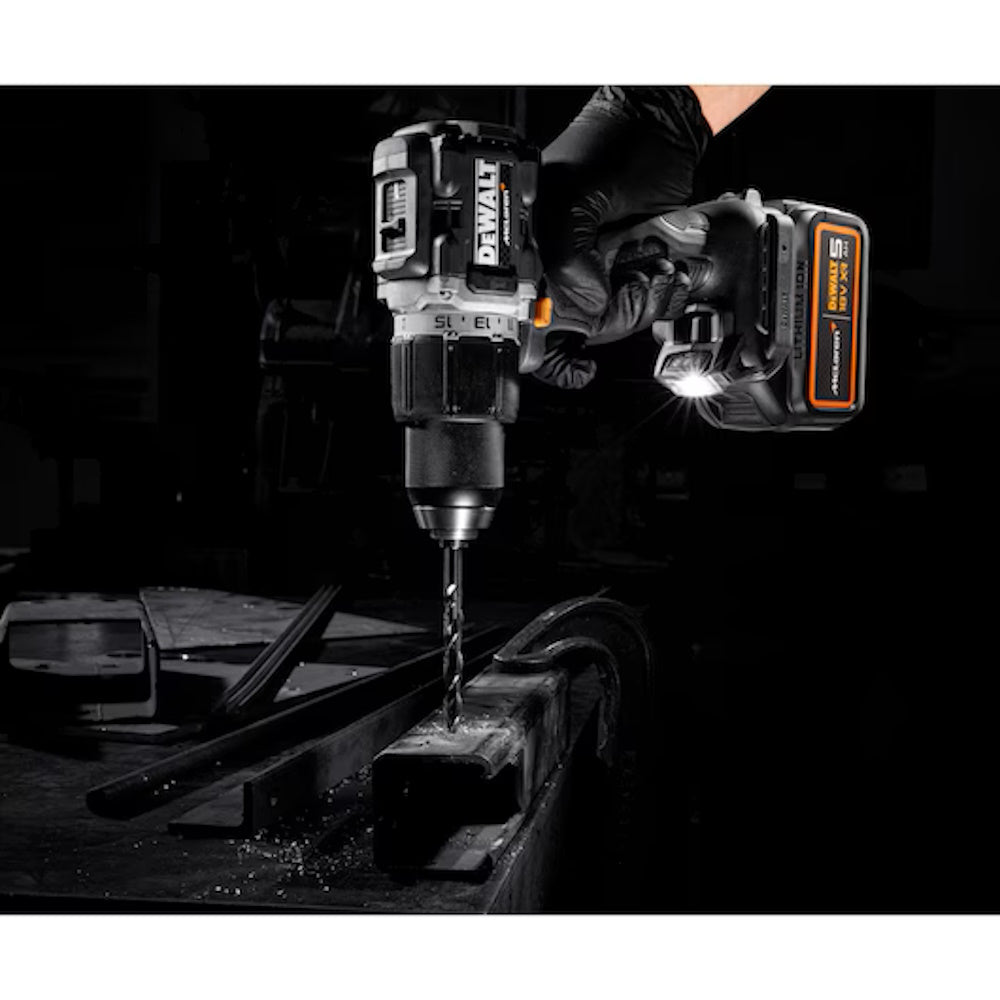

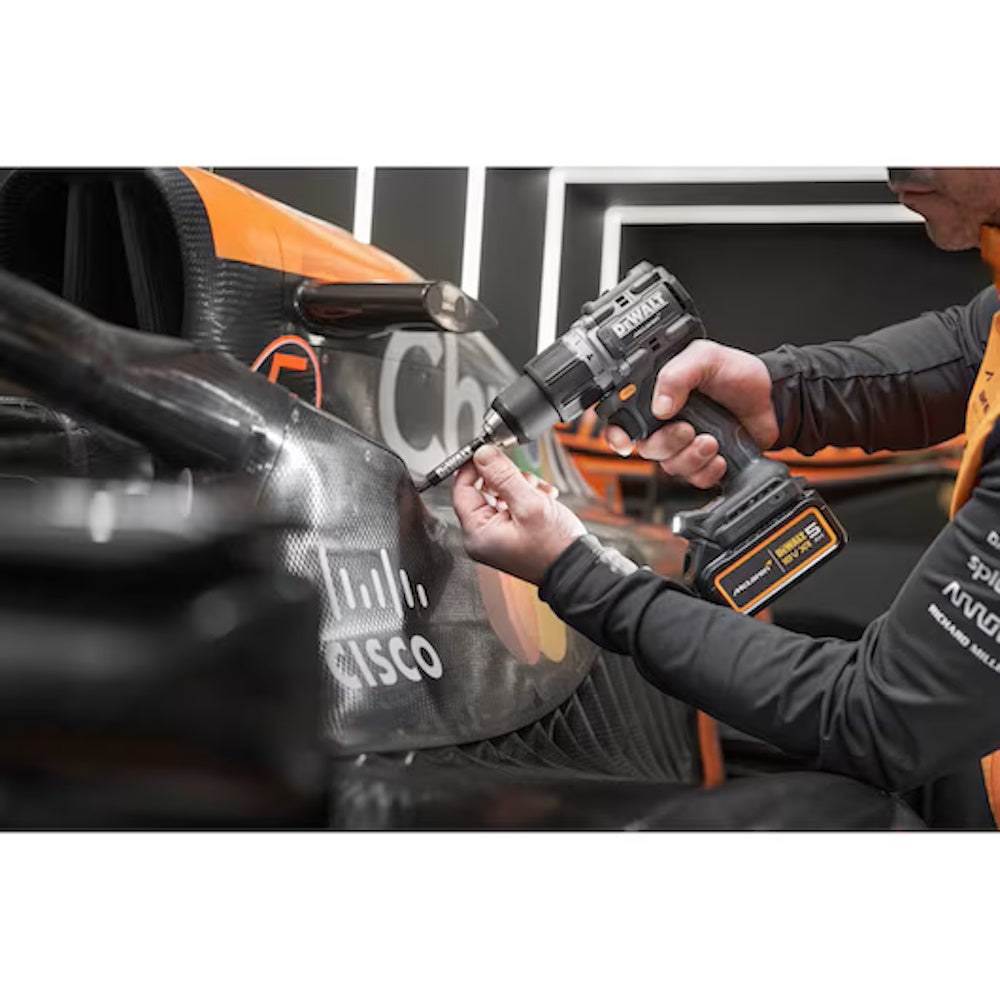

Technical data DCD85M
• Battery voltage: 18 V.
• Brushless.
• Chuck capacity: 1.5-13 mm.
• No-load speed (BPM): 0-11,050/0-34,000.
• Max. drilling capacity (masonry): 13 mm.
• Battery capacity: 5 Ah.
• No-load speed (RPM): 0-650/0-2,000.
• Soft grip.
• Battery quantity: 2.
• LED light.
• Chuck type: Keyless.
• Product weight: 1.34 Kg
• Number of speed settings: 2.
• Maximum torque: 90 Nm.
• Reverse.
• Max. Drilling capacity (metal): 13 mm.
• Blows per minute: 0-11,050/0-34,000.
• Product length: 177 mm.
• Power: 500 W.
• Max. Drilling capacity (wood): 55 mm.
• Emission sound pressure level: 93 dB(A).
• Sound power level: 101 dB(A).
• Uncertainty for the indicated sound power level: 15 dB(A).
• Drilling in metal:
- Vibration emission value ah,D: <2.5 m/s^2.
- Uncertainty K= 1.5 m/s^2.
• Drilling in concrete:
- Vibration emission value ah,D: 11.
- Uncertainty K= 1.5 m/s^2.
DCD85M Features
• BRUSHLESS MOTOR: Delivers high performance, extends tool life, and allows for a much shorter design.
• 14-POSITION ADJUSTABLE TORQUE CONTROL: For consistent screwdriving in a variety of materials.
• 3-MODE LED WITH PIVOTING FUNCTION: For better work in low-visibility areas.
• ULTRA COMPACT AND LIGHTWEIGHT DESIGN: Allows use in tight spaces.
• TWO-SPEED TRANSMISSION FOR ALL METALS: For greater runtime and longer life of the tool.
• ANTI-ROTATION SYSTEM: For greater control in hooding situations.

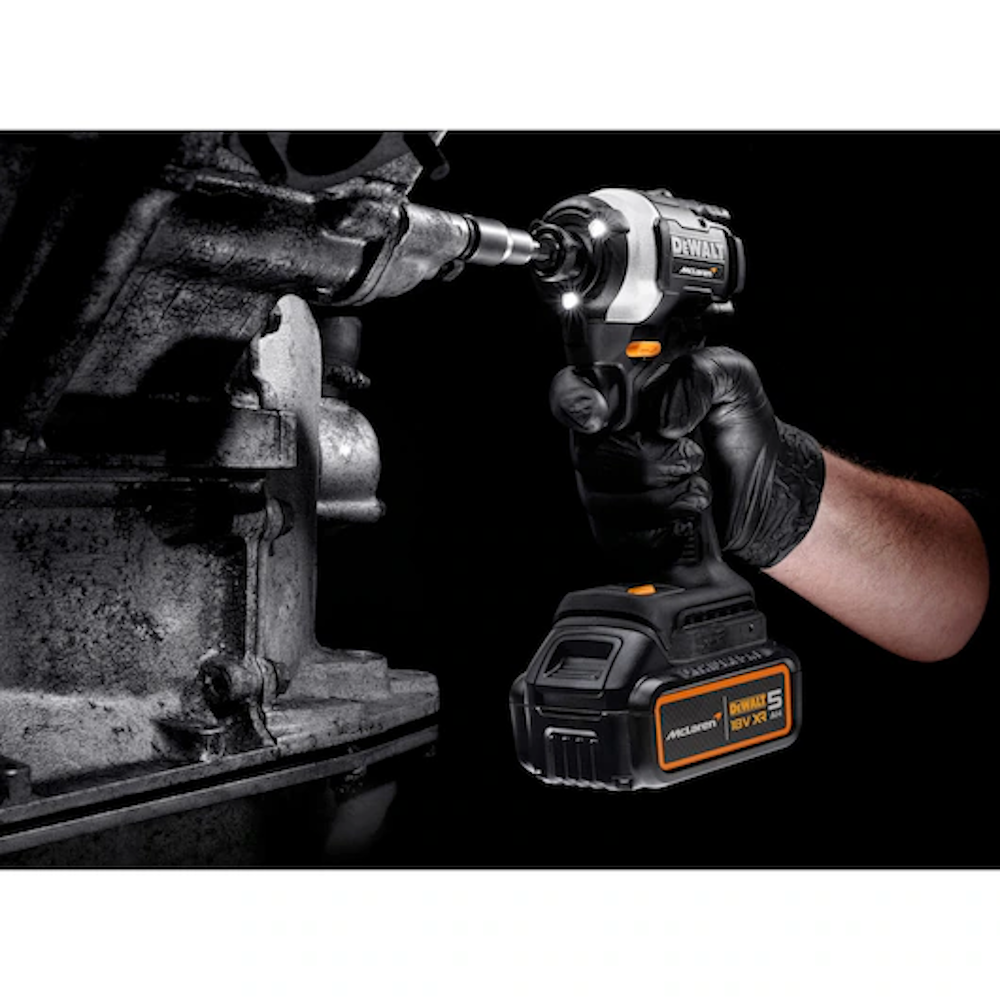

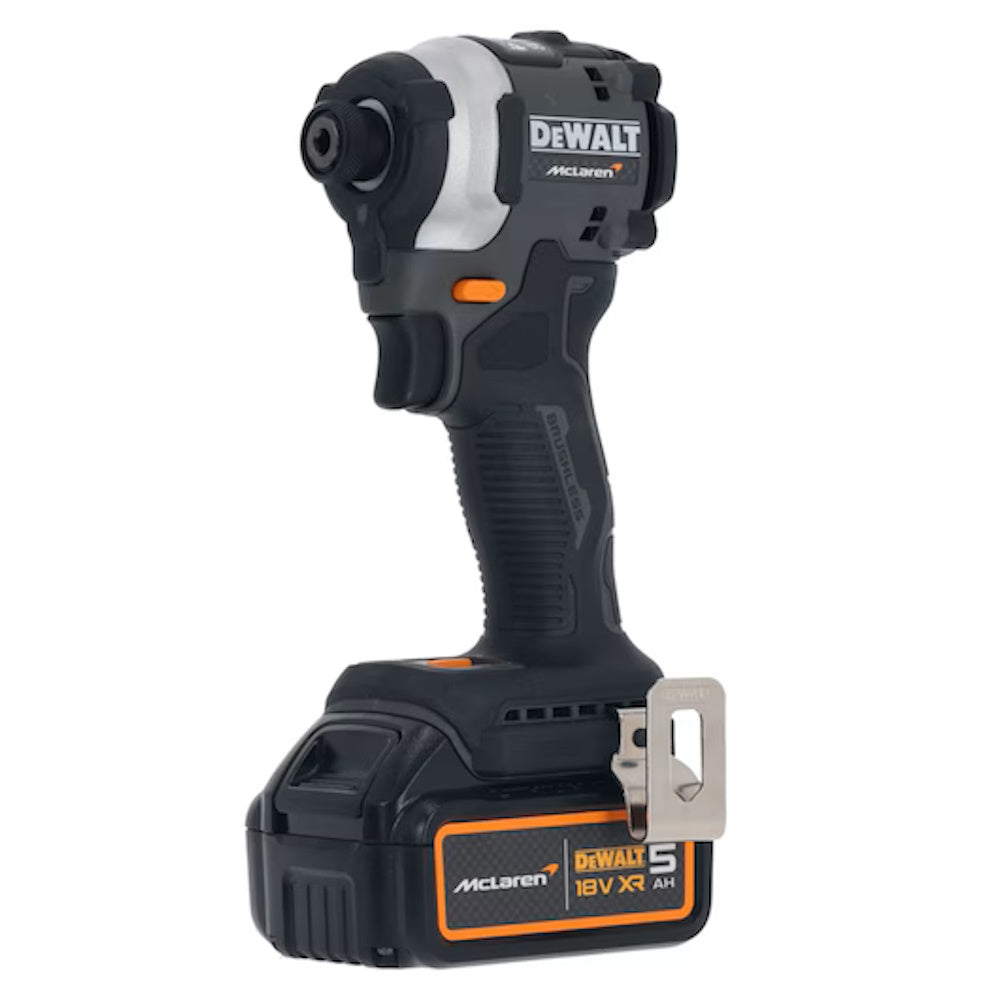

Technical data DCF85M
• Battery voltage: 18 V.
• Battery capacity: 5 Ah.
• Tool length: 101 mm.
• Battery quantity: 2.
• Number of modes: 3.
• Product weight (including battery): 1.22 Kg.
• Gross product weight: 0.9 Kg.
• Number of speed settings: 3.
• Maximum torque: 205 Nm.
• Impact rate per min.: 0-3800.
• Power: 475 W.
• LED light.
• Speeds: 0-1000/2800/3250 rpm.
• Emission sound pressure level: 91 dB(A).
• Sound power level: 99 dB(A).
• Uncertainty for the given sound power level: 3 dB(A).
• Vibration emission value ah,D: 18.5 m/s^2.
• Uncertainty K= 1.7 m/s^2.
DCF85M Features
• BRUSHLESS MOTOR: Offers high performance, extends tool life and allows for a much shorter design.
• PORTABLE AND LOADING: For one-handed use.
• 3X LED RING: For excellent illumination of the workpiece.
• ULTRA COMPACT AND LIGHTWEIGHT DESIGN: Allows use in confined spaces.
• UP TO 205 Nm OF TORQUE: Allows for difficult applications.
