Description

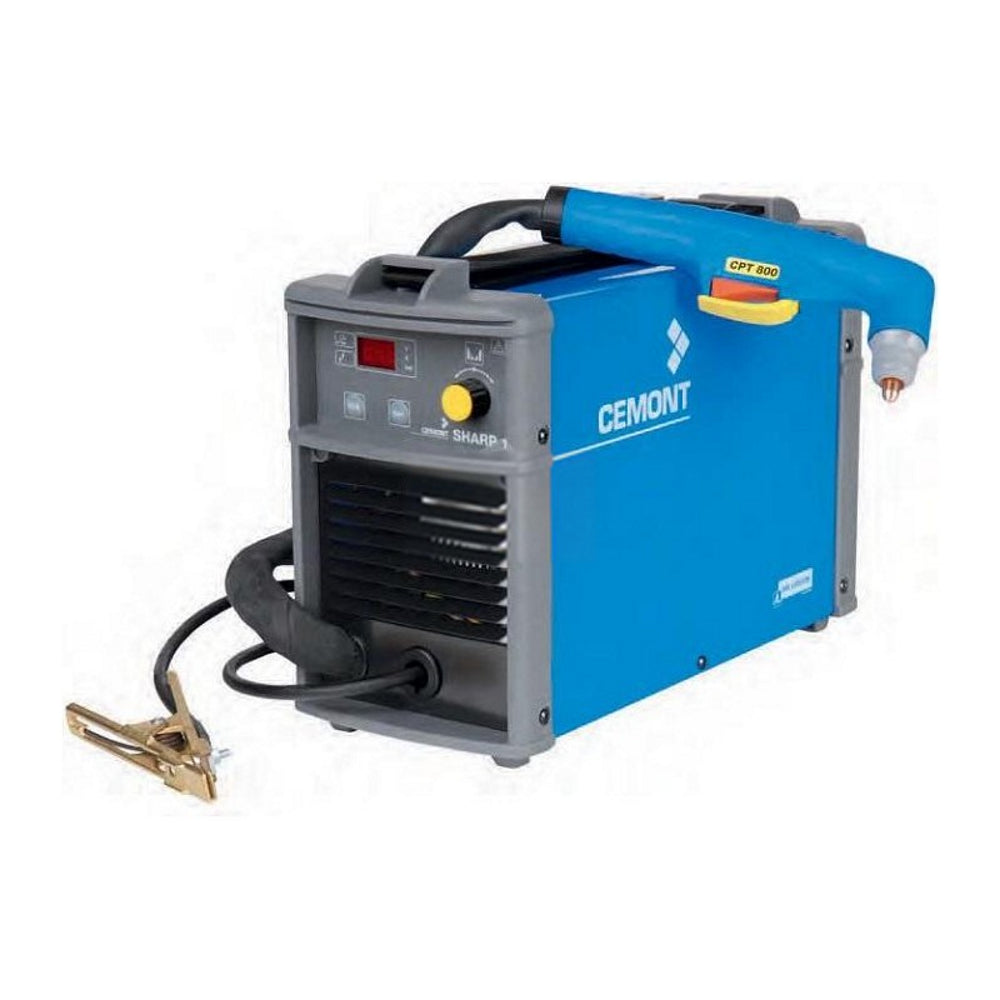

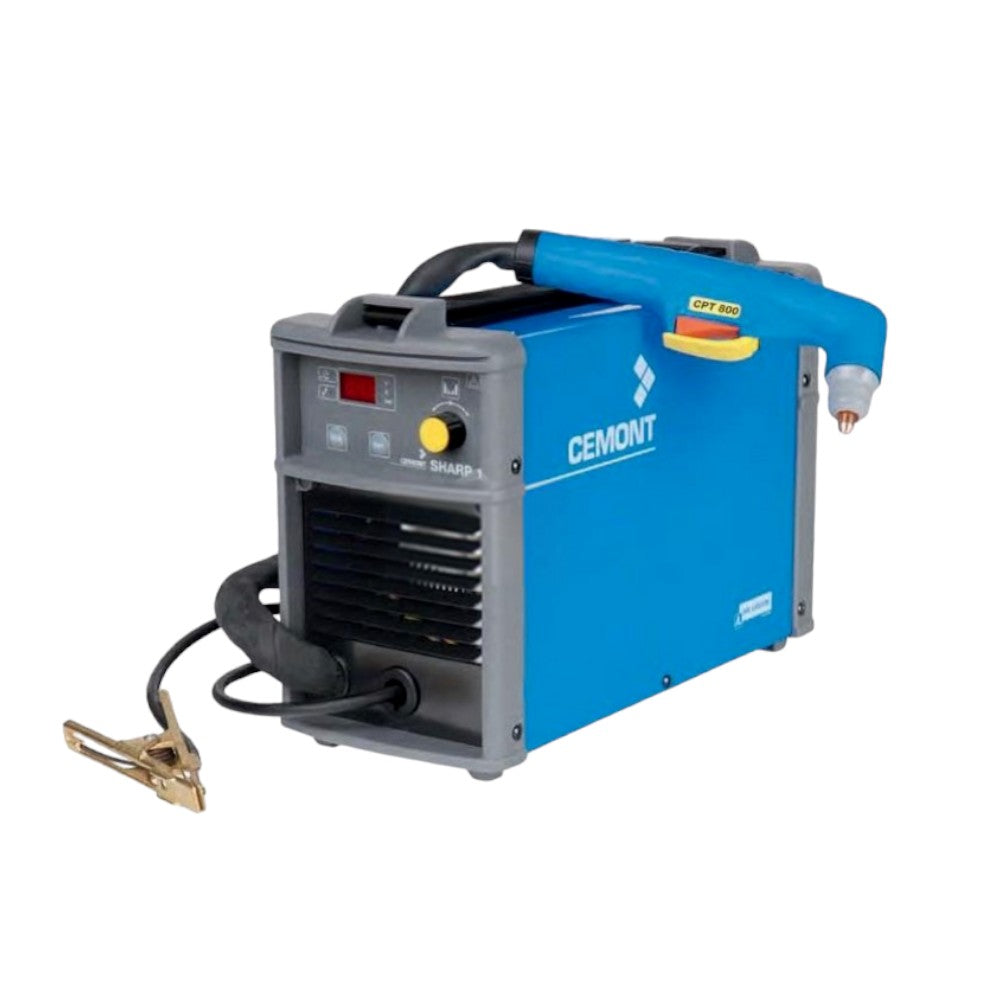

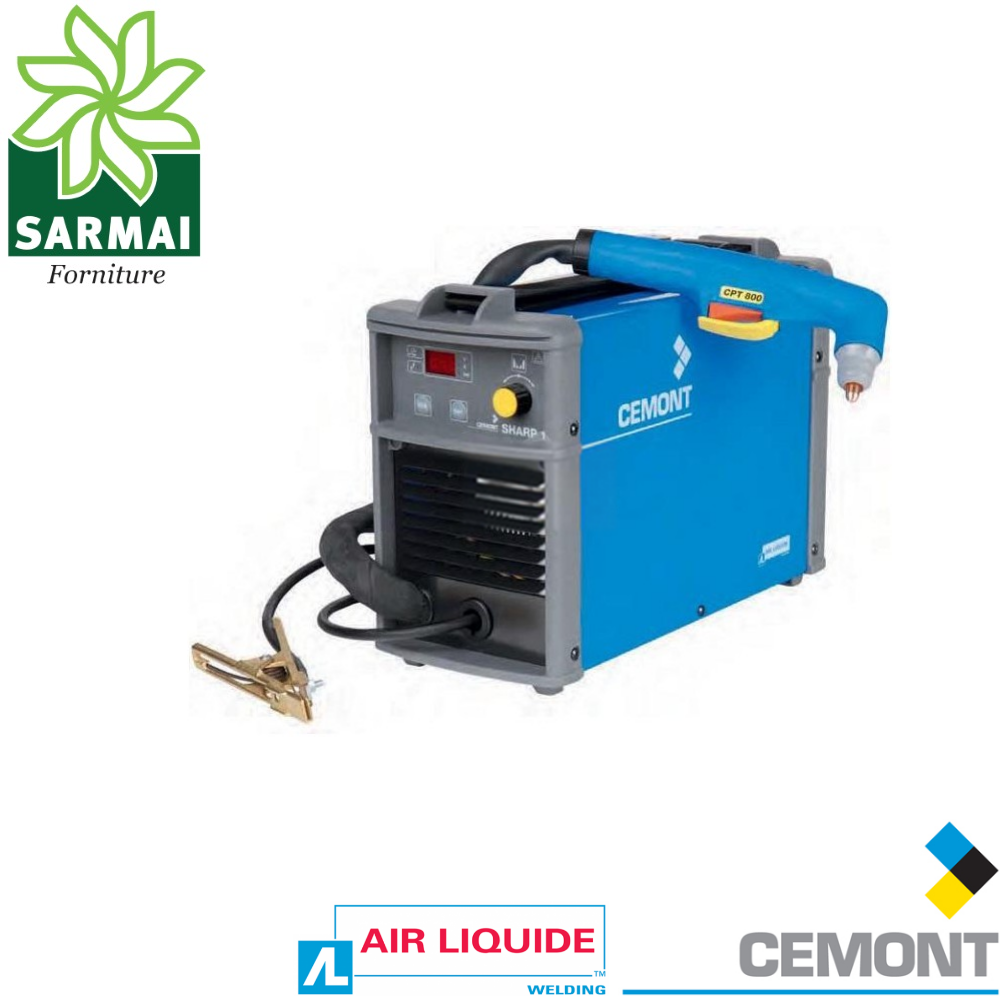

CEMONT Sharp 10 Single-phase inverter plasma generator
SHARP 10 is a manual plasma cutting system with inverter technology that ensures excellent current regulation, with excellent cutting quality.
Features
• Lightweight: easy to carry (only 8 kg)
• Contact cutting: better cutting quality and reduced smoke emissions
• Complete: shipped ready to use
• Digital display: for better adjustment and excellent reading of the parameters
• Cutting capacity (on steel): 6 mm quality - 8 mm separation
Technical Specifications
• Single-phase power supply: 230 V +/-10% 50-60 Hz
• Max. absorbed current: 23 A
• Effective current: 14 A
• Absorbed power: 5 KVA -3.1 KW
• No-load voltage: 300 V
• Compressed air consumption: > 100 l/min - 3/4 bars
• Current range: 10 - 30 A
• Duty cycle at 40°C 35%: 30A
• Duty cycle at 40°C 60%: 25A
• Duty cycle at 40°C 100%: 20A
• Compressed air pressure/flow rate: 4 bar - 100 l/ min
• Protection index: IP 23S
Dimensions
• Dimensions: 380 x 160 x 310 mm
• Weight: 8 kg
Standard equipment
• Power cable with 16 A plug
• Equipped ground cable
• Assembled torch with wearing parts
• Manual for use, maintenance and safety
