Description

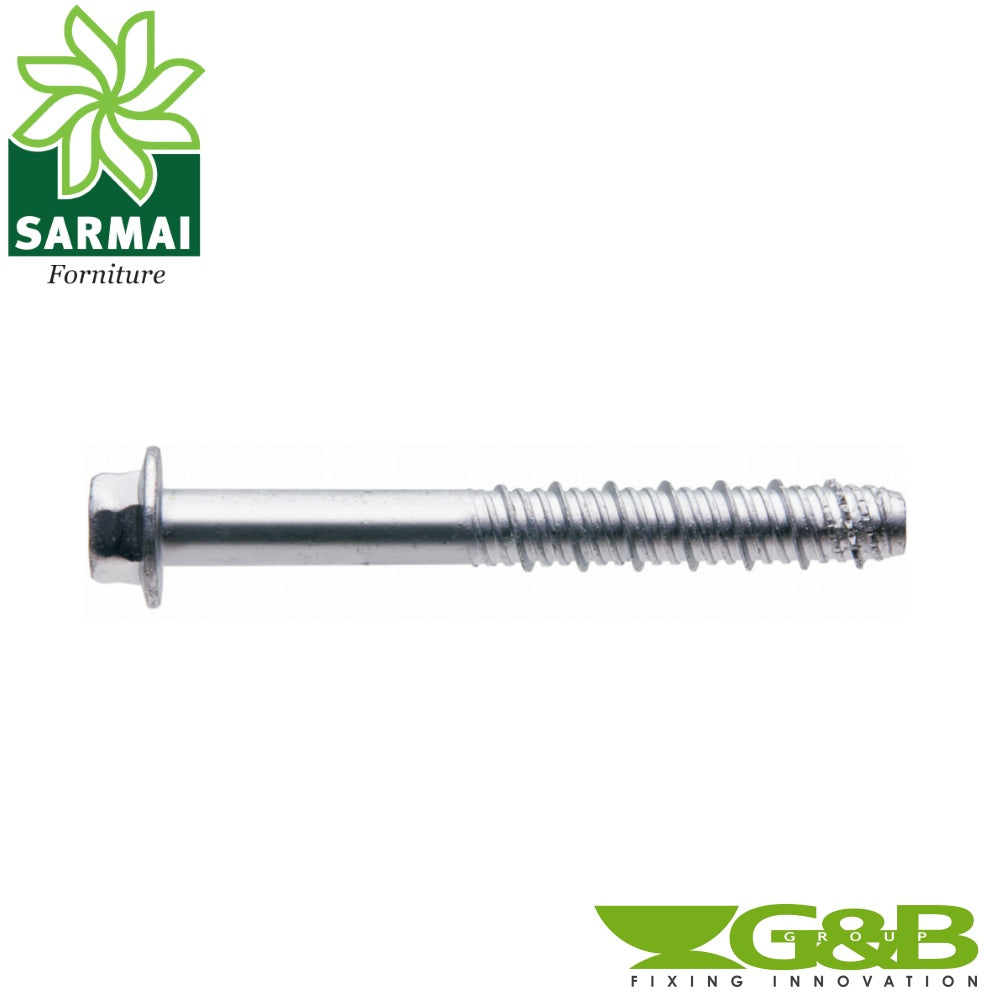

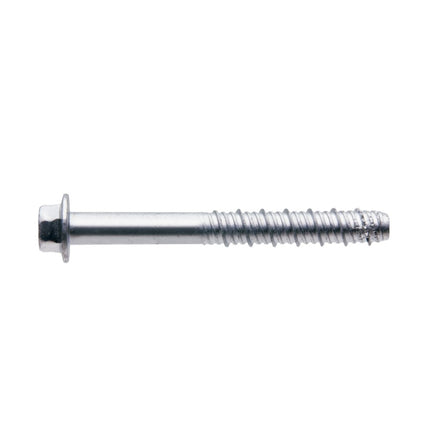

GETO PLUS TEFL self-tapping anchor with flanged hex head – CE 1
Self-tapping through-hole anchor for direct fastening of light and heavy loads to compact supports. The new thread ensures faster installation and high performance with smaller drilling diameters and no prescribed tightening torque: simply insert the anchor completely. It does not exert expansion forces and allows installations close to edges; it is completely removable and reusable. Suitable for dry internal use and temporary external use. The head is flanged hex. The product is CE Option 1 certified for cracked and non-cracked concrete and certified for F120 fire resistance. The special thread allows direct insertion into the hole, ensuring quick installation and high load values, reducing stresses in the substrate and allowing applications close to edges and with close spacing. Thanks to the possibility of reuse in the same hole, it is suitable for temporary fastenings such as anchoring facade scaffolding or fixings for periodic maintenance. Suitable for compact materials such as stone, concrete, and solid brick; Designed for through-hole fastening.
Table of dimensions and loads
| Art. |
Ø × L t mm |
Description |
Ø hole mm |
t fix mm |
Packaging pcs |
| 87086 |
7.5×60 |
GPTEF6/60 |
6 |
5 |
100 |
| 87087 |
7.5×80 |
GPTEF6/80 |
6 |
25 |
100 |
| 87088 |
7.5×100 |
GPTEF6/100 |
6 |
45 |
100 |
| 87138 |
10×70 |
GPTEF8/70 |
8 |
5 |
50 |
| 87139 |
10×80 |
GPTEF8/80 |
8 |
15 |
50 |
| 87140 |
10×100 |
GPTEF8/100 |
8 |
35 |
50 |
| 87141 |
10×120 |
GPTEF8/120 |
8 |
55 |
25 |
| 87142 |
12×90 |
GPTEF10/90 |
10 |
5 |
25 |
| 87097 |
12×100 |
GPTEF10/100 |
10 |
15 |
25 |
| 87098 |
12×120 |
GPTEF10/120 |
10 |
35 |
25 |
| 87099 |
12×140 |
GPTEF10/140 |
10 |
55 |
25 |
