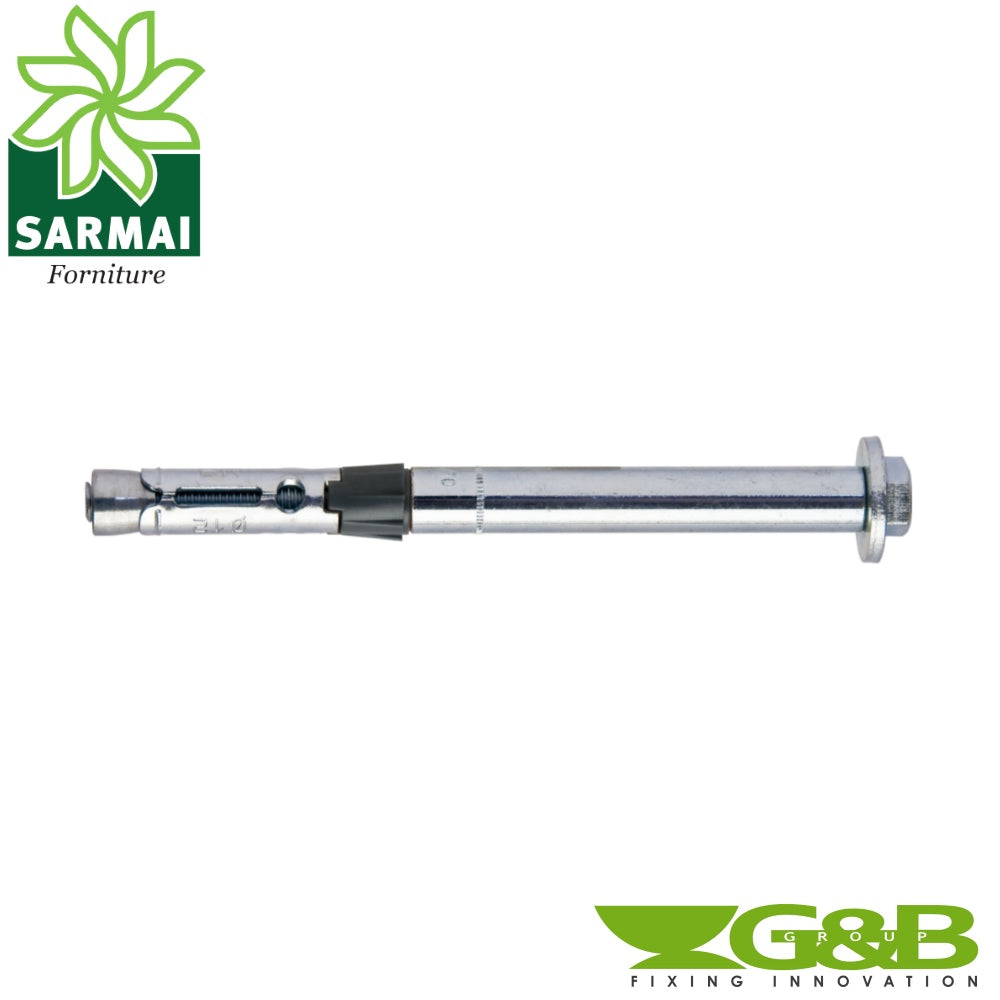

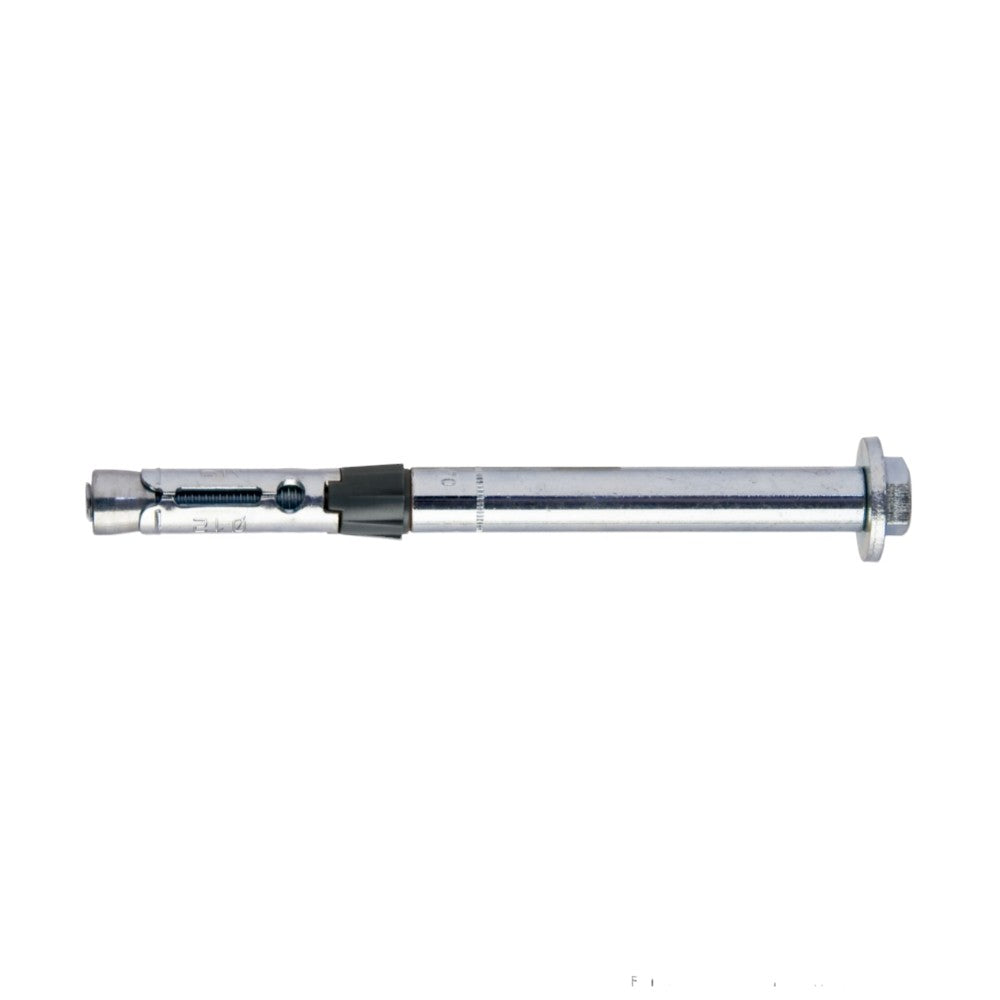

Name: Anchor Anchors G&B GAMMA Steel CE 1 Hex screw 8.8 and washer
Brand: G&B
SKU: GB44080_20PZ
Price: 79.0 EUR
Availability: InStock

Anchor Anchors G&B GAMMA Steel CE 1 Hex screw 8.8 and washer

G&B

Description

GAMMA steel anchor CE 1 with 8.8 hex head screw and washer

Controlled expansion anchor designed to support heavy loads on compact supports. CE-certified option 1 for applications on concrete in cracked and non-cracked tension zones, with F120 fire resistance and approved for applications in seismic areas, categories C1 and C2. The anchor's geometry ensures perfect expansion and high load values. The plastic spacer prevents rotation of the anchor during tightening; notches on the spacer indicate the correct installation depth. Suitable for structural fastenings of metal and wooden carpentry, industrial floor-mounted machinery, industrial shelving, and metal plates. Supplied with an 8.8 steel hex head screw and an 8.8 hex socket head cap screw for through-hole fastenings in stone or concrete.

GAMMA steel anchor dimensions
Art.	Description	d₀ mm	L_t mm	Filet	L_v mm	t_fix mm	h₁ mm	h_nom mm	h_ef mm	d_f mm	Ch mm	T_inst Nm
44077	HG10/70V	10	70	M6	70	5	80	65	55	12	10	15
44078	HG10/100V	10	100	M6	100	35	80	100	85	12	13	30
44079	HG12/100V	12	100	M8	100	30	90	70	60	14	13	30
44080	HG12/120V	12	120	M8	120	50	120	90	80	14	17	50
44081	HG16/120V	16	120	M10	120	40	100	80	70	18	17	50
44082	HG16/140V	16	140	M10	140	60	100	80	70	18	17	50
44083	HG18/120V	18	120	M12	120	20	120	100	90	20	19	100
44084	HG18/150V	18	150	M12	150	50	120	100	90	20	19	100
44085	HG24/140V	24	140	M16	140	20	140	120	105	26	24	160
44086	HG24/170V	24	170	M16	170	50	140	120	105	26	24	160
