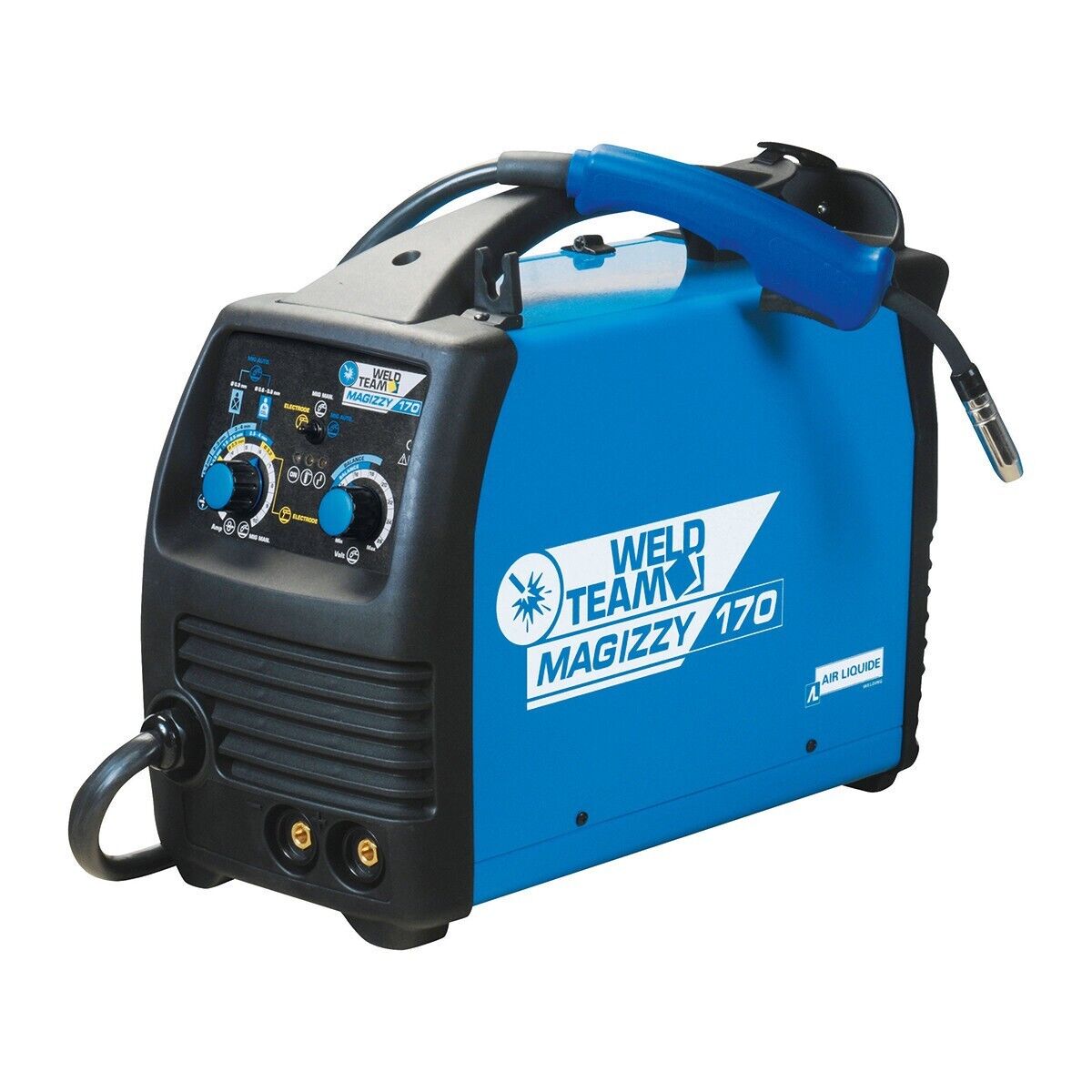

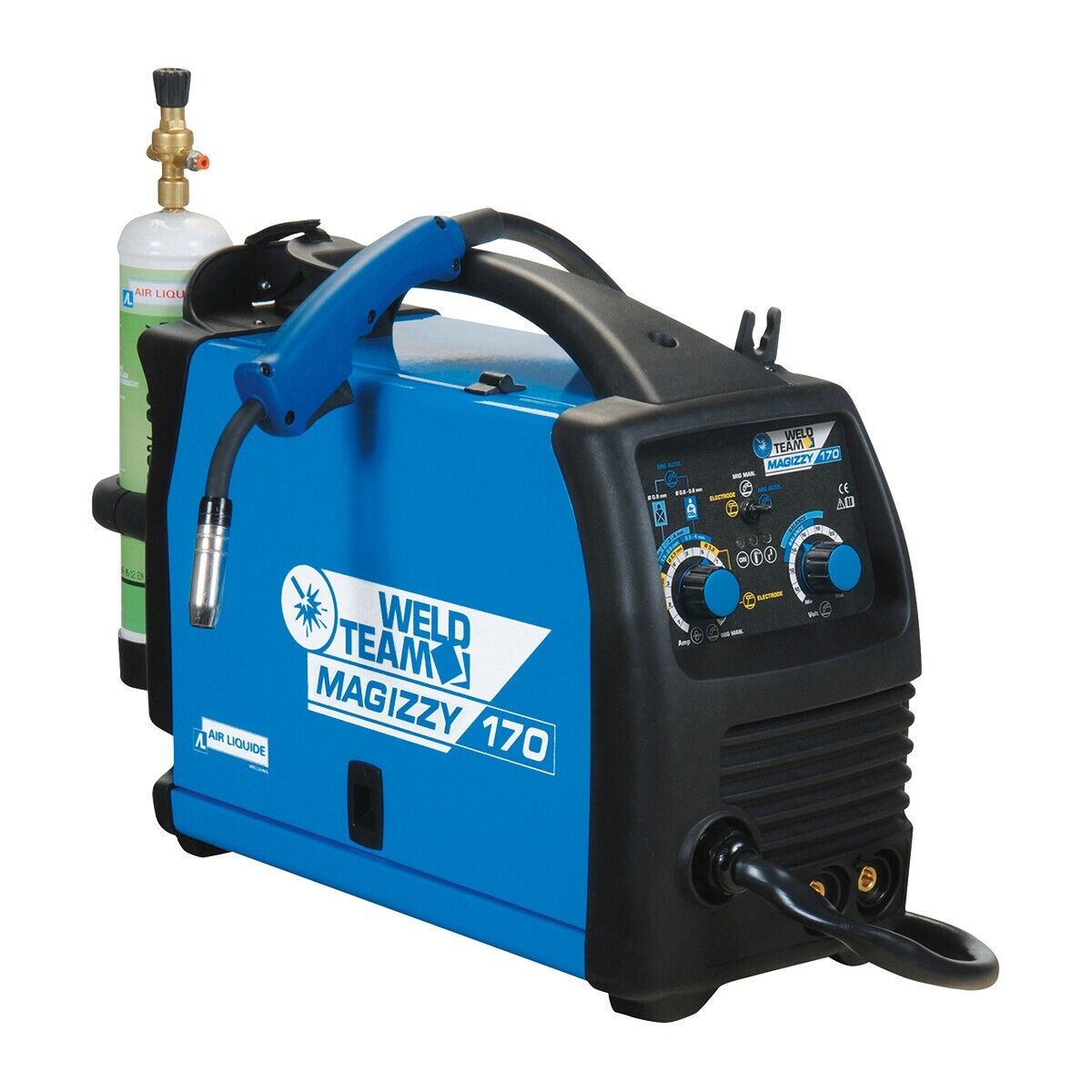

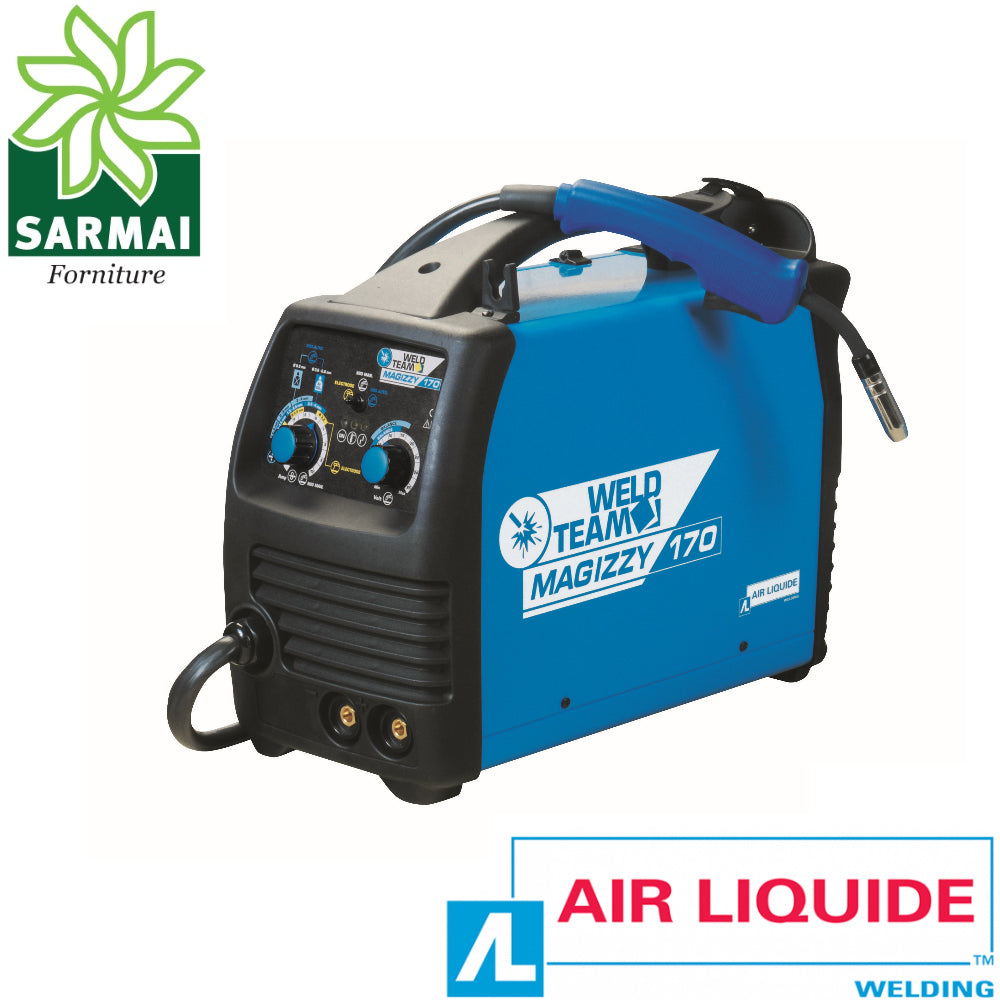

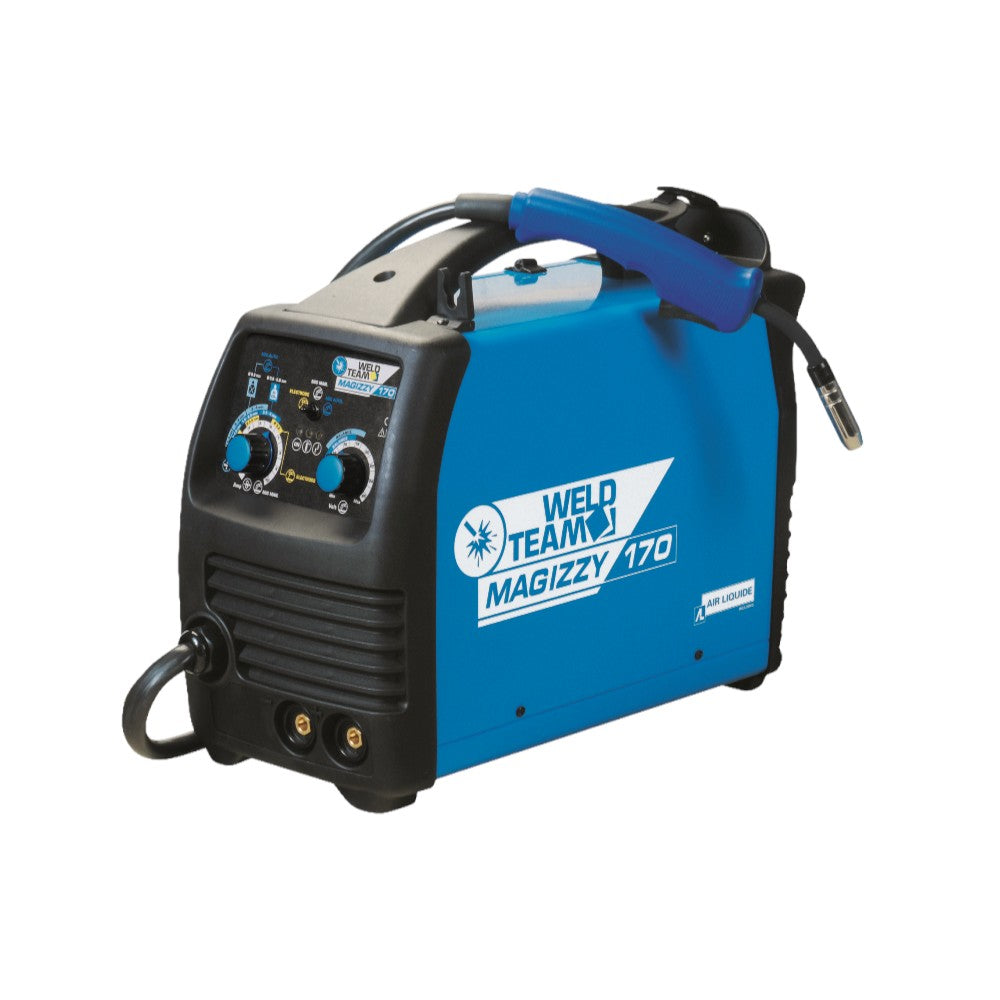

AIR LIQUIDE Weld Team MAGIZZY 170 Multiprocess Inverter Welding Machine
MAGIZZY 170 is a single-phase MIG/MAG, MMA inverter compatible with motor generators, compact, easy to transport, with excellent welding quality and optimal arc control. Very simple to use, it can weld with both traditional wire and No Gas wires by reversing the polarity. It welds rutile electrodes in MMA.
Features and advantages
• Latest generation inverter with excellent performance and reduced energy consumption
• Excellent weldability in MMA of rutile electrodes
• Welds solid wire with gas - Wire animated with NO-GAS technology
• Usable coils diameter: 100 mm and 200 mm
• Current range +/-10%
• CE compliant
• Excellent handling

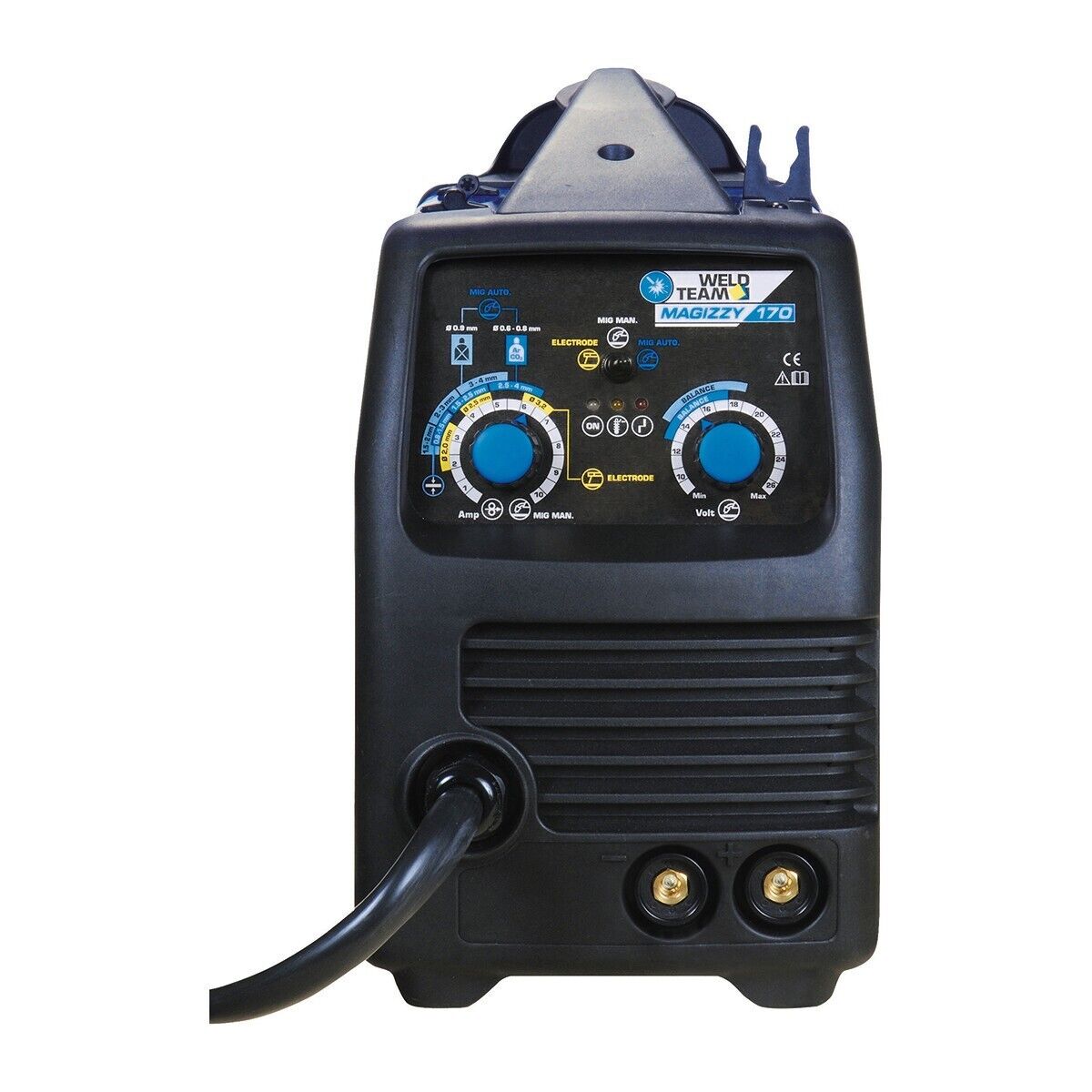

• Intuitive front control panel
• GAS - NO GAS
Technical specifications
• Power supply: 230 V (+/- 10%) 1ph
• Mains frequency 50/60 Hz
• Effective absorption: 3.2 kVA(MMA) - 2.7 kVA MIG/MAG)
• Open circuit voltage: 55 V(MMA) - 27 V
• Current regulation: 20 - 160 A(MMA) - 25 - 170 A(MIG/MAG)
• Duty cycle at 40° 20%: 160 A(MMA) - 170 A(MIG/MAG)
• Duty cycle at 40° 60%: 95 A(MMA) - 100 A(MIG/MAG)
• Duty cycle at 40° 100%: 75 A(MMA) - 75 A(MIG/MAG)
• Voltage regulation: continuous
• Weldable wires: Ø 0.6 - 0.8 mm
• Wire feed plate: 2 rollers
• Insulation class: H
• Protection class IP 22 S
• Standards: EN 60974-1 / EN 60974-5 / EN 61000-10
Dimensions
• Dimensions (WxDxH): 480x220x385 mm
• Weight: 11 Kg
Included
• Long direct MIG/MAG torch 2.5 m
• 3 m power cable with Schuko socket
• 2 m long earth cable
• Gas hose
• MMA welding cables
• Wire feed rollers Ø0.6/0.8 mm and 0.8/0.9 mm for NO-GAS flux-cored wire

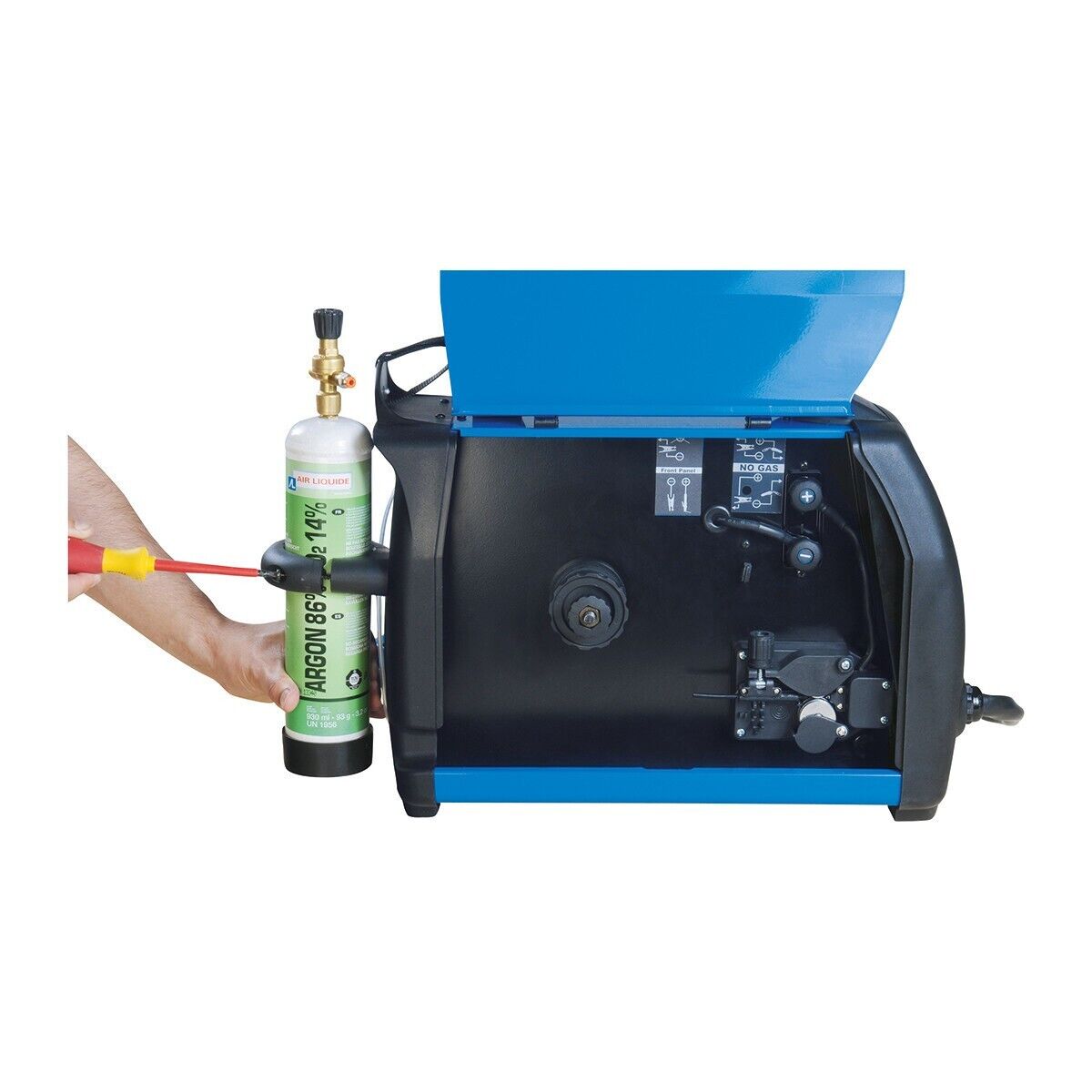

• Plastic support for disposable cylinder
• Use, maintenance and safety manual
