Description

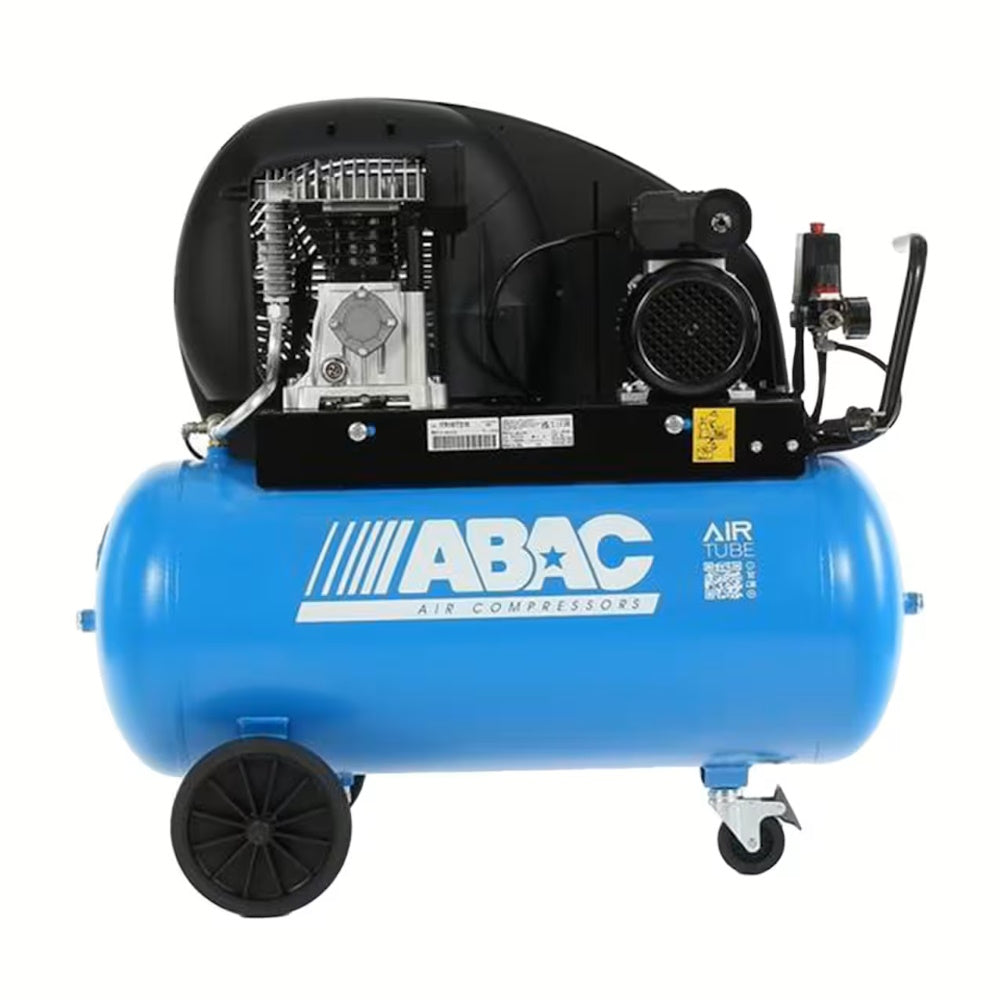

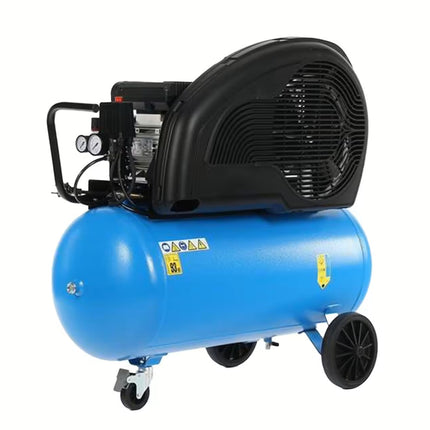

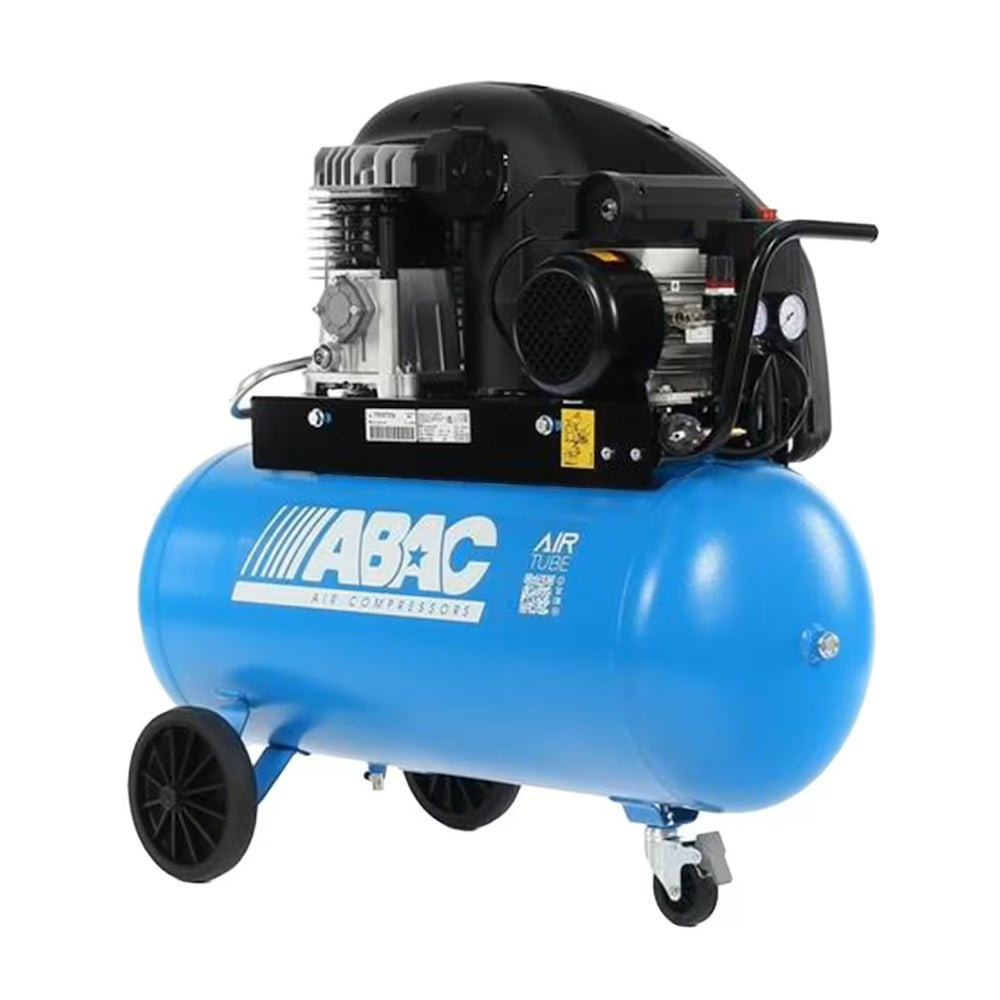

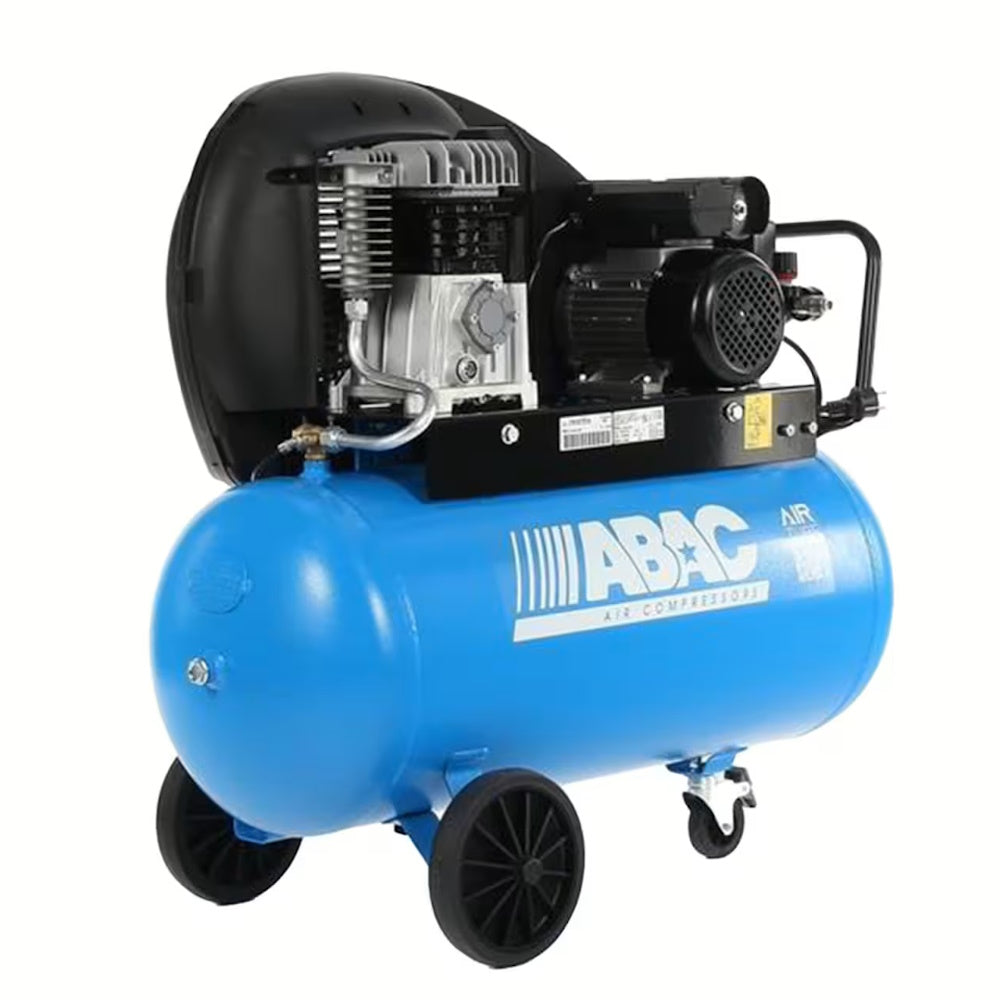

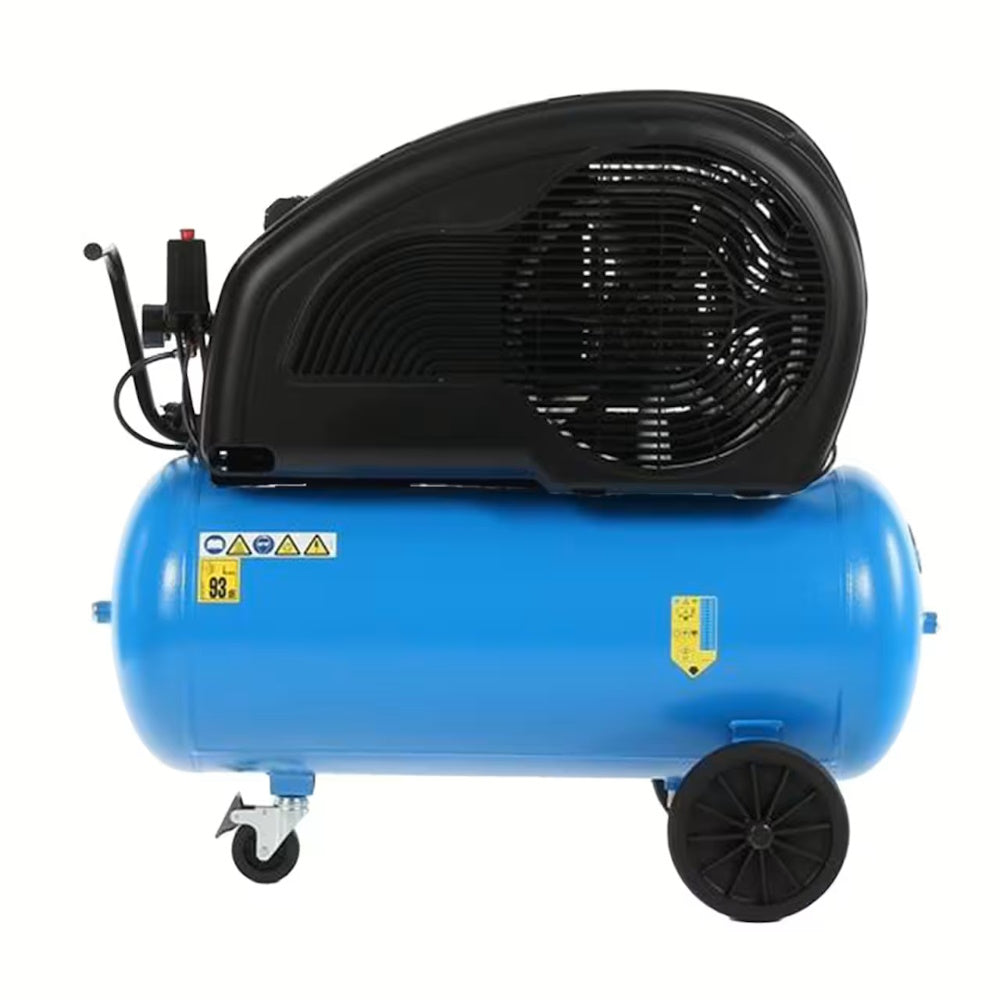

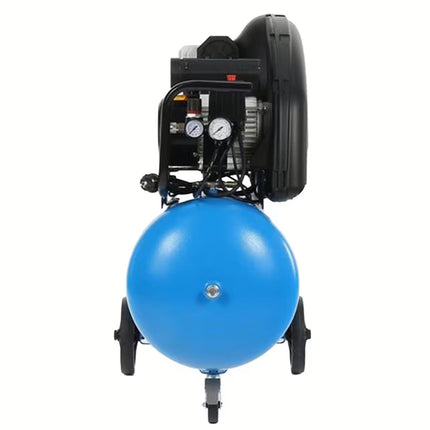

Abac 4116028200 compressor 90 lt EXT A29B CM2
ABAC's EXtTensive range is the result of meticulous design, aimed at providing a product that does not compromise on performance or value. Designed to meet every need, offering versatile solutions suitable for all users. The large rear wheels are among the most robust on the market and guarantee excellent stability. A range equipped with powerful motors combined with high-performance pump units with V-belt transmission that can cover a wide range of applications.
Technical features
- Robust single side handle
- Power supply: 230 V - 1 phase - 50 Hz
- Pressure reducer mounted on the pressure switch with quick coupling for connecting compressed air.
- 200 mm rear wheels designed for high resistance, as well as 1 front swivel wheel with brake.
Technical Data
• Tank size: 90 litres
• Maximum pressure: 10 Bar
• Maximum pressure: 145 PSI
• Pump type: Single-stage
• Pump speed: 1075 Rpm
• Air intake flow rate: 255 l/min
• Air intake flow rate: 14.6 m³/h
• Lubrication: Oil lubricated
• Motor: 2 Hp - 1.5 Kw
• Transmission type: Belt
• Power supply voltage: 230 V
• Frequency: 50 Hz
• Number of phases: 1
• Noise emission level: 69 dB(A)
• Transport wheels: Yes
• Dimensions: 101x41xh98 cm
• Weight: 59 kg
