Description
13 mm keyless chuck

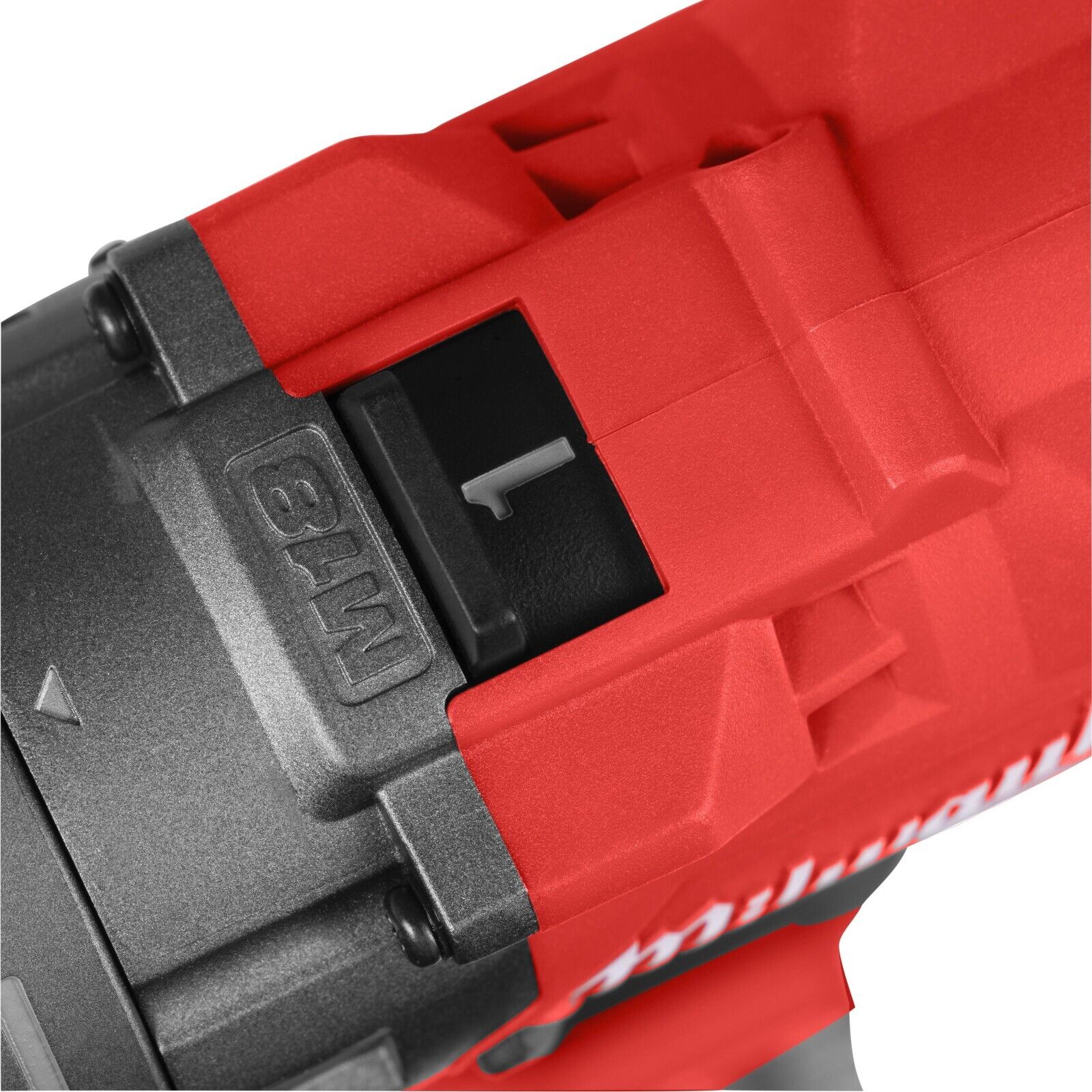

Speed 1: 0 - 500 rpm
Speed 2: 0 - 2100 rpm
Weight with battery pack (epta): 2.2 kg (m18 b5

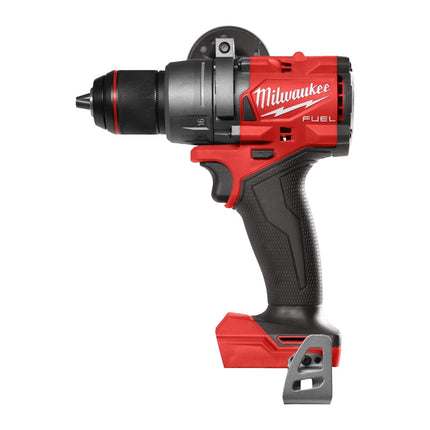

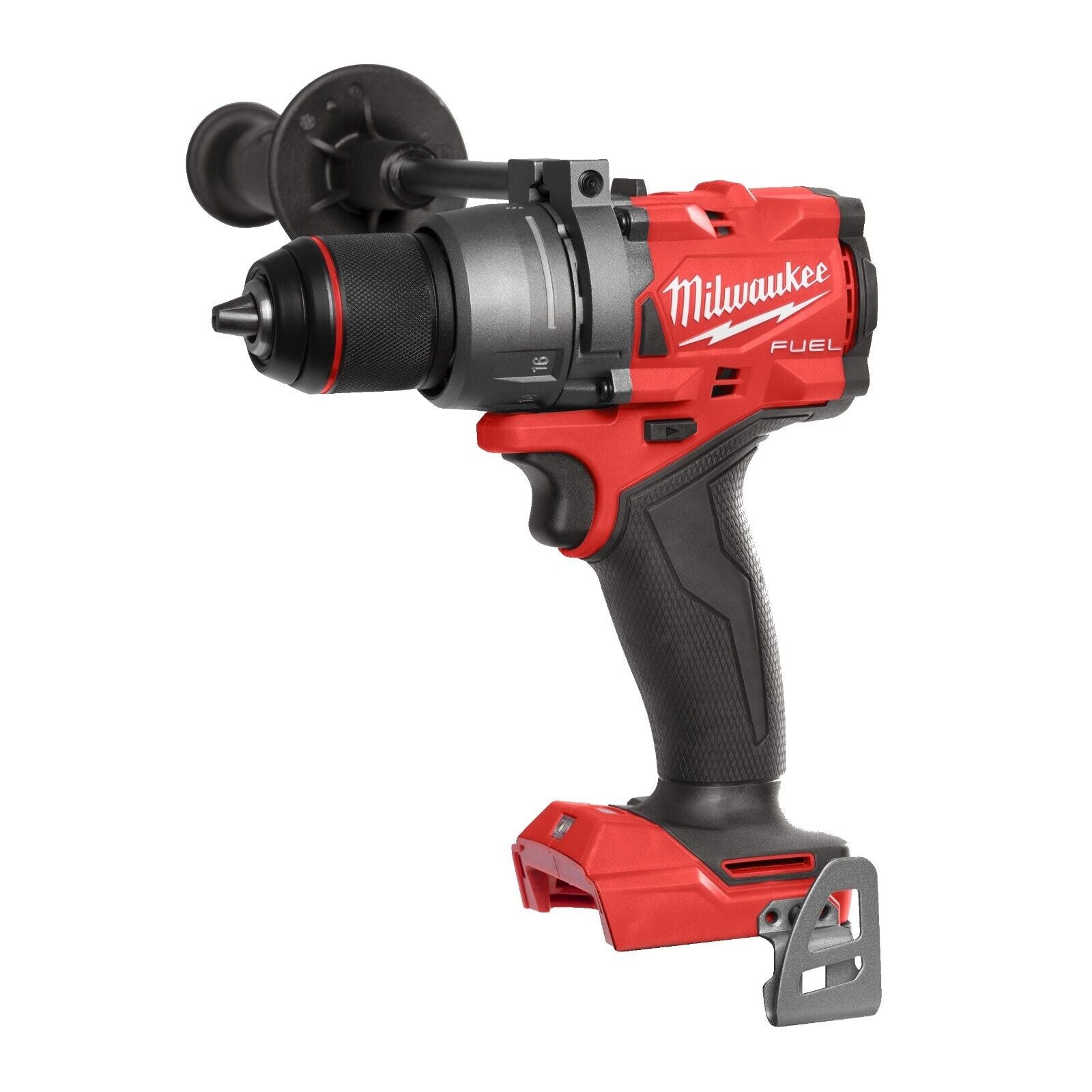

DRILL M18 FUEL HAMMER DRILL
■ Thanks to the torque of 158 Nm it allows you to complete the most difficult jobs
■ Only 175 mm long. It allows you to access even the narrowest spaces
■ Thanks to the AUTOSTOP™ function, the drill protects the operator from hyper-rotation of the limb. The M18 FPD3 in fact stops automatically, protecting the user and signaling the activation of the AUTOSTOP™ function by turning on a light on the bottom of the drill
■ 13 mm chuck mm all-metal, with carbide teeth for maximum durability and tip retention
■ Quick applications even under stress
■ The brushless POWERSTATE™ motor delivers maximum torque to complete all operations

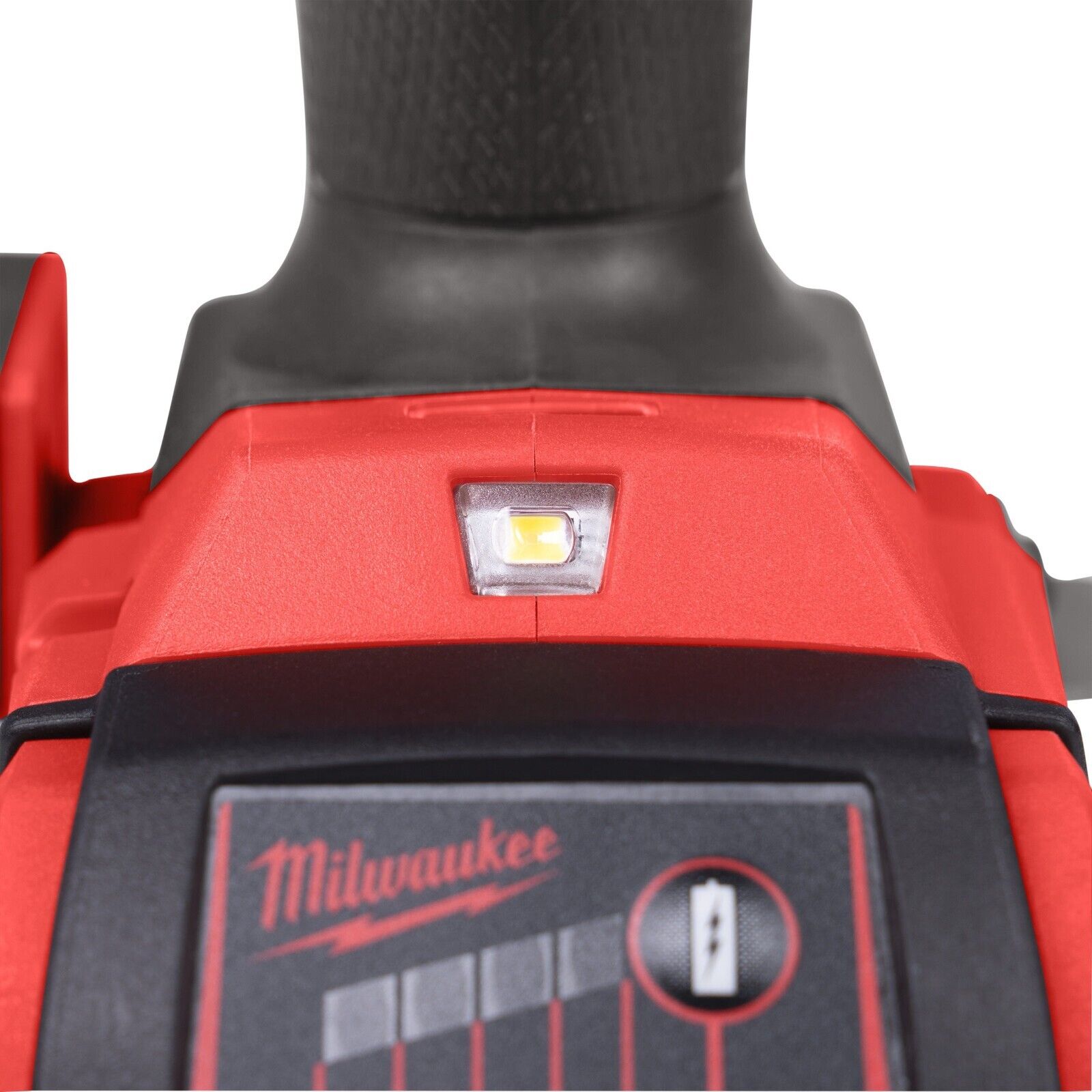

■ Display indicating the remaining charge
■ The mechanical clutch allows the use of a wide range of screw sizes and types
■ Optimized electronics for maximum autonomy
■ FUEL™ technology redefines cordless power tools. The brushless motor and REDLINK PLUS™ electronics offer superior performance and durability
■ Works with all MILWAUKEE® M18™ batteries

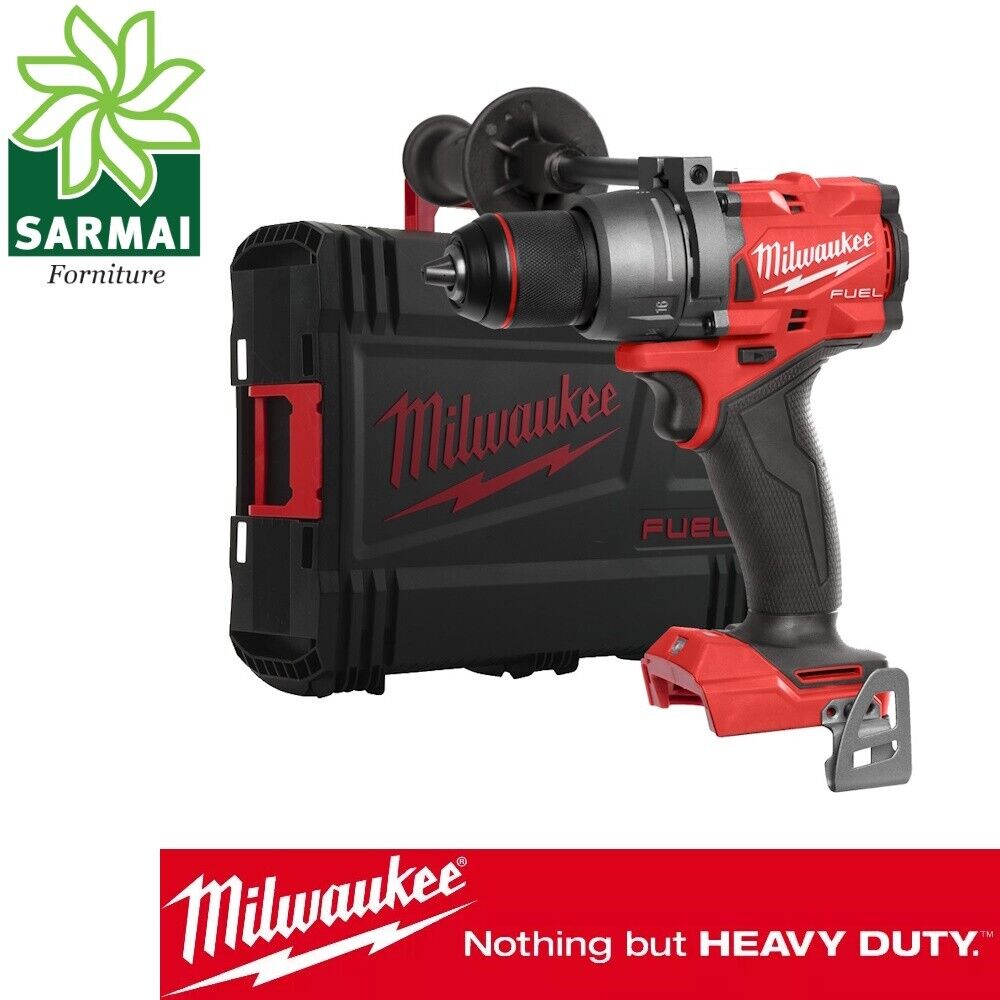

Included

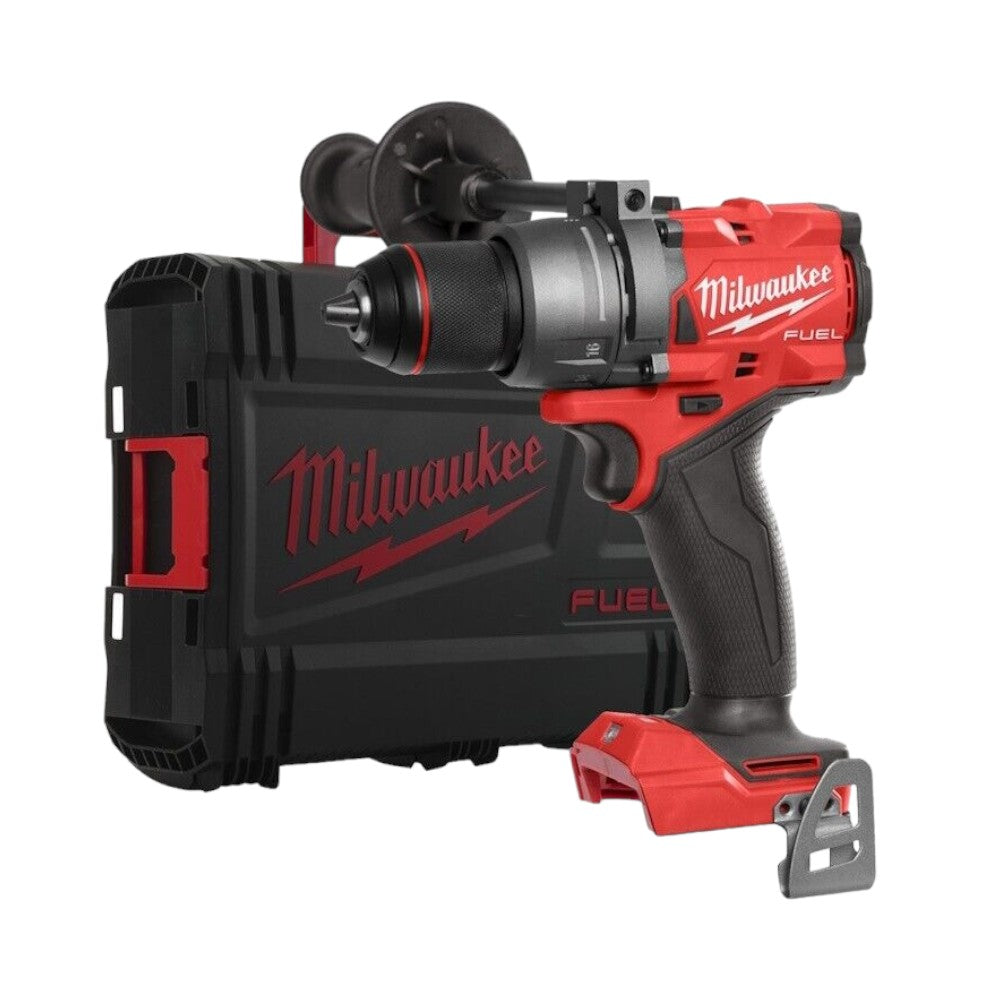

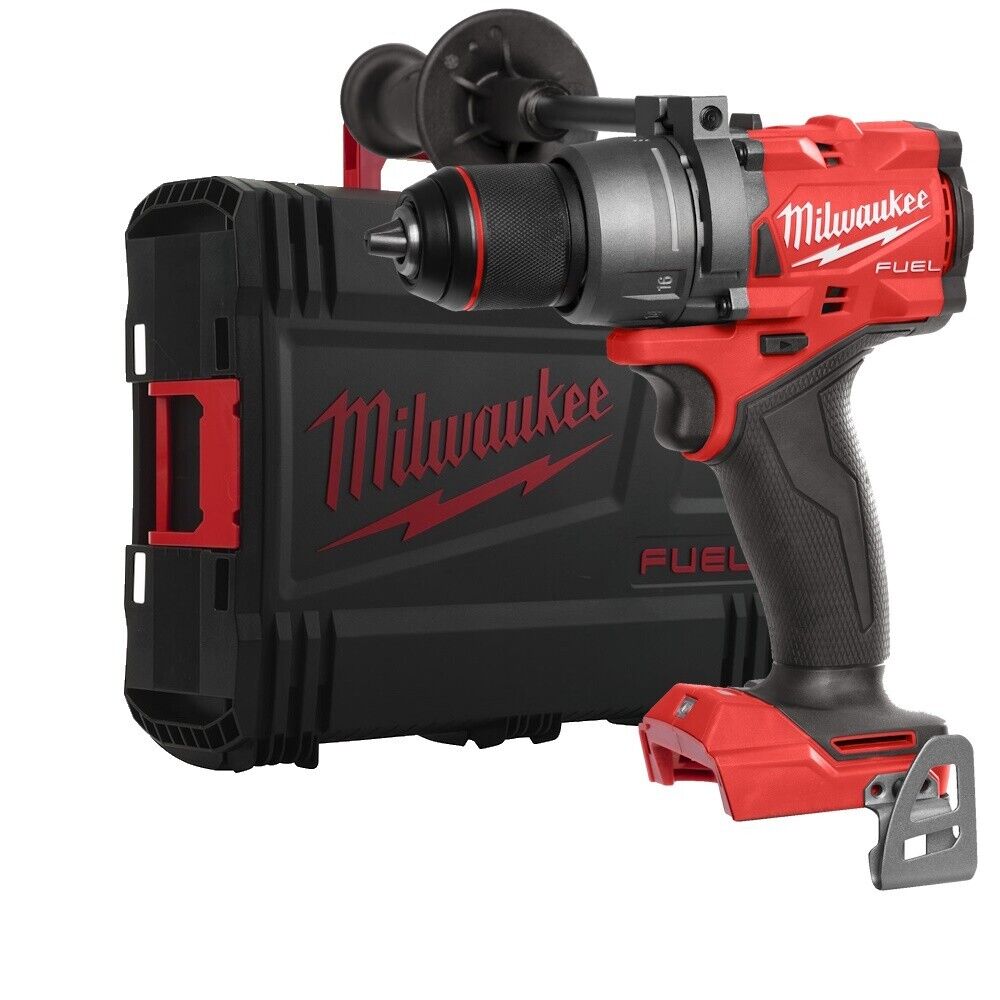

■ M18 FPD3-0X impact drill driver
■ Auxiliary handle
■ Heavy-duty case
■ Without battery and charger
Technical data
■ Max. drilling capacity in wood: 89 mm
■ Cap max drilling capacity metal: 16 mm
■ Max drilling capacity masonry: 16 mm
■ Max. torque: 158 Nm

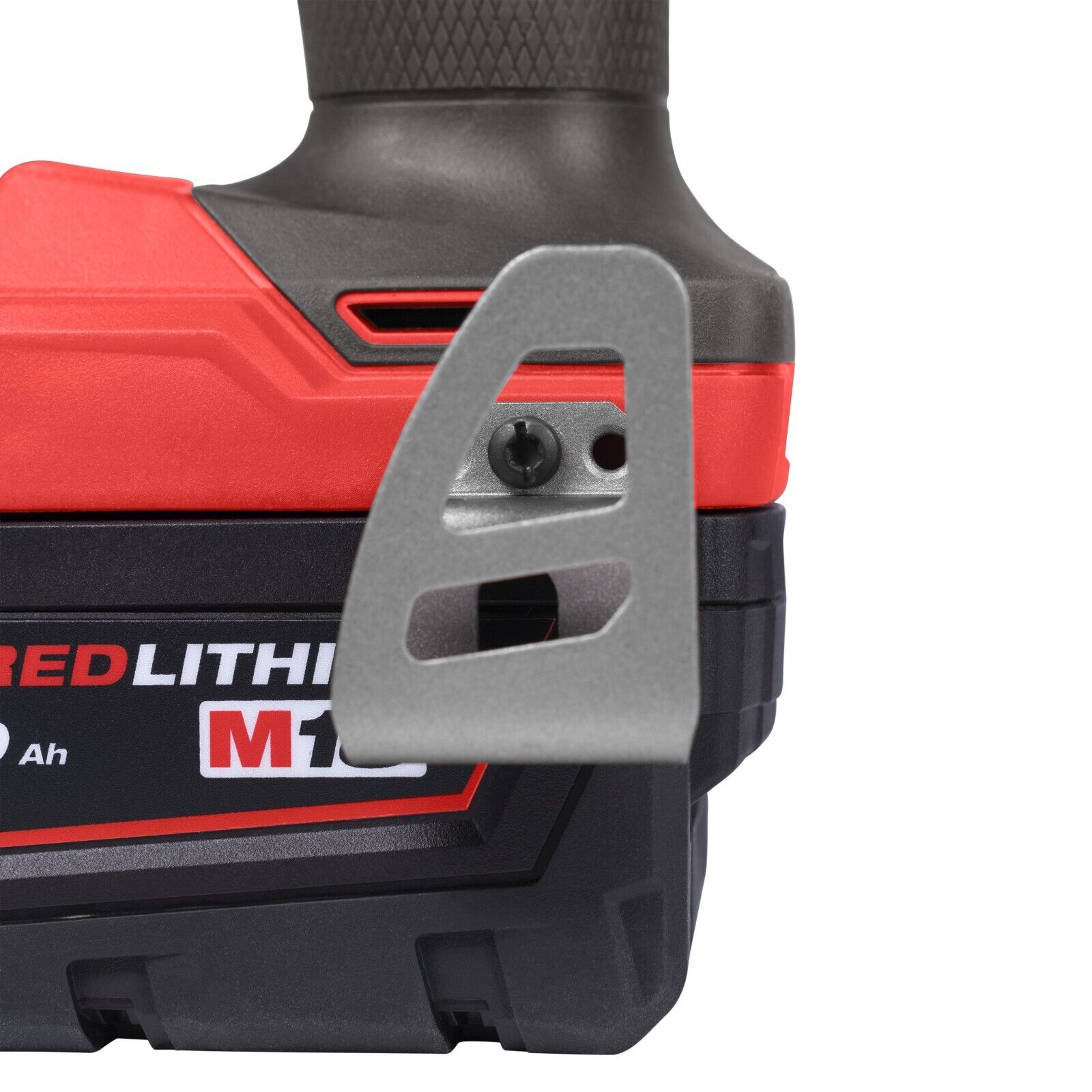

■ Standard equipment: belt clip, additional handle
■ Supplied in: heavy-duty case
■ Impact rate: 0 - 33,000 bpm
■ 13 mm keyless chuck
■ Speed 1: 0 - 500 rpm
■ Speed 2: 0 - 2100 rpm
■ No-load speed: 0 - 2100 rpm
■ Speed at vacuum: 0 - 500 m/min
■ Weight with battery pack (epta): 2.2 kg (m18 b5)
■ Uncertainty sound power level: 3 db(a)
■ Uncertainty sound pressure level: 3 db(a)
■ Sound power level (lwa): 106.78 db(a)
■ Sound pressure level (lpa): 95.78 db(a)
■ Vibration uncertainty screwing 1.5 m/s²
■ Vibration uncertainty drilling concrete: 1.5 m/s²
■ Vibration uncertainty drilling metal: 1.5 m/s²
■ Vibration when screwing: 1.48 m/s²
■ Vibration when drilling in concrete: 11.3 m/s²
■ Vibration when drilling in metal: 1.85 m/s²
